Каталог

Япония

Модель

DYNA/TOYOACE

VIN

Дата

2021/03

Двигатель

4 литра, дизель

Фрейм

XZU722

КПП

автомат АКПП, 6 скоростей

Опции

SINGLE CARBURETOR:SINGLE CAB (FULL JUST LOW) 3 тонны DOUBLE TIRE DCWDOCBU 878W

REAR BODY SIDE PANEL TOYOTA DYNA/TOYOACE

Код

Описание

65500

PANEL ASSY, REAR BODY SIDE, RH

65500G

BOLT, W/WASHER(FOR SIDE GATE, RH)

65600

PANEL ASSY, REAR BODY SIDE, LH

65600H

BOLT, W/WASHER(FOR SIDE GATE, LH)

65630B

LOCK ASSY, SIDE GATE, RH

65630C

LOCK ASSY, SIDE GATE, LH

65679G

SEAL, SIDE GATE

65679H

SEAL, SIDE GATE

66110C

HINGE ASSY, SIDE GATE, NO.1 RH

66120C

HINGE ASSY, SIDE GATE, NO.1 LH

66151B

LATCH, SIDE GATE, FRONT RH

66152A

LATCH, SIDE GATE, FRONT LH

66153D

LATCH, SIDE GATE, REAR RH

66154D

LATCH, SIDE GATE, REAR LH

66187A

LATCH, SIDE GATE SUPPORT

66243B

PROTECTOR, REAR BODY, NO.1

66243H

PROTECTOR, REAR BODY, NO.1

9014880069

Крепеж

9014880070

Крепеж

9017908245

Крепеж

9017908245

Крепеж

9046708008

Крепеж

9356014008

Крепеж

Код

Описание

65080B

HANDLE ASSY, SIDE GATE LATCH

65080C

HANDLE ASSY, SIDE GATE LATCH

65309A

POST SUB-ASSY, RH

65309B

POST SUB-ASSY, LH

65500

PANEL ASSY, REAR BODY SIDE, RH

65500

PANEL ASSY, REAR BODY SIDE, RH

65500

PANEL ASSY, REAR BODY SIDE, RH

65500

PANEL ASSY, REAR BODY SIDE, RH

65500G

BOLT, W/WASHER(FOR SIDE GATE, RH)

65500G

BOLT, W/WASHER(FOR SIDE GATE, RH)

65600

PANEL ASSY, REAR BODY SIDE, LH

65600

PANEL ASSY, REAR BODY SIDE, LH

65600

PANEL ASSY, REAR BODY SIDE, LH

65600

PANEL ASSY, REAR BODY SIDE, LH

65600H

BOLT, W/WASHER(FOR SIDE GATE, LH)

65600H

BOLT, W/WASHER(FOR SIDE GATE, LH)

65679G

SEAL, SIDE GATE

65679G

SEAL, SIDE GATE

65679G

SEAL, SIDE GATE

65679H

SEAL, SIDE GATE

65679H

SEAL, SIDE GATE

65679H

SEAL, SIDE GATE

66110C

HINGE ASSY, SIDE GATE, NO.1 RH

66110C

HINGE ASSY, SIDE GATE, NO.1 RH

66110C

HINGE ASSY, SIDE GATE, NO.1 RH

66110C

HINGE ASSY, SIDE GATE, NO.1 RH

66120C

HINGE ASSY, SIDE GATE, NO.1 LH

66120C

HINGE ASSY, SIDE GATE, NO.1 LH

66120C

HINGE ASSY, SIDE GATE, NO.1 LH

66120C

HINGE ASSY, SIDE GATE, NO.1 LH

66151B

LATCH, SIDE GATE, FRONT RH

66152A

LATCH, SIDE GATE, FRONT LH

66153D

LATCH, SIDE GATE, REAR RH

66154D

LATCH, SIDE GATE, REAR LH

66311

HOOK, ROPE

9020106177

Крепеж

9046708008

Крепеж

9046708008

Крепеж

9046708008

Крепеж

9054006004

Крепеж

91511B0814

Крепеж

9164281025

Крепеж

9321016010

Крепеж

9356014008

Крепеж

9356014008

Крепеж

9356014008

Крепеж

9356014008

Крепеж

Код

Описание

4832337090

Крепеж

4832337090

Крепеж

4865437070

Крепеж

4865437070

Крепеж

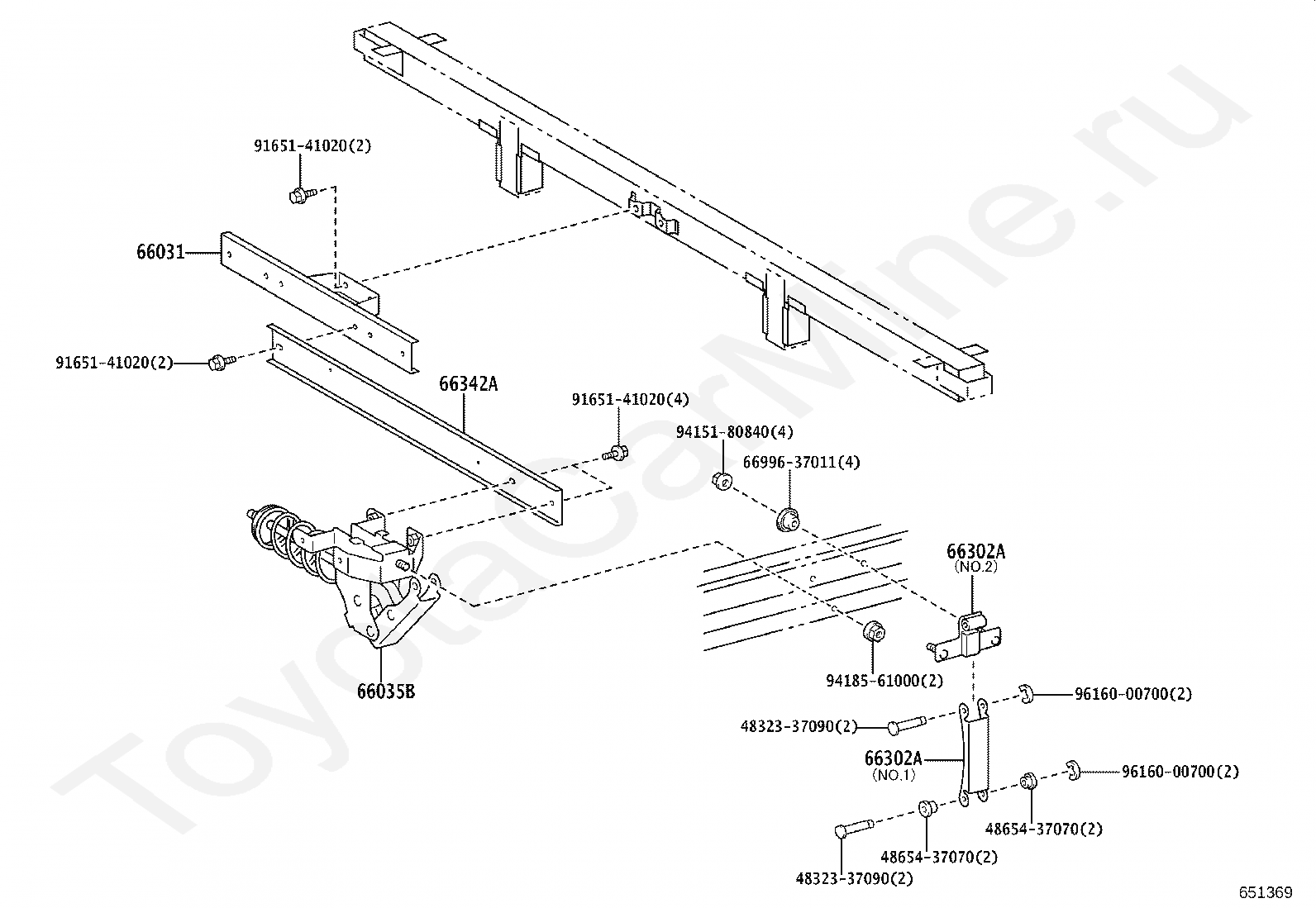

66031

BRACKET SUB-ASSY, GATE HELPER, NO.1

66035B

BELLCRANK SUB-ASSY, GATE HELPER

66302A

LINK SUB-ASSY, GATE HELPER

66302A

LINK SUB-ASSY, GATE HELPER

66342A

SPACER, GATE HELPER

6699637011

Крепеж

9165141020

Крепеж

9165141020

Крепеж

9165141020

Крепеж

9415180840

Крепеж

9418561000

Крепеж

9616000700

Крепеж

9616000700

Крепеж
