Япония

Модель

DYNA/TOYOACE

VIN

Дата

2021/03

Двигатель

4 литра, дизель

Фрейм

XZU722

КПП

автомат АКПП, 6 скоростей

Опции

SINGLE CARBURETOR:SINGLE CAB (FULL JUST LOW) 3 тонны DOUBLE TIRE DCWDOCBU 878W

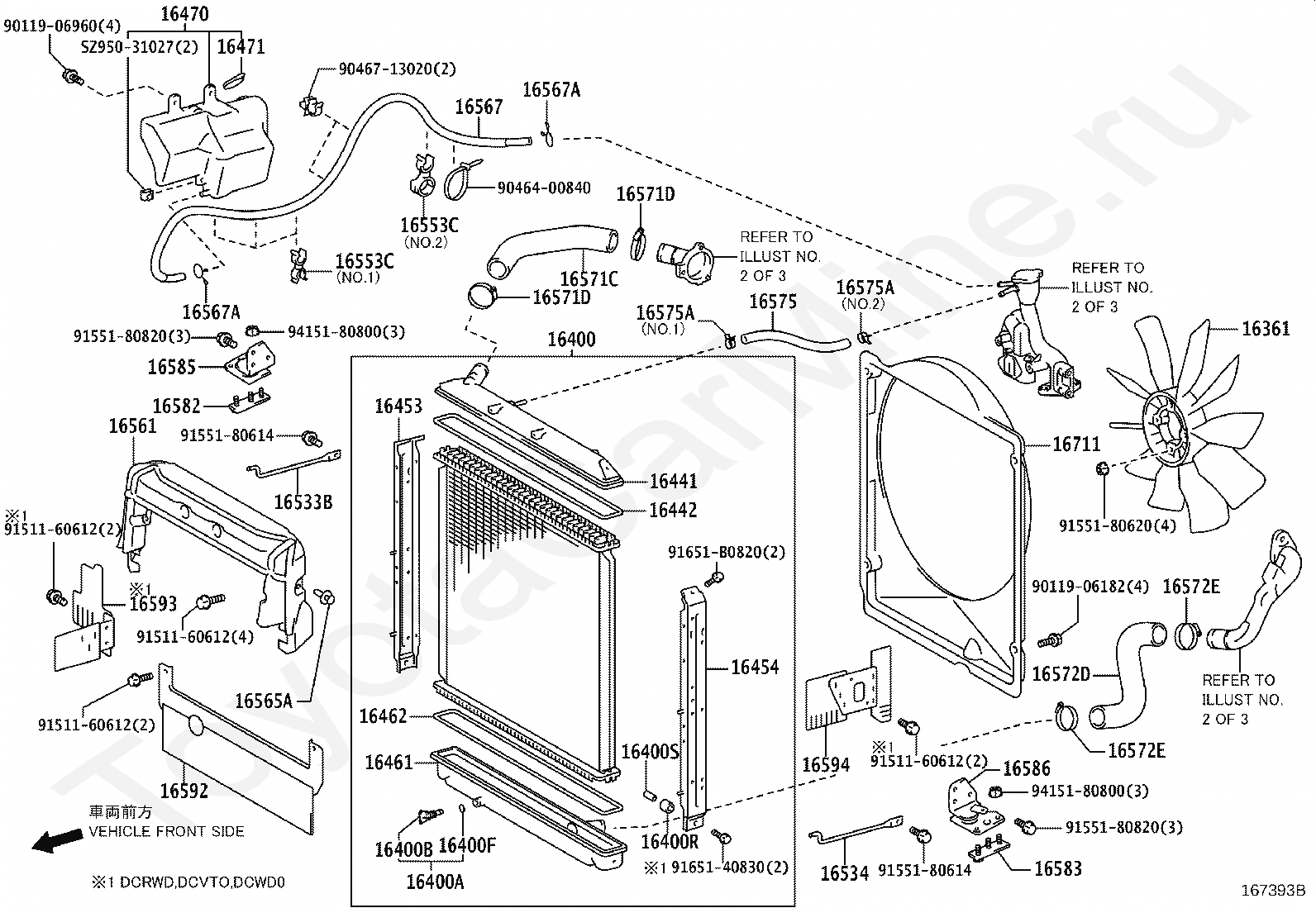

Радиатор и шланги TOYOTA DYNA/TOYOACE







Код

Описание

16361

FAN

16400

RADIATOR ASSY

16400A

COCK SUB-ASSY, RADIATOR DRAIN

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16400R

BUSHING(FOR RADIATOR)

16400S

COLLAR(FOR RADIATOR)

16441

TANK, RADIATOR, UPPER

16442

RING, O(FOR RADIATOR UPPER TANK)

16453

PLATE, RADIATOR SIDE

16454

PLATE, RADIATOR SIDE

16461

TANK, RADIATOR, LOWER

16462

RING, O(FOR RADIATOR LOWER TANK)

16470

TANK ASSY, RADIATOR RESERVE

16471

CAP SUB-ASSY, RESERVE TANK

16533B

SUPPORT, RADIATOR, NO.1

16534

SUPPORT, RADIATOR, NO.2

16553C

CLAMP, HOSE

16553C

CLAMP, HOSE

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16565A

CLIP

16567

HOSE(FOR RADIATOR RESERVE TANK)

16567A

CLIP(FOR RADIATOR RESERVE TANK HOSE)

16567A

CLIP(FOR RADIATOR RESERVE TANK HOSE)

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16575

HOSE, RADIATOR, NO.5

16575A

CLIP, RADIATOR HOSE, NO.5

16575A

CLIP, RADIATOR HOSE, NO.5

16582

BRACKET, RADIATOR, NO.1

16583

BRACKET, RADIATOR, NO.2

16585

BRACKET, RADIATOR, NO.3

16586

BRACKET, RADIATOR, NO.4

16592

GUIDE, RADIATOR AIR, NO.3

16593

GUIDE, RADIATOR AIR, NO.1

16594

GUIDE, RADIATOR AIR, NO.2

16711

SHROUD, FAN

9011906182

Крепеж

9011906960

Крепеж

9046400840

Крепеж

9046713020

Крепеж

9151160612

Крепеж

9151160612

Крепеж

9151160612

Крепеж

9151160612

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180620

Крепеж

9155180820

Крепеж

9155180820

Крепеж

9165140830

Крепеж

91651B0820

Крепеж

9415180800

Крепеж

9415180800

Крепеж

SZ95031027

Крепеж

Код

Описание

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16027A

BOLT, UNION(FOR TURBO WATER PIPE)

16027B

GASKET(FOR TURBO WATER PIPE)

16027B

GASKET(FOR TURBO WATER PIPE)

16028

PIPE SUB-ASSY, TURBO WATER, NO.2

16028C

RING, O(FOR TURBO WATER PIPE)

16028D

BOLT, UNION, NO.1(FOR TURBO WATER PIPE)

16028E

GASKET, NO.1(FOR TURBO WATER PIPE)

16028E

GASKET, NO.1(FOR TURBO WATER PIPE)

16028F

BOLT, UNION, NO.2(FOR TURBO WATER PIPE)

16206

PIPE SUB-ASSY, WATER BY-PASS

16206A

PIPE SUB-ASSY, WATER BY-PASS, NO.2

16206F

PIPE SUB-ASSY, WATER BY-PASS, NO.4

16207

PIPE SUB-ASSY, WATER BY-PASS, NO.2

16258C

GASKET(FOR WATER BY-PASS PIPE)

16258C

GASKET(FOR WATER BY-PASS PIPE)

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261N

HOSE, WATER BY-PASS, NO.2

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264D

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16268F

RING, O(FOR WATER BY-PASS PIPE)

16268F

RING, O(FOR WATER BY-PASS PIPE)

16268F

RING, O(FOR WATER BY-PASS PIPE)

1632878020

Крепеж

16331

OUTLET, WATER

16331A

THERMOSTAT

16331F

CAP SUB-ASSY(FOR WATER OUTLET)

16333

HOUSING, WATER OUTLET

16333B

RING, O(FOR WATER OUTLET HOUSING)

16341

GASKET, WATER OUTLET

16346

GASKET, THERMOSTAT

16507

PIPE SUB-ASSY, RADIATOR

16671

VALVE, WATER

16895A

BOLT, UNION(FOR TURBO WATER PIPE NO.1)

1701

переход к группе запчастей

1701

переход к группе запчастей

2501

переход к группе запчастей

8270237760

Крепеж

8270237A60

Крепеж

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

9155180820

Крепеж

9167180820

Крепеж

S799041740

Крепеж

S799041740

Крепеж

SH55210820

Крепеж

SH55210820

Крепеж

SH55210820

Крепеж

SH55210820

Крепеж

SH55210820

Крепеж

SH55210860

Крепеж

SH55210870

Крепеж

SH55211028

Крепеж

SH55211075

Крепеж

SL15010808

Крепеж

SZ10508055

Крепеж

SZ20914017

Крепеж

SZ20914017

Крепеж

Код

Описание

16209

PIPE SUB-ASSY, WATER BY-PASS, NO.4

16261Q

HOSE, WATER BY-PASS

16261V

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261V

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261V

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261V

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261V

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261V

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261V

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261V

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16267

HOSE, WATER BY-PASS, NO.3

16267C

HOSE, WATER BY-PASS, NO.4

16268J

PIPE, WATER BY-PASS, NO.5

16268L

PIPE, WATER BY-PASS

16281F

HOSE, WATER BY-PASS, NO.5

16283D

HOSE, WATER BY-PASS, NO.6

16322

PIPE, WATER INLET

16332

PIPE, WATER OUTLET, NO.1

1702

переход к группе запчастей

4737137040

Крепеж

4737137040

Крепеж

9046616004

Крепеж

9046616004

Крепеж

9155180816

Крепеж

S799041220

Крепеж

S799041220

Крепеж

SH55210816

Крепеж

SH55210816

Крепеж

SH55210816

Крепеж

SH55210832

Крепеж

SL15010808

Крепеж

SZ20914017

Крепеж

SZ20914017

Крепеж

SZ40114004

Крепеж

SZ40114004

Крепеж

SZ46910015

Крепеж
