Каталог

Япония

Модель

DYNA/TOYOACE

VIN

Дата

2017/05

Двигатель

4 литра, дизель

Фрейм

XZU722

КПП

механика МКПП, 6 скоростей

Опции

SINGLE CARBURETOR:SINGLE CAB HIGH FLAT DECK OPENING ON THREE SIDES 3 тонны DOUBLE TIRE DCRTKIV3 743W

Реле и кнопки TOYOTA DYNA/TOYOACE







Код

Описание

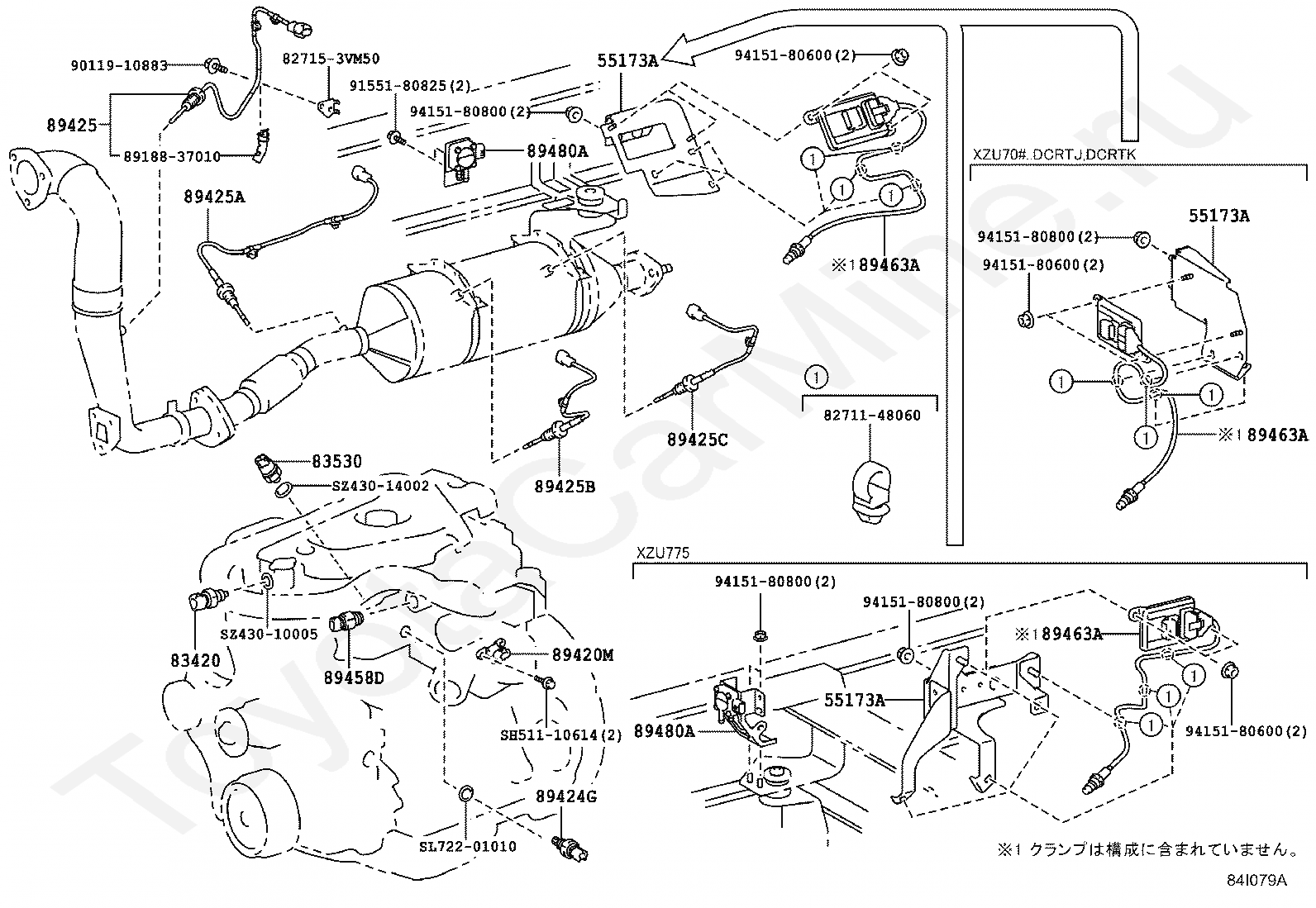

55173A

BRACKET

55173A

BRACKET

55173A

BRACKET

8271148060

Крепеж

827153VM50

Крепеж

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

8918837010

Крепеж

89420M

SENSOR ASSY, AIR PRESSURE

89424G

SENSOR, INLET AIR TEMPERATURE

89425

SENSOR, EXHAUST GAS TEMPERATURE

89425A

SENSOR, EXHAUST GAS TEMPERATURE, NO.2

89425B

SENSOR, EXHAUST GAS TEMPERATURE, NO.3

89425C

SENSOR, EXHAUST GAS TEMPERATURE, NO.4

89458D

SENSOR, FUEL PRESSURE

89463A

SENSOR, NITROGEN OXIDES

89463A

SENSOR, NITROGEN OXIDES

89463A

SENSOR, NITROGEN OXIDES

89480A

SENSOR ASSY, DIFFERENTIAL PRESSURE

89480A

SENSOR ASSY, DIFFERENTIAL PRESSURE

9011910883

Крепеж

9155180825

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180800

Крепеж

9415180800

Крепеж

9415180800

Крепеж

9415180800

Крепеж

SH51110614

Крепеж

SL72201010

Крепеж

SZ43010005

Крепеж

SZ43014002

Крепеж

Код

Описание

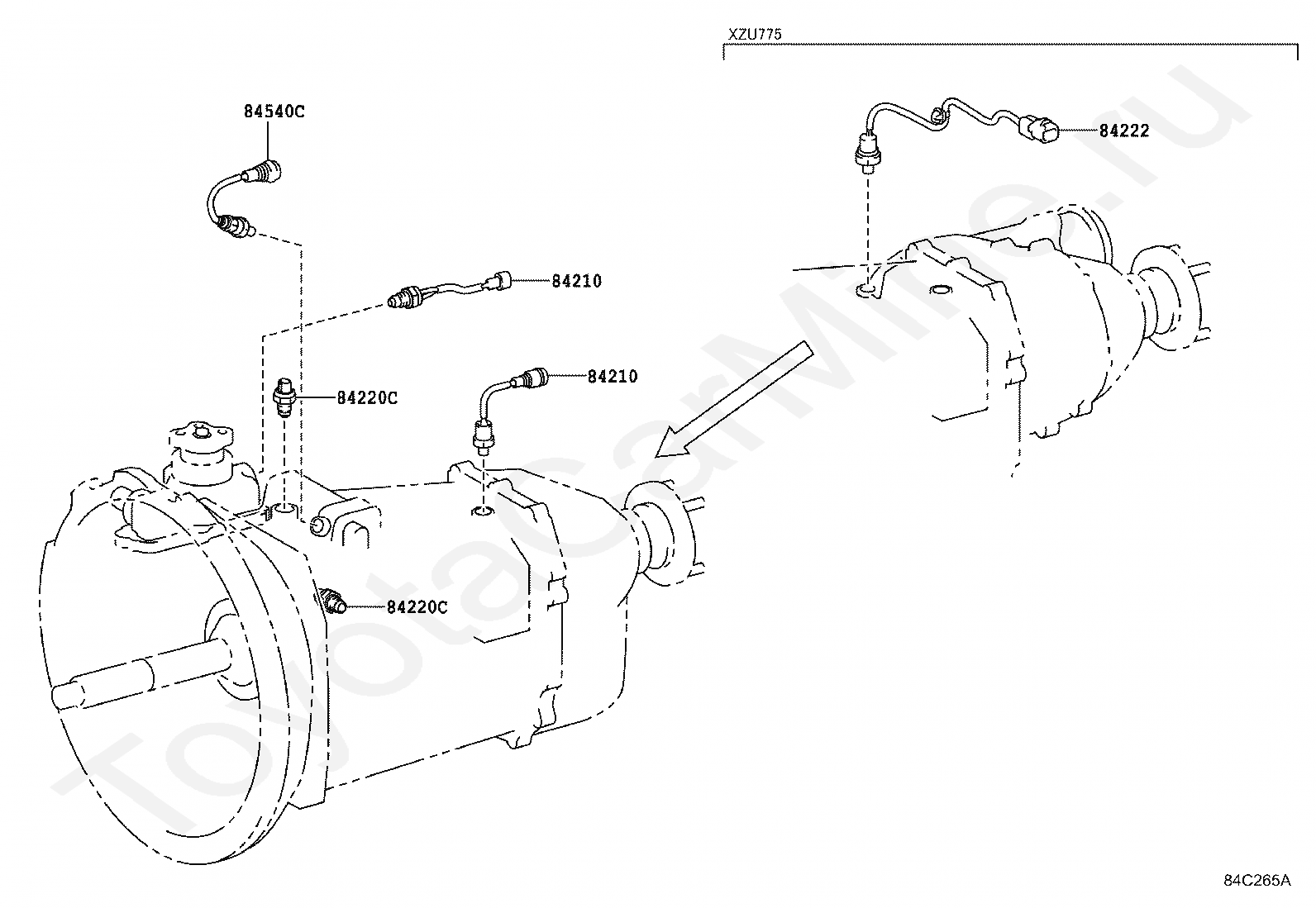

84210

SWITCH ASSY, BACK-UP LAMP

84210

SWITCH ASSY, BACK-UP LAMP

84220C

SWITCH ASSY, TRANSMISSION POSITION INDICATOR

84220C

SWITCH ASSY, TRANSMISSION POSITION INDICATOR

84222

SWITCH, TRANSFER INDICATOR, NO.1

84540C

SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)

Код

Описание

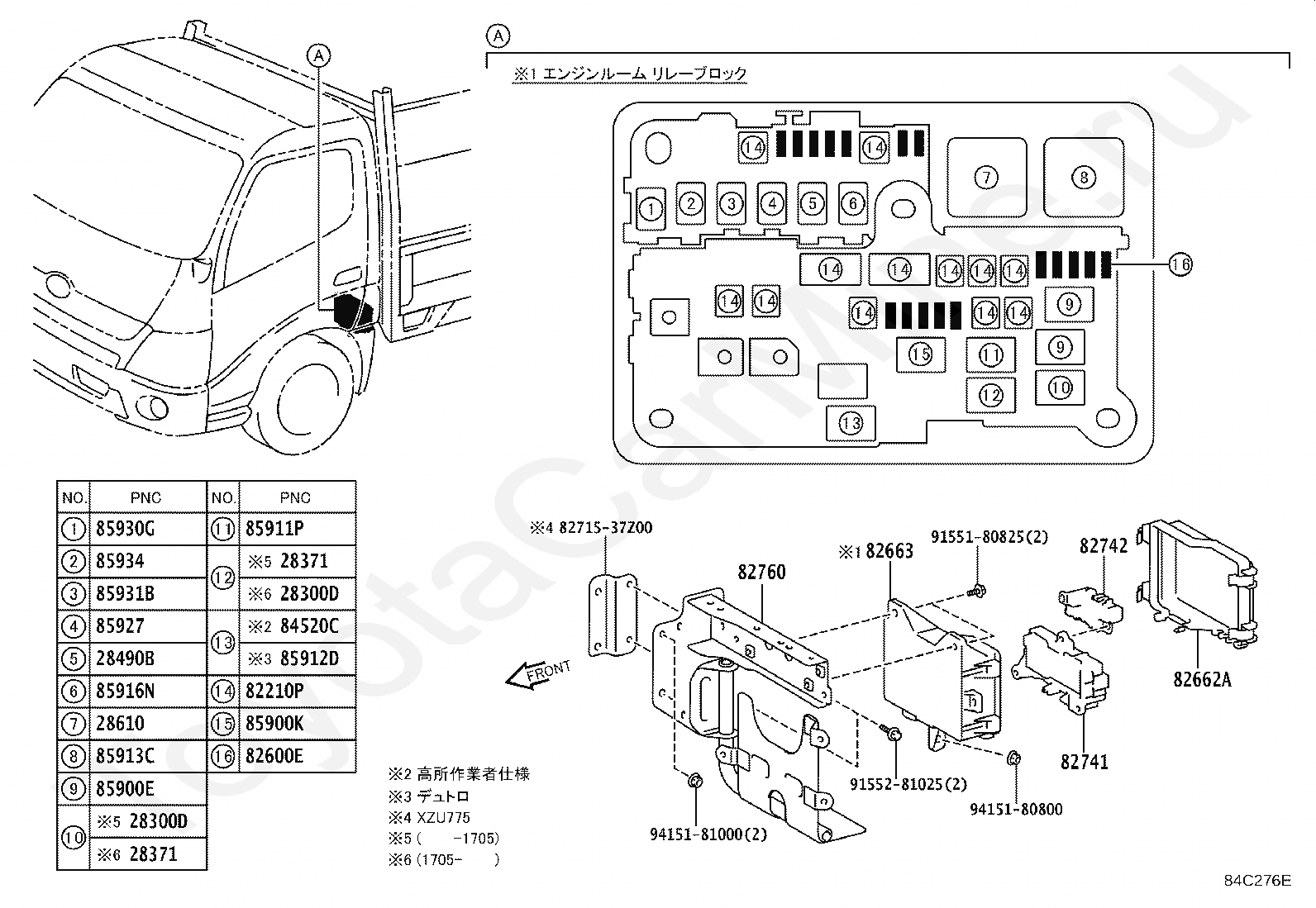

28300D

RELAY, STARTER CUT

28300D

RELAY, STARTER CUT

28371

RELAY, IGNITION, NO.1

28371

RELAY, IGNITION, NO.1

28490B

RELAY, POWER TAKE-OFF SIGNAL REVERSE

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

82210P

ENGINE ROOM FUSIBLE LINK

82600E

ENGINE ROOM FUSE

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82663

COVER, RELAY BLOCK, LOWER

8271537Z00

Крепеж

82741

BLOCK, ENGINE ROOM RELAY

82742

BLOCK, ENGINE ROOM RELAY, NO.2

82760

BRACKET ASSY, RELAY BLOCK

84520C

RELAY, NEUTRAL SIGNAL REVERSE

85900E

RELAY, IDLE STOP

85900K

RELAY ASSY, CONTROL UNIT (FOR ELECTRIC PARKING BRAKE)

85911P

RELAY, ACTUATOR POWER

85912D

RELAY

85913C

RELAY, HEATER, NO.1

85916N

RELAY, TAIL LAMP

85927

RELAY, COOLING FAN

85930G

RELAY, ACC

85931B

RELAY, FUEL HEATER

85934

RELAY, MAGNET-CLUTCH

9155180825

Крепеж

9155281025

Крепеж

9415180800

Крепеж

9415181000

Крепеж

Код

Описание

4601

переход к группе запчастей

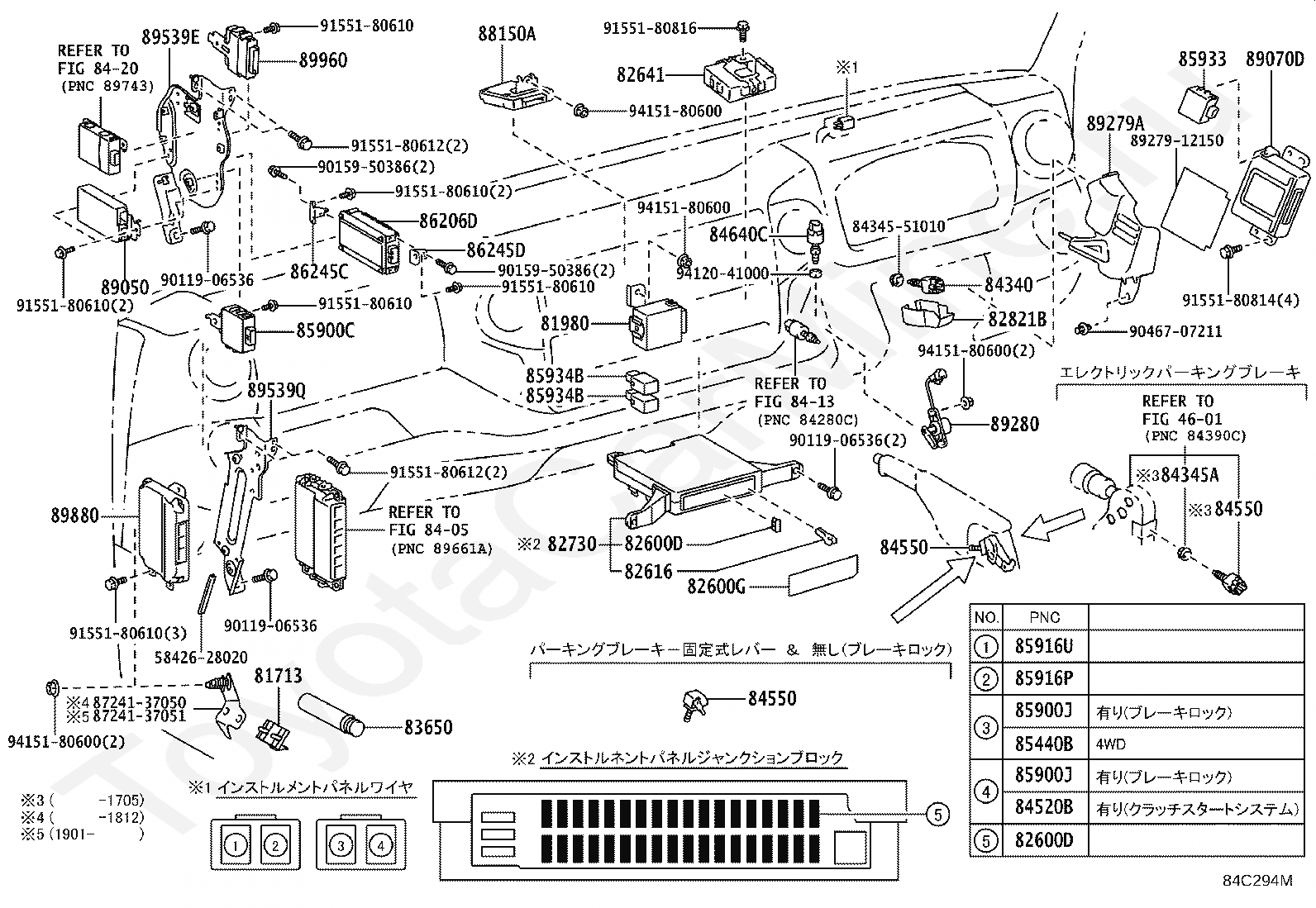

5842628020

Крепеж

81713

HOLDER, FUSEE

81980

FLASHER ASSY, TURN SIGNAL

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82600G

PLATE, CAUTION(FOR FUSE)

82616

PULLER, FUSE

82641

RELAY, INTEGRATION NO.1

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82821B

COVER, CONNECTOR

83650

FUSEE

8405

переход к группе запчастей

8413

переход к группе запчастей

8420

переход к группе запчастей

84340

SWITCH ASSY, STOP LAMP

8434551010

Крепеж

84345A

ADJUSTER, PARKING BRAKE SWITCH MOUNTING

84520B

RELAY, CLUTCH START

84550

SWITCH ASSY, PARKING BRAKE

84550

SWITCH ASSY, PARKING BRAKE

84550

SWITCH ASSY, PARKING BRAKE

84640C

SWITCH ASSY, EXHAUST RETARDER

85440B

RELAY(FOR FOUR WHEEL DRIVE CONTROL)

85900C

RELAY ASSY, CONTROL UNIT (FOR BRAKE LOCK)

85900J

RELAY, BRAKE LOCK

85900J

RELAY, BRAKE LOCK

85916P

RELAY, HEADLAMP

85916U

RELAY, HEADLAMP, NO.2

85933

COMPUTER, SHIFT LOCK CONTROL

85934B

RELAY, IDLE STOP

85934B

RELAY, IDLE STOP

86206D

CONVERTER SUB-ASSY, VOLTAGE

86245C

BRACKET, VOLTAGE CONVERTER

86245D

BRACKET, VOLTAGE CONVERTER, NO.2

8724137050

Крепеж

8724137051

Крепеж

88150A

COMPUTER ASSY, DRIVING SUPPORT

89050

COMPUTER ASSY, PARKING BRAKE

89070D

COMPUTER ASSY, TRANSMISSION CONTROL

8927912150

Крепеж

89279A

COVER, COMPUTER

89280

SENSOR ASSY, CLUTCH PEDAL STROKE

89539E

BRACKET, COMPUTER

89539Q

BRACKET, COMPUTER

89880

COMPUTER ASSY, ELECTRIC VEHICLE CONTROL

89960

COMPUTER ASSY, HEADLAMP LEVELING

9011906536

Крепеж

9011906536

Крепеж

9011906536

Крепеж

9015950386

Крепеж

9015950386

Крепеж

9046707211

Крепеж

9155180610

Крепеж

9155180610

Крепеж

9155180610

Крепеж

9155180610

Крепеж

9155180610

Крепеж

9155180610

Крепеж

9155180612

Крепеж

9155180612

Крепеж

9155180814

Крепеж

9155180816

Крепеж

9412041000

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

Код

Описание

7851

переход к группе запчастей

7851

переход к группе запчастей

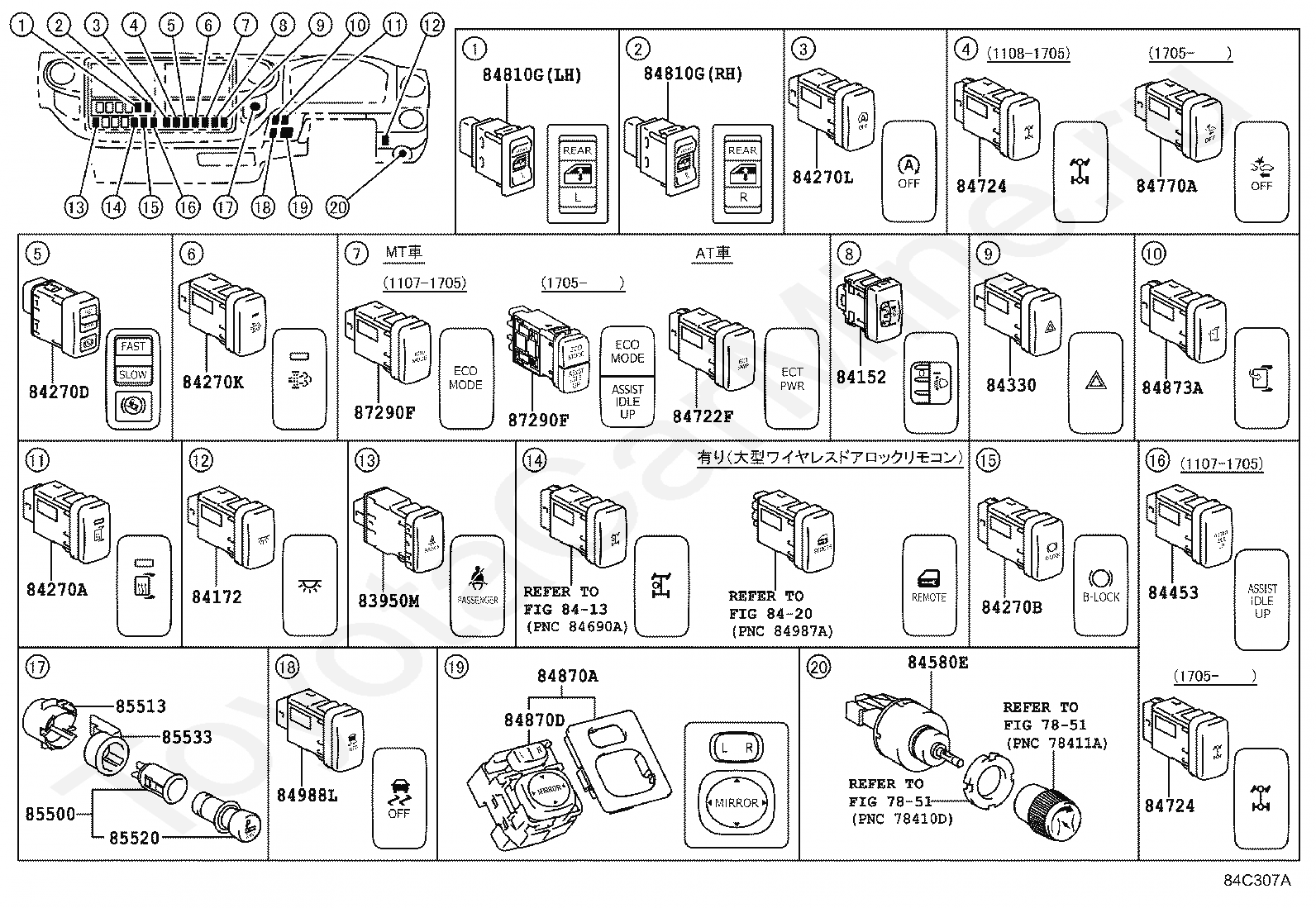

83950M

LAMP ASSY, TELLTALE

8413

переход к группе запчастей

84152

SWITCH, HEADLAMP LEVELING

84172

SWITCH, ROOM LAMP

8420

переход к группе запчастей

84270A

SWITCH ASSY, MIRROR HEATER

84270B

SWITCH ASSY, BRAKE LOCK

84270D

SWITCH ASSY, ES START TIMING

84270K

SWITCH ASSY, DPR

84270L

SWITCH ASSY, IDLE STOP

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84453

SWITCH, IDLE UP

84580E

SWITCH ASSY, THROTTLE POSITION

84722F

SWITCH, TRANSMISSION CONTROL

84724

SWITCH, 4 WHEEL DRIVE CONTROL

84724

SWITCH, 4 WHEEL DRIVE CONTROL

84770A

SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL

84810G

SWITCH ASSY, POWER WINDOW REGULATOR, REAR NO.2

84810G

SWITCH ASSY, POWER WINDOW REGULATOR, REAR NO.2

84870A

SWITCH ASSY, OUTER MIRROR

84870D

SWITCH ASSY, OUTER MIRROR, NO.2

84873A

SWITCH, RETRACTABLE OUTER MIRROR

84988L

SWITCH, VSC OFF

85500

LIGHTER ASSY, CIGARETTE

85513

COVER, CIGARETTE LIGHTER

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

85533

LENS, CIGARETTE LIGHTER INDICATOR

87290F

SWITCH ASSY, ECO

87290F

SWITCH ASSY, ECO

Код

Описание

4501

переход к группе запчастей

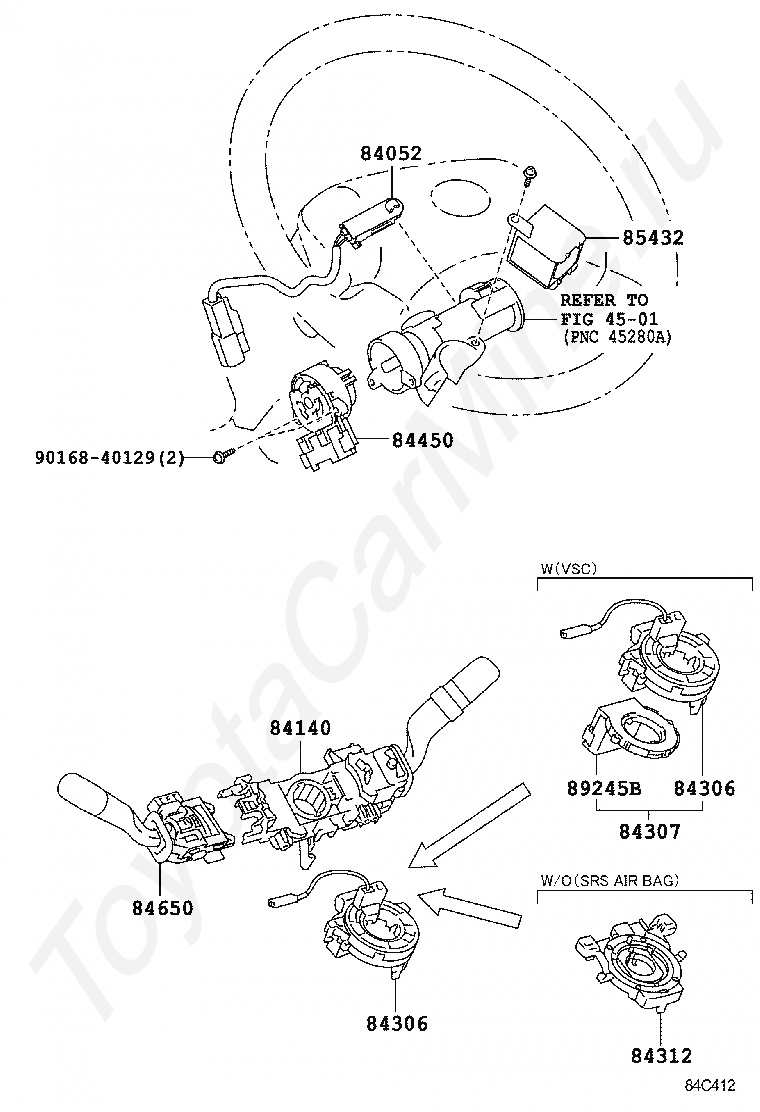

84052

SWITCH ASSY, UN-LOCK WARNING

84140

SWITCH ASSY, HEADLAMP DIMMER

84306

CABLE SUB-ASSY, SPIRAL

84306

CABLE SUB-ASSY, SPIRAL

84307

CABLE SUB-ASSY, SPIRAL W/SENSOR

84312

PLATE, HORN CONTACT

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

85432

SOLENOID, KEY INTER LOCK

89245B

SENSOR, STEERING

9016840129

Крепеж

Код

Описание

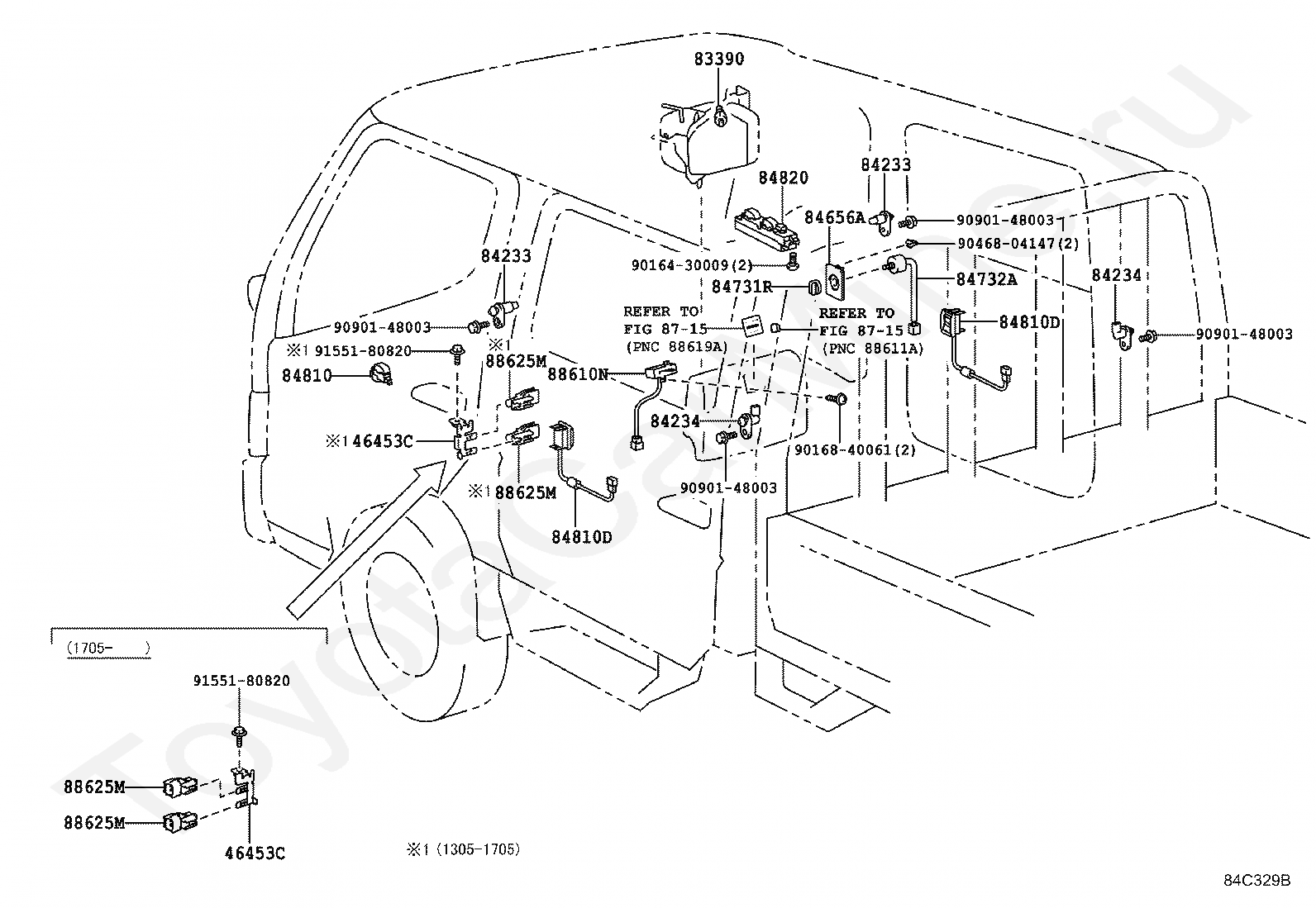

46453C

BRACKET, HOLDER

46453C

BRACKET, HOLDER

83390

SWITCH ASSY, VACUUM WARNING

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84656A

BEZEL, SWITCH

84731R

KNOB, REAR HEATER BLOWER SWITCH

84732A

SWITCH, REAR HEATER BLOWER

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

8715

переход к группе запчастей

8715

переход к группе запчастей

88610N

SWITCH ASSY, COOLER CONTROL

88625M

THERMISTOR, COOLER

88625M

THERMISTOR, COOLER

88625M

THERMISTOR, COOLER

88625M

THERMISTOR, COOLER

9016430009

Крепеж

9016840061

Крепеж

9046804147

Крепеж

9090148003

Крепеж

9090148003

Крепеж

9090148003

Крепеж

9090148003

Крепеж

9155180820

Крепеж

9155180820

Крепеж

Код

Описание

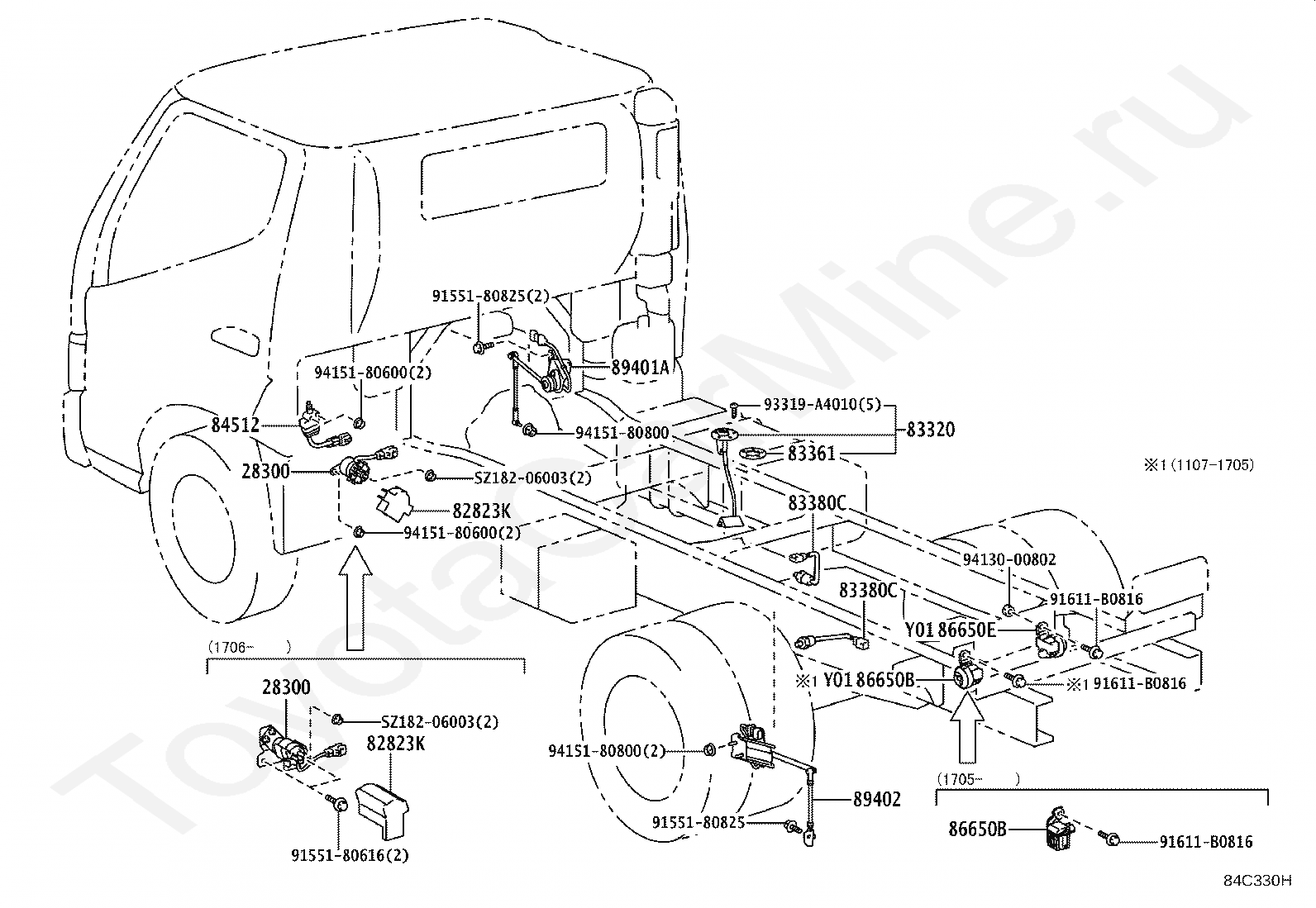

28300

RELAY ASSY, STARTER

28300

RELAY ASSY, STARTER

82823K

CAP, TERMINAL

82823K

CAP, TERMINAL

83320

GAGE ASSY, FUEL SENDER

83361

GASKET, FUEL SENDER GAGE

83380C

SWITCH ASSY, PRESSURE, NO.2

83380C

SWITCH ASSY, PRESSURE, NO.2

84512

SWITCH, TILT CAB CONTROL

86650B

BUZZER ASSY, REVERSE WARNING

86650B

BUZZER ASSY, REVERSE WARNING

86650E

BUZZER ASSY

89401A

SENSOR, SUSPENSION STROKE, FRONT(FOR DISCHARGE HEADLAMP)

89402

SENSOR, SUSPENSION STROKE, REAR(FOR DISCHARGE HEADLAMP)

9155180616

Крепеж

9155180825

Крепеж

9155180825

Крепеж

91611B0816

Крепеж

91611B0816

Крепеж

91611B0816

Крепеж

93319A4010

Крепеж

9413000802

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180800

Крепеж

9415180800

Крепеж

SZ18206003

Крепеж

SZ18206003

Крепеж
