Каталог

Япония

Модель

DYNA/TOYOACE

VIN

Дата

2017/05

Двигатель

4 литра, дизель

Фрейм

XZU720

КПП

автомат АКПП, 6 скоростей

Опции

SINGLE CARBURETOR:SINGLE CAB (FULL JUST LOW) 2 тонны DOUBLE TIRE DCRTJCBU 743W

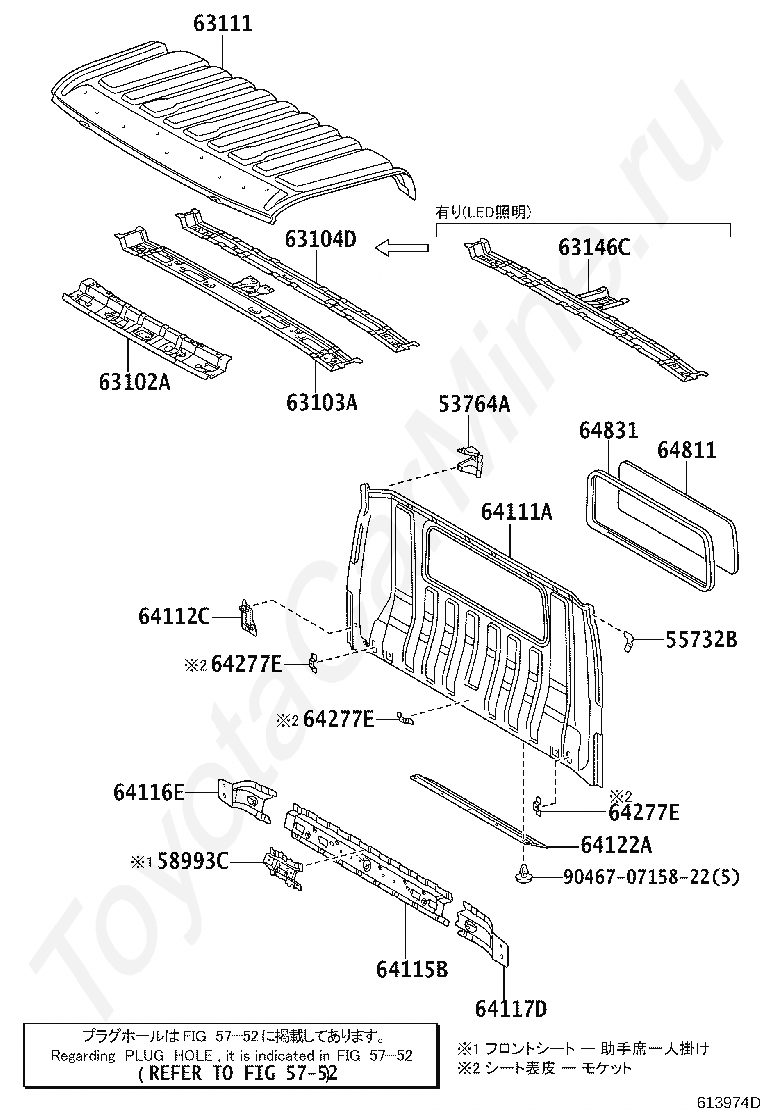

ROOF PANEL & BACK PANEL TOYOTA DYNA/TOYOACE

Код

Описание

53764A

BRACKET, AIR CLEANER INLET, NO.1

55732B

BRACKET, FRONT PANEL, NO.2

5752

переход к группе запчастей

58993C

BRACKET, CONSOLE BOX MOUNTING, REAR

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63103A

REINFORCEMENT SUB-ASSY, ROOF PANEL

63104D

REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

63111

PANEL, ROOF

63146C

REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

64111A

PANEL, BACK

64112C

PANEL, UPPER BACK, INNER

64115B

REINFORCEMENT, BACK PANEL

64116E

REINFORCEMENT, UPPER BACK, RH

64117D

REINFORCEMENT, UPPER BACK, LH

64122A

BAFFLE, DUST REAR BODY

64277E

BRACKET, BACK PANEL TRIM, LOWER

64277E

BRACKET, BACK PANEL TRIM, LOWER

64277E

BRACKET, BACK PANEL TRIM, LOWER

64811

GLASS, BACK WINDOW

64831

WEATHERSTRIP, BACK WINDOW GLASS

904670715822

Крепеж

Код

Описание

63185A

BRACKET, ROOF RACK, FRONT RH

63186A

BRACKET, ROOF RACK, FRONT LH

63403

DECK SUB-ASSY, ROOF RACK

63460

RACK ASSY, ROOF

63467

BRACKET, ROOF RACK, REAR RH

63468

BRACKET, ROOF RACK, REAR LH

63495A

COVER, ROOF RACK LEG, CENTER

9111180825

Крепеж

9111180825

Крепеж

ROOF PANEL & BACK PANEL TOYOTA DYNA/TOYOACE
