Каталог

Япония

Модель

DYNA/TOYOACE

VIN

Дата

2017/05

Двигатель

4 литра, дизель

Фрейм

XZU720

КПП

автомат АКПП, 6 скоростей

Опции

SINGLE CARBURETOR:SINGLE CAB (FULL JUST LOW) 2 тонны DOUBLE TIRE DCRTJCBU 743W

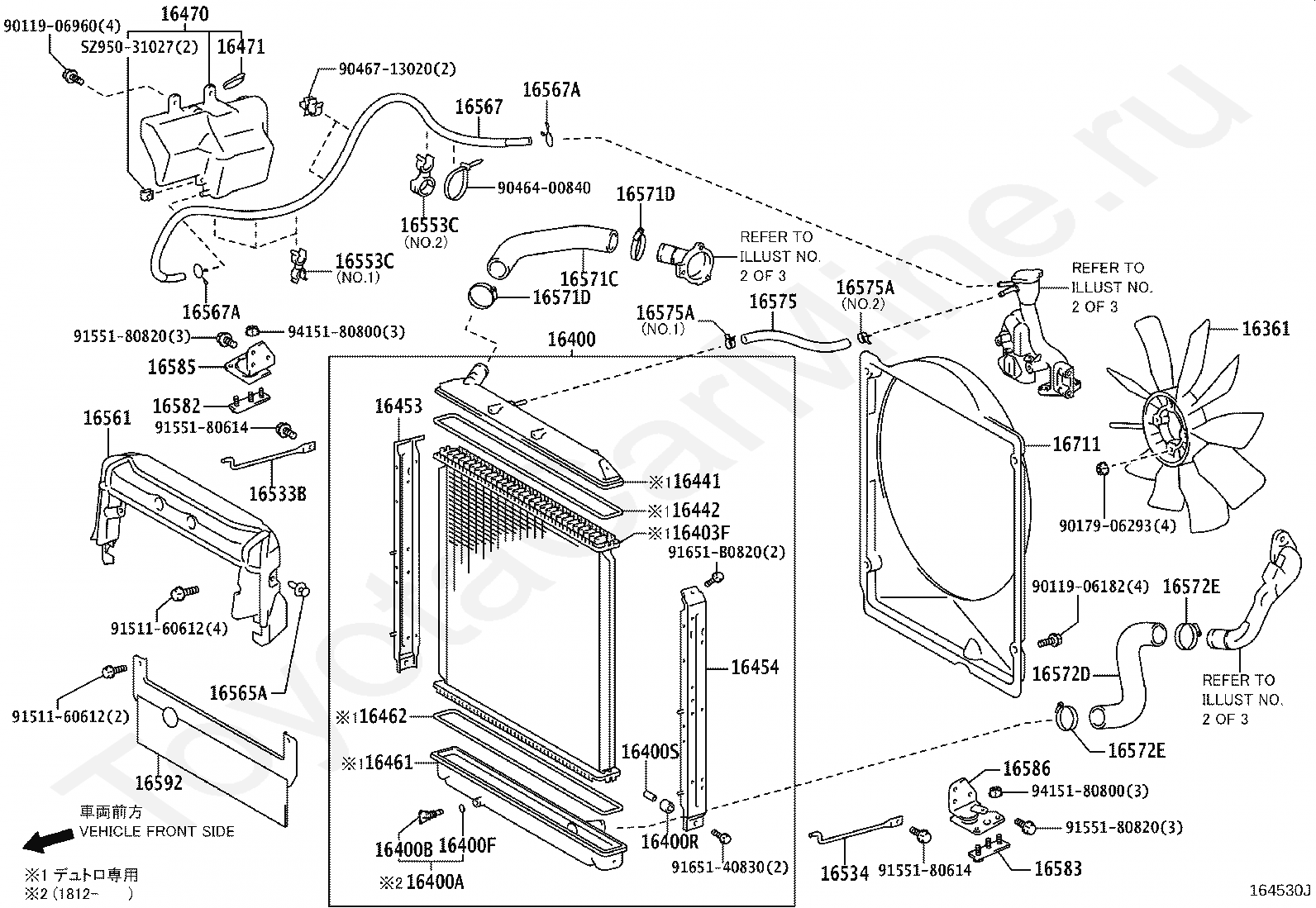

Радиатор и шланги TOYOTA DYNA/TOYOACE

Код

Описание

16361

FAN

16400

RADIATOR ASSY

16400A

COCK SUB-ASSY, RADIATOR DRAIN

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16400R

BUSHING(FOR RADIATOR)

16400S

COLLAR(FOR RADIATOR)

16403F

CORE SUB-ASSY, RADIATOR

16441

TANK, RADIATOR, UPPER

16442

RING, O(FOR RADIATOR UPPER TANK)

16453

PLATE, RADIATOR SIDE

16454

PLATE, RADIATOR SIDE

16461

TANK, RADIATOR, LOWER

16462

RING, O(FOR RADIATOR LOWER TANK)

16470

TANK ASSY, RADIATOR RESERVE

16471

CAP SUB-ASSY, RESERVE TANK

16533B

SUPPORT, RADIATOR, NO.1

16534

SUPPORT, RADIATOR, NO.2

16553C

CLAMP, HOSE

16553C

CLAMP, HOSE

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16565A

CLIP

16567

HOSE(FOR RADIATOR RESERVE TANK)

16567A

CLIP(FOR RADIATOR RESERVE TANK HOSE)

16567A

CLIP(FOR RADIATOR RESERVE TANK HOSE)

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16575

HOSE, RADIATOR, NO.5

16575A

CLIP, RADIATOR HOSE, NO.5

16575A

CLIP, RADIATOR HOSE, NO.5

16582

BRACKET, RADIATOR, NO.1

16583

BRACKET, RADIATOR, NO.2

16585

BRACKET, RADIATOR, NO.3

16586

BRACKET, RADIATOR, NO.4

16592

GUIDE, RADIATOR AIR, NO.3

16711

SHROUD, FAN

9011906182

Крепеж

9011906960

Крепеж

9017906293

Крепеж

9046400840

Крепеж

9046713020

Крепеж

9151160612

Крепеж

9151160612

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180820

Крепеж

9155180820

Крепеж

9165140830

Крепеж

91651B0820

Крепеж

9415180800

Крепеж

9415180800

Крепеж

SZ95031027

Крепеж

Код

Описание

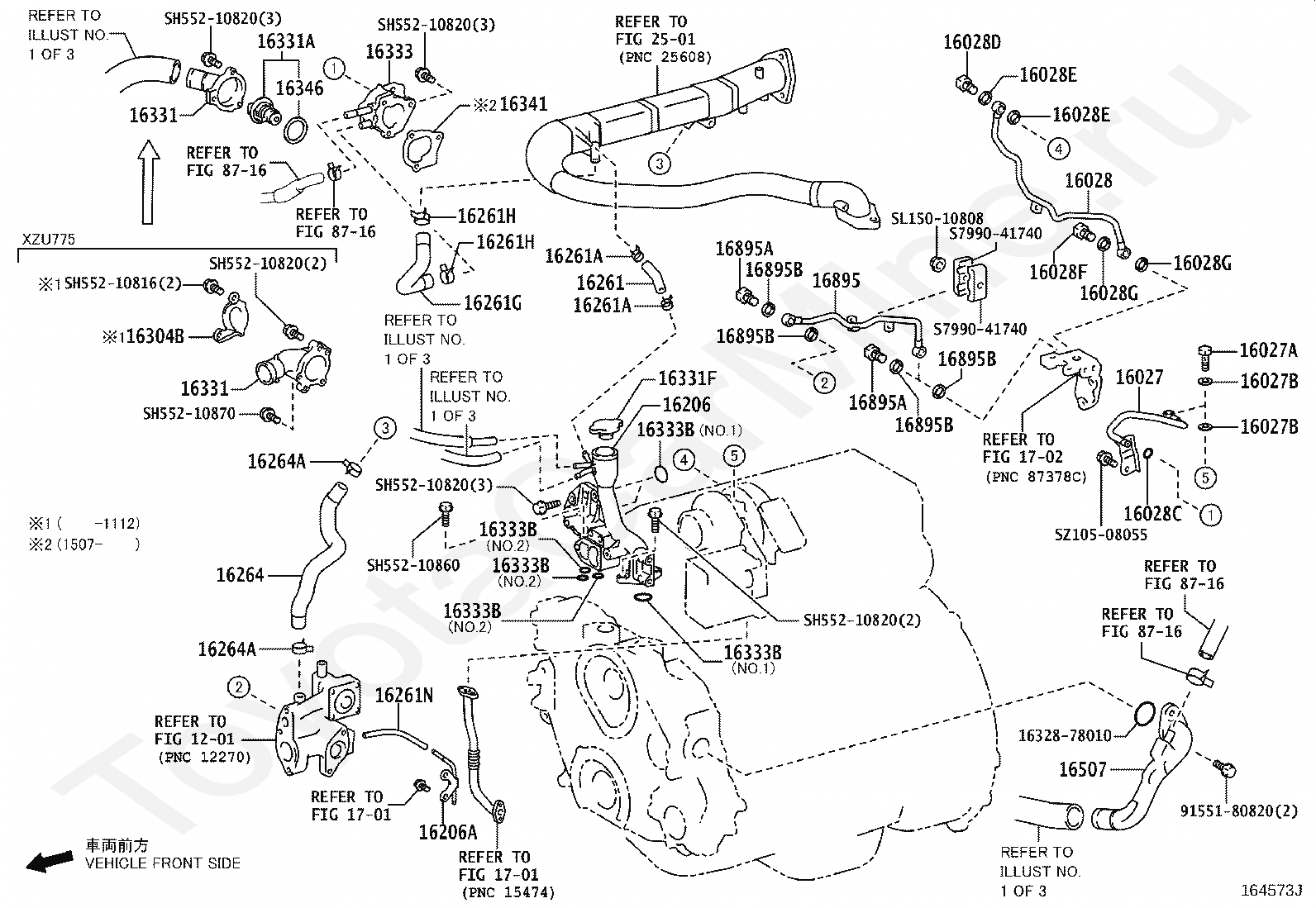

1201

переход к группе запчастей

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16027A

BOLT, UNION(FOR TURBO WATER PIPE)

16027B

GASKET(FOR TURBO WATER PIPE)

16027B

GASKET(FOR TURBO WATER PIPE)

16028

PIPE SUB-ASSY, TURBO WATER, NO.2

16028C

RING, O(FOR TURBO WATER PIPE)

16028D

BOLT, UNION, NO.1(FOR TURBO WATER PIPE)

16028E

GASKET, NO.1(FOR TURBO WATER PIPE)

16028E

GASKET, NO.1(FOR TURBO WATER PIPE)

16028F

BOLT, UNION, NO.2(FOR TURBO WATER PIPE)

16028G

GASKET, NO.2(FOR TURBO WATER PIPE)

16028G

GASKET, NO.2(FOR TURBO WATER PIPE)

16206

PIPE SUB-ASSY, WATER BY-PASS

16206A

PIPE SUB-ASSY, WATER BY-PASS, NO.2

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261N

HOSE, WATER BY-PASS, NO.2

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16304B

COVER SUB-ASSY, WATER OUTLET

1632878010

Крепеж

16331

OUTLET, WATER

16331

OUTLET, WATER

16331A

THERMOSTAT

16331F

CAP SUB-ASSY(FOR WATER OUTLET)

16333

HOUSING, WATER OUTLET

16333B
