Каталог

Япония

Модель

DYNA/TOYOACE

VIN

Дата

2017/05

Двигатель

4 литра, дизель

Фрейм

XZU710

КПП

механика МКПП, 5 скоростей

Опции

DOOR CONTROL BATTERY (FULL JUST LOW) 2 тонны DOUBLE TIRE DCRTJCBU 743W

Кресла TOYOTA DYNA/TOYOACE







Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71421A

SPRING, FRONT SEAT CUSHION

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71588

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811C

COVER, RECLINING ADJUSTER, RH

71831D

COVER, FRONT SEAT HINGE, RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72137B

COVER, SEAT TRACK, RH

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72341A

REINFORCE, FRONT SEAT STAND FRAME

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7321437010

Крепеж

9011908C25

Крепеж

9011908C25

Крепеж

9011910229

Крепеж

9011910825

Крепеж

9011910825

Крепеж

9011910825

Крепеж

9011910825

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017908123

Крепеж

9017908123

Крепеж

9017908149

Крепеж

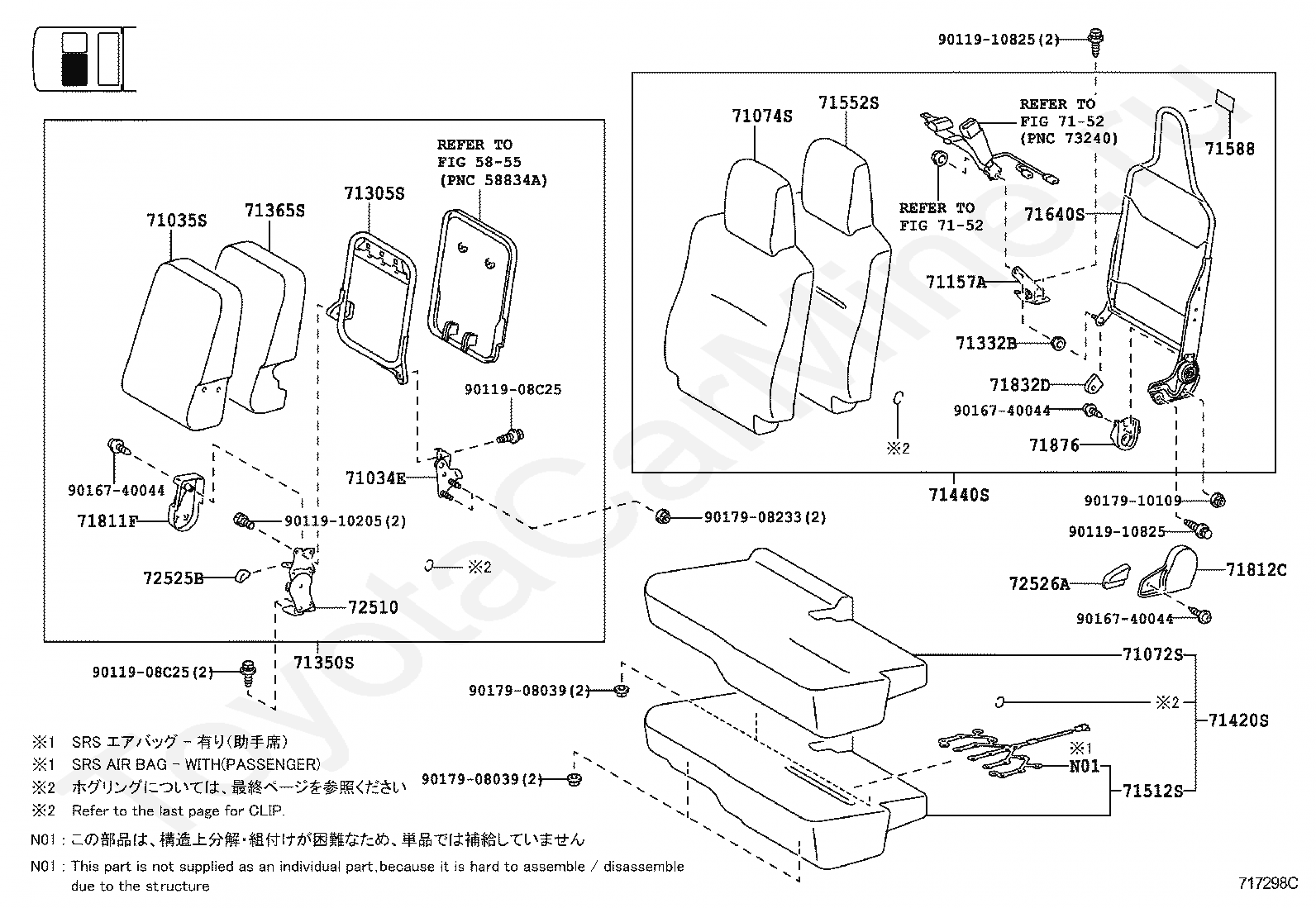

Код

Описание

5855

переход к группе запчастей

71034E

HINGE SUB-ASSY, FRONT CENTER SEAT

71035S

COVER, FRONT SEAT BACK, CENTER

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71157A

HINGE, FRONT SEAT, LOWER

71305S

FRAME SUB-ASSY, CENTER SEAT BACK

71332B

SPACER, REAR SEAT BACK HINGE

71350S

BACK ASSY, FRONT SEAT, CENTER

71365S

PAD, CENTER SEAT BACK

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71588

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71811F

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71832D

COVER, FRONT SEAT HINGE, LH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011908C25

Крепеж

9011908C25

Крепеж

9011910205

Крепеж

9011910825

Крепеж

9011910825

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017908039

Крепеж

9017908039

Крепеж

9017908233

Крепеж

9017910109

Крепеж

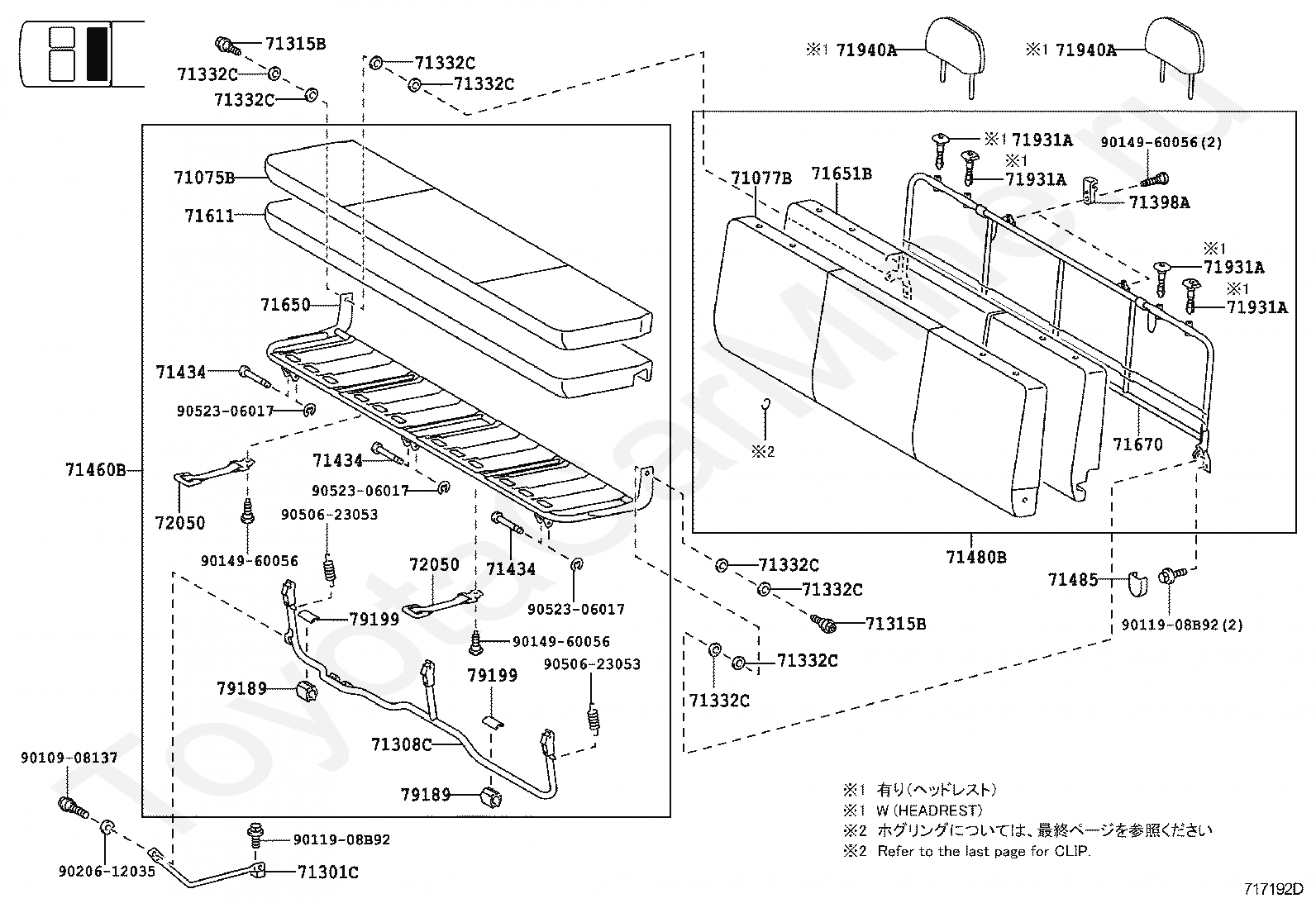

Код

Описание

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71301C

LINK SUB-ASSY, REAR SEAT CUSHION

71308C

LEG SUB-ASSY, REAR SEAT, FRONT

71315B

PIN, REAR SEAT HINGE

71315B

PIN, REAR SEAT HINGE

71332C

SPACER, REAR SEAT BACK HINGE

71332C

SPACER, REAR SEAT BACK HINGE

71332C

SPACER, REAR SEAT BACK HINGE

71332C

SPACER, REAR SEAT BACK HINGE

71332C

SPACER, REAR SEAT BACK HINGE

71332C

SPACER, REAR SEAT BACK HINGE

71332C

SPACER, REAR SEAT BACK HINGE

71332C

SPACER, REAR SEAT BACK HINGE

71398A

HOLDER, REAR SEAT BACK

71434

PIN, REAR SEAT CUSHION LEG, REAR

71434

PIN, REAR SEAT CUSHION LEG, REAR

71434

PIN, REAR SEAT CUSHION LEG, REAR

71460B

CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

71480B

BACK ASSY, REAR SEAT (FOR BENCH TYPE)

71485

COVER, REAR SEAT HINGE

71611

PAD, REAR SEAT CUSHION

71650

SPRING ASSY, REAR SEAT CUSHION

71651B

PAD, REAR SEAT BACK(FOR BENCH TYPE)

71670

SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

72050

BELT ASSY, REAR SEAT HOOK

72050

BELT ASSY, REAR SEAT HOOK

79189

STOPPER, NO.1 SEAT LEG

79189

STOPPER, NO.1 SEAT LEG

79199

HOLDER, NO.1 SEAT LEG STOPPER

79199

HOLDER, NO.1 SEAT LEG STOPPER

9010908137

Крепеж

9011908B92

Крепеж

9011908B92

Крепеж

9014960056

Крепеж

9014960056

Крепеж

9014960056

Крепеж

9020612035

Крепеж

9050623053

Крепеж

9050623053

Крепеж

9052306017

Крепеж

9052306017

Крепеж

9052306017

Крепеж

Код

Описание

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71301C

LINK SUB-ASSY, REAR SEAT CUSHION

71308C

LEG SUB-ASSY, REAR SEAT, FRONT

71315B

PIN, REAR SEAT HINGE

71315B

PIN, REAR SEAT HINGE

71332C

SPACER, REAR SEAT BACK HINGE

71332C

SPACER, REAR SEAT BACK HINGE

71332C

SPACER, REAR SEAT BACK HINGE

71332C

SPACER, REAR SEAT BACK HINGE

71332C

SPACER, REAR SEAT BACK HINGE

71332C

SPACER, REAR SEAT BACK HINGE

71332C

SPACER, REAR SEAT BACK HINGE

71332C

SPACER, REAR SEAT BACK HINGE

71398A

HOLDER, REAR SEAT BACK

71434

PIN, REAR SEAT CUSHION LEG, REAR

71434

PIN, REAR SEAT CUSHION LEG, REAR

71434

PIN, REAR SEAT CUSHION LEG, REAR

71460B

CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

71480B

BACK ASSY, REAR SEAT (FOR BENCH TYPE)

71485

COVER, REAR SEAT HINGE

71611

PAD, REAR SEAT CUSHION

71650

SPRING ASSY, REAR SEAT CUSHION

71651B

PAD, REAR SEAT BACK(FOR BENCH TYPE)

71670

SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

72050

BELT ASSY, REAR SEAT HOOK

72050

BELT ASSY, REAR SEAT HOOK

79189

STOPPER, NO.1 SEAT LEG

79189

STOPPER, NO.1 SEAT LEG

79199

HOLDER, NO.1 SEAT LEG STOPPER

79199

HOLDER, NO.1 SEAT LEG STOPPER

9010908137

Крепеж

9011908B92

Крепеж

9011908B92

Крепеж

9014960056

Крепеж

9014960056

Крепеж

9014960056

Крепеж

9020612035

Крепеж

9050623053

Крепеж

9050623053

Крепеж

9052306017

Крепеж

9052306017

Крепеж

9052306017

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж
