Каталог

Япония

Модель

DYNA/TOYOACE

VIN

Дата

2017/05

Двигатель

4 литра, дизель

Фрейм

XZU655

КПП

механика МКПП, 5 скоростей

Опции

SINGLE CARBURETOR:SINGLE CAB (FULL JUST LOW) 2 тонны DOUBLE TIRE DCRTJCBU 742W

REAR BODY SIDE PANEL TOYOTA DYNA/TOYOACE

Код

Описание

65500

PANEL ASSY, REAR BODY SIDE, RH

65500G

BOLT, W/WASHER(FOR SIDE GATE, RH)

65600

PANEL ASSY, REAR BODY SIDE, LH

65600H

BOLT, W/WASHER(FOR SIDE GATE, LH)

65679G

SEAL, SIDE GATE

65679H

SEAL, SIDE GATE

66110C

HINGE ASSY, SIDE GATE, NO.1 RH

66120C

HINGE ASSY, SIDE GATE, NO.1 LH

66151

LATCH, SIDE GATE FEMALE, RH

66152

LATCH, SIDE GATE FEMALE, LH

66153A

LATCH, TAIL GATE FEMALE, RH

66154

LATCH, TAIL GATE FEMALE, LH

66187

HANDLE, SIDE GATE LATCH, CENTER NO.2

66245

PROTECTOR, REAR BODY, NO.3 RH

66245

PROTECTOR, REAR BODY, NO.3 RH

66246

PROTECTOR, REAR BODY, NO.3 LH

66246

PROTECTOR, REAR BODY, NO.3 LH

9014880077

Крепеж

9014880078

Крепеж

9046708008

Крепеж

9356015010

Крепеж

Код

Описание

65500

PANEL ASSY, REAR BODY SIDE, RH

65500G

BOLT, W/WASHER(FOR SIDE GATE, RH)

65600

PANEL ASSY, REAR BODY SIDE, LH

65600H

BOLT, W/WASHER(FOR SIDE GATE, LH)

65679G

SEAL, SIDE GATE

65679H

SEAL, SIDE GATE

66110C

HINGE ASSY, SIDE GATE, NO.1 RH

66120C

HINGE ASSY, SIDE GATE, NO.1 LH

66151

LATCH, SIDE GATE FEMALE, RH

66152

LATCH, SIDE GATE FEMALE, LH

66153A

LATCH, TAIL GATE FEMALE, RH

66154

LATCH, TAIL GATE FEMALE, LH

66245

PROTECTOR, REAR BODY, NO.3 RH

66245

PROTECTOR, REAR BODY, NO.3 RH

66246

PROTECTOR, REAR BODY, NO.3 LH

66246

PROTECTOR, REAR BODY, NO.3 LH

9011908465

Крепеж

9014880077

Крепеж

9014880078

Крепеж

9046708008

Крепеж

9356015010

Крепеж

9413060800

Крепеж

Код

Описание

65500

PANEL ASSY, REAR BODY SIDE, RH

65500G

BOLT, W/WASHER(FOR SIDE GATE, RH)

65600

PANEL ASSY, REAR BODY SIDE, LH

65600H

BOLT, W/WASHER(FOR SIDE GATE, LH)

65679G

SEAL, SIDE GATE

65679H

SEAL, SIDE GATE

66110C

HINGE ASSY, SIDE GATE, NO.1 RH

66120C

HINGE ASSY, SIDE GATE, NO.1 LH

66151

LATCH, SIDE GATE FEMALE, RH

66152

LATCH, SIDE GATE FEMALE, LH

66245

PROTECTOR, REAR BODY, NO.3 RH

66245

PROTECTOR, REAR BODY, NO.3 RH

66246

PROTECTOR, REAR BODY, NO.3 LH

66246

PROTECTOR, REAR BODY, NO.3 LH

9014880077

Крепеж

9014880078

Крепеж

9046708008

Крепеж

9356015010

Крепеж

Код

Описание

65500

PANEL ASSY, REAR BODY SIDE, RH

65600

PANEL ASSY, REAR BODY SIDE, LH

6563025010

Крепеж

6563025010

Крепеж

6563025010

Крепеж

6563025010

Крепеж

65679G

SEAL, SIDE GATE

65679H

SEAL, SIDE GATE

66110C

HINGE ASSY, SIDE GATE, NO.1 RH

66120C

HINGE ASSY, SIDE GATE, NO.1 LH

66151

LATCH, SIDE GATE FEMALE, RH

66152

LATCH, SIDE GATE FEMALE, LH

66153A

LATCH, TAIL GATE FEMALE, RH

66154

LATCH, TAIL GATE FEMALE, LH

66187A

LATCH, SIDE GATE SUPPORT

66302A

LINK SUB-ASSY, GATE HELPER

9010908074

Крепеж

9010908074

Крепеж

9014908001

Крепеж

9014908001

Крепеж

9017908245

Крепеж

9017908245

Крепеж

9017908245

Крепеж

9017908245

Крепеж

9017908245

Крепеж

9017908245

Крепеж

9046708008

Крепеж

9163261060

Крепеж

9418561000

Крепеж

9418800801

Крепеж

9418800801

Крепеж

C5191A

PLATE, GATE ROPE THROUGH, OUTER

C5191A

PLATE, GATE ROPE THROUGH, OUTER

C5192

PLATE, GATE ROPE THROUGH, INNER

C5192

PLATE, GATE ROPE THROUGH, INNER

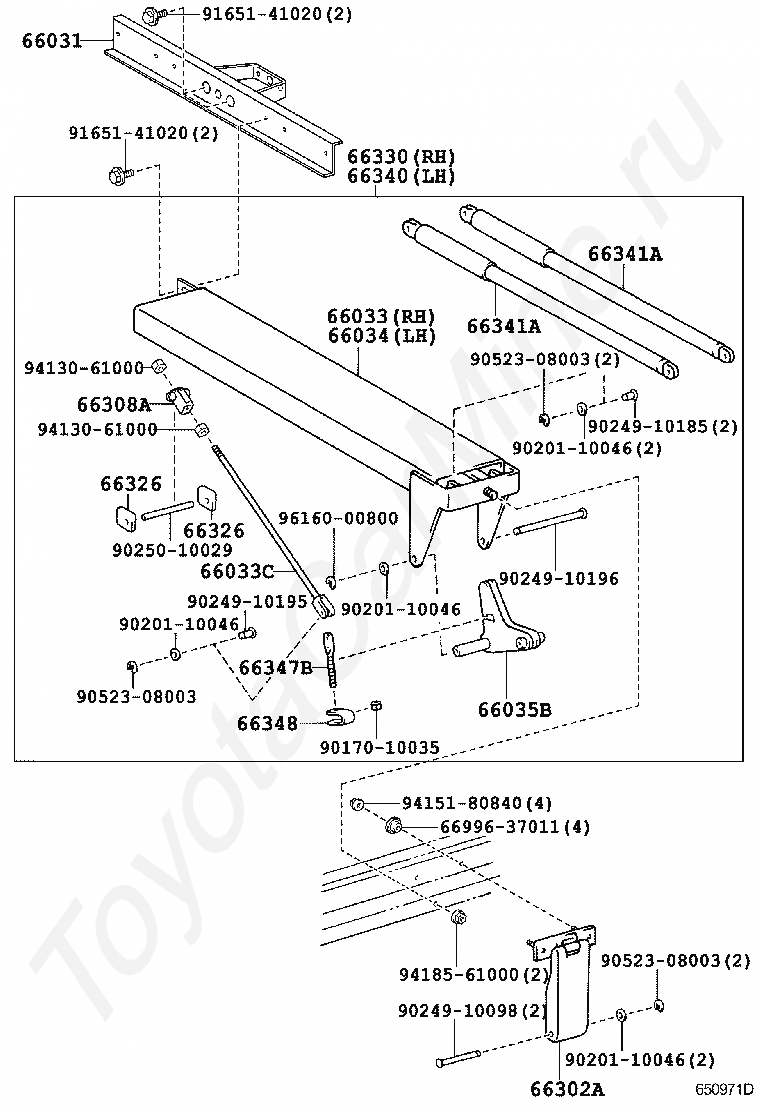

Код

Описание

66031

BRACKET SUB-ASSY, GATE HELPER, NO.1

66033

BRACKET SUB-ASSY, GATE HELPER, NO.3

66033C

ROD SUB-ASSY, GATE HELPER TENSION

66034

BRACKET SUB-ASSY, GATE HELPER, NO.3 LH

66035B

BELLCRANK SUB-ASSY, GATE HELPER

66302A

LINK SUB-ASSY, GATE HELPER

66308A

END SUB-ASSY, GATE HELPER ROD, NO.2

66326

SLIDER, ROD CONTROL

66326

SLIDER, ROD CONTROL

66330

HELPER ASSY, GATE, RH

66340

HELPER ASSY, GATE, LH

66341A

STAY, GATE HELPER

66341A

STAY, GATE HELPER

66347B

BOLT, GATE HELPER BELLCRANK ADJUST

66348

RETAINER, GATE HELPER BELLCRANK ADJUST BOLT

6699637011

Крепеж

9017010035

Крепеж

9020110046

Крепеж

9020110046

Крепеж

9020110046

Крепеж

9020110046

Крепеж

9024910098

Крепеж

9024910185

Крепеж

9024910195

Крепеж

9024910196

Крепеж

9025010029

Крепеж

9052308003

Крепеж

9052308003

Крепеж

9052308003

Крепеж

9165141020

Крепеж

9165141020

Крепеж

9413061000

Крепеж

9413061000

Крепеж

9415180840

Крепеж

9418561000

Крепеж

9616000800

Крепеж

REAR BODY SIDE PANEL TOYOTA DYNA/TOYOACE
