Каталог

Япония

Модель

DYNA/TOYOACE

VIN

Дата

2017/05

Двигатель

4 литра, дизель

Фрейм

XZC605

КПП

автомат АКПП, 6 скоростей

Опции

SINGLE CARBURETOR:SINGLE CAB LOW FLAT DECK OPENING ON THREE SIDES (JUST LOW) 2 тонны DOUBLE TIRE DCRTHCBU 742W

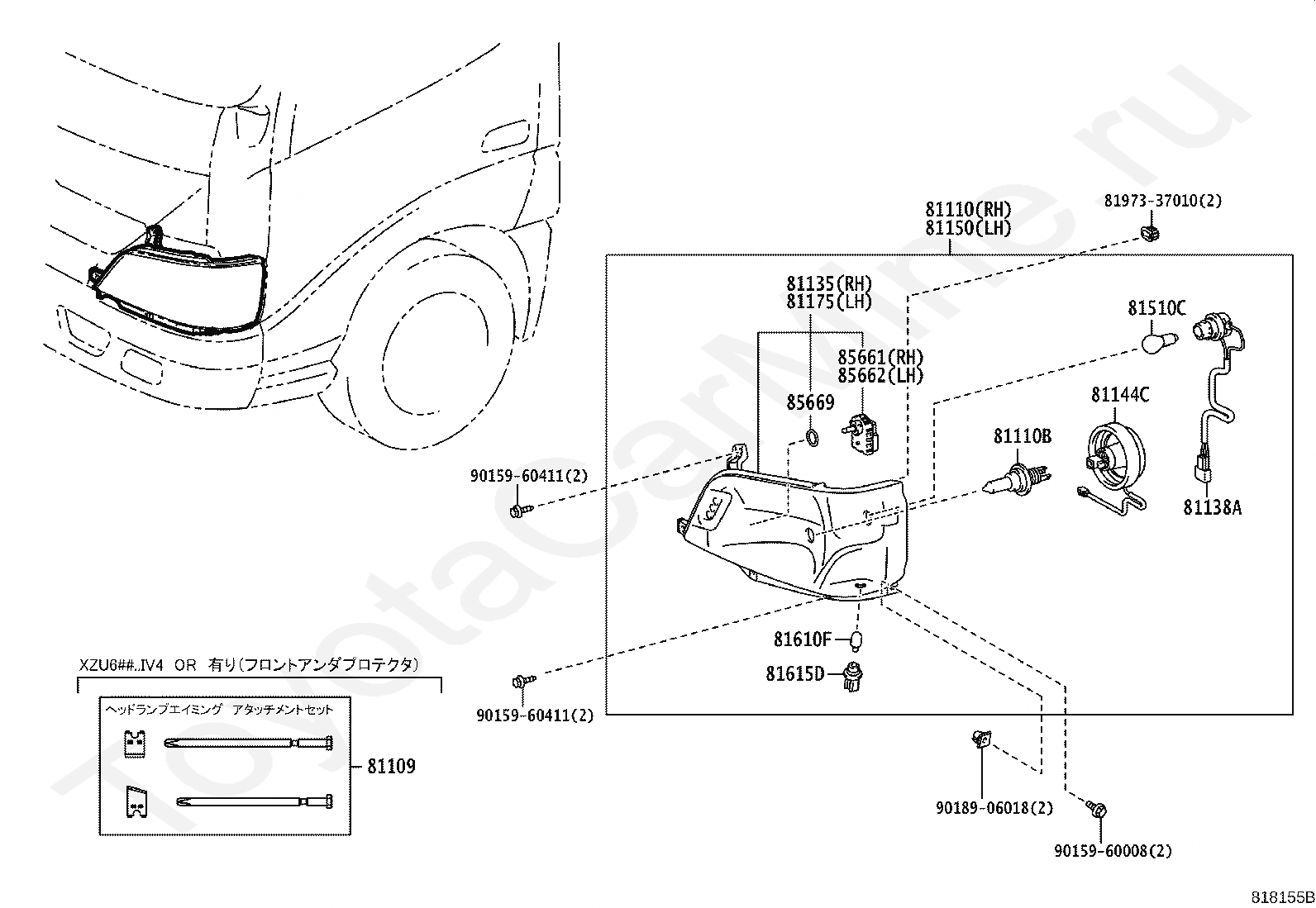

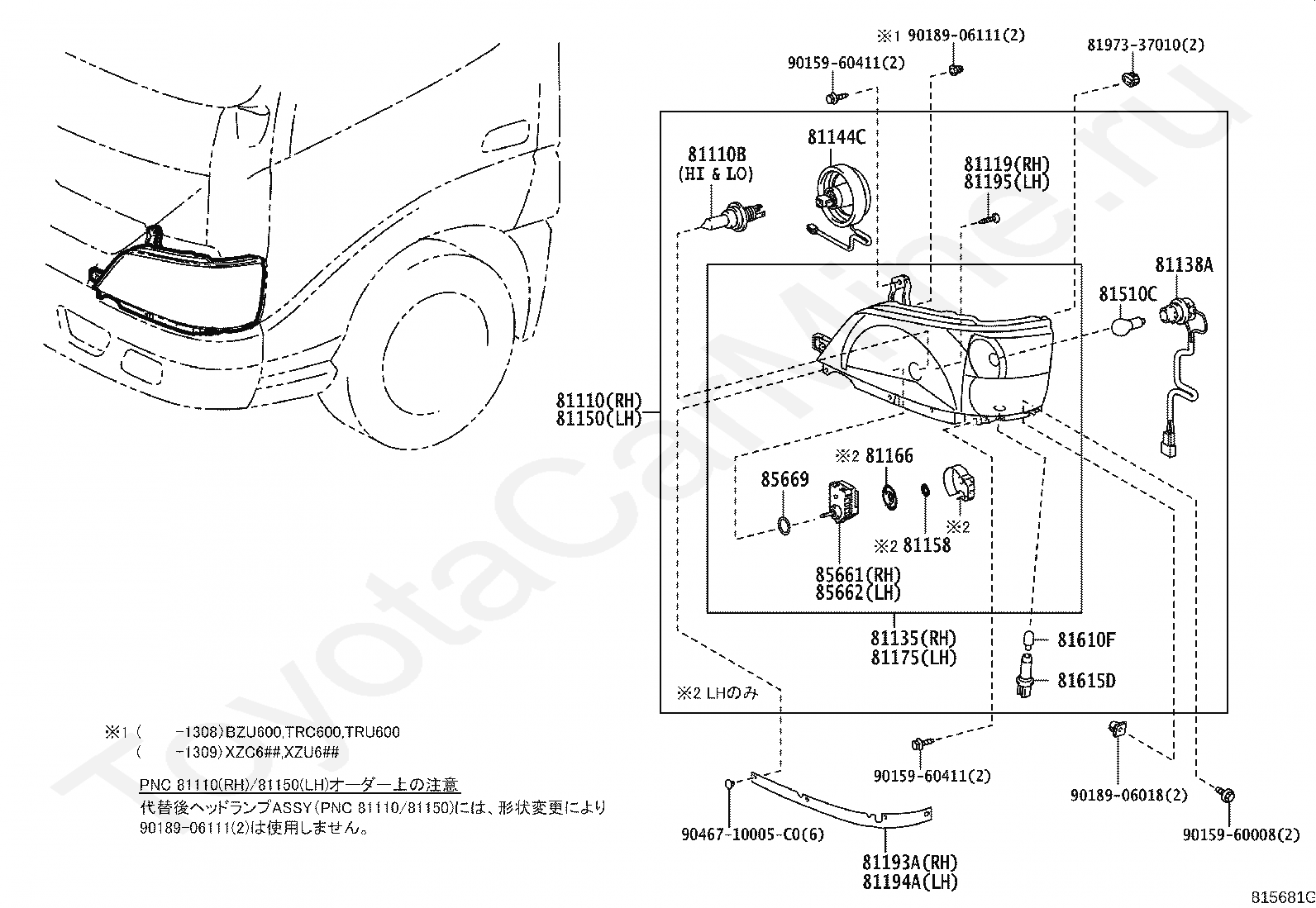

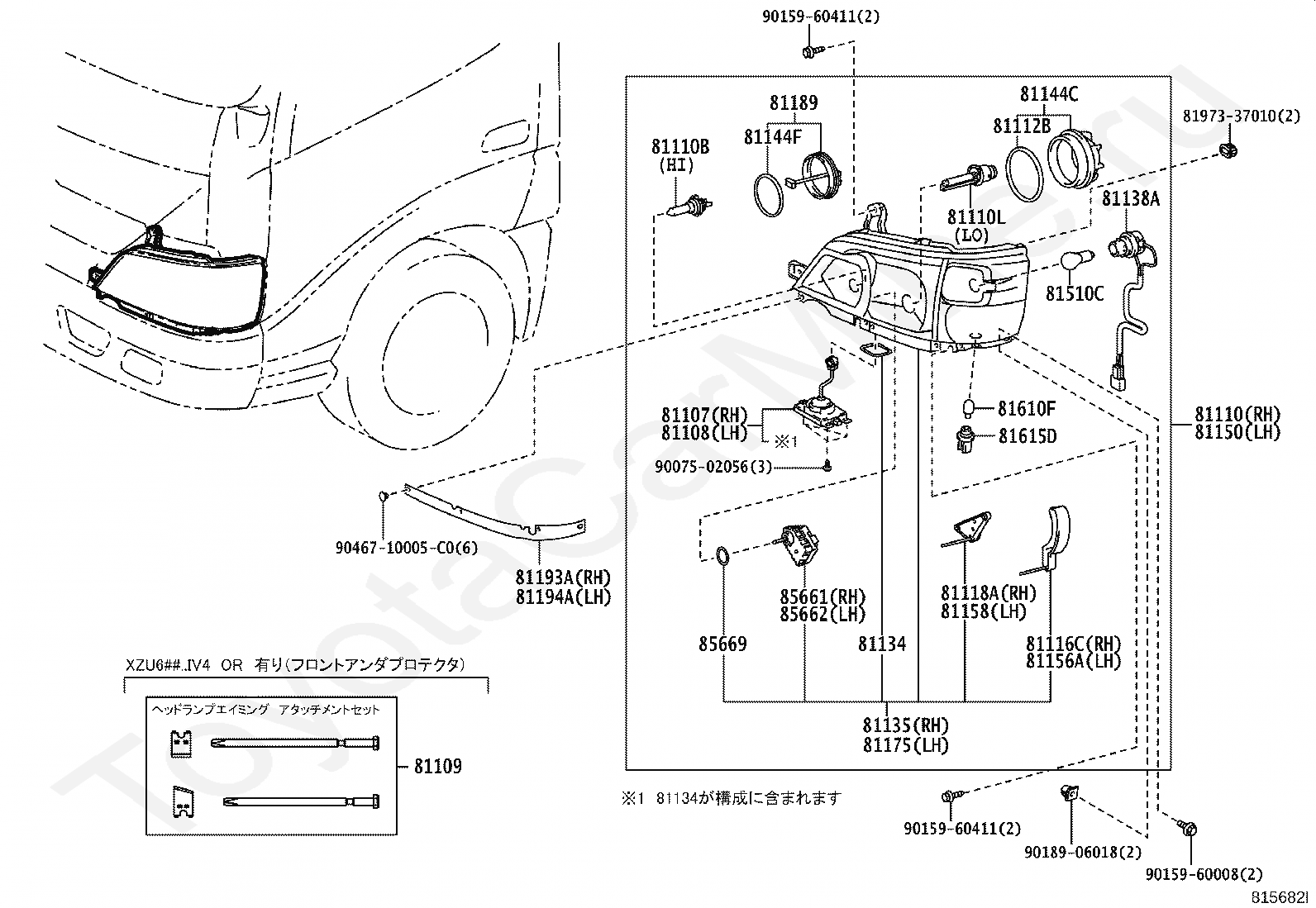

Фары TOYOTA DYNA/TOYOACE

Код

Описание

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81119

SCREW, HEADLAMP

81135

UNIT ASSY, HEADLAMP, RH

81138A

SOCKET & WIRE, HEADLAMP

81144C

COVER, HEADLAMP SOCKET

81150

HEADLAMP ASSY, LH

81158

BRACKET, HEADLAMP, LH

81166

PLATE, HEADLAMP, LH

81175

UNIT ASSY, HEADLAMP, LH

81193A

PROTECTOR, HEADLAMP, RH

81194A

PROTECTOR, HEADLAMP, LH

81195

SCREW, HEADLAMP

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

8197337010

Крепеж

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9015960008

Крепеж

9015960411

Крепеж

9015960411

Крепеж

9018906018

Крепеж

9018906111

Крепеж

9046710005C0

Крепеж

Код

Описание

81107

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

81108

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

81109

ATTACHMENT SET, HEADLAMP AIMING

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81110L

BULB, DISCHARGE HEADLAMP

81112B

RING, COVER

81116C

BRACKET, HEADLAMP, RH

81118A

BRACKET, HEADLAMP, RH

81134

GASKET, HEADLAMP

81135

UNIT ASSY, HEADLAMP, RH

81138A

SOCKET & WIRE, HEADLAMP

81144C

COVER, HEADLAMP SOCKET

81144F

O-RING, HEADLAMP COVER

81150

HEADLAMP ASSY, LH

81156A

BRACKET, HEADLAMP, LH

81158

BRACKET, HEADLAMP, LH

81175

UNIT ASSY, HEADLAMP, LH

81189

COVER, HEADLAMP

81193A

PROTECTOR, HEADLAMP, RH

81194A

PROTECTOR, HEADLAMP, LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

8197337010

Крепеж

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9007502056

Крепеж

9015960008

Крепеж

9015960411

Крепеж

9015960411

Крепеж

9018906018

Крепеж

9046710005C0

Крепеж

Код

Описание

81109

ATTACHMENT SET, HEADLAMP AIMING

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81135

UNIT ASSY, HEADLAMP, RH

81138A

SOCKET & WIRE, HEADLAMP

81144C

COVER, HEADLAMP SOCKET

81150

HEADLAMP ASSY, LH

81175

UNIT ASSY, HEADLAMP, LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

8197337010

Крепеж

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9015960008

Крепеж

9015960411

Крепеж

9015960411

Крепеж

9018906018

Крепеж
