Каталог

Япония

Модель

DYNA/TOYOACE

VIN

Дата

2001/07

Двигатель

3 литра, дизель

Фрейм

LY280

КПП

автомат

Опции

DOUBLE CAB TRUCK (FULL JUST LOW) BOARDING DECK 1,25 тонн DOUBLE TIRE DSL CBU

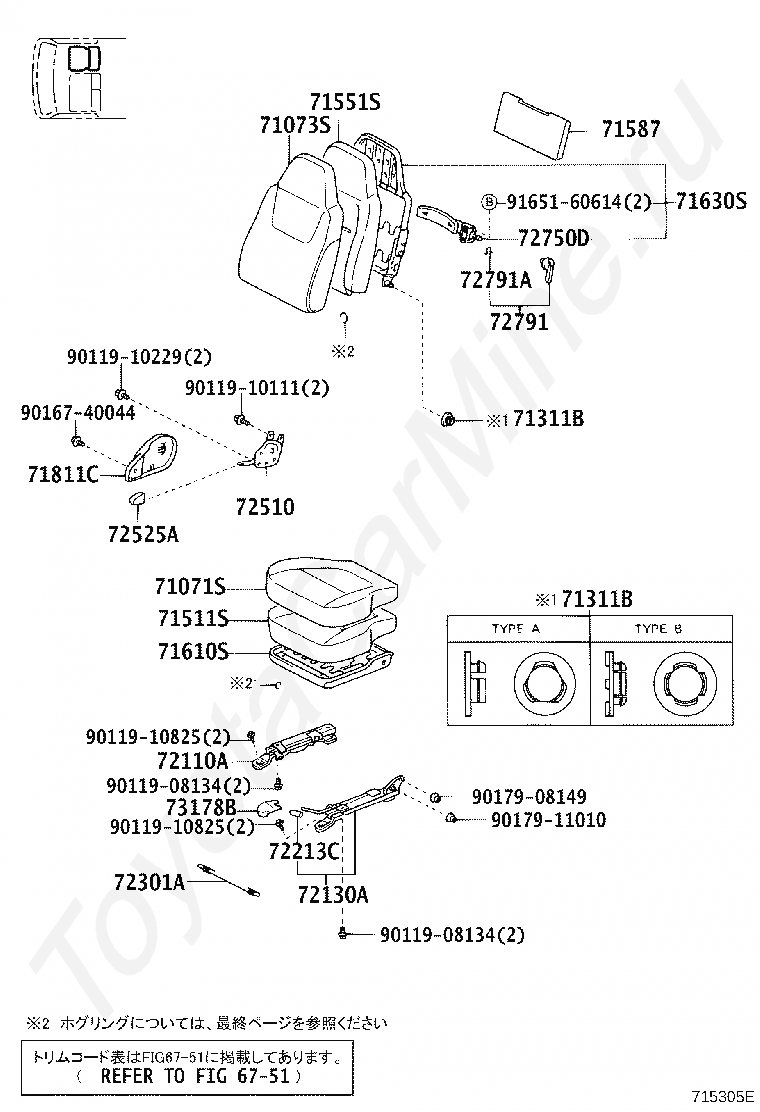

Кресла TOYOTA DYNA/TOYOACE

Код

Описание

6751

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811C

COVER, RECLINING ADJUSTER, RH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72213C

KNOB, SEAT TRACK ADJUSTING HANDLE, LH

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

72791

LEVER, LUMBAR SUPPORT

72791A

RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)

73178B

CAP, SEAT BELT ANCHOR COVER

9011908134

Крепеж

9011908134

Крепеж

9011910111

Крепеж

9011910229

Крепеж

9011910825

Крепеж

9011910825

Крепеж

9016740044

Крепеж

9017908149

Крепеж

9017911010

Крепеж

9165160614

Крепеж

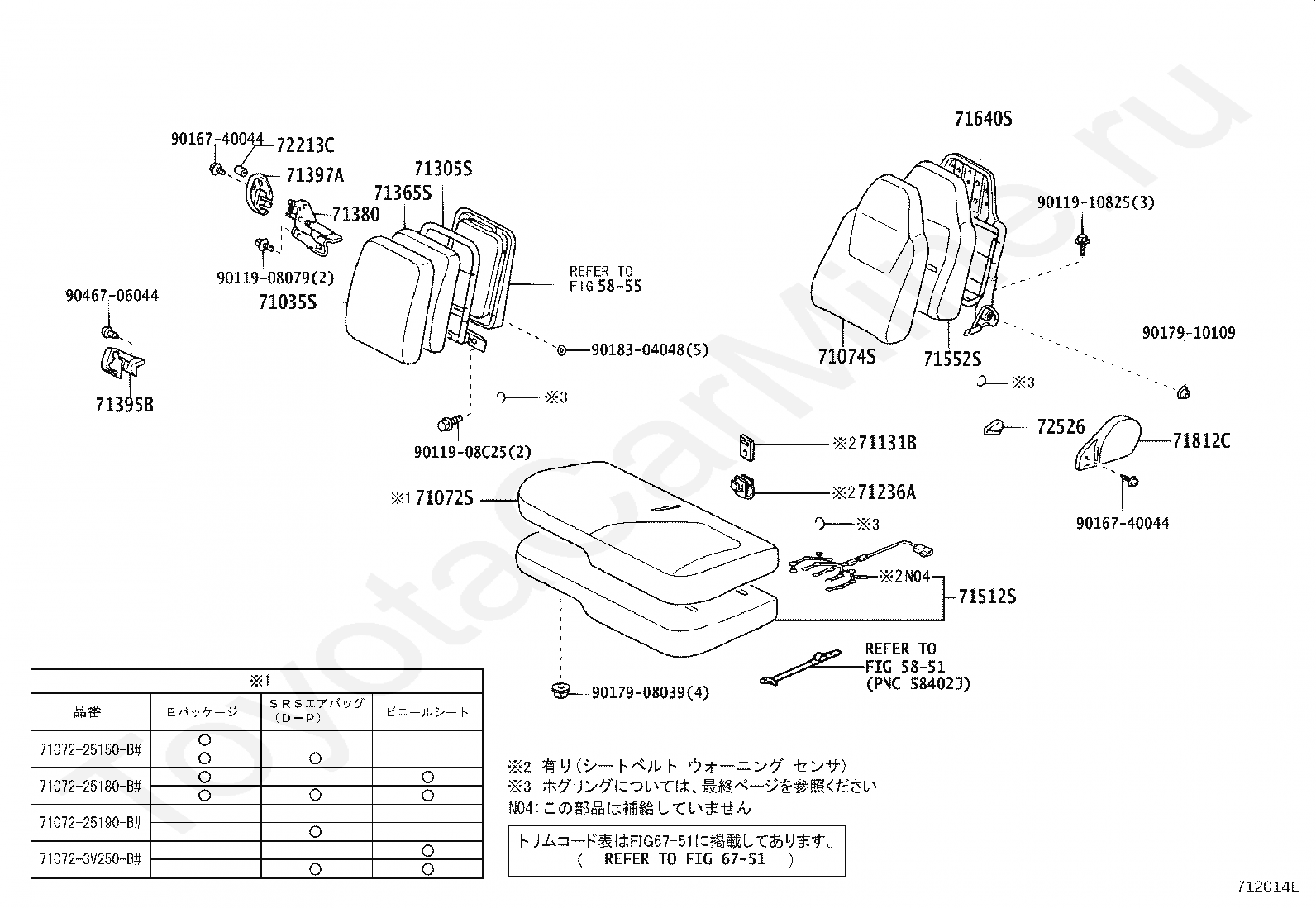

Код

Описание

5851

переход к группе запчастей

6751

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71131B

PLATE, FRONT SEAT CUSHION, NO.1

71236A

CLAMP, REAR SEAT CUSHION SPRING

71491C

SPRING, REAR SEAT SET

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71739

CUSHION, SEAT SUPPORT

71849

CAP, SEAT ADJUSTER COVER, LH

72641

PIN, REAR SEAT BACK LOCK

78950

BAND ASSY, FOLD SEAT STOPPER, NO.1

9011908C25

Крепеж

9011908C25

Крепеж

9356015030

Крепеж

9616000800

Крепеж

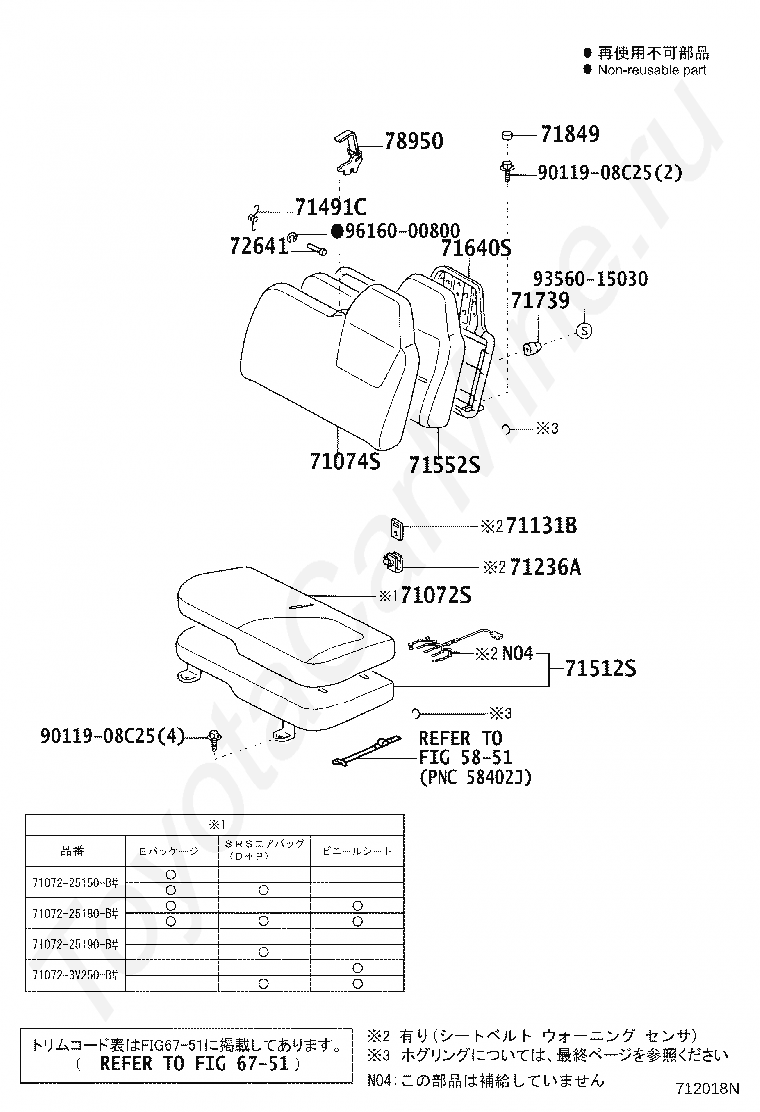

Код

Описание

5851

переход к группе запчастей

5855

переход к группе запчастей

6751

переход к группе запчастей

71035S

COVER, FRONT SEAT BACK, CENTER

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71131B

PLATE, FRONT SEAT CUSHION, NO.1

71236A

CLAMP, REAR SEAT CUSHION SPRING

71305S

FRAME SUB-ASSY, CENTER SEAT BACK

71365S

PAD, CENTER SEAT BACK

71380

HINGE ASSY, CENTER SEAT, RH

71395B

COVER, CENTER SEAT HINGE, RH

71397A

COVER, CENTER SEAT HINGE

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812C

COVER, RECLINING ADJUSTER, LH

72213C

KNOB, SEAT TRACK ADJUSTING HANDLE, LH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011908079

Крепеж

9011908C25

Крепеж

9011910825

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017908039

Крепеж

9017910109

Крепеж

9018304048

Крепеж

9046706044

Крепеж

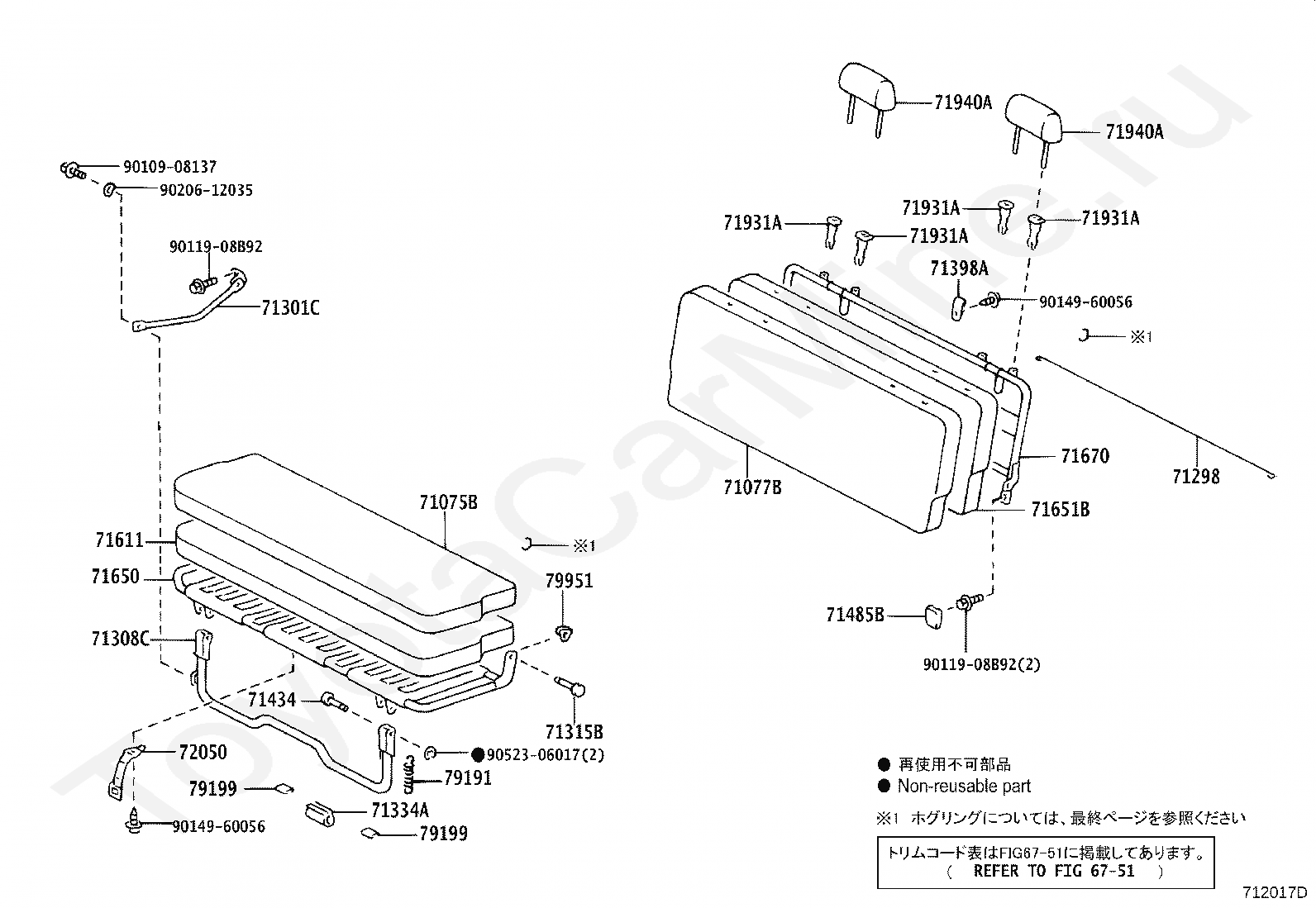

Код

Описание

6751

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71298

WIRE, REAR SEAT BACK, LOWER

71301C

LINK SUB-ASSY, REAR SEAT CUSHION

71308C

LEG SUB-ASSY, REAR SEAT, FRONT

71315B

PIN, REAR SEAT HINGE

71334A

STOPPER, REAR SEAT LEG

71398A

HOLDER, REAR SEAT BACK

71434

PIN, REAR SEAT CUSHION LEG, REAR

71485B

COVER, REAR SEAT HINGE

71611

PAD, REAR SEAT CUSHION

71650

SPRING ASSY, REAR SEAT CUSHION

71651B

PAD, REAR SEAT BACK(FOR BENCH TYPE)

71670

SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

72050

BELT ASSY, REAR SEAT HOOK

79191

SPRING, NO.1 SEAT CUSHION, NO.1

79199

HOLDER, NO.1 SEAT LEG STOPPER

79199

HOLDER, NO.1 SEAT LEG STOPPER

79951

COVER, NO.1 SEAT CUSHION

9010908137

Крепеж

9011908B92

Крепеж

9011908B92

Крепеж

9014960056

Крепеж

9014960056

Крепеж

9020612035

Крепеж

9052306017

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Кресла TOYOTA DYNA/TOYOACE
