Каталог

Япония

Модель

DYNA/TOYOACE

VIN

Дата

2007/09

Двигатель

3 литра, турбо-дизель

Фрейм

KDY241

КПП

механика

Опции

VAN 6-местный 1.5 TONNE DOUBLE TIRE DCR CBU

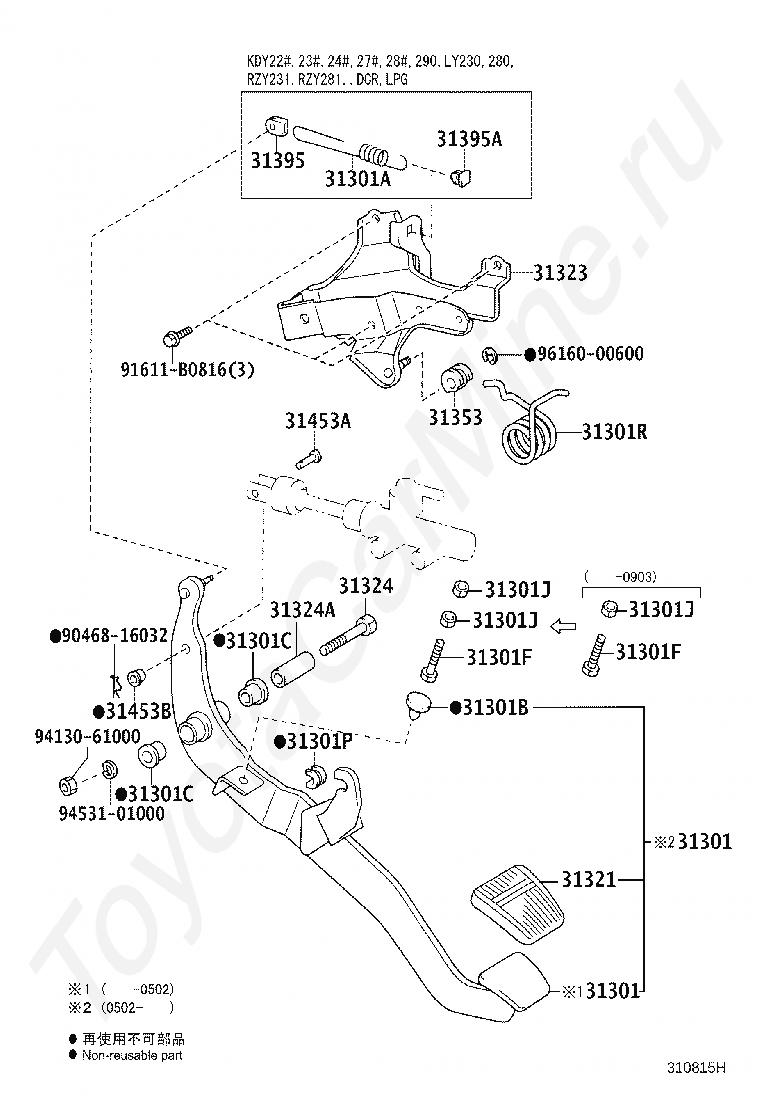

Педаль сцепления TOYOTA DYNA/TOYOACE

Код

Описание

31301

PEDAL SUB-ASSY, CLUTCH

31301

PEDAL SUB-ASSY, CLUTCH

31301A

SPRING(FOR CLUTCH PEDAL)

31301B

CUSHION, NO.1(FOR CLUTCH PEDAL)

31301C

BUSH(FOR CLUTCH PEDAL)

31301C

BUSH(FOR CLUTCH PEDAL)

31301F

BOLT(FOR CLUTCH PEDAL STOPPER)

31301F

BOLT(FOR CLUTCH PEDAL STOPPER)

31301J

NUT(FOR CLUTCH PEDAL STOPPER)

31301J

NUT(FOR CLUTCH PEDAL STOPPER)

31301J

NUT(FOR CLUTCH PEDAL STOPPER)

31301P

BUSH(FOR CLUTCH PEDAL TURNOVER)

31301R

SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)

31321

PAD, CLUTCH PEDAL

31323

BRACKET, CLUTCH PEDAL

31324

SHAFT, CLUTCH PEDAL

31324A

COLLAR, CLUTCH PEDAL SHAFT

31353

HOLDER, CLUTCH PEDAL SPRING

31395

HOOK, PEDAL SPRING

31395A

HOOK, PEDAL SPRING, NO.1

31453A

PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

31453B

BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

9046816032

Крепеж

91611B0816

Крепеж

9413061000

Крепеж

9453101000

Крепеж

9616000600

Крепеж

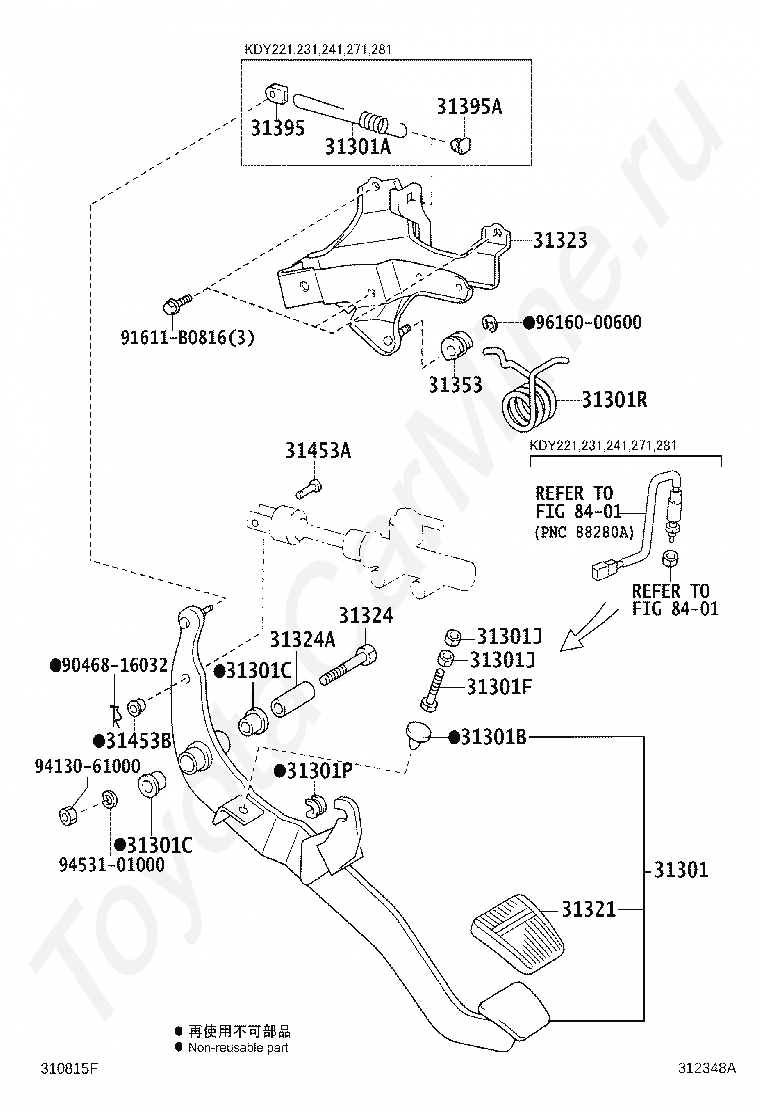

Код

Описание

31301

PEDAL SUB-ASSY, CLUTCH

31301A

SPRING(FOR CLUTCH PEDAL)

31301B

CUSHION, NO.1(FOR CLUTCH PEDAL)

31301C

BUSH(FOR CLUTCH PEDAL)

31301C

BUSH(FOR CLUTCH PEDAL)

31301F

BOLT(FOR CLUTCH PEDAL STOPPER)

31301J

NUT(FOR CLUTCH PEDAL STOPPER)

31301J

NUT(FOR CLUTCH PEDAL STOPPER)

31301P

BUSH(FOR CLUTCH PEDAL TURNOVER)

31301R

SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)

31321

PAD, CLUTCH PEDAL

31323

BRACKET, CLUTCH PEDAL

31324

SHAFT, CLUTCH PEDAL

31324A

COLLAR, CLUTCH PEDAL SHAFT

31353

HOLDER, CLUTCH PEDAL SPRING

31395

HOOK, PEDAL SPRING

31395A

HOOK, PEDAL SPRING, NO.1

31453A

PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

31453B

BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

8401

переход к группе запчастей

8401

переход к группе запчастей

9046816032

Крепеж

91611B0816

Крепеж

9413061000

Крепеж

9453101000

Крепеж

9616000600

Крепеж

Код

Описание

3103

переход к группе запчастей

3105

переход к группе запчастей

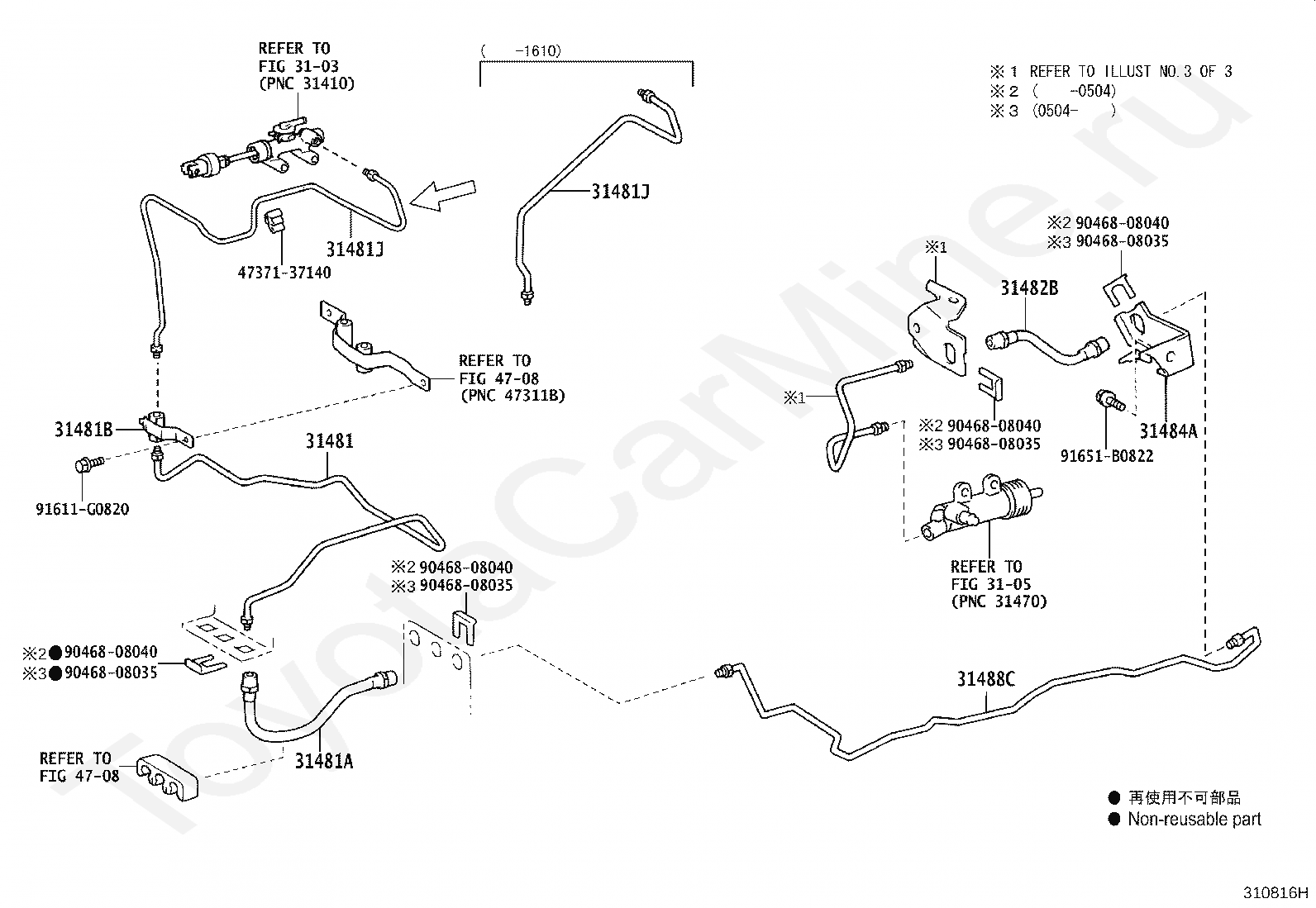

31481

TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

31481A

HOSE, CLUTCH, NO.1

31481B

WAY(FOR CLUTCH TUBE)

31481J

TUBE, CLUTCH MASTER CYLINDER TO 2 WAY

31481J

TUBE, CLUTCH MASTER CYLINDER TO 2 WAY

31482B

HOSE, CLUTCH, NO.2

31484A

BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)

31488C

TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE

4708

переход к группе запчастей

4708

переход к группе запчастей

4737137140

Крепеж

9046808035

Крепеж

9046808035

Крепеж

9046808035

Крепеж

9046808035

Крепеж

9046808040

Крепеж

9046808040

Крепеж

9046808040

Крепеж

9046808040

Крепеж

91611G0820

Крепеж

91651B0822

Крепеж

Код

Описание

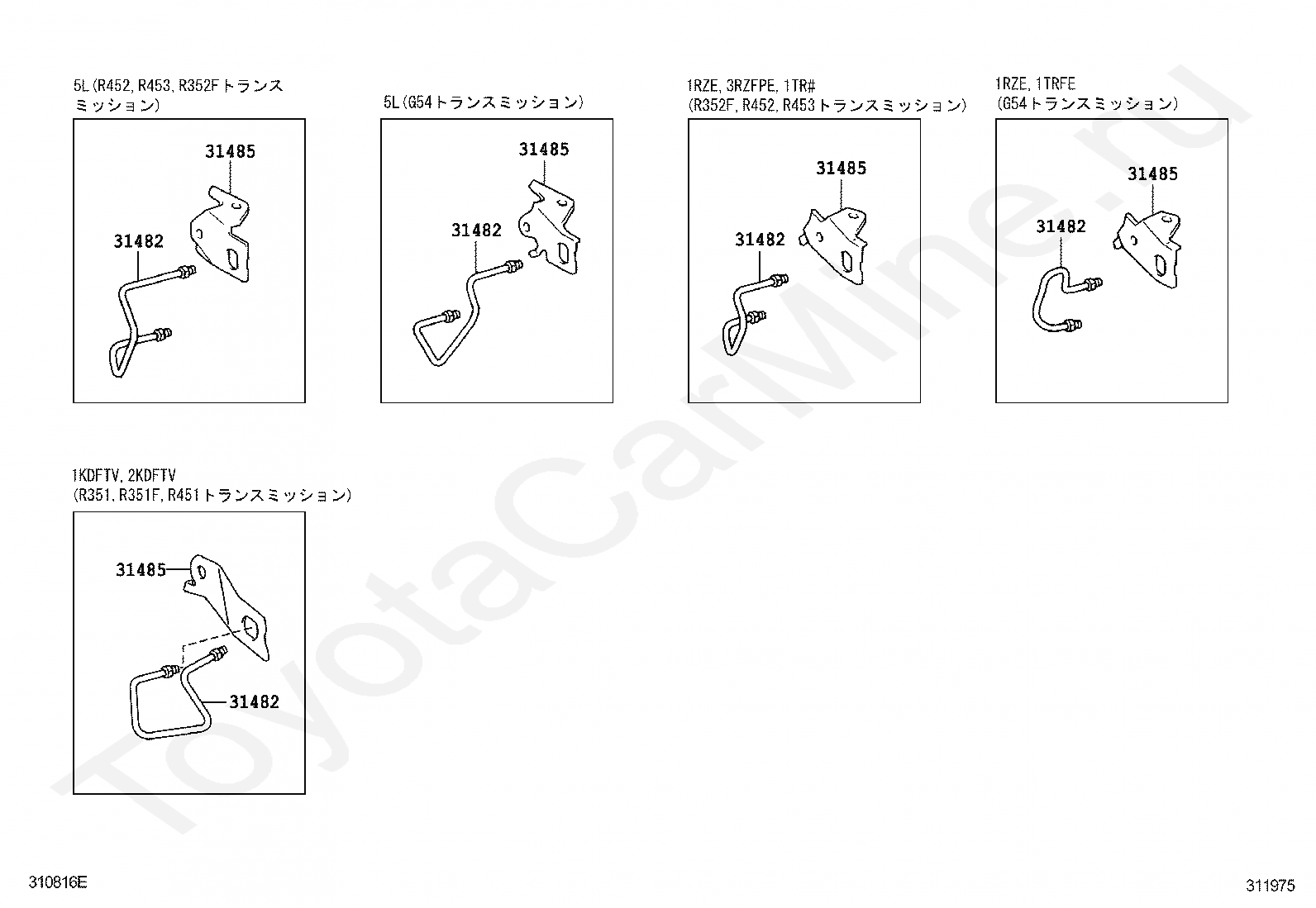

31482

TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE

31482

TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE

31482

TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE

31482

TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE

31482

TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE

31485

BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)

31485

BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)

31485

BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)

31485

BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)

31485

BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
