Каталог

Япония

Модель

DYNA 200/TOYOACE G25

VIN

Дата

1997/08

Двигатель

4,1 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU222

КПП

механика МКПП, 6 скоростей

Опции

(FULL JUST LOW) 3-местный DOUBLE TIRE 2 тонны DSL CBU

Реле и кнопки TOYOTA DYNA 200/TOYOACE G25

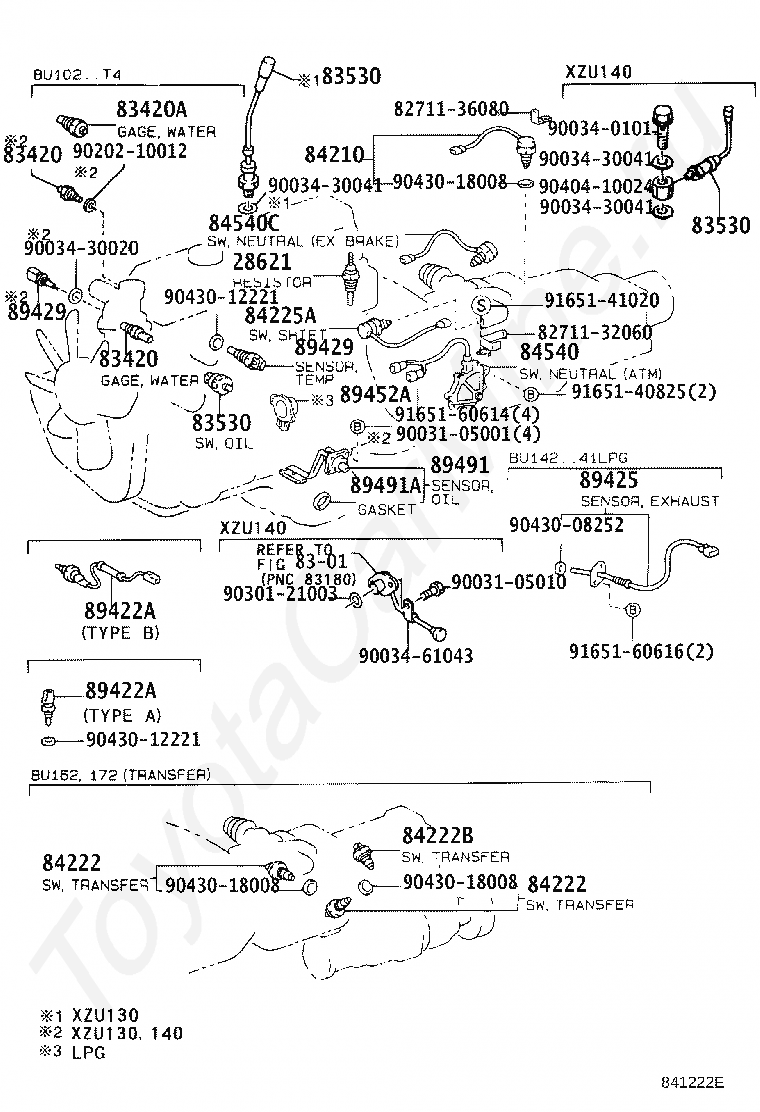

Код

Описание

28621

RESISTOR, GLOW PLUG

8271132060

Крепеж

8271136080

Крепеж

8301

переход к группе запчастей

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83420A

GAGE ASSY, OIL TEMPERATURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84210

SWITCH ASSY, BACK-UP LAMP

84222

SWITCH, TRANSFER INDICATOR, NO.1

84222

SWITCH, TRANSFER INDICATOR, NO.1

84222B

SWITCH, TRANSFER INDICATOR, NO.2

84225A

SWITCH, SHIFT POSITION

84540

SWITCH ASSY, NEUTRAL START

84540C

SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)

89422A

SENSOR, WATER TEMPERATURE

89422A

SENSOR, WATER TEMPERATURE

89425

SENSOR, EXHAUST GAS TEMPERATURE

89429

SENSOR, OIL TEMPERATURE

89429

SENSOR, OIL TEMPERATURE

89452A

SENSOR, THROTTLE POSITION

89491

SENSOR, ENGINE OIL LEVEL

89491A

GASKET, ENGINE OIL LEVEL SENSOR

9003105001

Крепеж

9003105010

Крепеж

9003401011

Крепеж

9003430020

Крепеж

9003430041

Крепеж

9003430041

Крепеж

9003430041

Крепеж

9003461043

Крепеж

9020210012

Крепеж

9030121003

Крепеж

9040410024

Крепеж

9043008252

Крепеж

9043012221

Крепеж

9043012221

Крепеж

9043018008

Крепеж

9043018008

Крепеж

9043018008

Крепеж

9165140825

Крепеж

9165141020

Крепеж

9165160614

Крепеж

9165160616

Крепеж

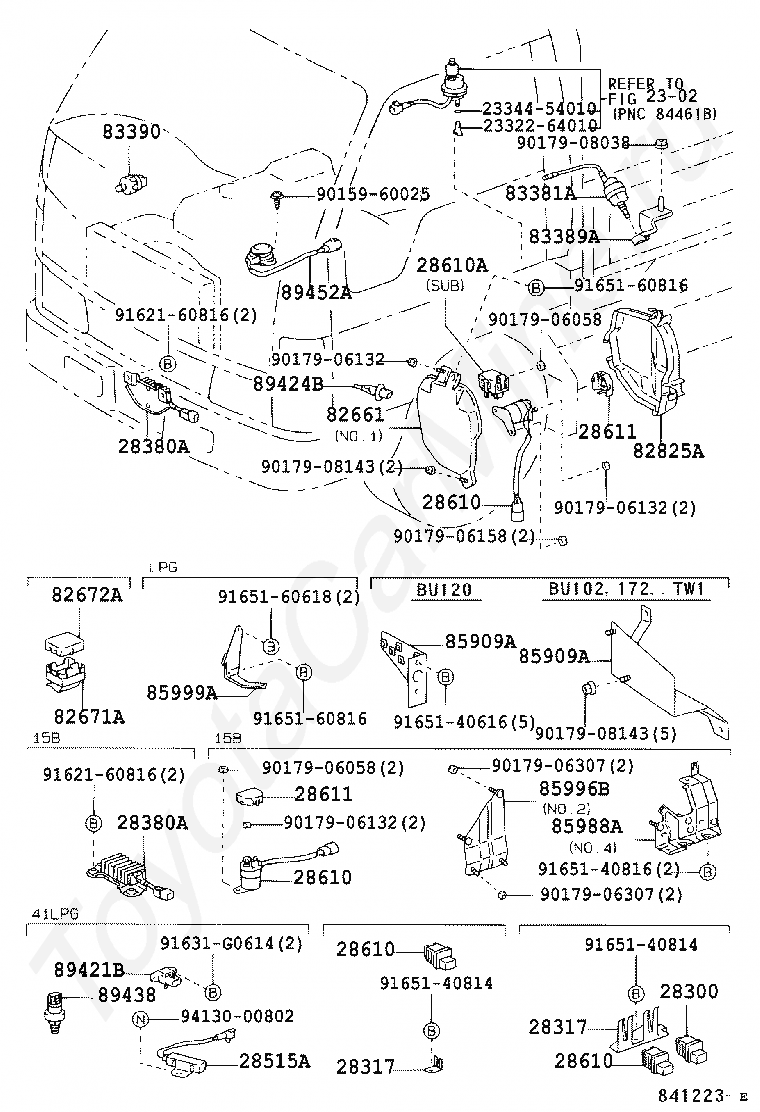

Код

Описание

2302

переход к группе запчастей

2332264010

Крепеж

2334454010

Крепеж

28300

RELAY ASSY, STARTER

28317

BRACKET, STARTER RELAY

28317

BRACKET, STARTER RELAY

28380A

RESISTER, FUEL PUMP

28380A

RESISTER, FUEL PUMP

28515A

RESISTOR, SOLENOID

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

28610A

RELAY ASSY, GLOW PLUG(SUB)

28611

COVER, GLOW PLUG RELAY

28611

COVER, GLOW PLUG RELAY

82661

COVER, RELAY BLOCK, NO.1

82671A

BLOCK, JUNCTION

82672A

COVER, JUNCTION BLOCK

82825A

COVER, RELAY

83381A

SWITCH, PRESSURE

83389A

BRACKET, PRESSURE SWITCH

83390

SWITCH ASSY, VACUUM WARNING

85909A

BRACKET SUB-ASSY, RELAY BLOCK

85909A

BRACKET SUB-ASSY, RELAY BLOCK

85988A

BRACKET, RELAY, NO.4

85996B

BRACKET, RELAY, NO.2

85999A

BRACKET, RELAY, NO.2

89421B

SENSOR, VACUUM

89424B

SWITCH, INLET AIR TEMPERATURE

89438

SWITCH, POWER STEERING OIL PRESSURE

89452A

SENSOR, THROTTLE POSITION

9015960025

Крепеж

9017906058

Крепеж

9017906058

Крепеж

9017906132

Крепеж

9017906132

Крепеж

9017906132

Крепеж

9017906158

Крепеж

9017906307

Крепеж

9017906307

Крепеж

9017908038

Крепеж

9017908143

Крепеж

9017908143

Крепеж

9162160816

Крепеж

9162160816

Крепеж

91631G0614

Крепеж

9165140616

Крепеж

9165140814

Крепеж

9165140814

Крепеж

9165140816

Крепеж

9165160618

Крепеж

9165160816

Крепеж

9165160816

Крепеж

9413000802

Крепеж

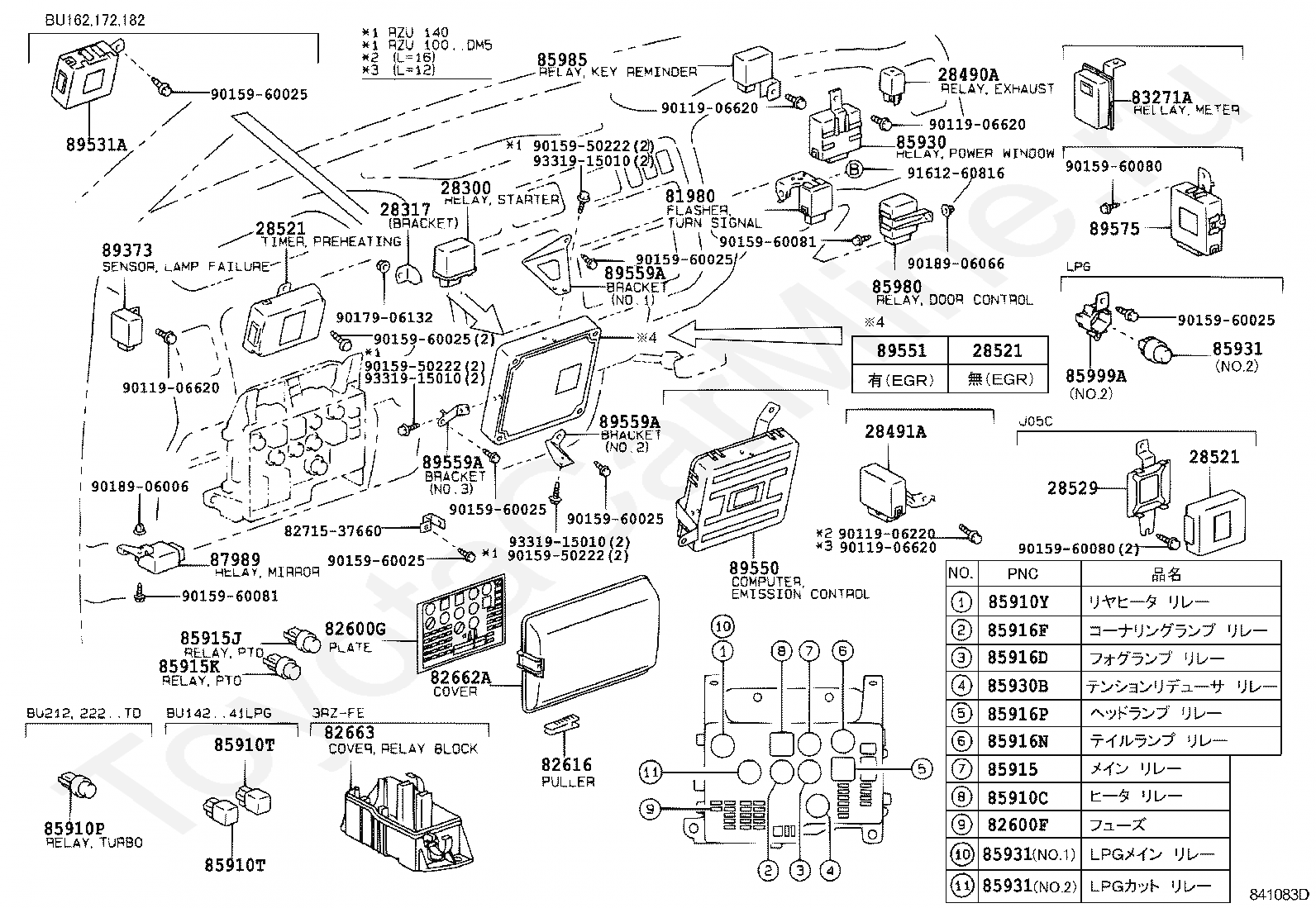

Код

Описание

28300

RELAY ASSY, STARTER

28317

BRACKET, STARTER RELAY

28490A

RELAY ASSY, EXHAUST RETARDER

28491A

COMPUTER, EXHAUST RETARDER

28521

TIMER, PREHEATING

28521

TIMER, PREHEATING

28521

TIMER, PREHEATING

28529

BRACKET, PREHEATING TIMER, NO.1

81980

FLASHER ASSY, TURN SIGNAL

82600F

FUSE, FUSE BLOCK

82600G

PLATE, CAUTION(FOR FUSE)

82616

PULLER, FUSE

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82663

COVER, RELAY BLOCK, LOWER

8271537660

Крепеж

83271A

RELAY, METER CONTROL

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85910P

RELAY, TURBO INDICATOR

85910T

RELAY, LPG

85910T

RELAY, LPG

85910Y

RELAY, REAR HEATER

85915

RELAY, MAIN

85915J

RELAY, POWER TAKE-OFF CONTROL, NO.1

85915K

RELAY, POWER TAKE-OFF CONTROL, NO.2

85916D

RELAY, FOG LAMP

85916F

RELAY, CORNERING LAMP

85916N

RELAY, TAIL LAMP

85916P

RELAY, HEADLAMP

85930

RELAY ASSY, POWER WINDOW

85930B

RELAY, TENSION REDUCER

85931

RELAY, EMISSION CONTROL

85931

RELAY, EMISSION CONTROL

85931

RELAY, EMISSION CONTROL

85980

RELAY ASSY, DOOR CONTROL

85985

RELAY, KEY REMINDER

85999A

BRACKET, RELAY, NO.2

87989

RELAY, MIRROR CONTROL

89373

SENSOR, LAMP FAILURE INDICATOR

89531A

RELAY, TRANSMISSION CONTROL

89550

COMPUTER ASSY, EMISSION CONTROL

89551

COMPUTER, EMISSION CONTROL

89559A

BRACKET, EMISSION CONTROL COMPUTER

89559A

BRACKET, EMISSION CONTROL COMPUTER

89559A

BRACKET, EMISSION CONTROL COMPUTER

89575

COMPUTER, INJECTION CONTROL

9011906220

Крепеж

9011906620

Крепеж

9011906620

Крепеж

9011906620

Крепеж

9011906620

Крепеж

9015950222

Крепеж

9015950222

Крепеж

9015950222

Крепеж

9015960025

Крепеж

9015960025

Крепеж

9015960025

Крепеж

9015960025

Крепеж

9015960025

Крепеж

9015960025

Крепеж

9015960025

Крепеж

9015960080

Крепеж

9015960080

Крепеж

9015960081

Крепеж

9015960081

Крепеж

9017906132

Крепеж

9018906006

Крепеж

9018906066

Крепеж

9161260816

Крепеж

9331915010

Крепеж

9331915010

Крепеж

9331915010

Крепеж

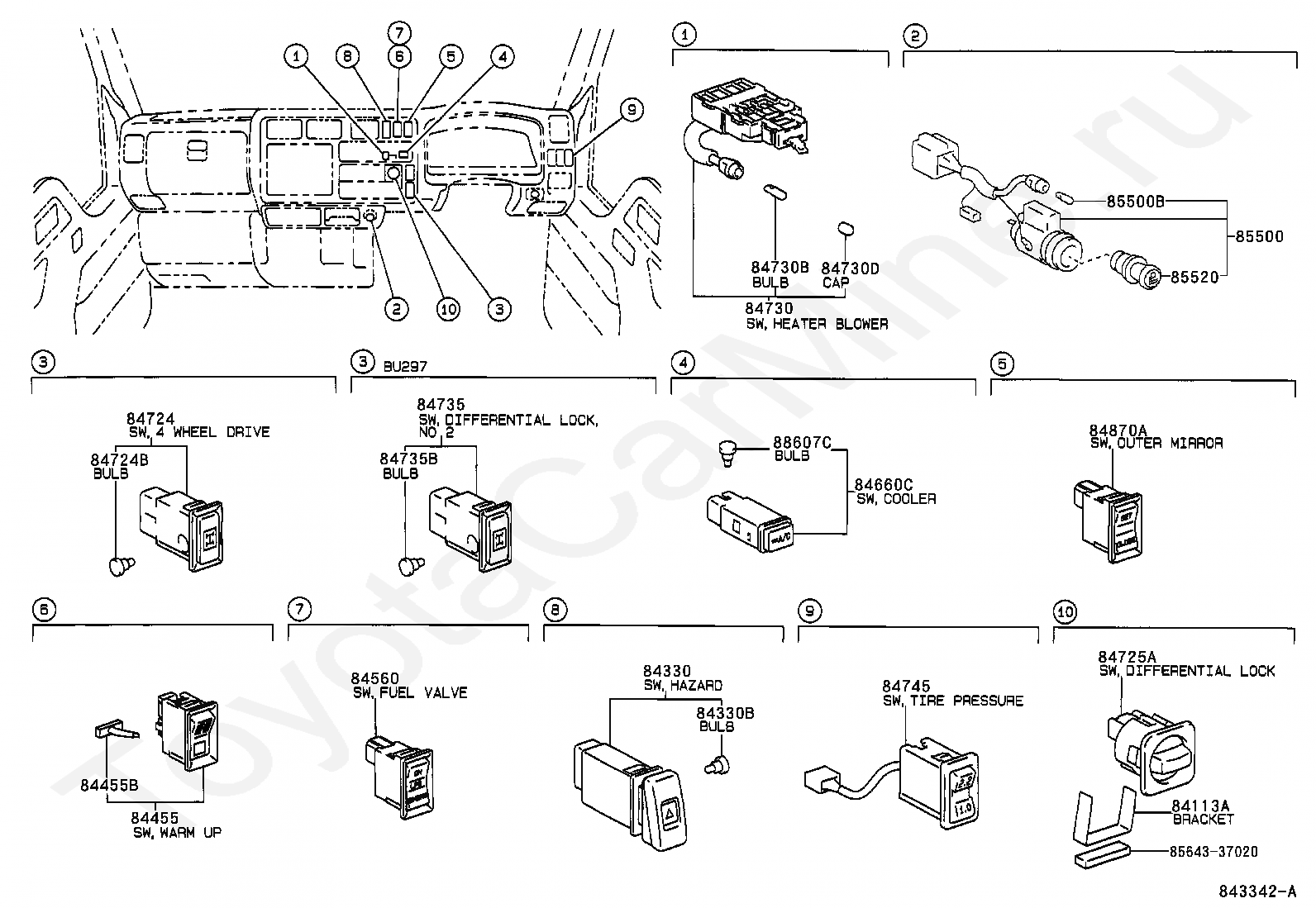

Код

Описание

84113A

BRACKET, SWITCH, NO.1

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330B

BULB, HAZARD WARNING SIGNAL SWITCH

84455

SWITCH, WARM UP

84455B

BULB (FOR WARM UP SWITCH)

84560

SWITCH ASSY, FUEL VALVE CONTROL

84660C

SWITCH, COOLER

84724

SWITCH, 4 WHEEL DRIVE CONTROL

84724B

BULB, 4 WHEEL DRIVE CONTROL SWITCH

84725A

SWITCH, DIFFERENTIAL LOCK

84730

SWITCH ASSY, HEATER BLOWER

84730B

BULB, HEATER BLOWER SWITCH

84730D

CAP, HEATER BLOWER SWITCH BULB

84735

SWITCH, DIFFERENTIAL LOCK, NO.2

84735B

BULB, DIFFERENTIAL LOCK NO.2 SWITCH

84745

SWITCH, TIRE PRESSURE CONTROL

84870A

SWITCH ASSY, OUTER MIRROR

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

8564337020

Крепеж

88607C

LAMP SUB-ASSY, INDICATOR

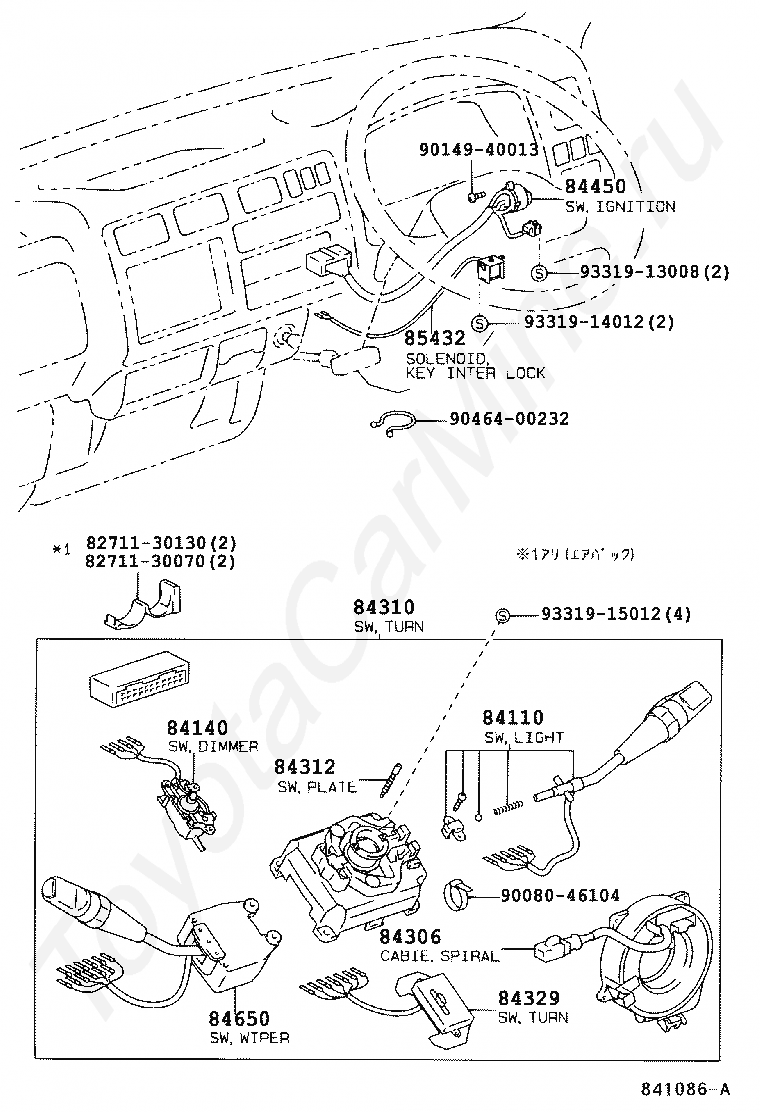

Код

Описание

8271130070

Крепеж

8271130130

Крепеж

84110

SWITCH ASSY, LIGHT CONTROL, NO.1

84140

SWITCH ASSY, HEADLAMP DIMMER

84306

CABLE SUB-ASSY, SPIRAL

84310

SWITCH ASSY, TURN SIGNAL

84312

PLATE, HORN CONTACT

84329

SWITCH, TURN SIGNAL

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

85432

SOLENOID, KEY INTER LOCK

9008046104

Крепеж

9014940013

Крепеж

9046400232

Крепеж

9331913008

Крепеж

9331914012

Крепеж

9331915012

Крепеж

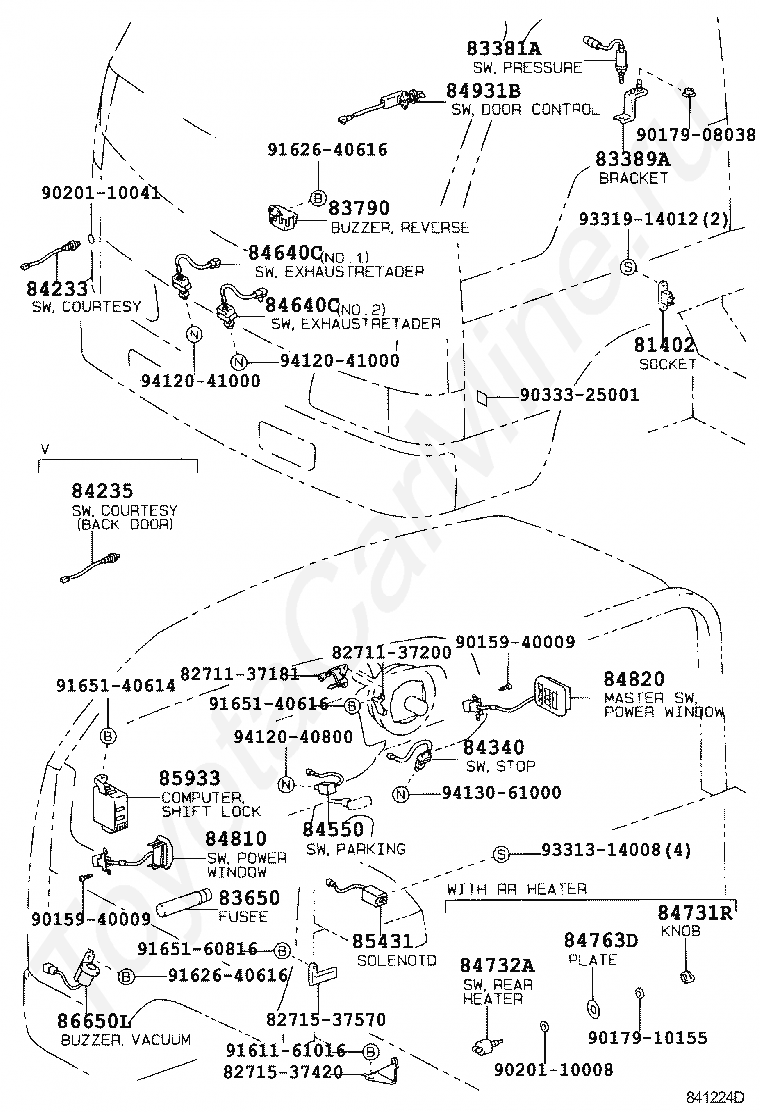

Код

Описание

81402

SOCKET SUB-ASSY, INSPECTION LAMP, NO.1

8271137181

Крепеж

8271137200

Крепеж

8271537420

Крепеж

8271537570

Крепеж

83381A

SWITCH, PRESSURE

83389A

BRACKET, PRESSURE SWITCH

83650

FUSEE

83790

BUZZER ASSY, REVERSE WARNING

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84235

SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)

84340

SWITCH ASSY, STOP LAMP

84550

SWITCH ASSY, PARKING BRAKE

84640C

SWITCH ASSY, EXHAUST RETARDER

84640C

SWITCH ASSY, EXHAUST RETARDER

84731R

KNOB, REAR HEATER BLOWER SWITCH

84732A

SWITCH, REAR HEATER BLOWER

84763D

PLATE, SWITCH

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84931B

SWITCH, DOOR CONTROL

85431

SOLENOID, SHIFT LOCK

85933

COMPUTER, SHIFT LOCK CONTROL

86650L

BUZZER ASSY, VACUUM WARNING

9015940009

Крепеж

9015940009

Крепеж

9017908038

Крепеж

9017910155

Крепеж

9020110008

Крепеж

9020110041

Крепеж

9033325001

Крепеж

9161161016

Крепеж

9162640616

Крепеж

9162640616

Крепеж

9165140614

Крепеж

9165140616

Крепеж

9165160816

Крепеж

9331314008

Крепеж

9331914012

Крепеж

9412040800

Крепеж

9412041000

Крепеж

9412041000

Крепеж

9413061000

Крепеж

Код

Описание

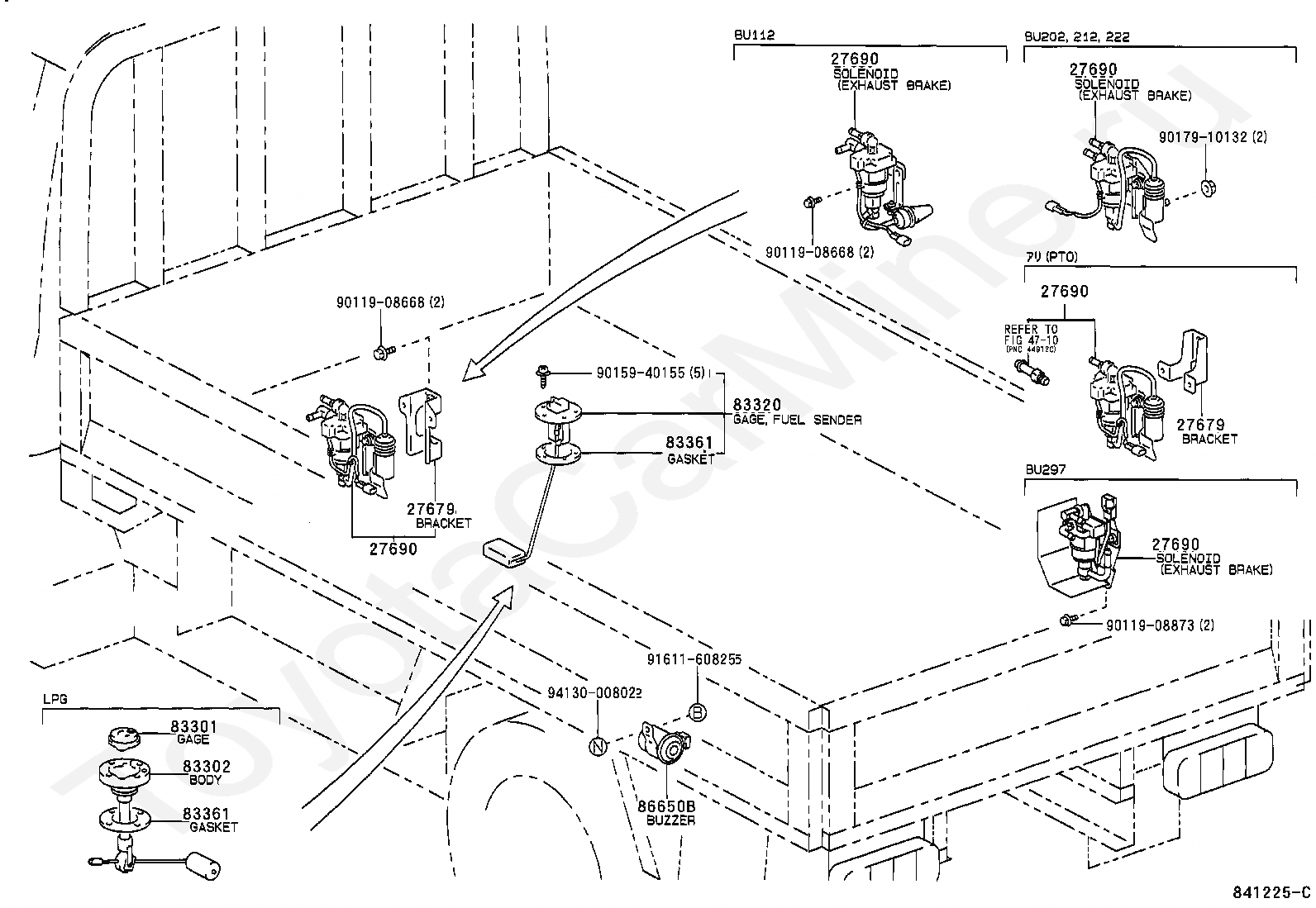

27679

BRACKET, EXHAUST BRAKE(FOR SOLENOID)

27679

BRACKET, EXHAUST BRAKE(FOR SOLENOID)

27690
