Каталог

Япония

Модель

DYNA 200/TOYOACE G25

VIN

Дата

1997/08

Двигатель

4,1 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU222

КПП

механика МКПП, 6 скоростей

Опции

(FULL JUST LOW) 3-местный DOUBLE TIRE 2 тонны DSL CBU

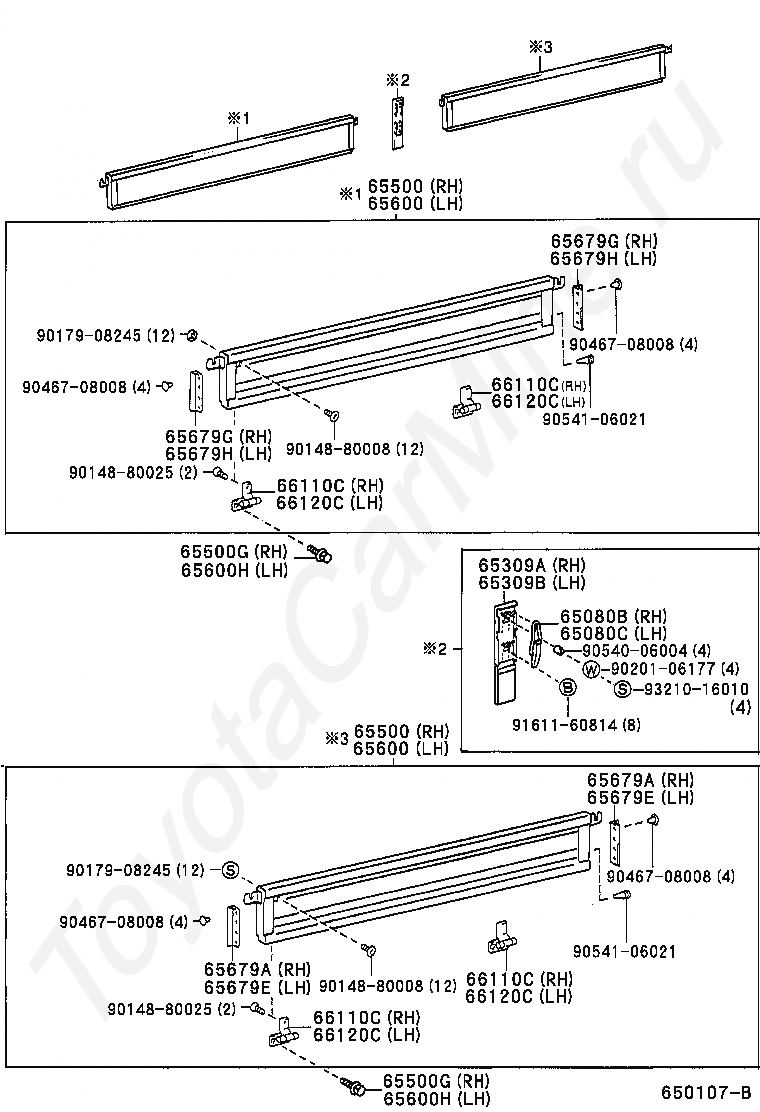

REAR BODY SIDE PANEL TOYOTA DYNA 200/TOYOACE G25

Код

Описание

65500

PANEL ASSY, REAR BODY SIDE, RH

65500

PANEL ASSY, REAR BODY SIDE, RH

65500G

BOLT, W/WASHER(FOR SIDE GATE, RH)

65500G

BOLT, W/WASHER(FOR SIDE GATE, RH)

65500H

NUT(FOR SIDE GATE, RH)

65600

PANEL ASSY, REAR BODY SIDE, LH

65600

PANEL ASSY, REAR BODY SIDE, LH

65600H

BOLT, W/WASHER(FOR SIDE GATE, LH)

65600H

BOLT, W/WASHER(FOR SIDE GATE, LH)

65600J

NUT(FOR SIDE GATE, LH)

65679A

SEAL, SIDE GATE

65679E

SEAL, SIDE GATE

66110C

HINGE ASSY, SIDE GATE, NO.1 RH

66110C

HINGE ASSY, SIDE GATE, NO.1 RH

66120C

HINGE ASSY, SIDE GATE, NO.1 LH

66120C

HINGE ASSY, SIDE GATE, NO.1 LH

66187

HANDLE, SIDE GATE LATCH, CENTER NO.2

9014880008

Крепеж

9014880025

Крепеж

9017908245

Крепеж

9046708008

Крепеж

9054106021

Крепеж

Код

Описание

65500A

PLUG, HOLE(FOR REAR BODY SIDE PANEL)

65600A

PLUG, HOLE(FOR SIDE GATE, LH)

66033

BRACKET SUB-ASSY, GATE HELPER, NO.3

66033C

ROD SUB-ASSY, GATE HELPER TENSION

66034

BRACKET SUB-ASSY, GATE HELPER, NO.3 LH

66035B

BELLCRANK SUB-ASSY, GATE HELPER

66302A

LINK SUB-ASSY, GATE HELPER

66308A

END SUB-ASSY, GATE HELPER ROD, NO.2

66326

SLIDER, ROD CONTROL

66326

SLIDER, ROD CONTROL

66330

HELPER ASSY, GATE, RH

66340

HELPER ASSY, GATE, LH

66341A

STAY, GATE HELPER

66341A

STAY, GATE HELPER

66347B

BOLT, GATE HELPER BELLCRANK ADJUST

66348

RETAINER, GATE HELPER BELLCRANK ADJUST BOLT

9014908001

Крепеж

9017010035

Крепеж

9017908245

Крепеж

9020110046

Крепеж

9020110046

Крепеж

9020110046

Крепеж

9020110046

Крепеж

9024910098

Крепеж

9024910185

Крепеж

9024910195

Крепеж

9024910196

Крепеж

9025010029

Крепеж

9165141020

Крепеж

9324018012

Крепеж

9411040800

Крепеж

9413061000

Крепеж

9413061000

Крепеж

9418041000

Крепеж

9616000800

Крепеж

9616000800

Крепеж

9616000800

Крепеж

9616000800

Крепеж

Код

Описание

65080B

HANDLE ASSY, SIDE GATE LATCH

65080C

HANDLE ASSY, SIDE GATE LATCH

65309A

POST SUB-ASSY, RH

65309B

POST SUB-ASSY, LH

65500

PANEL ASSY, REAR BODY SIDE, RH

65500

PANEL ASSY, REAR BODY SIDE, RH

65500G

BOLT, W/WASHER(FOR SIDE GATE, RH)

65500G

BOLT, W/WASHER(FOR SIDE GATE, RH)

65600

PANEL ASSY, REAR BODY SIDE, LH

65600

PANEL ASSY, REAR BODY SIDE, LH

65600H

BOLT, W/WASHER(FOR SIDE GATE, LH)

65600H

BOLT, W/WASHER(FOR SIDE GATE, LH)

65679A

SEAL, SIDE GATE

65679A

SEAL, SIDE GATE

65679E

SEAL, SIDE GATE

65679E

SEAL, SIDE GATE

65679G

SEAL, SIDE GATE

65679G

SEAL, SIDE GATE

65679H

SEAL, SIDE GATE

65679H

SEAL, SIDE GATE

66110C

HINGE ASSY, SIDE GATE, NO.1 RH

66110C

HINGE ASSY, SIDE GATE, NO.1 RH

66110C

HINGE ASSY, SIDE GATE, NO.1 RH

66110C

HINGE ASSY, SIDE GATE, NO.1 RH

66120C

HINGE ASSY, SIDE GATE, NO.1 LH

66120C

HINGE ASSY, SIDE GATE, NO.1 LH

66120C

HINGE ASSY, SIDE GATE, NO.1 LH

66120C

HINGE ASSY, SIDE GATE, NO.1 LH

9014880008

Крепеж

9014880008

Крепеж

9014880025

Крепеж

9014880025

Крепеж

9017908245

Крепеж

9017908245

Крепеж

9020106177

Крепеж

9046708008

Крепеж

9046708008

Крепеж

9046708008

Крепеж

9046708008

Крепеж

9054006004

Крепеж

9054106021

Крепеж

9054106021

Крепеж

9161160814

Крепеж

9321016010

Крепеж
