Каталог

Япония

Модель

DYNA 200/TOYOACE G25

VIN

Дата

1997/08

Двигатель

4,1 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU222

КПП

механика МКПП, 6 скоростей

Опции

(FULL JUST LOW) 3-местный DOUBLE TIRE 2 тонны DSL CBU

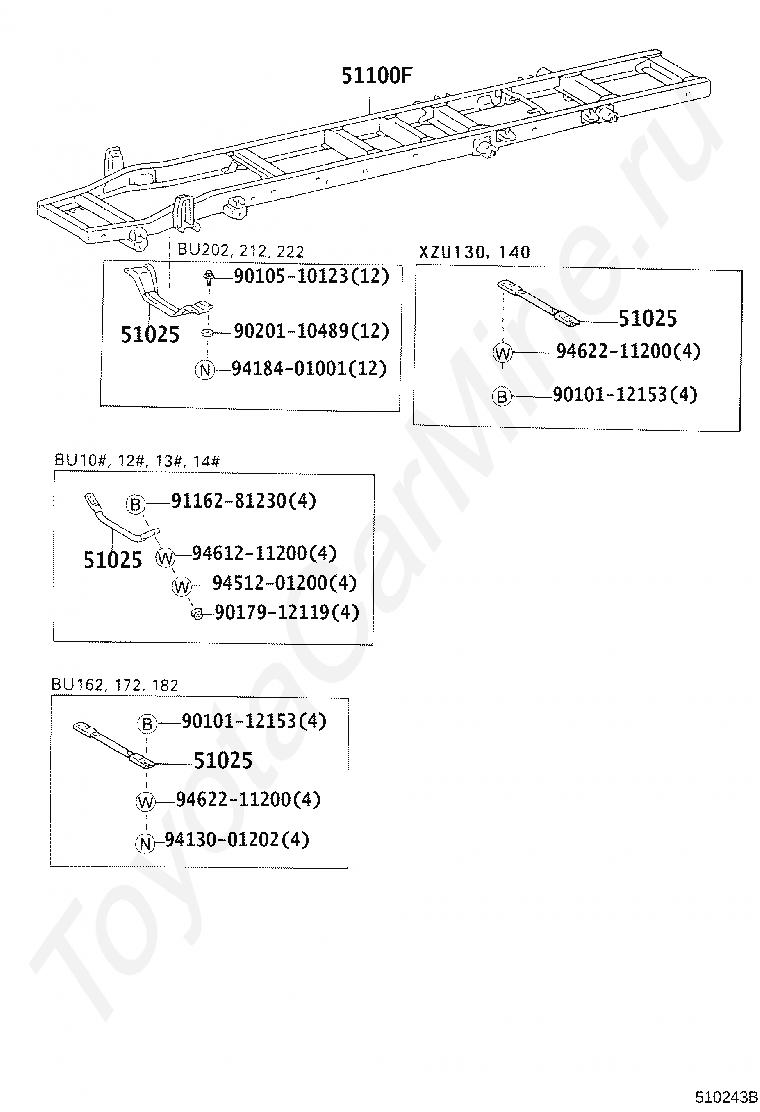

Рама TOYOTA DYNA 200/TOYOACE G25







Код

Описание

51025

MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

51025

MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

51025

MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

51025

MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

51100F

FRAME SUB-ASSY

9010112153

Крепеж

9010112153

Крепеж

9010510123

Крепеж

9017912119

Крепеж

9020110489

Крепеж

9116281230

Крепеж

9413001202

Крепеж

9418401001

Крепеж

9451201200

Крепеж

9461211200

Крепеж

9462211200

Крепеж

9462211200

Крепеж

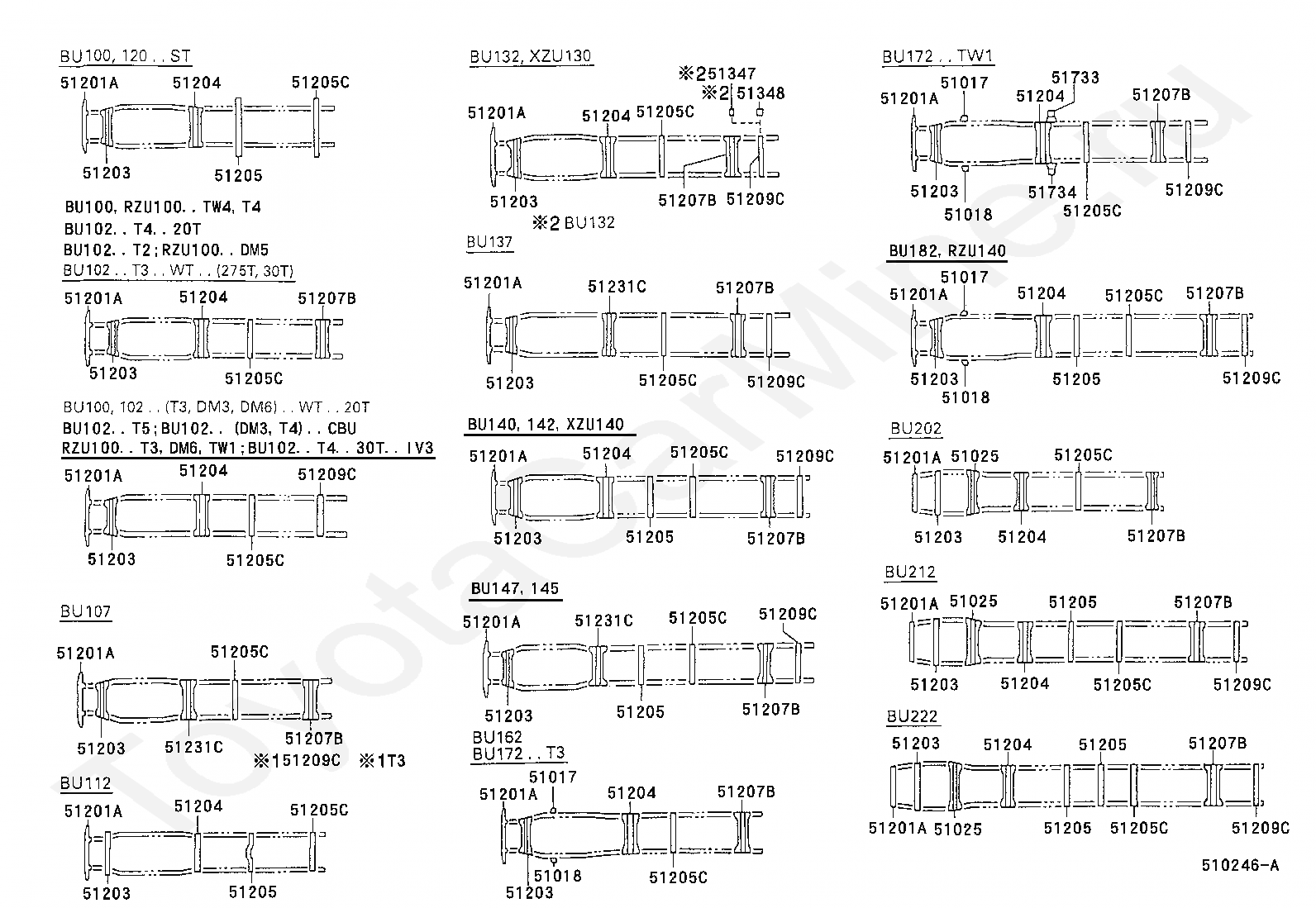

Код

Описание

51017

REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH

51017

REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH

51017

REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH

51018

REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH

51018

REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH

51018

REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH

51025

MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

51025

MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

51025

MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51207B

CROSSMEMBER SUB-ASSY, FRAME, NO.7

51207B

CROSSMEMBER SUB-ASSY, FRAME, NO.7

51207B

CROSSMEMBER SUB-ASSY, FRAME, NO.7

51207B

CROSSMEMBER SUB-ASSY, FRAME, NO.7

51207B

CROSSMEMBER SUB-ASSY, FRAME, NO.7

51207B

CROSSMEMBER SUB-ASSY, FRAME, NO.7

51207B

CROSSMEMBER SUB-ASSY, FRAME, NO.7

51207B

CROSSMEMBER SUB-ASSY, FRAME, NO.7

51207B

CROSSMEMBER SUB-ASSY, FRAME, NO.7

51207B

CROSSMEMBER SUB-ASSY, FRAME, NO.7

51207B

CROSSMEMBER SUB-ASSY, FRAME, NO.7

51207B

CROSSMEMBER SUB-ASSY, FRAME, NO.7

51209C

CROSSMEMBER SUB-ASSY, FRAME, REAR

51209C

CROSSMEMBER SUB-ASSY, FRAME, REAR

51209C

CROSSMEMBER SUB-ASSY, FRAME, REAR

51209C

CROSSMEMBER SUB-ASSY, FRAME, REAR

51209C

CROSSMEMBER SUB-ASSY, FRAME, REAR

51209C

CROSSMEMBER SUB-ASSY, FRAME, REAR

51209C

CROSSMEMBER SUB-ASSY, FRAME, REAR

51209C

CROSSMEMBER SUB-ASSY, FRAME, REAR

51209C

CROSSMEMBER SUB-ASSY, FRAME, REAR

51209C

CROSSMEMBER SUB-ASSY, FRAME, REAR

51231C

CROSSMEMBER, FRAME, NO.3

51231C

CROSSMEMBER, FRAME, NO.3

51231C

CROSSMEMBER, FRAME, NO.3

51347

PLATE, NO.8 CROSSMEMBER GUSSET, UPPER

51348

PLATE, NO.8 CROSSMEMBER GUSSET, LOWER

51733

BRACKET, CAB REAR MOUNTING, NO.2 RH

51734

BRACKET, CAB REAR MOUNTING, NO.2 LH

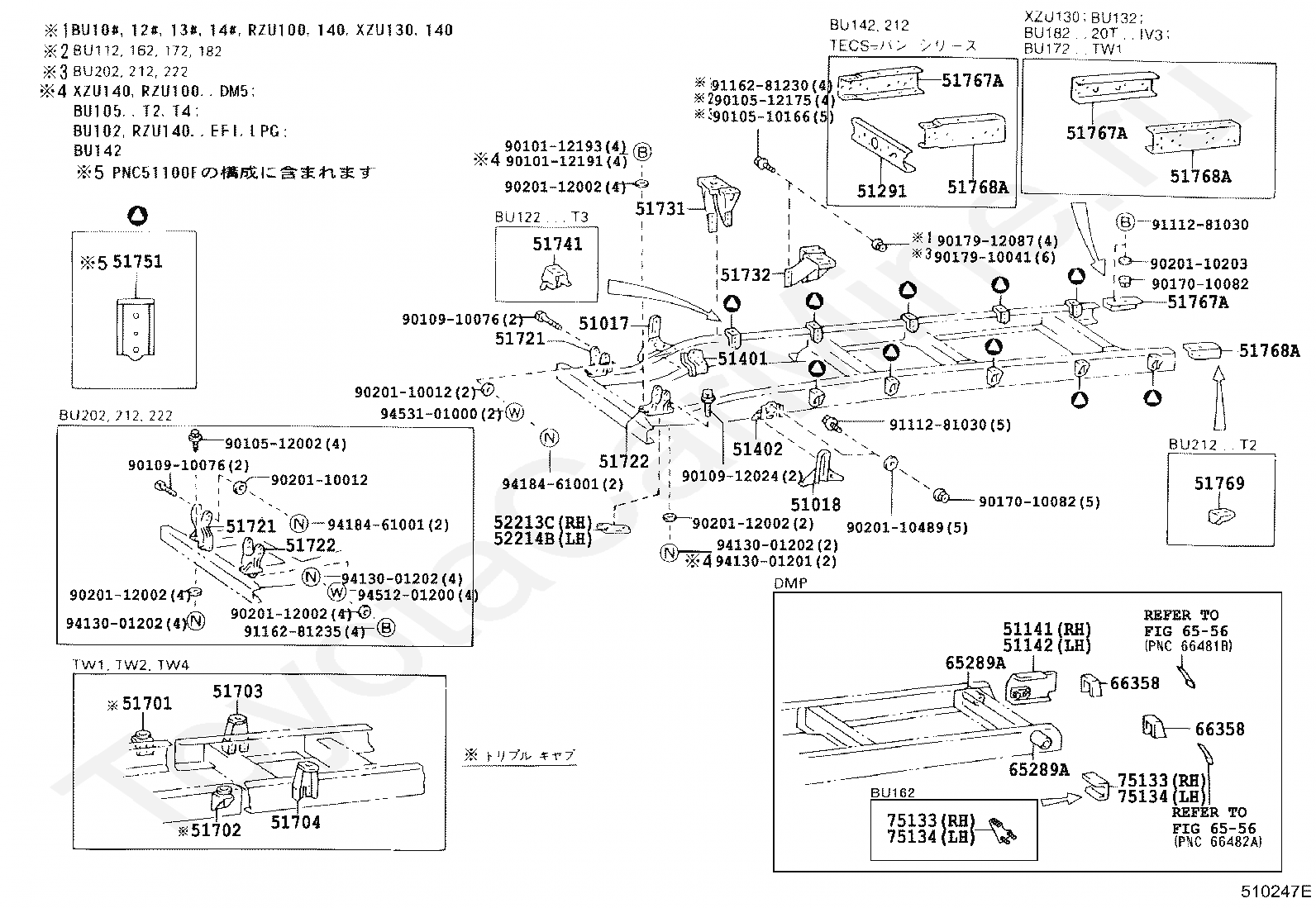

Код

Описание

51017

REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH

51018

REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH

51141

REINFORCEMENT, SIDE RAIL, RH

51142

REINFORCEMENT, SIDE RAIL, LH

51291

CROSSMEMBER, FRAME, REAR

51401

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

51402

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

51701

BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

51702

BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

51703

BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

51704

BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

51721

BRACKET, CAB FRONT MOUNTING, RH

51721

BRACKET, CAB FRONT MOUNTING, RH

51722

BRACKET, CAB FRONT MOUNTING, LH

51722

BRACKET, CAB FRONT MOUNTING, LH

51731

BRACKET, CAB REAR MOUNTING, RH

51732

BRACKET, CAB REAR MOUNTING, LH

51741

BRACKET, REAR BODY MOUNTING, NO.1

51751

BRACKET, BODY SUPPORT, NO.1

51767A

BRACKET, FRAME BODY MOUNTING, NO.8 RH

51767A

BRACKET, FRAME BODY MOUNTING, NO.8 RH

51767A

BRACKET, FRAME BODY MOUNTING, NO.8 RH

51768A

BRACKET, FRAME BODY MOUNTING, NO.8 LH

51768A

BRACKET, FRAME BODY MOUNTING, NO.8 LH

51768A

BRACKET, FRAME BODY MOUNTING, NO.8 LH

51769

BRACKET, BODY REAR END MOUNTING

52213C

SPACER, CAB FRONT MOUNTING, UPPER RH

52214B

SPACER, CAB FRONT MOUNTING, UPPER LH

65289A

SUPPORT, VESSEL HINGE

65289A

SUPPORT, VESSEL HINGE

6556

переход к группе запчастей

6556

переход к группе запчастей

66358

PLATE, FRAME END

66358

PLATE, FRAME END

75133

BASE, COMBINATION REAR LAMP BRACKET, RH

75133

BASE, COMBINATION REAR LAMP BRACKET, RH

75134

BASE, COMBINATION REAR LAMP BRACKET, LH

75134

BASE, COMBINATION REAR LAMP BRACKET, LH

9010112191

Крепеж

9010112193

Крепеж

9010510166

Крепеж

9010512002

Крепеж

9010512175

Крепеж

9010910076

Крепеж

9010910076

Крепеж

9010912024

Крепеж

9017010082

Крепеж

9017010082

Крепеж

9017910041

Крепеж

9017912087

Крепеж

9020110012

Крепеж

9020110012

Крепеж

9020110203

Крепеж

9020110489

Крепеж

9020112002

Крепеж

9020112002

Крепеж

9020112002

Крепеж

9020112002

Крепеж

9111281030

Крепеж

9111281030

Крепеж

9116281230

Крепеж

9116281235

Крепеж

9413001201

Крепеж

9413001202

Крепеж

9413001202

Крепеж

9413001202

Крепеж

9418461001

Крепеж

9418461001

Крепеж

9451201200

Крепеж

9453101000

Крепеж

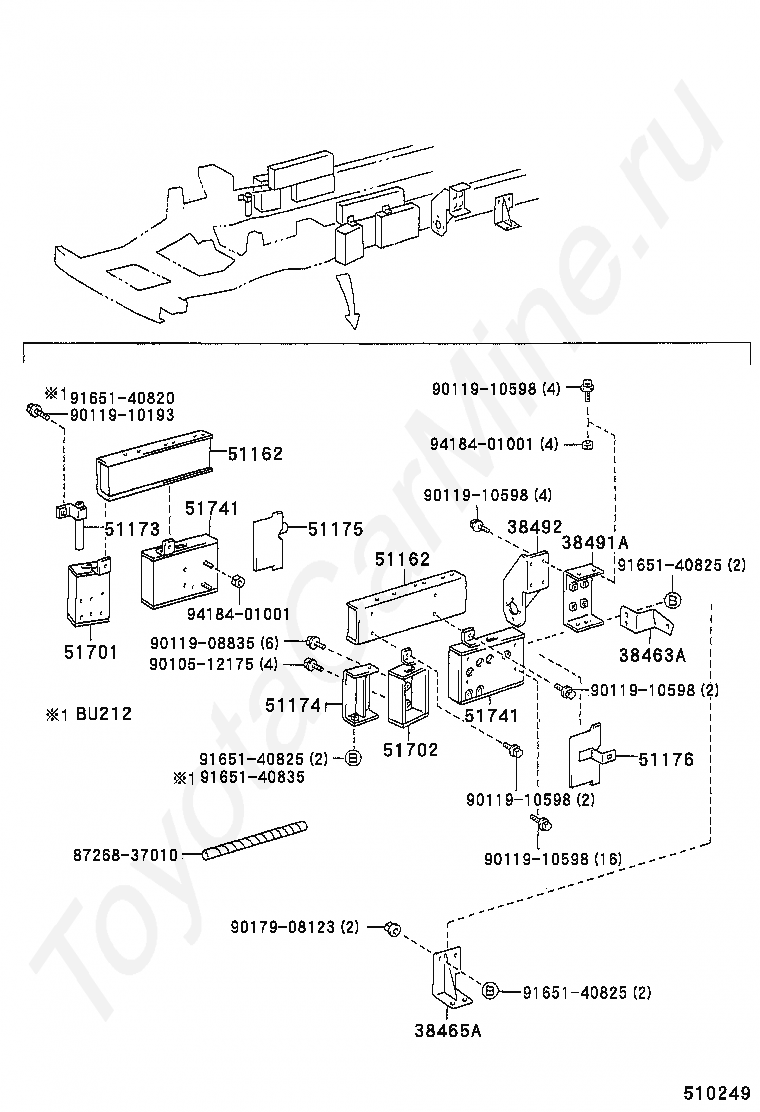

Код

Описание

38463A

BRACKET, POWER OIL PUMP HOSE CLAMP

38465A

BRACKET, POWER OIL PUMP HOSE CLAMP, NO.2

38491A

BRACKET, POWER OIL PUMP, NO.1

38492

BRACKET, POWER OIL PUMP, NO.2

51162

REINFORCEMENT, SIDE RAIL, UPPER NO.1

51162

REINFORCEMENT, SIDE RAIL, UPPER NO.1

51173

REINFORCEMENT, FRONT INNER CHANNEL, RH

51174

REINFORCEMENT, FRONT INNER CHANNEL, LH

51175

REINFORCEMENT, SIDE RAIL, NO.3 RH

51176

REINFORCEMENT, SIDE RAIL, NO.3 LH

51701

BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

51702

BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

51741

BRACKET, REAR BODY MOUNTING, NO.1

51741

BRACKET, REAR BODY MOUNTING, NO.1

8726837010

Крепеж

9010512175

Крепеж

9011908835

Крепеж

9011910193

Крепеж

9011910598

Крепеж

9011910598

Крепеж

9011910598

Крепеж

9011910598

Крепеж

9011910598

Крепеж

9017908123

Крепеж

9165140820

Крепеж

9165140825

Крепеж

9165140825

Крепеж

9165140825

Крепеж

9165140835

Крепеж

9418401001

Крепеж

9418401001

Крепеж
