Каталог

Япония

Модель

DYNA 200/TOYOACE G25

VIN

Дата

1995/05

Двигатель

4,1 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU172

КПП

механика МКПП, 5 скоростей

Опции

HIGH FLAT DECK OPENING ON THREE SIDES 2-местный DOUBLE TIRE 2 тонны DSL CBU

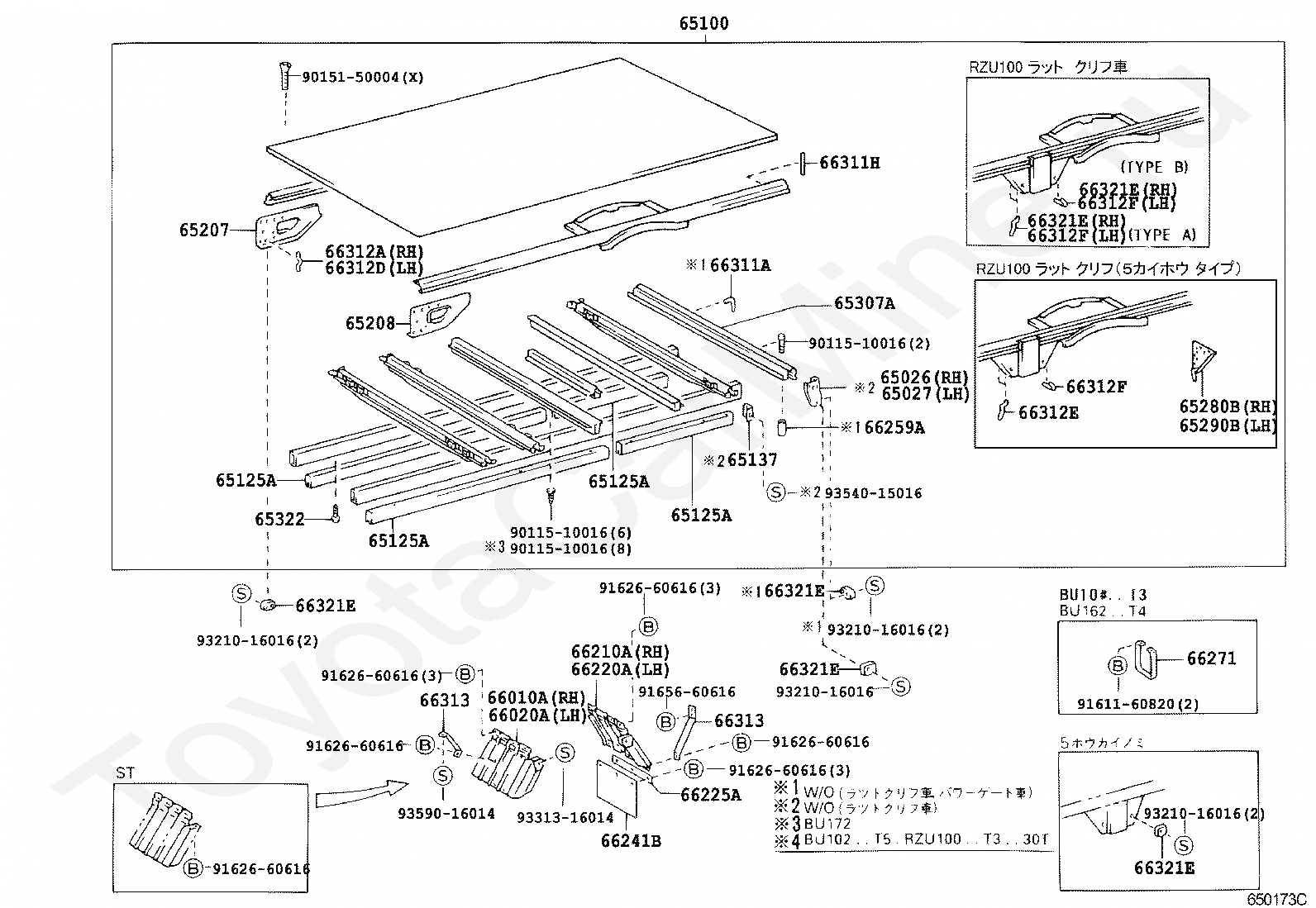

REAR BODY FLOOR & FENDER TOYOTA DYNA 200/TOYOACE G25

Код

Описание

65026

BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH

65027

BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH

65100

FLOOR ASSY, REAR BODY

65125A

SHIM, MAIN SILL, LOWER NO.1

65125A

SHIM, MAIN SILL, LOWER NO.1

65125A

SHIM, MAIN SILL, LOWER NO.1

65125A

SHIM, MAIN SILL, LOWER NO.1

65137

COVER, MAIN SILL END

65207

BRACKET SUB-ASSY, GUARD FRAME, RH

65208

BRACKET SUB-ASSY, GUARD FRAME, LH

65280B

BRACKET ASSY, CENTER POST, RH

65290B

BRACKET ASSY, CENTER POST, LH

65307A

FRAME SUB-ASSY, FLOOR, REAR

65322

NAIL

66010A

FENDER ASSY, REAR NO.2 RH

66020A

FENDER ASSY, REAR NO.2 LH

66210A

FENDER ASSY, REAR NO.1 RH

66220A

FENDER ASSY, REAR NO.1 LH

66225A

SUPPORT, BAFFLE RUBBER

66241B

BAFFLE, RUBBER

66259A

COVER, REAR BODY FLOOR, REAR

66271

STEP, REAR BODY

66311A

HOOK, ROPE, NO.1

66311H

HOOK, ROPE

66312A

HOOK, ROPE, NO.2

66312D

HOOK, ROPE, NO.2

66312E

HOOK, ROPE, NO.2

66312F

HOOK, ROPE, NO.2

66312F

HOOK, ROPE, NO.2

66312F

HOOK, ROPE, NO.2

66313

SUPPORT, REAR FENDER

66313

SUPPORT, REAR FENDER

66321E

BUMPER, GATE RUBBER

66321E

BUMPER, GATE RUBBER

66321E

BUMPER, GATE RUBBER

66321E

BUMPER, GATE RUBBER

66321E

BUMPER, GATE RUBBER

66321E

BUMPER, GATE RUBBER

9011510016

Крепеж

9011510016

Крепеж

9011510016

Крепеж

9015150004

Крепеж

9161160820

Крепеж

9162660616

Крепеж

9162660616

Крепеж

9162660616

Крепеж

9162660616

Крепеж

9162660616

Крепеж

9162660616

Крепеж

9165660616

Крепеж

9321016016

Крепеж

9321016016

Крепеж

9321016016

Крепеж

9321016016

Крепеж

9331316014

Крепеж

9354015016

Крепеж

9359016014

Крепеж

REAR BODY FLOOR & FENDER TOYOTA DYNA 200/TOYOACE G25
