Каталог

Япония

Модель

DYNA 200/TOYOACE G25

VIN

Дата

1995/05

Двигатель

4,1 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU172

КПП

механика МКПП, 5 скоростей

Опции

HIGH FLAT DECK OPENING ON THREE SIDES 2-местный DOUBLE TIRE 2 тонны DSL CBU

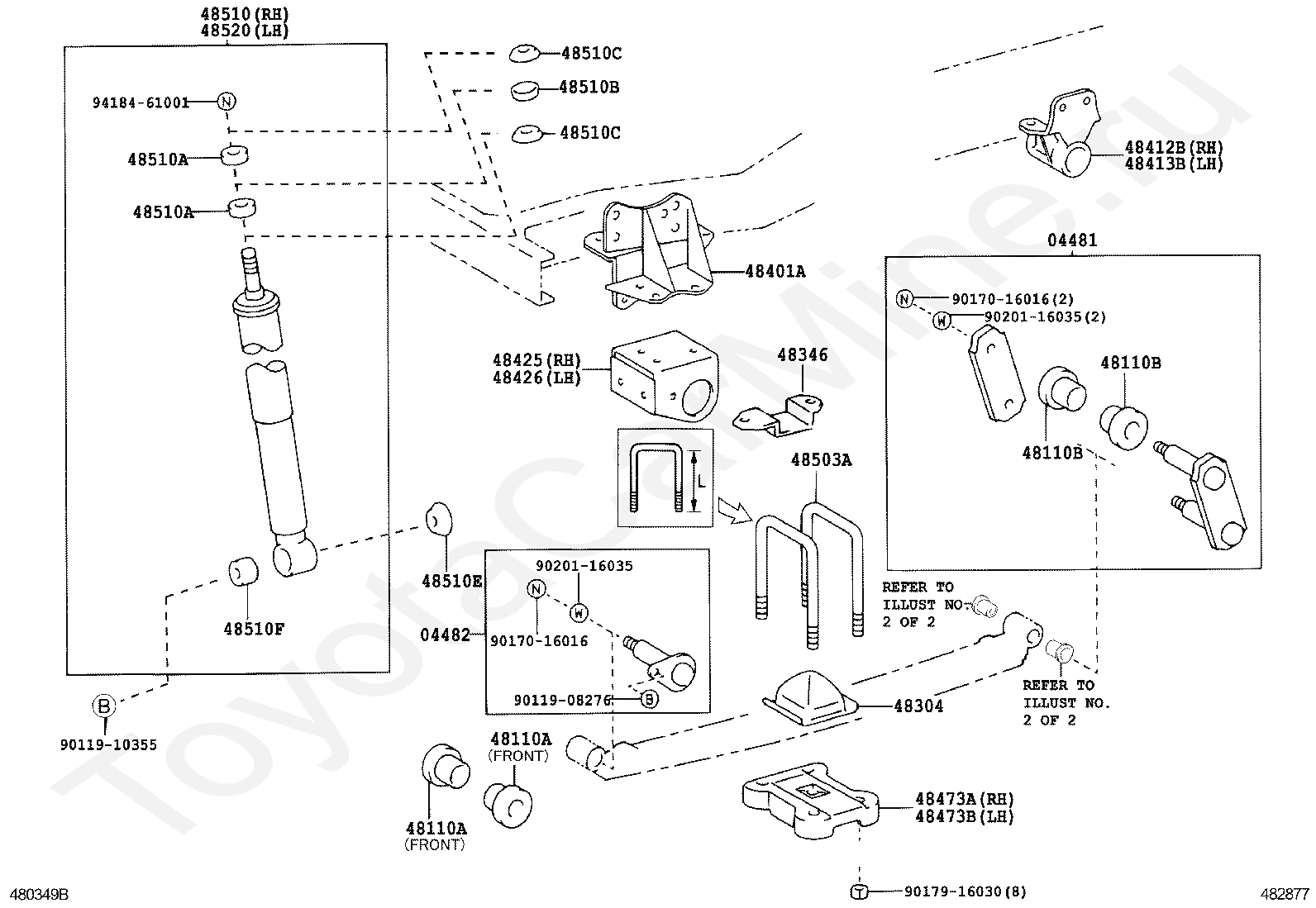

Передние амортизаторы TOYOTA DYNA 200/TOYOACE G25

Код

Описание

04481

SHACKLE KIT, FRONT SPRING

04482

PIN KIT, FRONT SPRING

48110A

BUSH(FOR FRONT SPRING SHACKLE)

48110A

BUSH(FOR FRONT SPRING SHACKLE)

48110B

BUSH(FOR FRONT SPRING PIN)

48110B

BUSH(FOR FRONT SPRING PIN)

48304

BUMPER SUB-ASSY, FRONT SPRING, NO.1

48346

STOPPER, BUMPER, FRONT

48401A

BRACKET SUB-ASSY, SPRING, NO.1

48412B

BRACKET, SPRING, NO.2 RH

48413B

BRACKET, SPRING, NO.2 LH

48425

BRACKET, SPRING, NO.1 LOWER RH

48426

BRACKET, SPRING, NO.1 LOWER LH

48473A

SEAT, SPRING U BOLT, RH

48473B

SEAT, SPRING U BOLT, LH

48503A

BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)

48510

ABSORBER ASSY, SHOCK, FRONT RH

48510A

CUSHION, FRONT SHOCK ABSORBER

48510A

CUSHION, FRONT SHOCK ABSORBER

48510B

RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

48510C

RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

48510C

RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

48510E

WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

48510F

CUSHION, SHOCK ABSORBER

48520

ABSORBER ASSY, SHOCK, FRONT LH

9011908276

Крепеж

9011910355

Крепеж

9017016016

Крепеж

9017016016

Крепеж

9017916030

Крепеж

9020116035

Крепеж

9020116035

Крепеж

9418461001

Крепеж

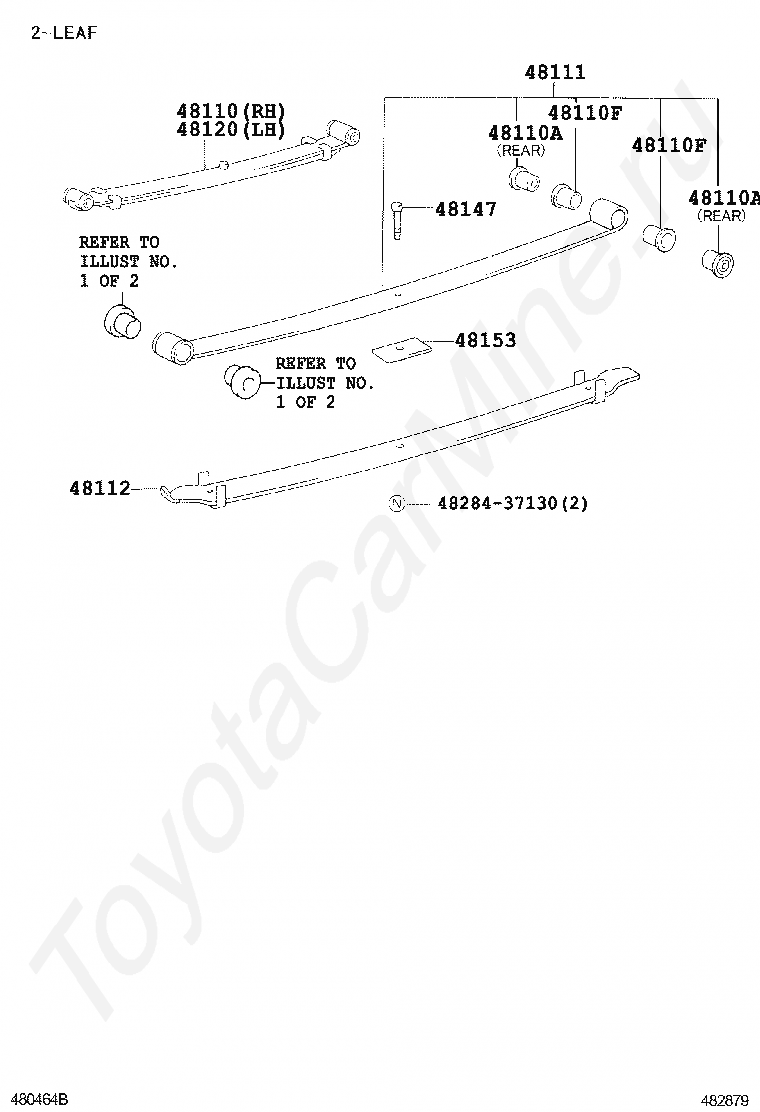

Код

Описание

48110

SPRING ASSY, FRONT, RH

48110A

BUSH(FOR FRONT SPRING SHACKLE)

48110A

BUSH(FOR FRONT SPRING SHACKLE)

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48120

SPRING ASSY, FRONT, LH

48147

BOLT, FRONT SPRING, CENTER

48153

SPACER, FRONT LEAF SPRING, NO.1

4828437130

Крепеж

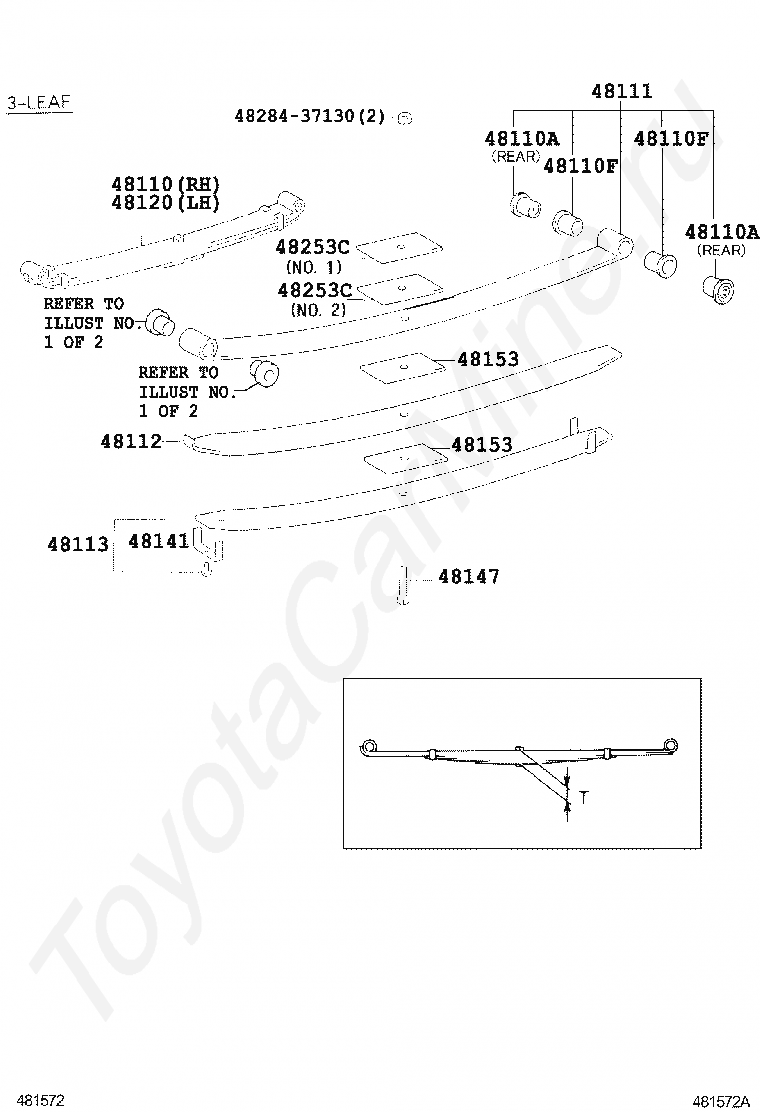

Код

Описание

48110

SPRING ASSY, FRONT, RH

48110A

BUSH(FOR FRONT SPRING SHACKLE)

48110A

BUSH(FOR FRONT SPRING SHACKLE)

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48113

LEAF, FRONT SPRING, NO.3

48120

SPRING ASSY, FRONT, LH

48141

CLIP, FRONT SPRING, NO.1

48147

BOLT, FRONT SPRING, CENTER

48153

SPACER, FRONT LEAF SPRING, NO.1

48153

SPACER, FRONT LEAF SPRING, NO.1

48253C

SPACER, FRONT LEAF SPRING, NO.2

48253C

SPACER, FRONT LEAF SPRING, NO.2

4828437130

Крепеж

Код

Описание

48110

SPRING ASSY, FRONT, RH

48110A

BUSH(FOR FRONT SPRING SHACKLE)

48110A

BUSH(FOR FRONT SPRING SHACKLE)

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48113

LEAF, FRONT SPRING, NO.3

48120

SPRING ASSY, FRONT, LH

48141

CLIP, FRONT SPRING, NO.1

48147

BOLT, FRONT SPRING, CENTER

48153

SPACER, FRONT LEAF SPRING, NO.1

48153

SPACER, FRONT LEAF SPRING, NO.1

48253C

SPACER, FRONT LEAF SPRING, NO.2

48253C

SPACER, FRONT LEAF SPRING, NO.2

4828437130

Крепеж
