Каталог

Ближний Восток

Модель

DYNA 200

VIN

Дата

1987/08

Двигатель

3,4 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU85

КПП

МКПП, 5 скоростей

Опции

левый руль HIGH FLAT DECK OPENING ON THREE SIDES BOARDING DECK DOUBLE TIRE GEN CBU

Кондиционер: управление и воздуховод TOYOTA DYNA 200

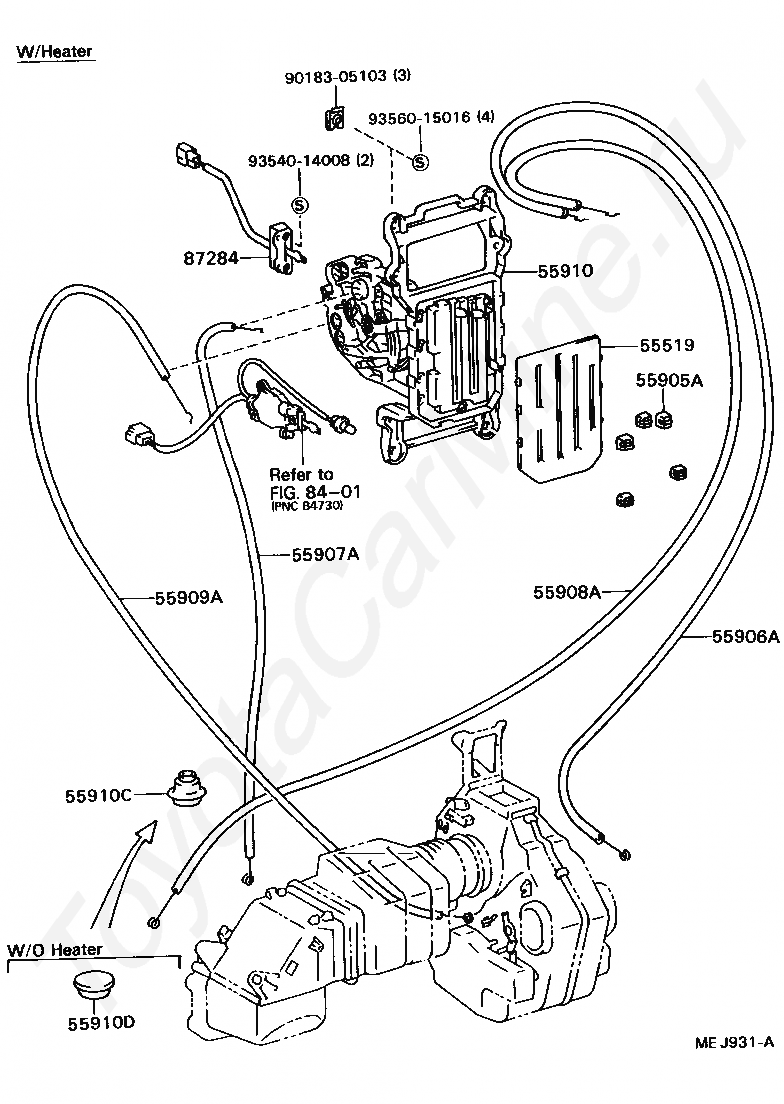

Код

Описание

55519

PLATE, HEATER CONTROL NAME

55905A

KNOB, HEATER CONTROL

55906A

CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

55907A

CABLE SUB-ASSY, WATER VALVE CONTROL

55908A

CABLE SUB-ASSY, AIR INLET DAMPER CONTROL

55909A

CABLE SUB-ASSY, AIRMIX DAMPER CONTROL

55910

CONTROL ASSY, HEATER OR BOOST VENTILATOR

55910C

GROMMET(FOR HEATER CONTROL CABLE)

55910D

PLUG, HOLE(FOR HEATER CONTROL CABLE HOLE)

8401

переход к группе запчастей

87284

RESISTOR SUB-ASSY, VARIABLE

9018305103

Крепеж

9354014008

Крепеж

9356015016

Крепеж

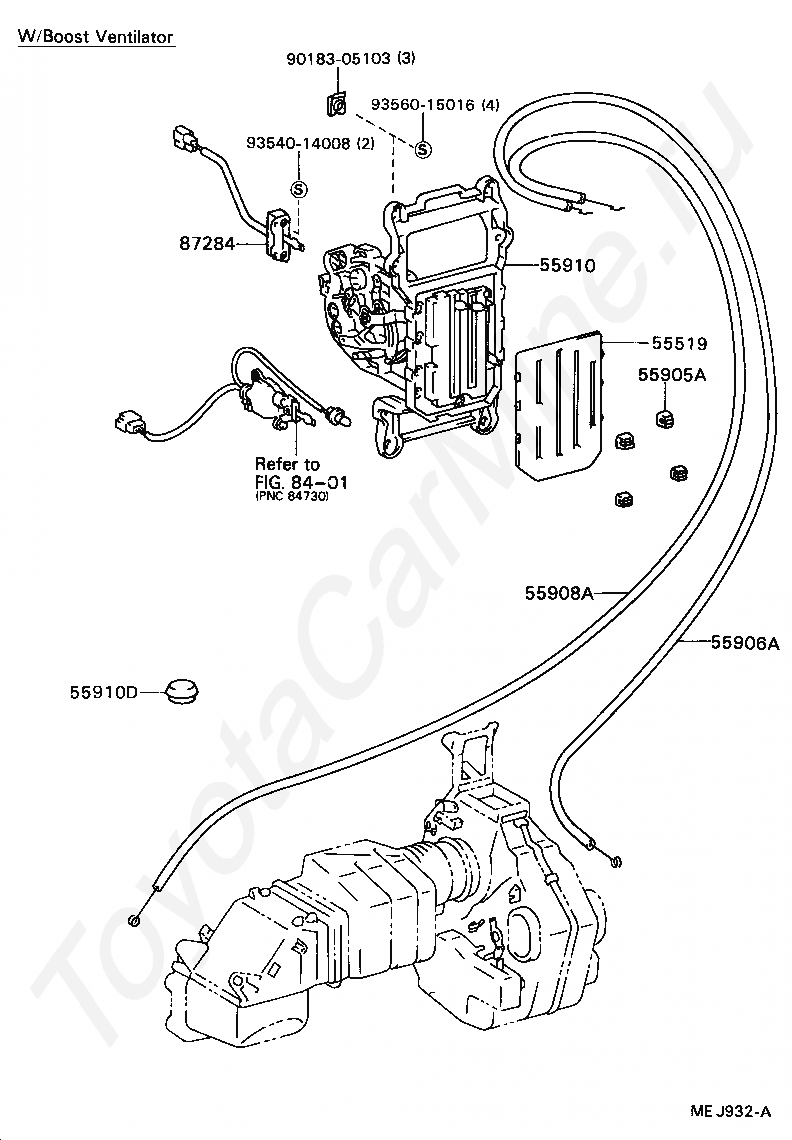

Код

Описание

55519

PLATE, HEATER CONTROL NAME

55905A

KNOB, HEATER CONTROL

55906A

CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

55908A

CABLE SUB-ASSY, AIR INLET DAMPER CONTROL

55910

CONTROL ASSY, HEATER OR BOOST VENTILATOR

55910D

PLUG, HOLE(FOR HEATER CONTROL CABLE HOLE)

8401

переход к группе запчастей

87284

RESISTOR SUB-ASSY, VARIABLE

9018305103

Крепеж

9354014008

Крепеж

9356015016

Крепеж

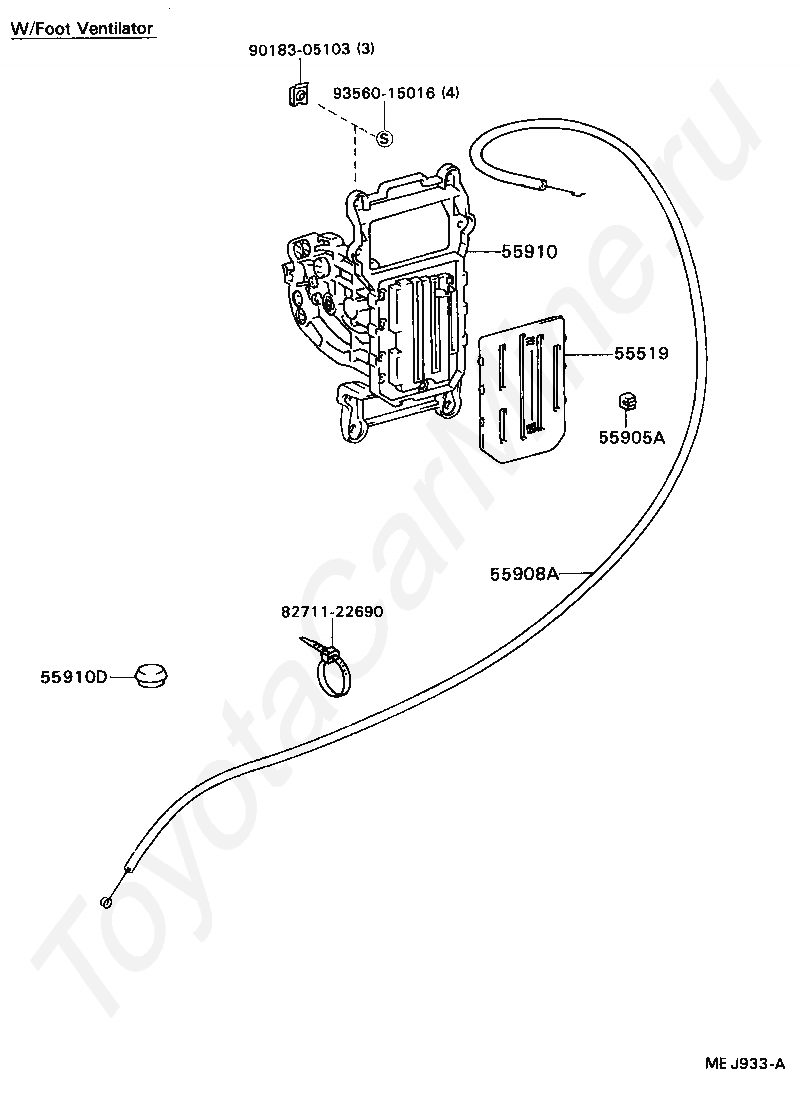

Код

Описание

55519

PLATE, HEATER CONTROL NAME

55905A

KNOB, HEATER CONTROL

55908A

CABLE SUB-ASSY, AIR INLET DAMPER CONTROL

55910

CONTROL ASSY, HEATER OR BOOST VENTILATOR

55910D

PLUG, HOLE(FOR HEATER CONTROL CABLE HOLE)

8271122690

Крепеж

9018305103

Крепеж

9356015016

Крепеж

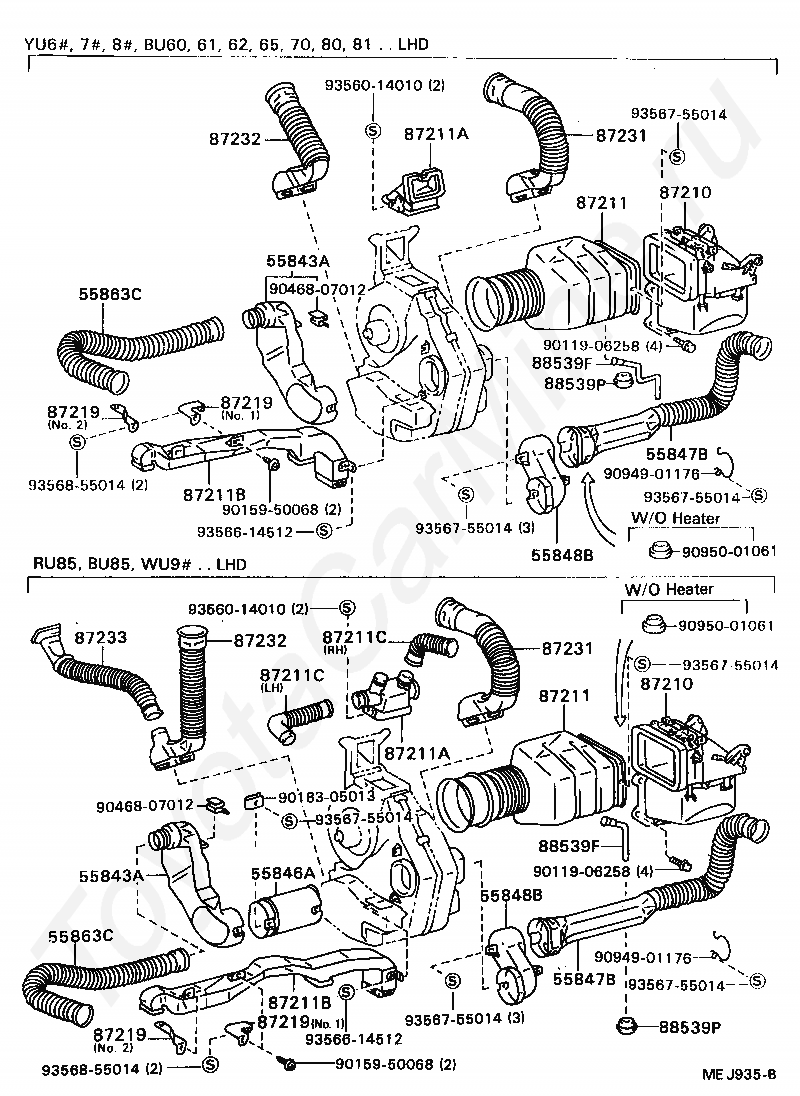

Код

Описание

55843A

DUCT, HEATER TO REGISTER, NO.1

55843A

DUCT, HEATER TO REGISTER, NO.1

55846A

DUCT, HEATER TO REGISTER, NO.4

55847B

DUCT, HEATER TO REGISTER, NO.5

55847B

DUCT, HEATER TO REGISTER, NO.5

55848B

DUCT, HEATER TO REGISTER, NO.6

55848B

DUCT, HEATER TO REGISTER, NO.6

55863C

BOOT, SIDE VENTILATOR DUCT

55863C

BOOT, SIDE VENTILATOR DUCT

87210

DAMPER ASSY, AIR

87210

DAMPER ASSY, AIR

87211

DUCT, AIR, NO.1

87211

DUCT, AIR, NO.1

87211A

DUCT, AIR, NO.2

87211A

DUCT, AIR, NO.2

87211B

DUCT, AIR, NO.3

87211B

DUCT, AIR, NO.3

87211C

DUCT, AIR, NO.4

87211C

DUCT, AIR, NO.4

87219

BRACKET, FRONT AIR DUCT

87219

BRACKET, FRONT AIR DUCT

87219

BRACKET, FRONT AIR DUCT

87219

BRACKET, FRONT AIR DUCT

87231

HOSE, HEATER DEFROSTER, RH

87231

HOSE, HEATER DEFROSTER, RH

87232

HOSE, HEATER DEFROSTER, LH

87232

HOSE, HEATER DEFROSTER, LH

87233

HOSE, HEATER DEFROSTER, CENTER

88539F

HOSE, DRAIN

88539F

HOSE, DRAIN

88539P

GROMMET(FOR DRAIN HOSE)

88539P

GROMMET(FOR DRAIN HOSE)

9011906258

Крепеж

9011906258

Крепеж

9015950068

Крепеж

9015950068

Крепеж

9018305013

Крепеж

9046807012

Крепеж

9046807012

Крепеж

9094901176

Крепеж

9094901176

Крепеж

9095001061

Крепеж

9095001061

Крепеж

9356014010

Крепеж

9356014010

Крепеж

9356614512

Крепеж

9356614512

Крепеж

9356755014

Крепеж

9356755014

Крепеж

9356755014

Крепеж

9356755014

Крепеж

9356755014

Крепеж

9356755014

Крепеж

9356755014

Крепеж

9356855014

Крепеж

9356855014

Крепеж
