Каталог

Ближний Восток

Модель

DYNA 200

VIN

Дата

1987/08

Двигатель

3,4 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU85

КПП

МКПП, 5 скоростей

Опции

левый руль HIGH FLAT DECK OPENING ON THREE SIDES BOARDING DECK DOUBLE TIRE GEN CBU

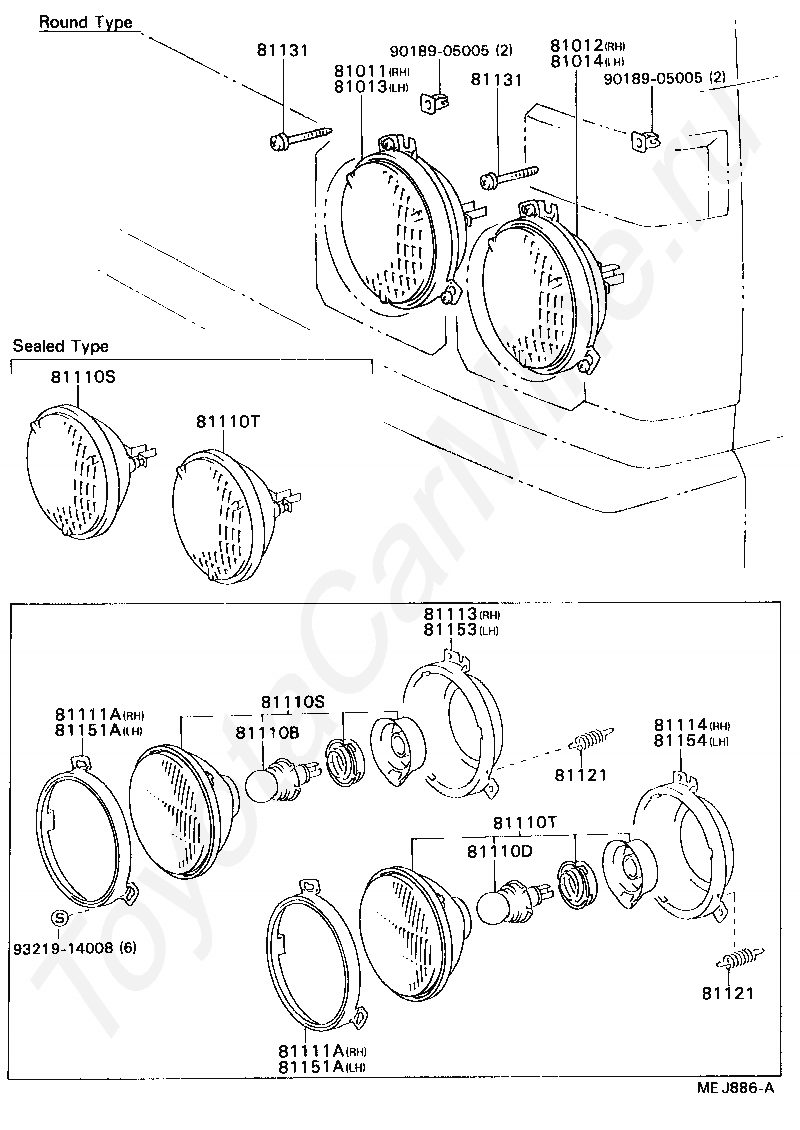

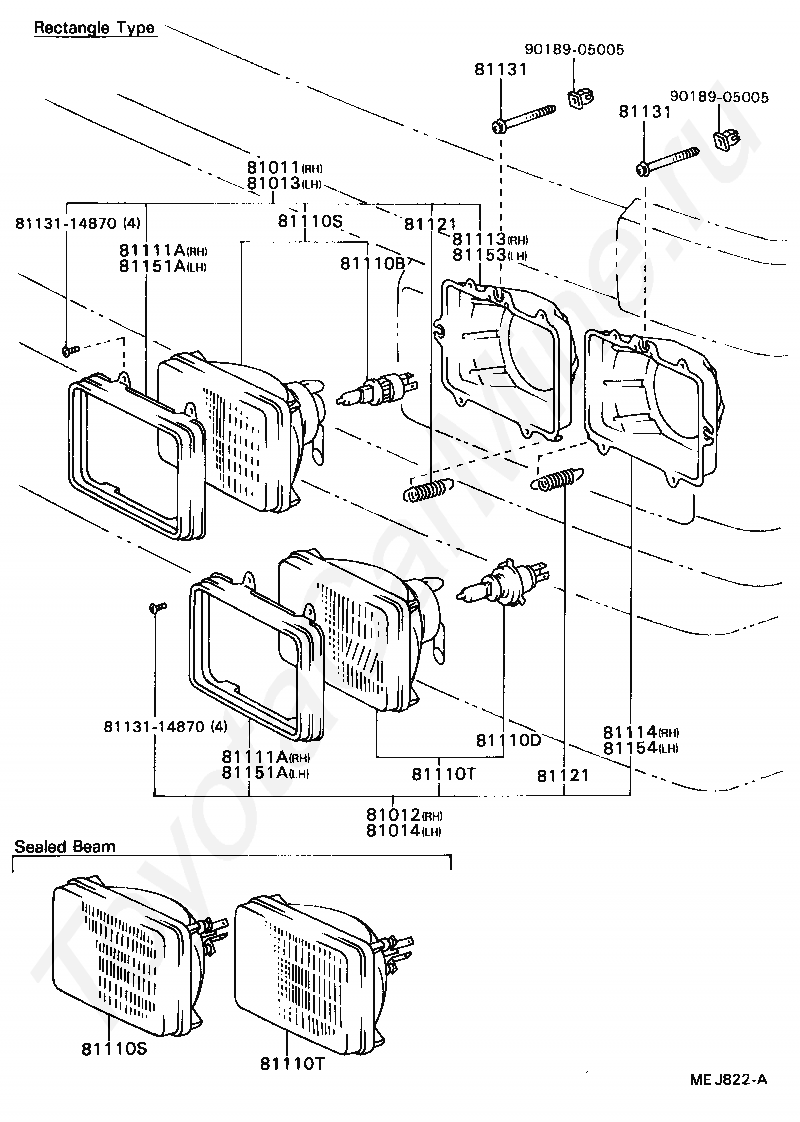

Фары TOYOTA DYNA 200

Код

Описание

81011

HEADLAMP SUB-ASSY, NO.1

81012

HEADLAMP SUB-ASSY, NO.2

81013

HEADLAMP SUB-ASSY, TYPE 1, LH

81014

HEADLAMP SUB-ASSY, TYPE 2, LH

81110B

BULB(FOR HEADLAMP, NO.1)

81110D

BULB(FOR HEADLAMP, NO.2)

81110S

SEALED BEAM UNIT, NO.1

81110S

SEALED BEAM UNIT, NO.1

81110T

SEALED BEAM UNIT, NO.2

81110T

SEALED BEAM UNIT, NO.2

81111A

RING, SEALED BEAM RETAINING, NO.1 RH

81111A

RING, SEALED BEAM RETAINING, NO.1 RH

81113

RING, SEALED BEAM MOUNTING, NO.1 RH

81114

RING, SEALED BEAM MOUNTING, NO.2 RH

81121

SPRING, HEADLAMP TENSION

81121

SPRING, HEADLAMP TENSION

81131

SCREW, HEADLAMP ADJUSTING

81131

SCREW, HEADLAMP ADJUSTING

81151A

RING, SEALED BEAM RETAINING, NO.1 LH

81151A

RING, SEALED BEAM RETAINING, NO.1 LH

81153

RING, SEALED BEAM MOUNTING, NO.1 LH

81154

RING, SEALED BEAM MOUNTING, NO.2 LH

9018905005

Крепеж

9018905005

Крепеж

9321914008

Крепеж

Код

Описание

81011

HEADLAMP SUB-ASSY, NO.1

81012

HEADLAMP SUB-ASSY, NO.2

81013

HEADLAMP SUB-ASSY, TYPE 1, LH

81014

HEADLAMP SUB-ASSY, TYPE 2, LH

81110B

BULB(FOR HEADLAMP, NO.1)

81110D

BULB(FOR HEADLAMP, NO.2)

81110S

SEALED BEAM UNIT, NO.1

81110S

SEALED BEAM UNIT, NO.1

81110T

SEALED BEAM UNIT, NO.2

81110T

SEALED BEAM UNIT, NO.2

81111A

RING, SEALED BEAM RETAINING, NO.1 RH

81111A

RING, SEALED BEAM RETAINING, NO.1 RH

81113

RING, SEALED BEAM MOUNTING, NO.1 RH

81114

RING, SEALED BEAM MOUNTING, NO.2 RH

81121

SPRING, HEADLAMP TENSION

81121

SPRING, HEADLAMP TENSION

81131

SCREW, HEADLAMP ADJUSTING

81131

SCREW, HEADLAMP ADJUSTING

8113114870

Крепеж

8113114870

Крепеж

81151A

RING, SEALED BEAM RETAINING, NO.1 LH

81151A

RING, SEALED BEAM RETAINING, NO.1 LH

81153

RING, SEALED BEAM MOUNTING, NO.1 LH

81154

RING, SEALED BEAM MOUNTING, NO.2 LH

9018905005

Крепеж

9018905005

Крепеж
