Каталог

Ближний Восток

Модель

DYNA 200

VIN

Дата

1987/08

Двигатель

3,4 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU85

КПП

МКПП, 5 скоростей

Опции

левый руль HIGH FLAT DECK OPENING ON THREE SIDES BOARDING DECK DOUBLE TIRE GEN CBU

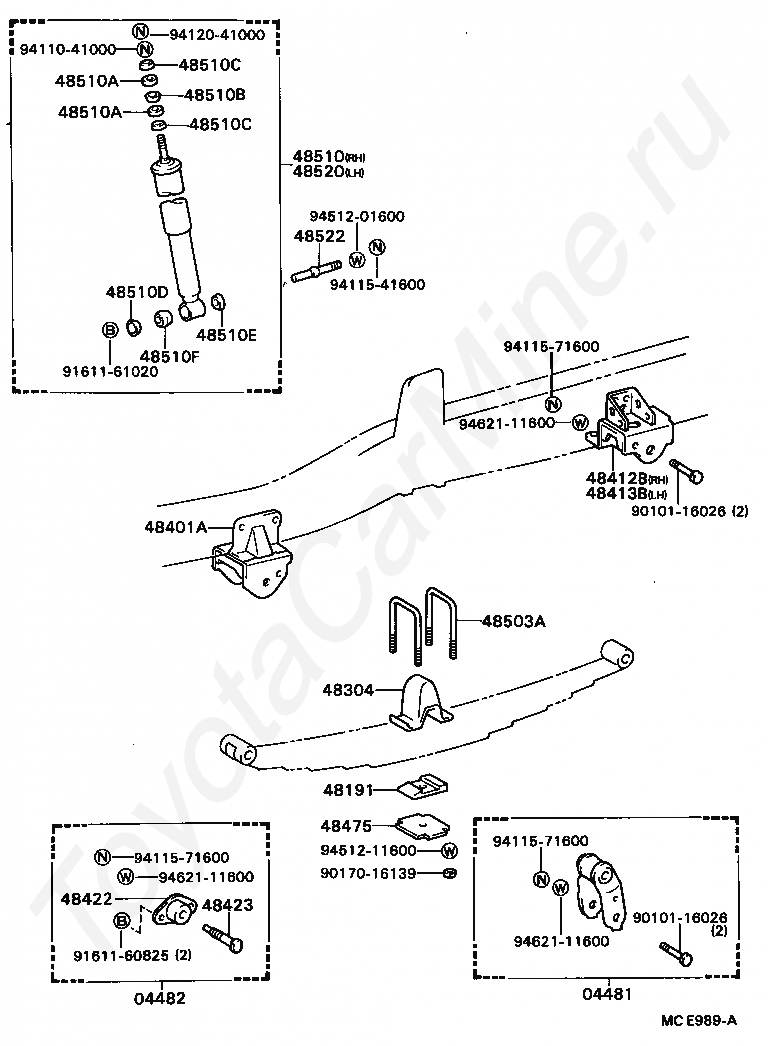

Передние амортизаторы TOYOTA DYNA 200

Код

Описание

04481

SHACKLE KIT, FRONT SPRING

04482

PIN KIT, FRONT SPRING

48191

WEDGE, CASTER(FOR FRONT LEAF SPRING)

48304

BUMPER SUB-ASSY, FRONT SPRING, NO.1

48401A

BRACKET SUB-ASSY, SPRING, NO.1

48412B

BRACKET, SPRING, NO.2 RH

48413B

BRACKET, SPRING, NO.2 LH

48422

SUPPORT, FRONT SPRING PIN

48423

PIN, FRONT SPRING BRACKET

48475

PLATE, DISTANCE(FOR FRONT)

48503A

BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)

48510

ABSORBER ASSY, SHOCK, FRONT RH

48510A

CUSHION, FRONT SHOCK ABSORBER

48510A

CUSHION, FRONT SHOCK ABSORBER

48510B

RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

48510C

RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

48510C

RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

48510D

WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

48510E

WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

48510F

CUSHION, SHOCK ABSORBER

48520

ABSORBER ASSY, SHOCK, FRONT LH

48522

PIN, FRONT SHOCK ABSORBER LOWER PIVOT

9010116026

Крепеж

9010116026

Крепеж

9017016139

Крепеж

9161160825

Крепеж

9161161020

Крепеж

9411041000

Крепеж

9411541600

Крепеж

9411571600

Крепеж

9411571600

Крепеж

9411571600

Крепеж

9412041000

Крепеж

9451201600

Крепеж

9451211600

Крепеж

9462111600

Крепеж

9462111600

Крепеж

9462111600

Крепеж

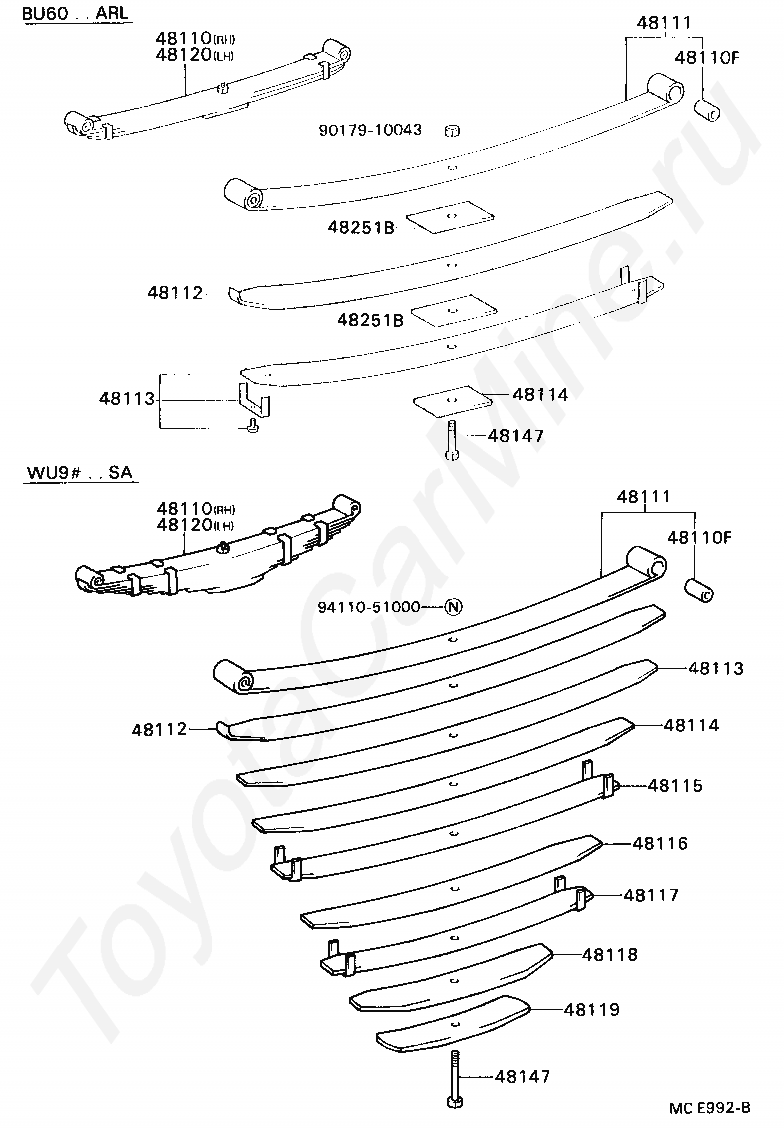

Код

Описание

48110

SPRING ASSY, FRONT, RH

48110

SPRING ASSY, FRONT, RH

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48111

LEAF, FRONT SPRING, NO.1

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48112

LEAF, FRONT SPRING, NO.2

48113

LEAF, FRONT SPRING, NO.3

48113

LEAF, FRONT SPRING, NO.3

48114

LEAF, FRONT SPRING, NO.4

48114

LEAF, FRONT SPRING, NO.4

48115

LEAF, FRONT SPRING, NO.5

48115

LEAF, FRONT SPRING, NO.5

48116

LEAF, FRONT SPRING, NO.6

48116

LEAF, FRONT SPRING, NO.6

48117

LEAF, FRONT SPRING, NO.7

48118

LEAF, FRONT SPRING, NO.8

48120

SPRING ASSY, FRONT, LH

48120

SPRING ASSY, FRONT, LH

48147

BOLT, FRONT SPRING, CENTER

48147

BOLT, FRONT SPRING, CENTER

9411051000

Крепеж

9411051000

Крепеж

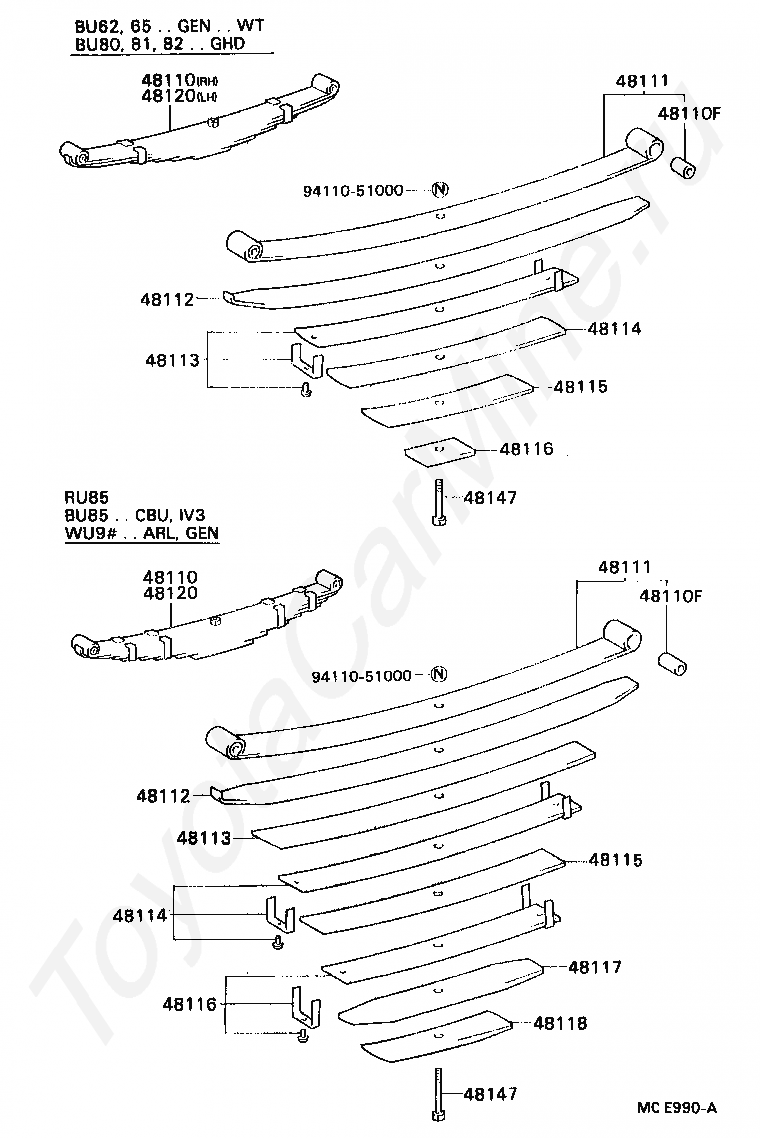

Код

Описание

48110

SPRING ASSY, FRONT, RH

48110

SPRING ASSY, FRONT, RH

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48111

LEAF, FRONT SPRING, NO.1

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48112

LEAF, FRONT SPRING, NO.2

48113

LEAF, FRONT SPRING, NO.3

48113

LEAF, FRONT SPRING, NO.3

48114

LEAF, FRONT SPRING, NO.4

48114

LEAF, FRONT SPRING, NO.4

48115

LEAF, FRONT SPRING, NO.5

48115

LEAF, FRONT SPRING, NO.5

48116

LEAF, FRONT SPRING, NO.6

48117

LEAF, FRONT SPRING, NO.7

48120

SPRING ASSY, FRONT, LH

48120

SPRING ASSY, FRONT, LH

48147

BOLT, FRONT SPRING, CENTER

48147

BOLT, FRONT SPRING, CENTER

48152

SEAT, FRONT SPRING

9411051000

Крепеж

9411051000

Крепеж

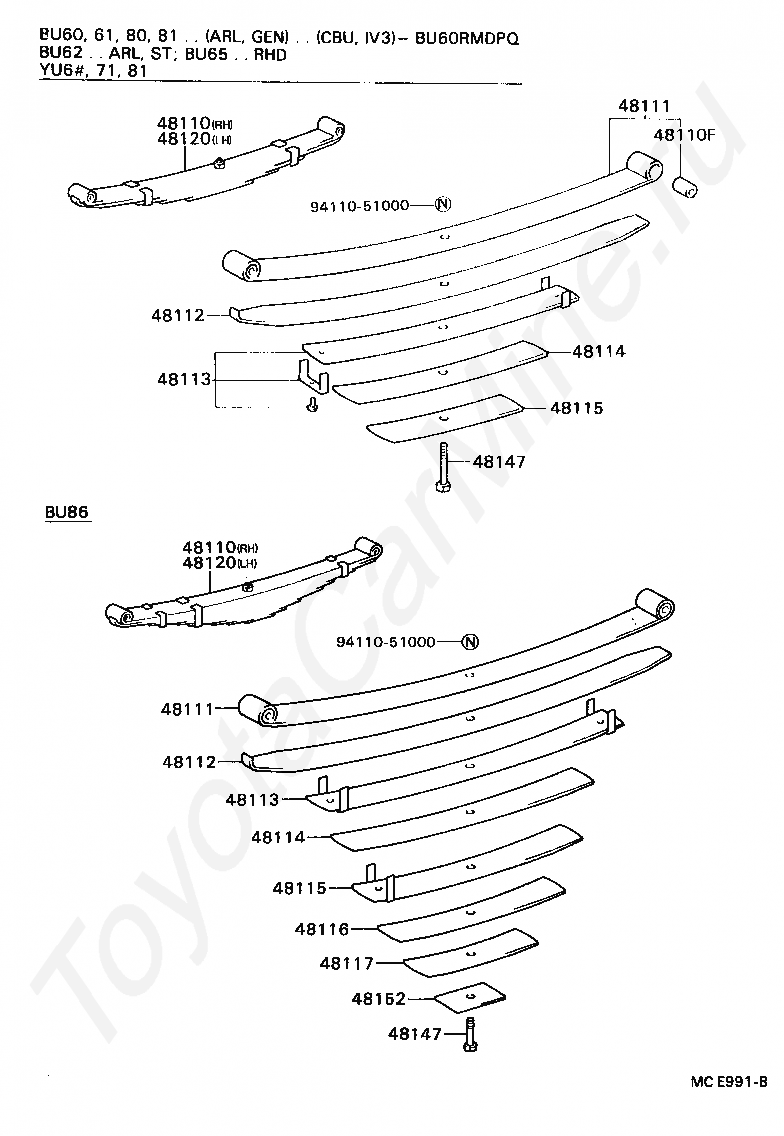

Код

Описание

48110

SPRING ASSY, FRONT, RH

48110

SPRING ASSY, FRONT, RH

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48111

LEAF, FRONT SPRING, NO.1

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48112

LEAF, FRONT SPRING, NO.2

48113

LEAF, FRONT SPRING, NO.3

48113

LEAF, FRONT SPRING, NO.3

48114

LEAF, FRONT SPRING, NO.4

48114

LEAF, FRONT SPRING, NO.4

48115

LEAF, FRONT SPRING, NO.5

48116

LEAF, FRONT SPRING, NO.6

48117

LEAF, FRONT SPRING, NO.7

48118

LEAF, FRONT SPRING, NO.8

48119

LEAF, FRONT SPRING, NO.9

48120

SPRING ASSY, FRONT, LH

48120

SPRING ASSY, FRONT, LH

48147

BOLT, FRONT SPRING, CENTER

48147

BOLT, FRONT SPRING, CENTER

48251B

SPACER(FOR FRONT SPRING)

48251B

SPACER(FOR FRONT SPRING)

9017910043

Крепеж

9411051000

Крепеж

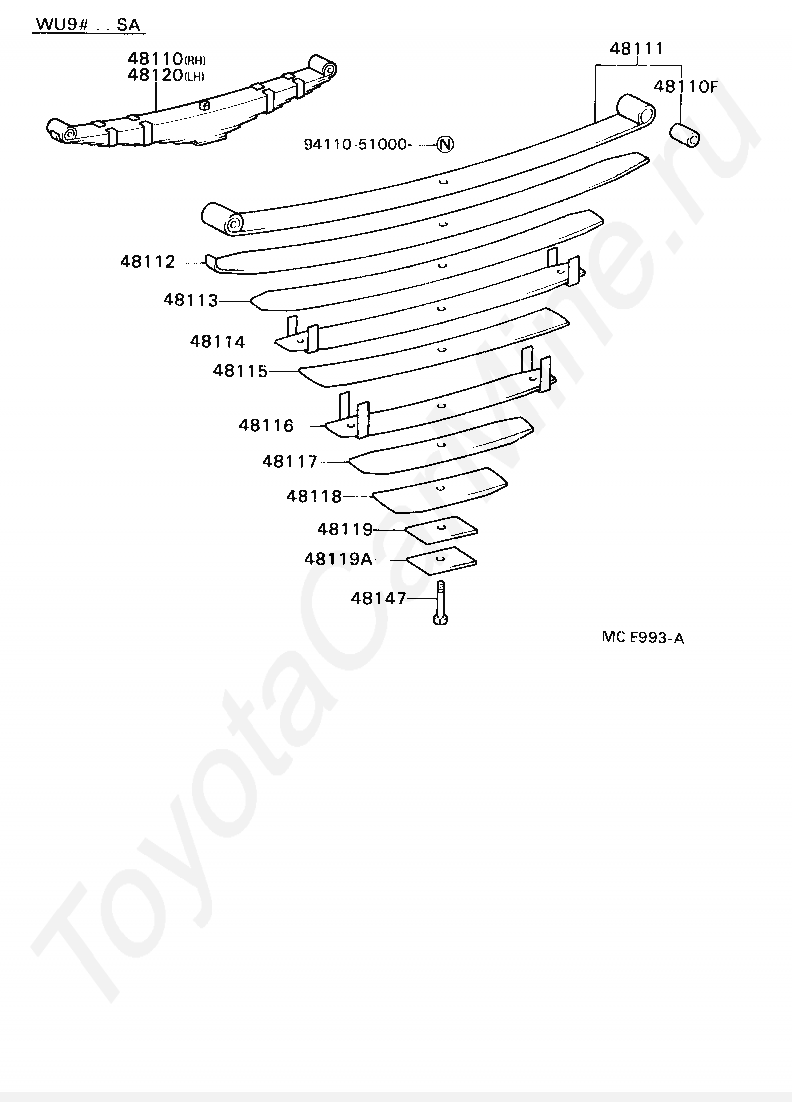

Код

Описание

48110

SPRING ASSY, FRONT, RH

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48113

LEAF, FRONT SPRING, NO.3

48114

LEAF, FRONT SPRING, NO.4

48115

LEAF, FRONT SPRING, NO.5

48116

LEAF, FRONT SPRING, NO.6

48117

LEAF, FRONT SPRING, NO.7

48118

LEAF, FRONT SPRING, NO.8

48119

LEAF, FRONT SPRING, NO.9

48119A

LEAF, FRONT SPRING NO.10

48120

SPRING ASSY, FRONT, LH

48147

BOLT, FRONT SPRING, CENTER

9411051000

Крепеж

Передние амортизаторы TOYOTA DYNA 200
