Каталог

Ближний Восток

Модель

DYNA 200

VIN

Дата

1987/08

Двигатель

3,4 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU85

КПП

МКПП, 5 скоростей

Опции

левый руль HIGH FLAT DECK OPENING ON THREE SIDES BOARDING DECK DOUBLE TIRE GEN CBU

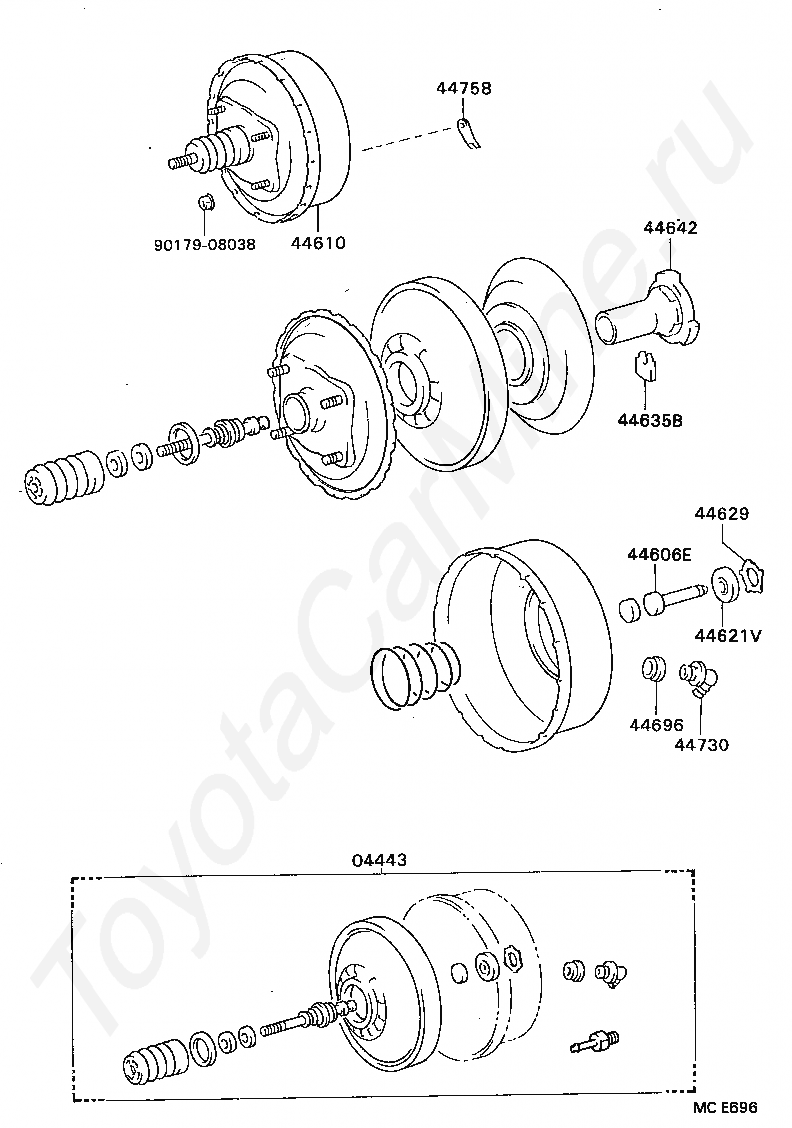

Вакуумный тормозной цилиндр TOYOTA DYNA 200

Код

Описание

04443

BOOSTER KIT, BRAKE

44606E

ROD SUB-ASSY, BRAKE BOOSTER PISTON

44610

BOOSTER ASSY, BRAKE

44621V

SEAL, BOOSTER BODY

44629

RING, CIRCULAR INTERNAL

44635B

KEY, VALVE STOPPER

44642

PISTON, BRAKE BOOSTER

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44758

BRACKET, VACUUM CHECK VALVE

9017908038

Крепеж

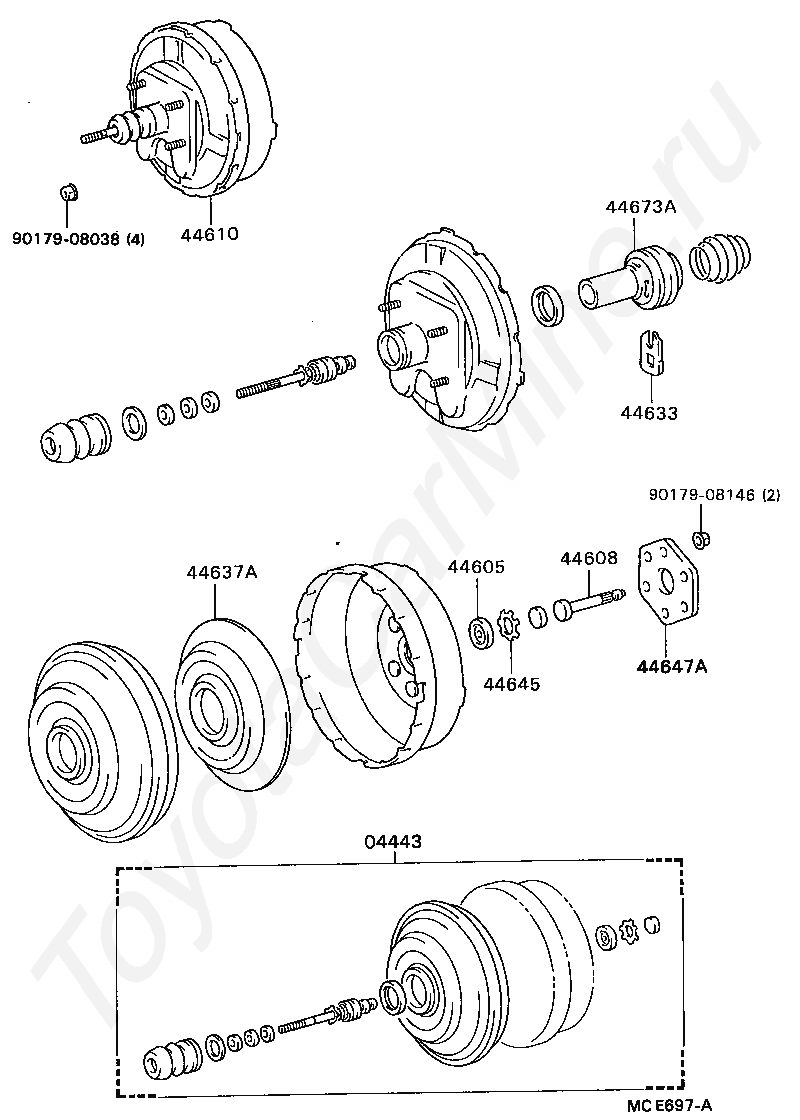

Код

Описание

04443

BOOSTER KIT, BRAKE

44605

PLATE & SEAL SUB-ASSY, BOOSTER

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44633

KEY, BOOSTER VALVE PLUNGER

44637A

PLATE, BOOSTER DIAPHRAGM

44645

RETAINER, BOOSTER PUSH ROD SEAL

44647A

ROD, BOOSTER PISTON

44673A

BODY, BOOSTER VALVE

9017908038

Крепеж

9017908146

Крепеж

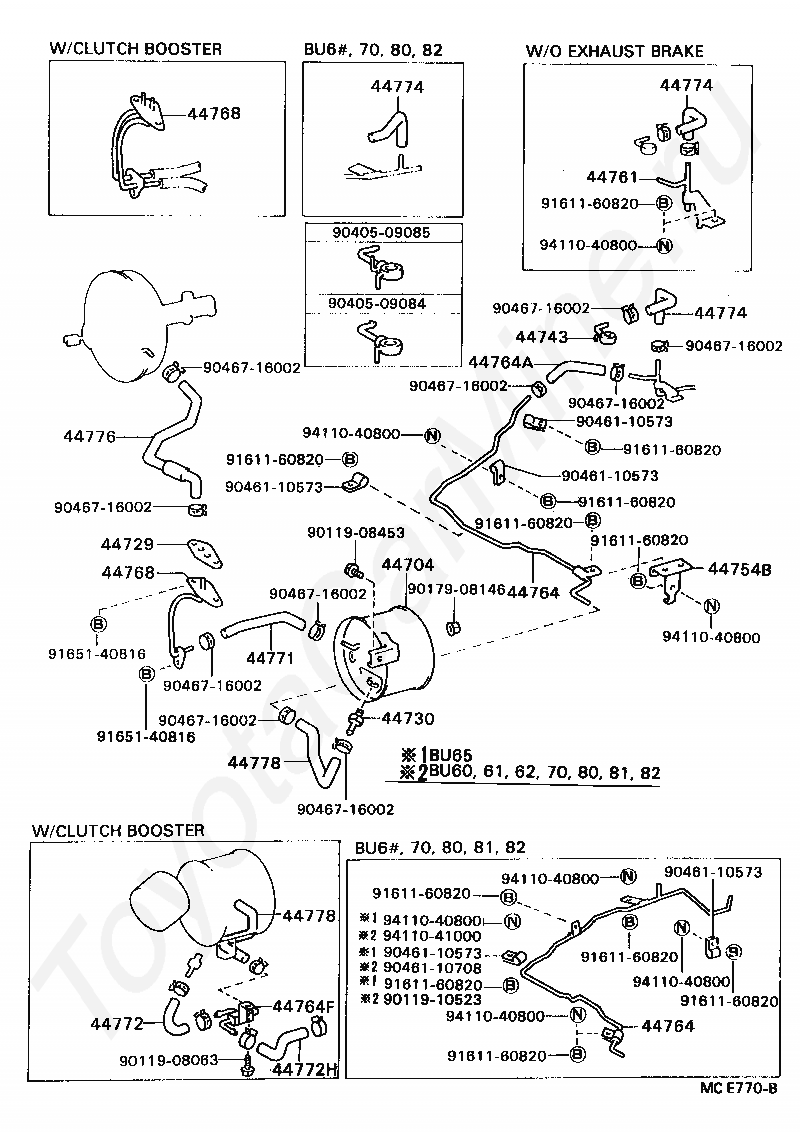

Код

Описание

44704

RESERVOIR SUB-ASSY, VACUUM

44729

GASKET, VACUUM TUBE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44743

UNION(FOR VACUUM PUMP)

44754B

BRACKET, VACUUM TUBE

44761

TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

44764

TUBE, BOOSTER VACUUM

44764

TUBE, BOOSTER VACUUM

44764A

HOSE, BOOSTER VACUUM

44764F

WAY(FOR BOOSTER VACUUM TUBE)

44768

TUBE, BOOSTER VACUUM

44768

TUBE, BOOSTER VACUUM

44771

HOSE, VACUUM TUBE CONNECTOR

44772

HOSE, CHECK VALVE TO CONNECTOR TUBE

44772H

HOSE, CHECK VALVE TO 3 WAY

44774

HOSE, UNION TO CONNECTOR TUBE

44774

HOSE, UNION TO CONNECTOR TUBE

44774

HOSE, UNION TO CONNECTOR TUBE

44776

HOSE, BRAKE BOOSTER

44778

HOSE, CONNECTOR TO CHECK VALVE

44778

HOSE, CONNECTOR TO CHECK VALVE

9011908063

Крепеж

9011908453

Крепеж

9011910523

Крепеж

9017908146

Крепеж

9040509084

Крепеж

9040509085

Крепеж

9046110573

Крепеж

9046110573

Крепеж

9046110573

Крепеж

9046110573

Крепеж

9046110573

Крепеж

9046110708

Крепеж

9046716002

Крепеж

9046716002

Крепеж

9046716002

Крепеж

9046716002

Крепеж

9046716002

Крепеж

9046716002

Крепеж

9046716002

Крепеж

9046716002

Крепеж

9046716002

Крепеж

9046716002

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411041000

Крепеж
