Каталог

Европа

Модель

DYNA 150

VIN

Дата

2000/02

Двигатель

3 литра, дизель

Фрейм

LY212

Опции

правый руль LOW FLAT DECK OPENING ON THREE SIDES (JUST LOW) STEEL-MADE DECK DOUBLE TIRE 15T GEN CBU

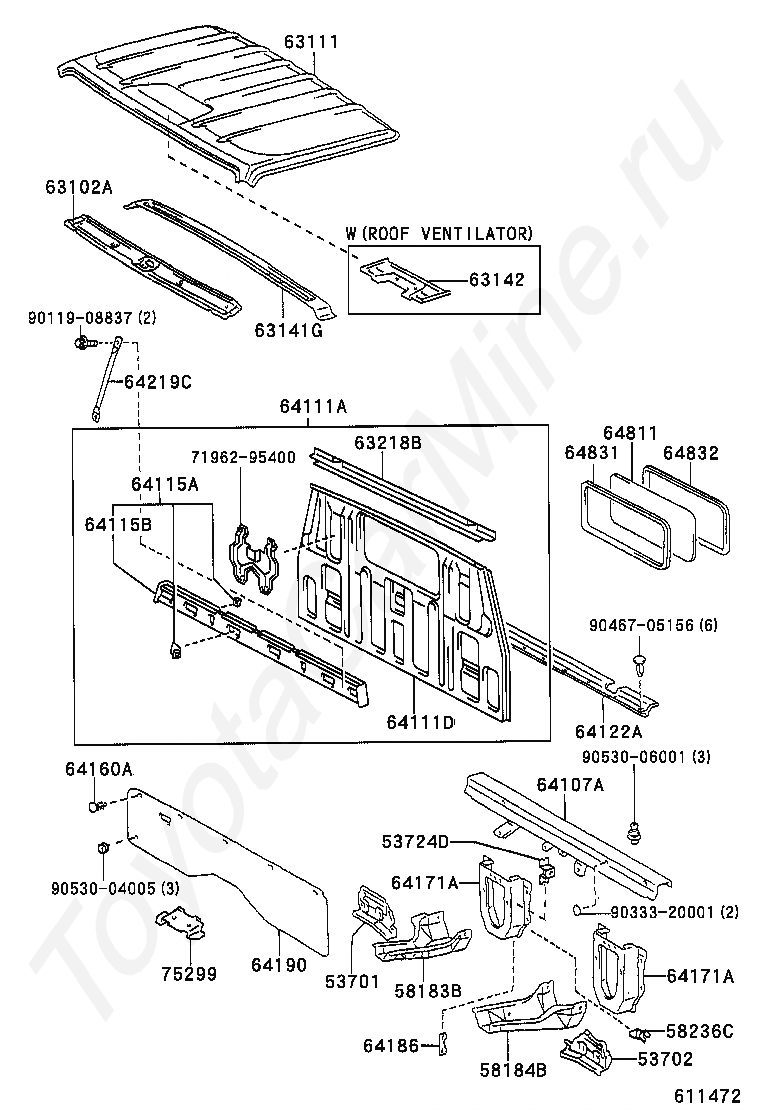

ROOF PANEL & BACK PANEL TOYOTA DYNA 150

Код

Описание

53701

APRON SUB-ASSY, FRONT FENDER, RH

53702

APRON SUB-ASSY, FRONT FENDER, LH

53724D

BRACKET, CLAMP

58183B

REINFORCEMENT, REAR MOUNTING, RH

58184B

REINFORCEMENT, REAR MOUNTING, LH

58236C

BRACKET, CLUTCH TUBE

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63111

PANEL, ROOF

63141G

REINFORCEMENT, ROOF PANEL, NO.1

63142

REINFORCEMENT, ROOF PANEL, NO.2

64107A

FRAME SUB-ASSY, BACK

64111A

PANEL, BACK

64122A

BAFFLE, DUST REAR BODY

64160A

CLIP(FOR BACK PANEL UPPER SILENCER)

64171A

BRACKET SUB-ASSY, REAR MOUNTING

64171A

BRACKET SUB-ASSY, REAR MOUNTING

64186

RETAINER, REAR MOUNTING BRACKET

64190

SILENCER ASSY, BACK PANEL

64219C

STAY, BACK PANEL

64811

GLASS, BACK WINDOW

64831

WEATHERSTRIP, BACK WINDOW GLASS

64832

KEY, BACK WINDOW WEATHERSTRIP

75299

BASE, JACK HOLDER

9011908837

Крепеж

9033320001

Крепеж

9046705156

Крепеж

9053004005

Крепеж

9053006001

Крепеж

Код

Описание

53701

APRON SUB-ASSY, FRONT FENDER, RH

53702

APRON SUB-ASSY, FRONT FENDER, LH

53724D

BRACKET, CLAMP

58183B

REINFORCEMENT, REAR MOUNTING, RH

58184B

REINFORCEMENT, REAR MOUNTING, LH

58236C

BRACKET, CLUTCH TUBE

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63111

PANEL, ROOF

63141G

REINFORCEMENT, ROOF PANEL, NO.1

63142

REINFORCEMENT, ROOF PANEL, NO.2

63218B

CHANNEL, ROOF DRIP, REAR

64107A

FRAME SUB-ASSY, BACK

64111A

PANEL, BACK

64111D

PANEL, UPPER BACK

64115A

REINFORCEMENT, BACK, UPPER

64115B

REINFORCEMENT, BACK PANEL

64122A

BAFFLE, DUST REAR BODY

64160A

CLIP(FOR BACK PANEL UPPER SILENCER)

64171A

BRACKET SUB-ASSY, REAR MOUNTING

64171A

BRACKET SUB-ASSY, REAR MOUNTING

64186

RETAINER, REAR MOUNTING BRACKET

64190

SILENCER ASSY, BACK PANEL

64219C

STAY, BACK PANEL

64811

GLASS, BACK WINDOW

64831

WEATHERSTRIP, BACK WINDOW GLASS

64832

KEY, BACK WINDOW WEATHERSTRIP

7196295400

Крепеж

75299

BASE, JACK HOLDER

9011908837

Крепеж

9033320001

Крепеж

9046705156

Крепеж

9053004005

Крепеж

9053006001

Крепеж
