Каталог

Европа

Модель

DYNA 150

VIN

Дата

1995/05

Двигатель

2,8 литра, дизель

Фрейм

LY211

Опции

левый руль HIGH FLAT DECK OPENING ON THREE SIDES STEEL-MADE DECK SINGAPORE TAXI 15T EUR IV

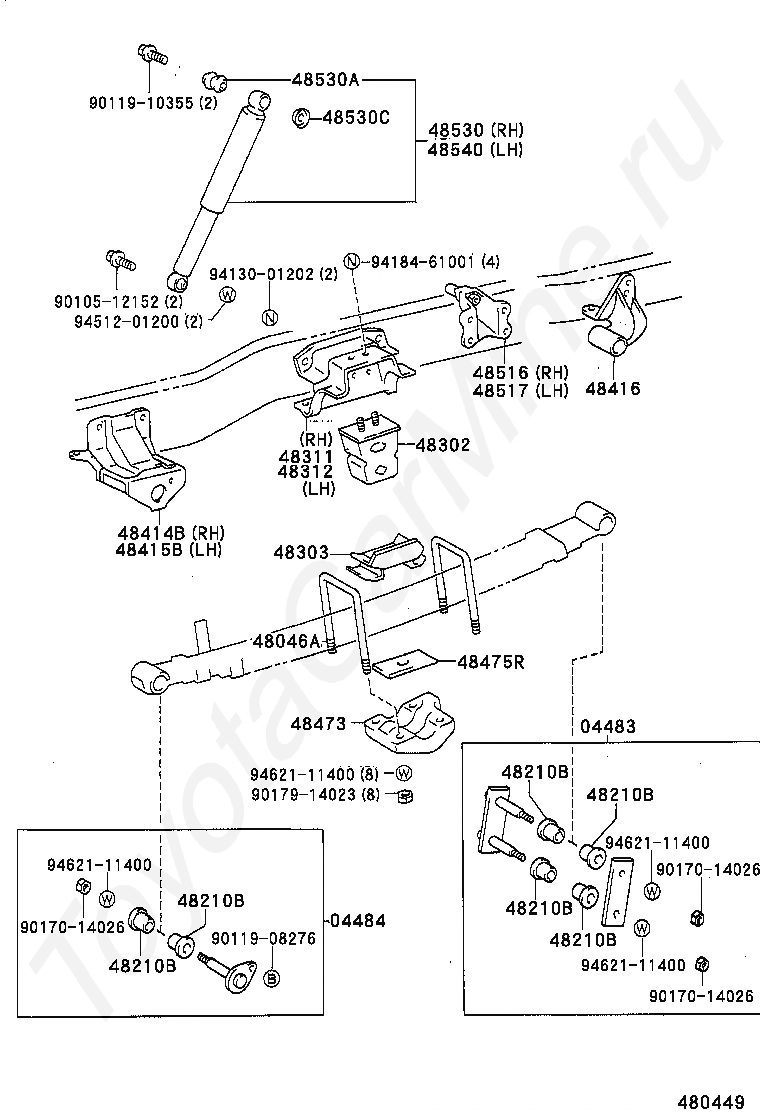

Задние амортизаторы TOYOTA DYNA 150

Код

Описание

04483

SHACKLE KIT, REAR SPRING

04484

PIN KIT, REAR SPRING

48046A

BOLT, U(FOR REAR SPRING)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48302

SPRING SUB-ASSY, HOLLOW

48303

SEAT SUB-ASSY, HOLLOW SPRING

48311

BRACKET, HOLLOW SPRING

48312

BRACKET, HOLLOW SPRING, NO.2

48414B

BRACKET, SPRING, NO.3 RH

48415B

BRACKET, SPRING, NO.3 LH

48416

BRACKET, SPRING, NO.4

48473

SEAT, REAR SPRING U BOLT

48475R

PLATE, DISTANCE(FOR REAR)

48516

BRACKET, REAR SHOCK ABSORBER, UPPER RH

48517

BRACKET, REAR SHOCK ABSORBER, UPPER LH

48530

ABSORBER ASSY, SHOCK, REAR RH

48530A

BUSH(FOR REAR SHOCK ABSORBER)

48530C

WASHER, REAR SHOCK ABSORBER CUSHION, NO.2

48540

ABSORBER ASSY, SHOCK, REAR LH

9010512152

Крепеж

9011908276

Крепеж

9011910355

Крепеж

9017014026

Крепеж

9017014026

Крепеж

9017014026

Крепеж

9017914023

Крепеж

9413001202

Крепеж

9418461001

Крепеж

9451201200

Крепеж

9462111400

Крепеж

9462111400

Крепеж

9462111400

Крепеж

9462111400

Крепеж

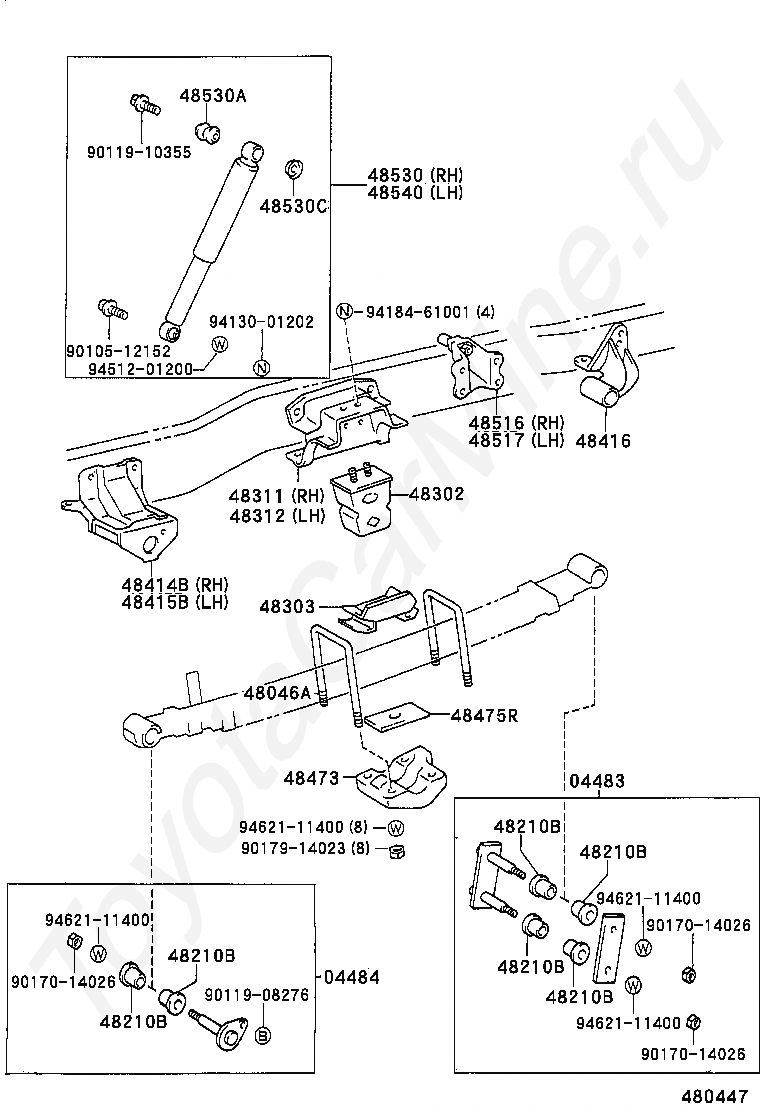

Код

Описание

04483

SHACKLE KIT, REAR SPRING

04484

PIN KIT, REAR SPRING

48046A

BOLT, U(FOR REAR SPRING)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48302

SPRING SUB-ASSY, HOLLOW

48303

SEAT SUB-ASSY, HOLLOW SPRING

48311

BRACKET, HOLLOW SPRING

48312

BRACKET, HOLLOW SPRING, NO.2

48414B

BRACKET, SPRING, NO.3 RH

48415B

BRACKET, SPRING, NO.3 LH

48416

BRACKET, SPRING, NO.4

48473

SEAT, REAR SPRING U BOLT

48475R

PLATE, DISTANCE(FOR REAR)

48516

BRACKET, REAR SHOCK ABSORBER, UPPER RH

48517

BRACKET, REAR SHOCK ABSORBER, UPPER LH

48530

ABSORBER ASSY, SHOCK, REAR RH

48530A

BUSH(FOR REAR SHOCK ABSORBER)

48530C

WASHER, REAR SHOCK ABSORBER CUSHION, NO.2

48540

ABSORBER ASSY, SHOCK, REAR LH

9010512152

Крепеж

9011908276

Крепеж

9011910355

Крепеж

9017014026

Крепеж

9017014026

Крепеж

9017014026

Крепеж

9017914023

Крепеж

9413001202

Крепеж

9418461001

Крепеж

9451201200

Крепеж

9462111400

Крепеж

9462111400

Крепеж

9462111400

Крепеж

9462111400

Крепеж

Код

Описание

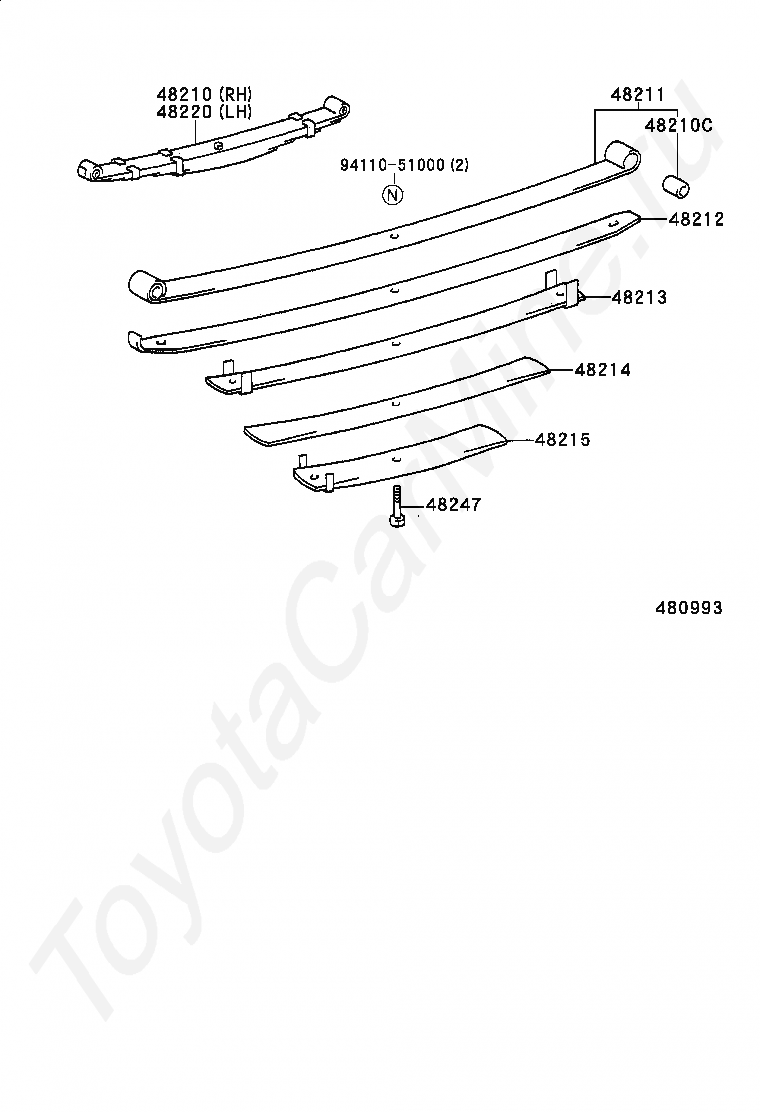

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

9411051000

Крепеж
