Каталог

Европа

Модель

DYNA 150

VIN

Дата

1995/05

Двигатель

2,8 литра, дизель

Фрейм

LY211

Опции

левый руль HIGH FLAT DECK OPENING ON THREE SIDES STEEL-MADE DECK SINGAPORE TAXI 15T EUR IV

Рулевая рейка и наконечники TOYOTA DYNA 150

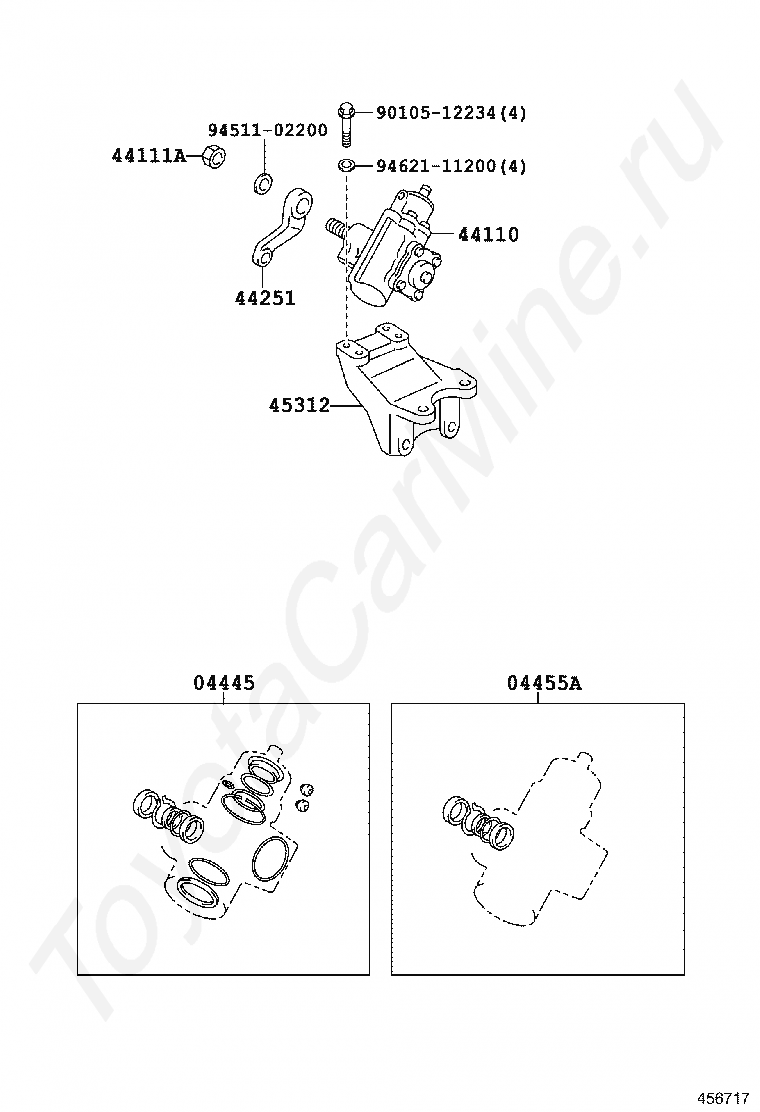

Код

Описание

04445

GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

04455A

GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE

44110

GEAR ASSY, POWER STEERING

44111A

NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING)

44251

ARM, PITMAN

45312

BRACKET, STEERING GEAR HOUSING

9010512234

Крепеж

9451102200

Крепеж

9462111200

Крепеж

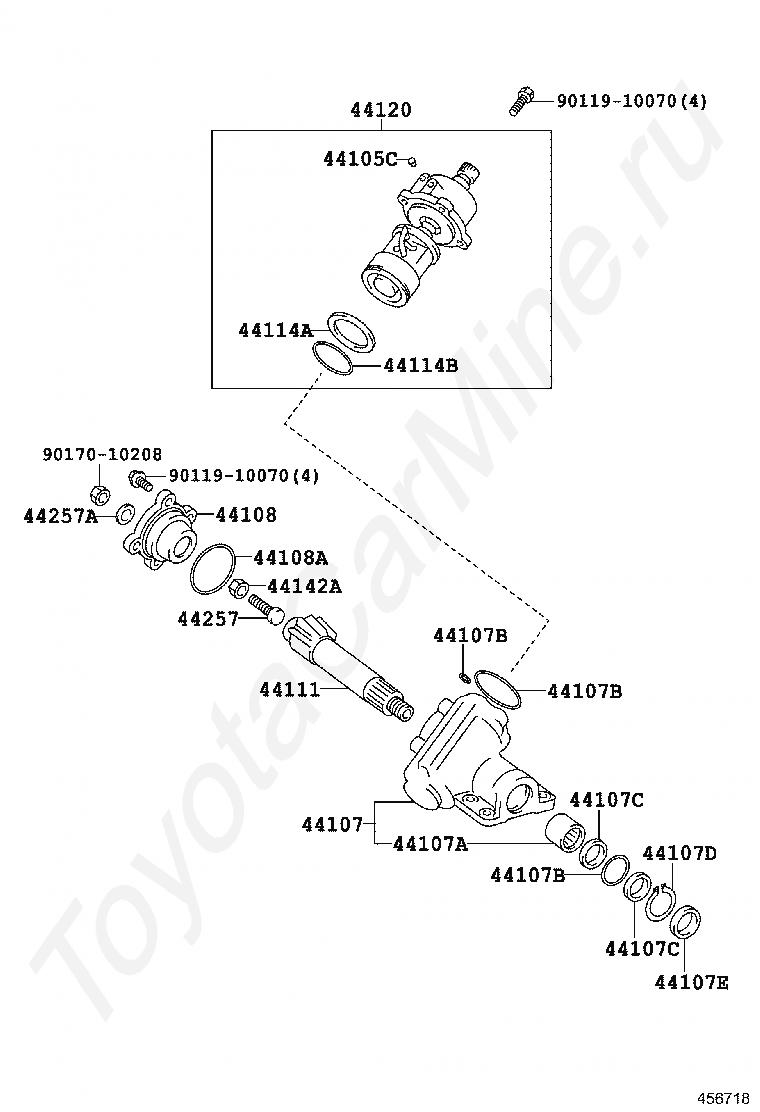

Код

Описание

44105C

SEAT, UNION(FOR VALVE BODY HOUSING)

44107

HOUSING SUB-ASSY, POWER STEERING GEAR

44107A

BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107D

RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING)

44107E

SEAL, OIL(FOR POWER STEERING GEAR HOUSING)

44108

COVER SUB-ASSY, SIDE

44108A

RING, O(FOR SIDE COVER)

44111

SHAFT, CROSS

44114A

RING(FOR POWER PISTON NUT)

44114B

RING, O(FOR POWER PISTON NUT)

44120

VALVE ASSY, W/BALL NUT

44142A

NUT, LOCK, NO.1

44257

SCREW, CROSS SHAFT ADJUSTING

44257A

WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW)

9011910070

Крепеж

9011910070

Крепеж

9017010208

Крепеж

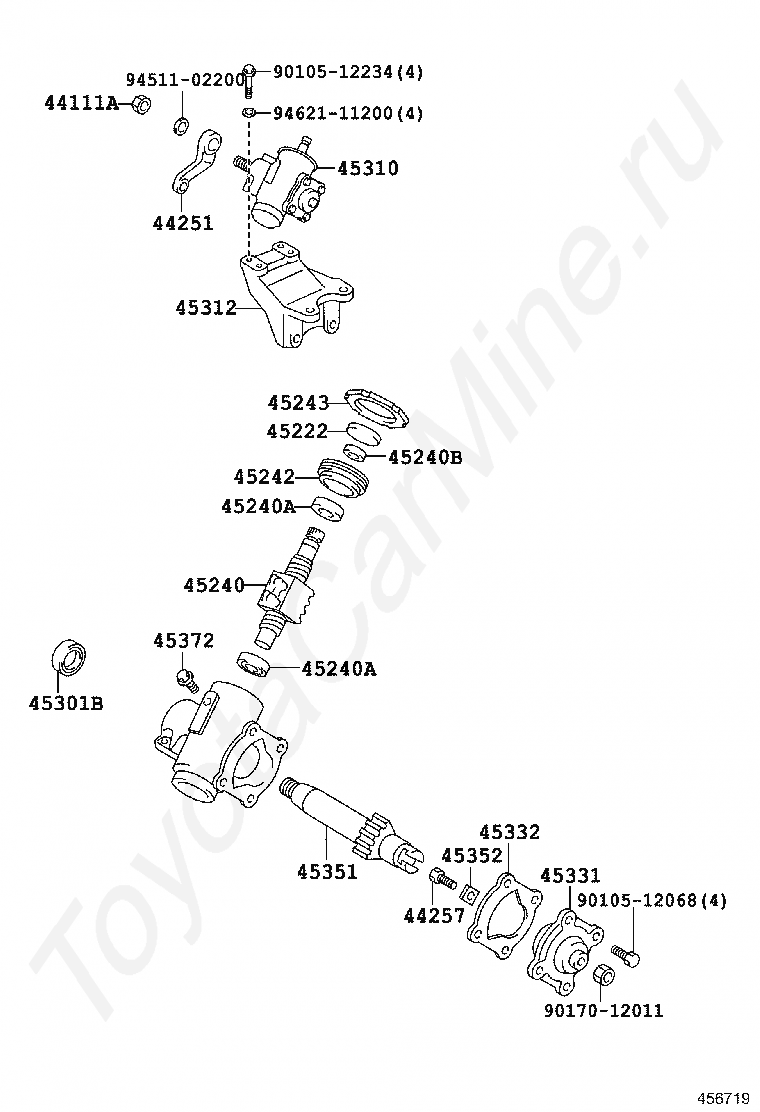

Код

Описание

44111A

NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING)

44251

ARM, PITMAN

44257

SCREW, CROSS SHAFT ADJUSTING

45222

COVER, STEERING GEAR DUST

45240

WORM ASSY, STEERING

45240A

BEARING(FOR STEERING WORM)

45240A

BEARING(FOR STEERING WORM)

45240B

SEAL, OIL(FOR STEERING WORM)

45242

SCREW, WORM BEARING ADJUSTING

45243

NUT, WORM BEARING ADJUSTING SCREW LOCK

45301B

SEAL, OIL(FOR SECTOR SHAFT)

45310

HOUSING ASSY, STEERING GEAR

45312

BRACKET, STEERING GEAR HOUSING

45331

COVER, SECTOR SHAFT END

45332

GASKET, SECTOR SHAFT END COVER

45351

SHAFT, STEERING SECTOR

45352

WASHER, SECTOR SHAFT THRUST

45372

PLUG, STEERING GEAR HOUSING OIL

9010512068

Крепеж

9010512234

Крепеж

9017012011

Крепеж

9451102200

Крепеж

9462111200

Крепеж

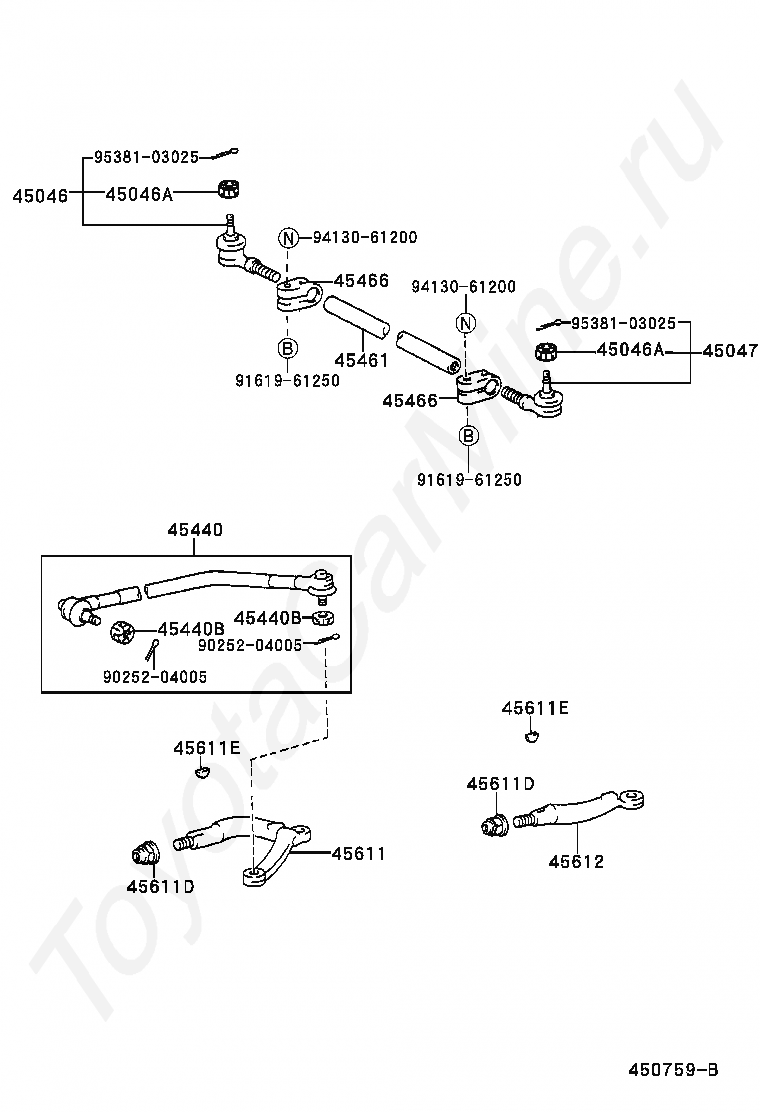

Код

Описание

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45440

LINK ASSY, STEERING DRAG

45440B

NUT, CASTLE(FOR STEERING DRAG LINK)

45440B

NUT, CASTLE(FOR STEERING DRAG LINK)

45461

ROD, STEERING TIE

45466

CLAMP, TIE ROD END

45466

CLAMP, TIE ROD END

45611

ARM, STEERING KNUCKLE, RH

45611D

NUT(FOR STEERING KNUCKLE ARM)

45611D

NUT(FOR STEERING KNUCKLE ARM)

45611E

KEY, WOODRUFF(FOR STEERING IDLER ARM)

45611E

KEY, WOODRUFF(FOR STEERING IDLER ARM)

45612

ARM, STEERING KNUCKLE, LH

9025204005

Крепеж

9025204005

Крепеж

9161961250

Крепеж

9161961250

Крепеж

9413061200

Крепеж

9413061200

Крепеж

9538103025

Крепеж

9538103025

Крепеж

Рулевая рейка и наконечники TOYOTA DYNA 150
