Каталог

Европа

Модель

DYNA 150

VIN

Дата

1995/05

Двигатель

2 литра

Фрейм

YY211

Опции

правый руль LOW FLAT DECK OPENING ON THREE SIDES (JUST LOW) STEEL-MADE DECK DOUBLE TIRE 15T GEN CBU

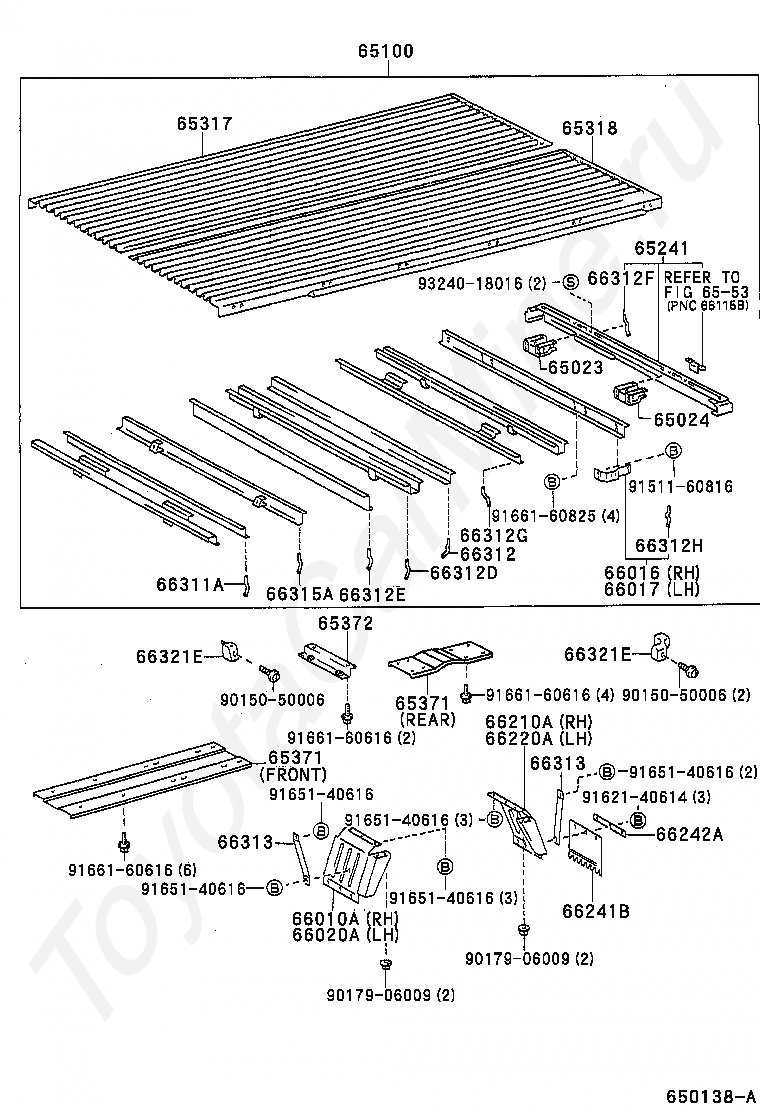

REAR BODY FLOOR & FENDER TOYOTA DYNA 150

Код

Описание

65023

BRACKET SUB-ASSY, REAR CROSS SILL MOUNTING, RH

65024

BRACKET SUB-ASSY, REAR CROSS SILL MOUNTING, LH

65100

FLOOR ASSY, REAR BODY

65241

SILL, REAR CROSS

65317

PANEL, FLOOR SIDE, RH

65318

PANEL, FLOOR SIDE, LH

65371

INSULATOR, REAR FLOOR

65371

INSULATOR, REAR FLOOR

65372

STAY, REAR FLOOR INSULATOR

6553

переход к группе запчастей

66010A

FENDER ASSY, REAR NO.2 RH

66016

GUSSET SUB-ASSY, GATE HINGE, RH

66017

GUSSET SUB-ASSY, GATE HINGE, LH

66020A

FENDER ASSY, REAR NO.2 LH

66210A

FENDER ASSY, REAR NO.1 RH

66220A

FENDER ASSY, REAR NO.1 LH

66241B

BAFFLE, RUBBER

66242A

PLATE, BAFFLE RUBBER

66311A

HOOK, ROPE, NO.1

66312

HOOK, ROPE, NO.2

66312D

HOOK, ROPE, NO.2

66312E

HOOK, ROPE, NO.2

66312F

HOOK, ROPE, NO.2

66312G

HOOK, ROPE, NO.2

66312H

HOOK, ROPE

66313

SUPPORT, REAR FENDER

66313

SUPPORT, REAR FENDER

66315A

HOOK, ROPE

66321E

BUMPER, GATE RUBBER

66321E

BUMPER, GATE RUBBER

9015050006

Крепеж

9015050006

Крепеж

9017906009

Крепеж

9017906009

Крепеж

9151160816

Крепеж

9162140614

Крепеж

9165140616

Крепеж

9165140616

Крепеж

9165140616

Крепеж

9165140616

Крепеж

9165140616

Крепеж

9166160616

Крепеж

9166160616

Крепеж

9166160616

Крепеж

9166160825

Крепеж

9324018016

Крепеж

REAR BODY FLOOR & FENDER TOYOTA DYNA 150
