Каталог

Европа

Модель

DYNA 100

VIN

Дата

1995/05

Двигатель

2,4 литра, дизель

Фрейм

LY100

Опции

левый руль HIGH FLAT DECK OPENING ON THREE SIDES Европа INCOMPLETE VEHICLES (CHASSIS & CAB)

Задние амортизаторы TOYOTA DYNA 100

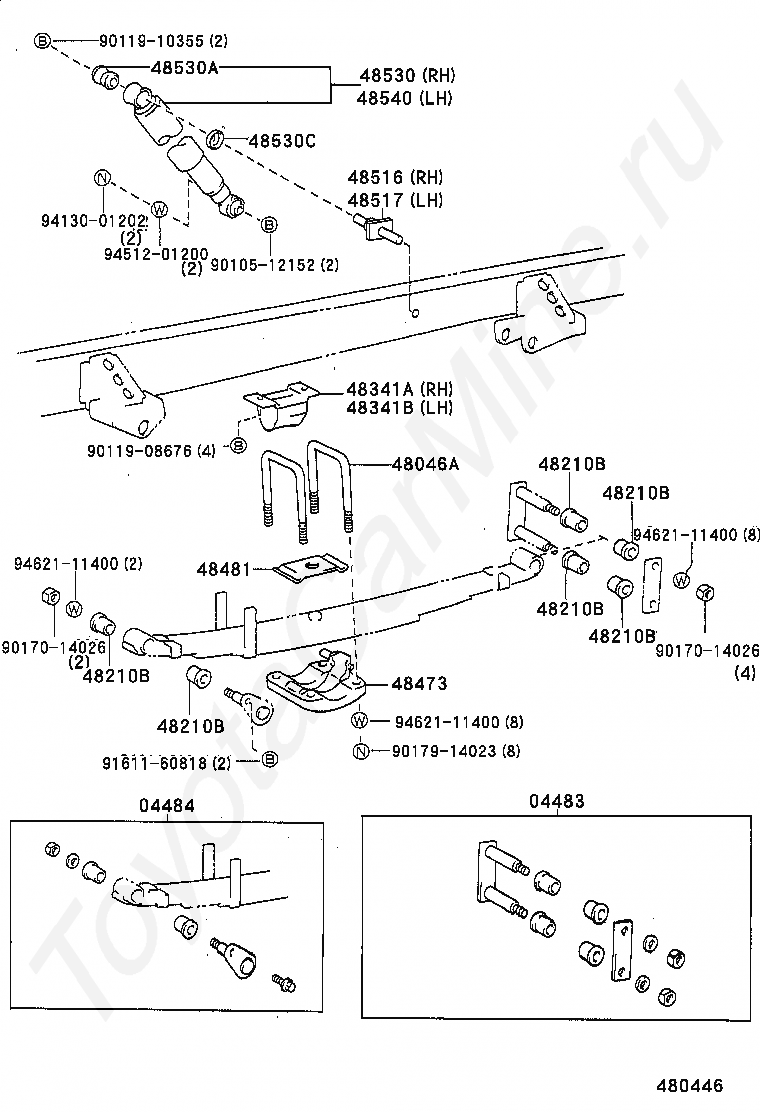

Код

Описание

04483

SHACKLE KIT, REAR SPRING

04484

PIN KIT, REAR SPRING

48046A

BOLT, U(FOR REAR SPRING)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48341A

BUMPER, REAR SPRING, NO.1 RH

48341B

BUMPER, REAR SPRING, NO.1 LH

48473

SEAT, REAR SPRING U BOLT

48481

SEAT, REAR SPRING, UPPER

48516

BRACKET, REAR SHOCK ABSORBER, UPPER RH

48517

BRACKET, REAR SHOCK ABSORBER, UPPER LH

48530

ABSORBER ASSY, SHOCK, REAR RH

48530A

BUSH(FOR REAR SHOCK ABSORBER)

48530C

WASHER, REAR SHOCK ABSORBER CUSHION, NO.2

48540

ABSORBER ASSY, SHOCK, REAR LH

9010512152

Крепеж

9011910355

Крепеж

9017014026

Крепеж

9017014026

Крепеж

9017914023

Крепеж

9161160818

Крепеж

9165160820

Крепеж

9413001202

Крепеж

9451201200

Крепеж

9462111400

Крепеж

9462111400

Крепеж

9462111400

Крепеж

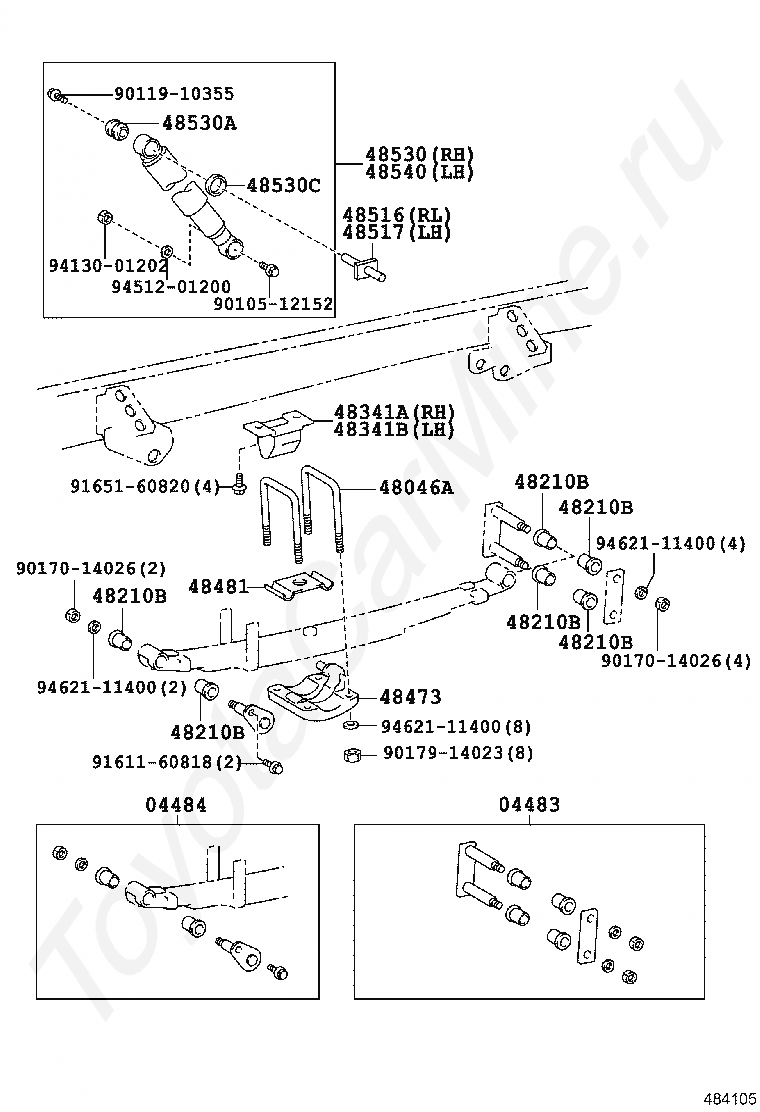

Код

Описание

04483

SHACKLE KIT, REAR SPRING

04484

PIN KIT, REAR SPRING

48046A

BOLT, U(FOR REAR SPRING)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48341A

BUMPER, REAR SPRING, NO.1 RH

48341B

BUMPER, REAR SPRING, NO.1 LH

48473

SEAT, REAR SPRING U BOLT

48481

SEAT, REAR SPRING, UPPER

48516

BRACKET, REAR SHOCK ABSORBER, UPPER RH

48517

BRACKET, REAR SHOCK ABSORBER, UPPER LH

48530

ABSORBER ASSY, SHOCK, REAR RH

48530A

BUSH(FOR REAR SHOCK ABSORBER)

48530C

WASHER, REAR SHOCK ABSORBER CUSHION, NO.2

48540

ABSORBER ASSY, SHOCK, REAR LH

9010512152

Крепеж

9011908676

Крепеж

9011910355

Крепеж

9017014026

Крепеж

9017014026

Крепеж

9017914023

Крепеж

9161160818

Крепеж

9413001202

Крепеж

9451201200

Крепеж

9462111400

Крепеж

9462111400

Крепеж

9462111400

Крепеж

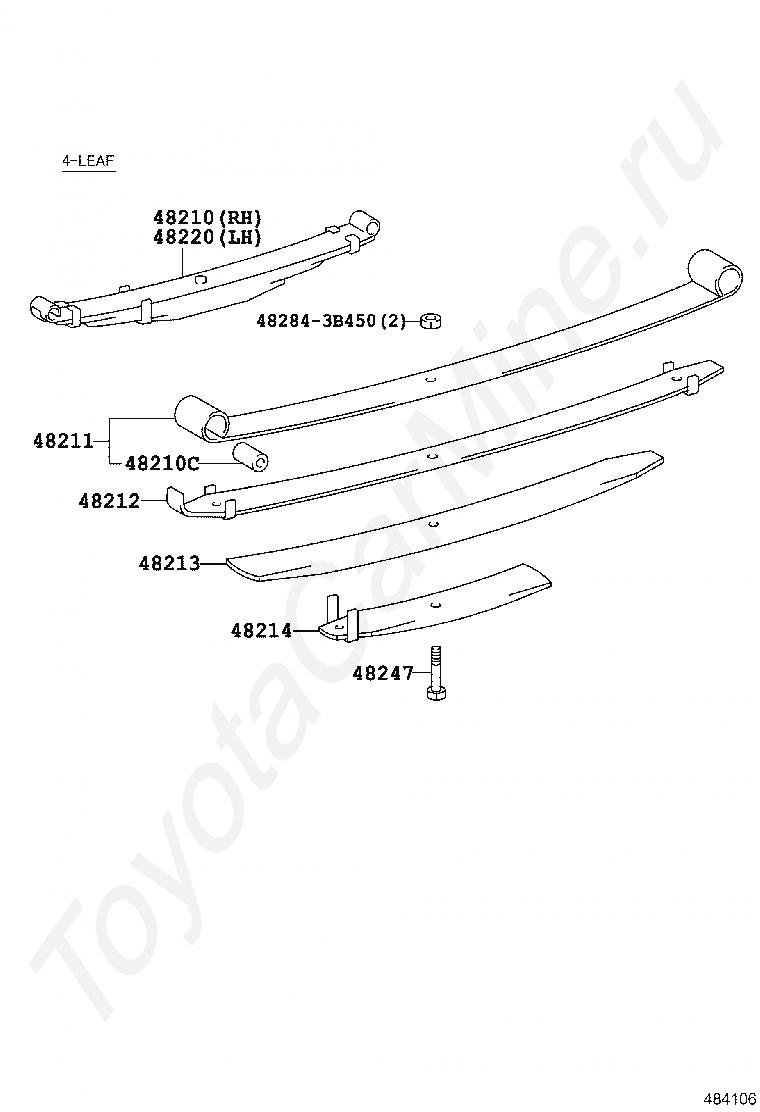

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

482843B450

Крепеж
