Каталог

Европа

Модель

DYNA200

VIN

Дата

1997/08

Двигатель

4,1 литра, дизель

Фрейм

BU222

Опции

правый руль HIGH FLAT DECK OPENING ON THREE SIDES DOUBLE TIRE грузоподъемность 4 тонны DSL ARL IV3 TB

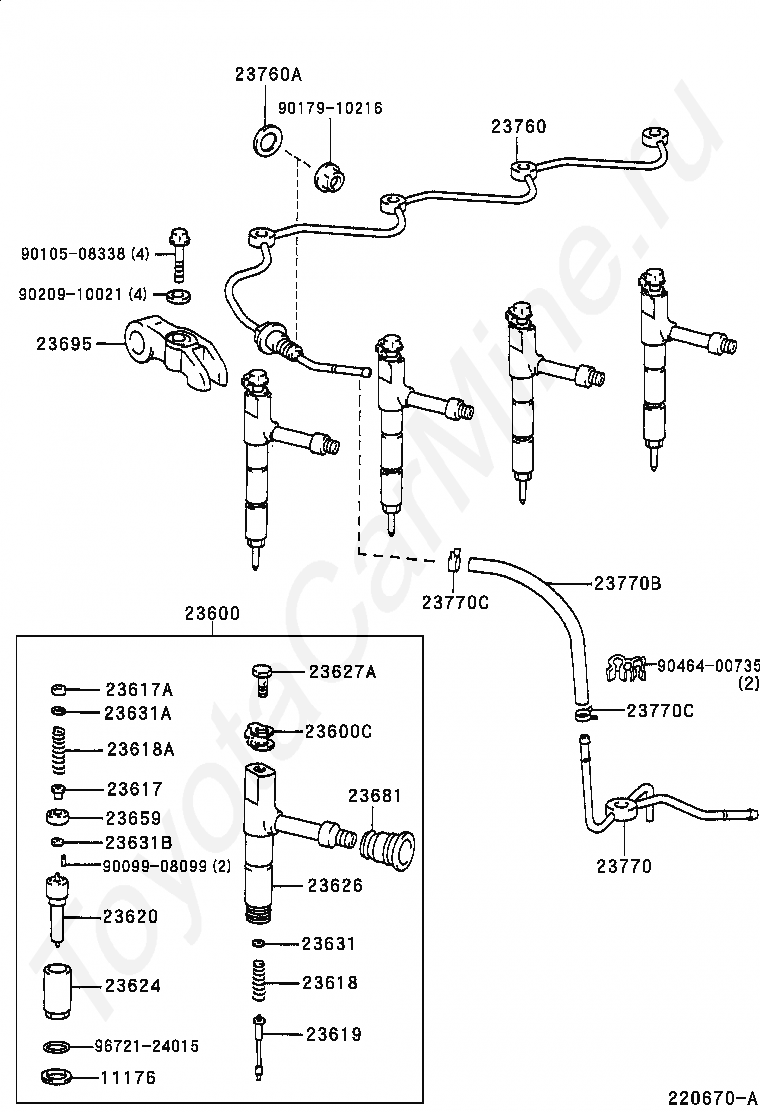

Форсунки TOYOTA DYNA200

Код

Описание

11176

SEAT, INJECTION NOZZLE

23600

HOLDER & NOZZLE SET, NOZZLE

23600C

GASKET(FOR HOLDER & NOZZLE SET)

23617

SEAT, PRESSURE SPRING

23617A

SEAT, PRESSURE SPRING, NO.1

23618

SPRING, NOZZLE HOLDER PRESSURE

23618A

SPRING, NOZZLE HOLDER PRESSURE, NO.1

23619

PIN, NOZZLE HOLDER PRESSURE

23620

NOZZLE ASSY

23624

NUT, NOZZLE RETAINING

23626

BODY SUB-ASSY, NOZZLE

23627A

SCREW, FOLLOW(FOR NOZZLE)

23631

WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

23631A

WASHER(FOR NOZZLE HOLDER PRESSURE SPRING NO.1)

23631B

WASHER(FOR NOZZLE HOLDER PRESSURE SPRING NO.2)

23659

PACKING, TIP(FOR NOZZLE)

23681

SEAL, NOZZLE HOLDER

23695

CLAMP, NOZZLE HOLDER, NO.1

23760

PIPE ASSY, NOZZLE LEAKAGE

23760A

GASKET

23770

PIPE ASSY, NOZZLE LEAKAGE, NO.2

23770B

HOSE, FUEL

23770C

CLAMP OR CLIP(FOR FUEL HOSE SET)

23770C

CLAMP OR CLIP(FOR FUEL HOSE SET)

9009908099

Крепеж

9010508338

Крепеж

9017910216

Крепеж

9020910021

Крепеж

9046400735

Крепеж

9672124015

Крепеж

Форсунки TOYOTA DYNA200
