Каталог

Европа

Модель

DYNA200

VIN

Дата

1995/05

Двигатель

3,4 литра, дизель

Фрейм

BU100

Опции

левый руль HIGH FLAT DECK OPENING ON THREE SIDES DOUBLE TIRE 2 тонны DSL GEN CBU TS

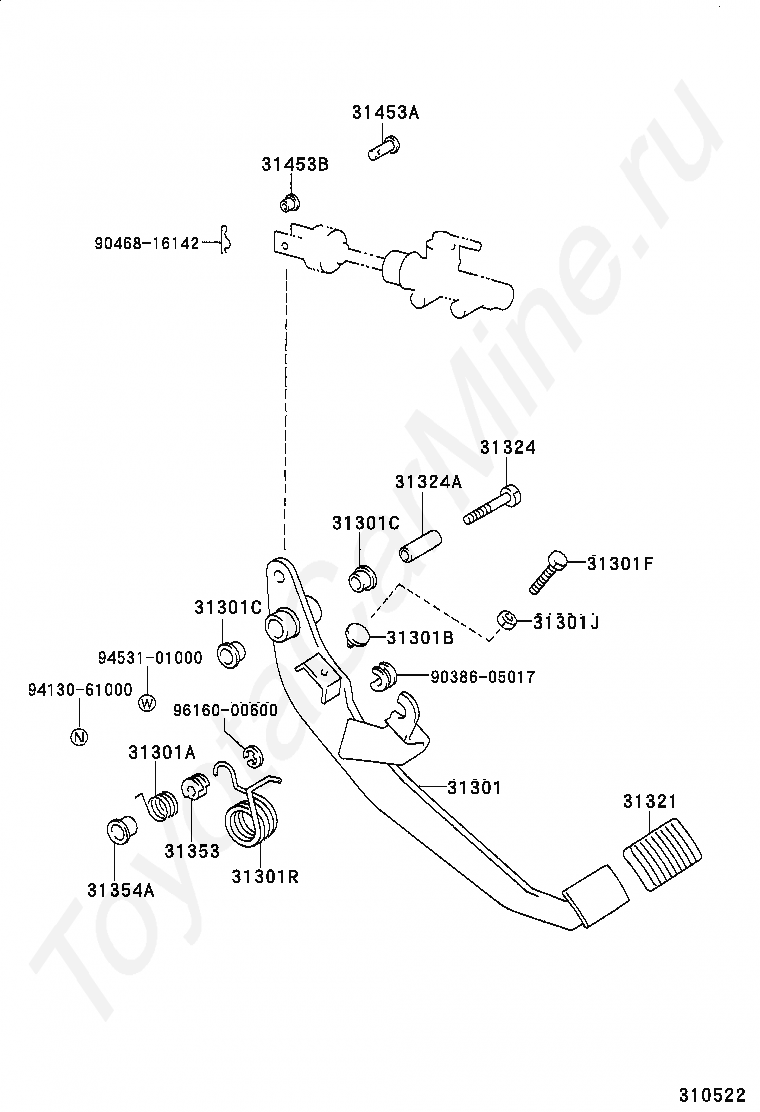

Педаль сцепления TOYOTA DYNA200

Код

Описание

31301

PEDAL SUB-ASSY, CLUTCH

31301A

SPRING(FOR CLUTCH PEDAL)

31301B

CUSHION, NO.1(FOR CLUTCH PEDAL)

31301C

BUSH(FOR CLUTCH PEDAL)

31301C

BUSH(FOR CLUTCH PEDAL)

31301F

BOLT(FOR CLUTCH PEDAL STOPPER)

31301J

NUT(FOR CLUTCH PEDAL STOPPER)

31321

PAD, CLUTCH PEDAL

31324

SHAFT, CLUTCH PEDAL

31324A

COLLAR, CLUTCH PEDAL SHAFT

31453A

PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

31453B

BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

9046816142

Крепеж

9413061000

Крепеж

9453101000

Крепеж

Код

Описание

31301

PEDAL SUB-ASSY, CLUTCH

31301A

SPRING(FOR CLUTCH PEDAL)

31301B

CUSHION, NO.1(FOR CLUTCH PEDAL)

31301C

BUSH(FOR CLUTCH PEDAL)

31301C

BUSH(FOR CLUTCH PEDAL)

31301F

BOLT(FOR CLUTCH PEDAL STOPPER)

31301J

NUT(FOR CLUTCH PEDAL STOPPER)

31301R

SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)

31321

PAD, CLUTCH PEDAL

31324

SHAFT, CLUTCH PEDAL

31324A

COLLAR, CLUTCH PEDAL SHAFT

31353

HOLDER, CLUTCH PEDAL SPRING

31354A

BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

31453A

PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

31453B

BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

9038605017

Крепеж

9046816142

Крепеж

9413061000

Крепеж

9453101000

Крепеж

9616000600

Крепеж

Код

Описание

31481

TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

31481A

HOSE, CLUTCH, NO.1

31482

TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE

31482B

HOSE, CLUTCH, NO.2

31484A

BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)

31487

PLATE, RELEASE TUBE SET

31488C

TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE

4708

переход к группе запчастей

4708

переход к группе запчастей

9011908A46

Крепеж

9046108449

Крепеж

9046400780

Крепеж

9046808044

Крепеж

9046808044

Крепеж

9046808044

Крепеж

9046808044

Крепеж

9161160816

Крепеж

9161160816

Крепеж

Педаль сцепления TOYOTA DYNA200
