Реле и кнопки Тойота DYNA, Европа, 2008/02 - 2011/06, 4 литра, дизель, XZU423, механика, левый руль, 7,5 тонн, DOUBLE TIRE, GENERAL COUNTRIES, IV3 DCRTK6F

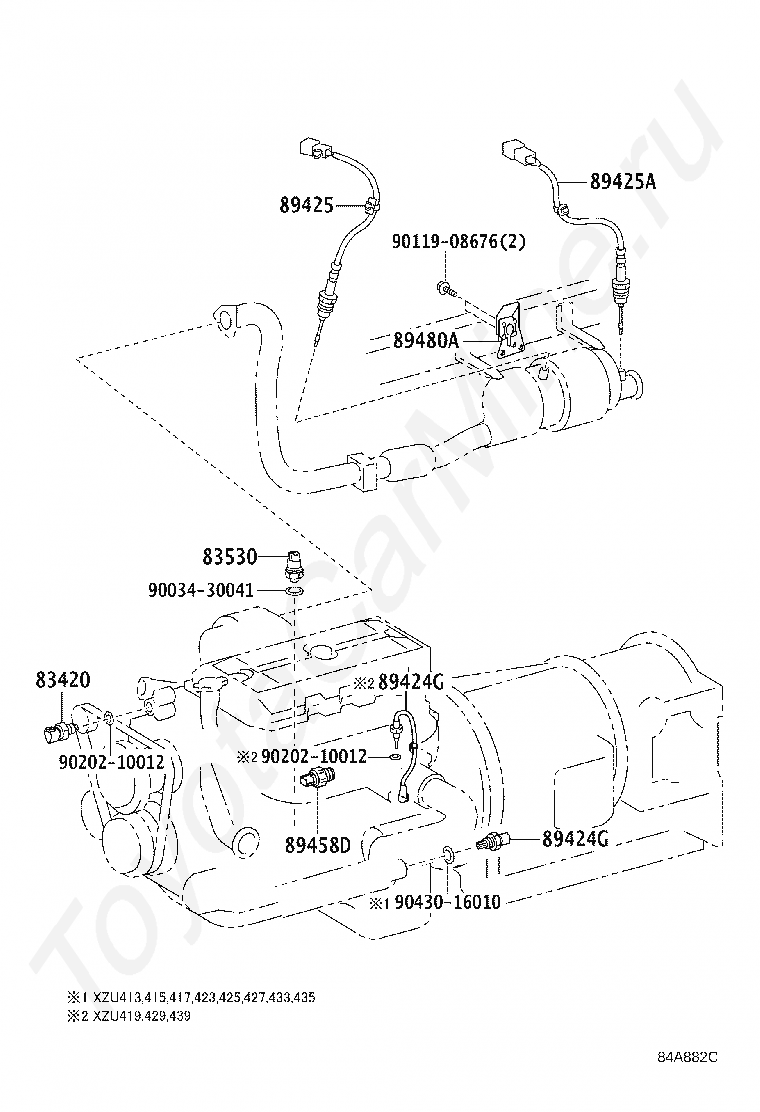

Код

Описание

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

89424G

SENSOR, INLET AIR TEMPERATURE

89424G

SENSOR, INLET AIR TEMPERATURE

89425

SENSOR, EXHAUST GAS TEMPERATURE

89425A

SENSOR, EXHAUST GAS TEMPERATURE, NO.2

89458D

SENSOR, FUEL PRESSURE

89480A

SENSOR ASSY, DIFFERENTIAL PRESSURE

9003430041

Крепеж

9011908676

Крепеж

9020210012

Крепеж

9020210012

Крепеж

9043016010

Крепеж

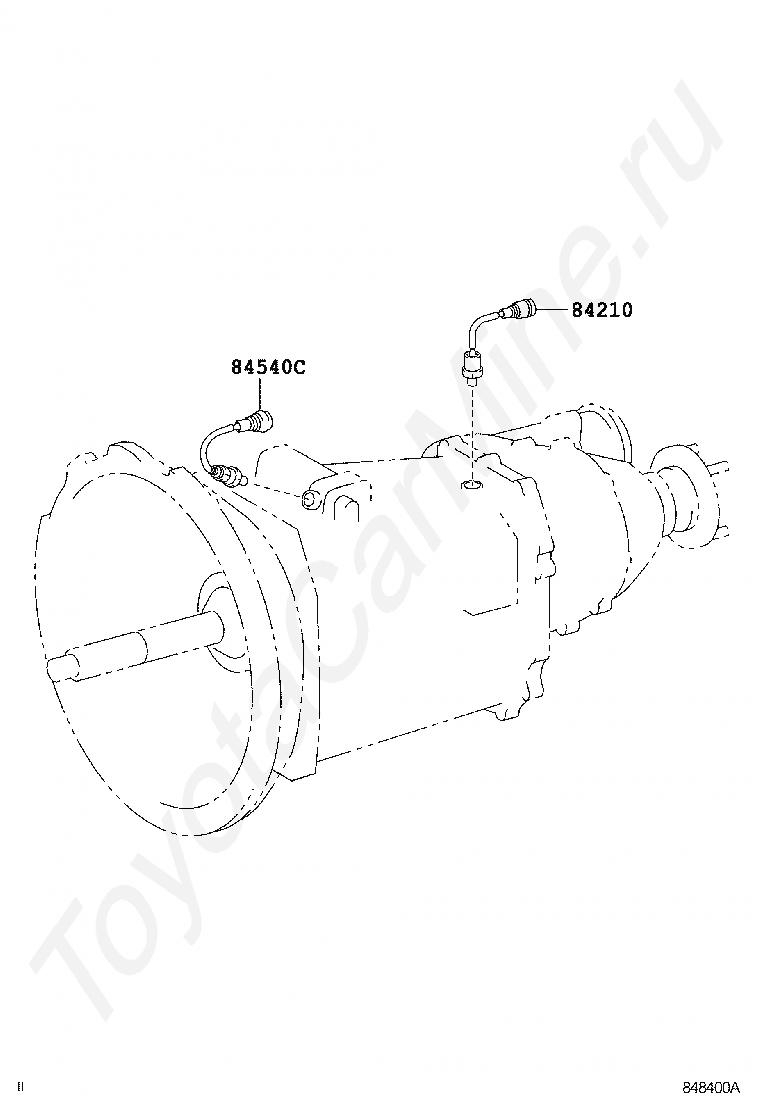

Код

Описание

84210

SWITCH ASSY, BACK-UP LAMP

84540C

SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)

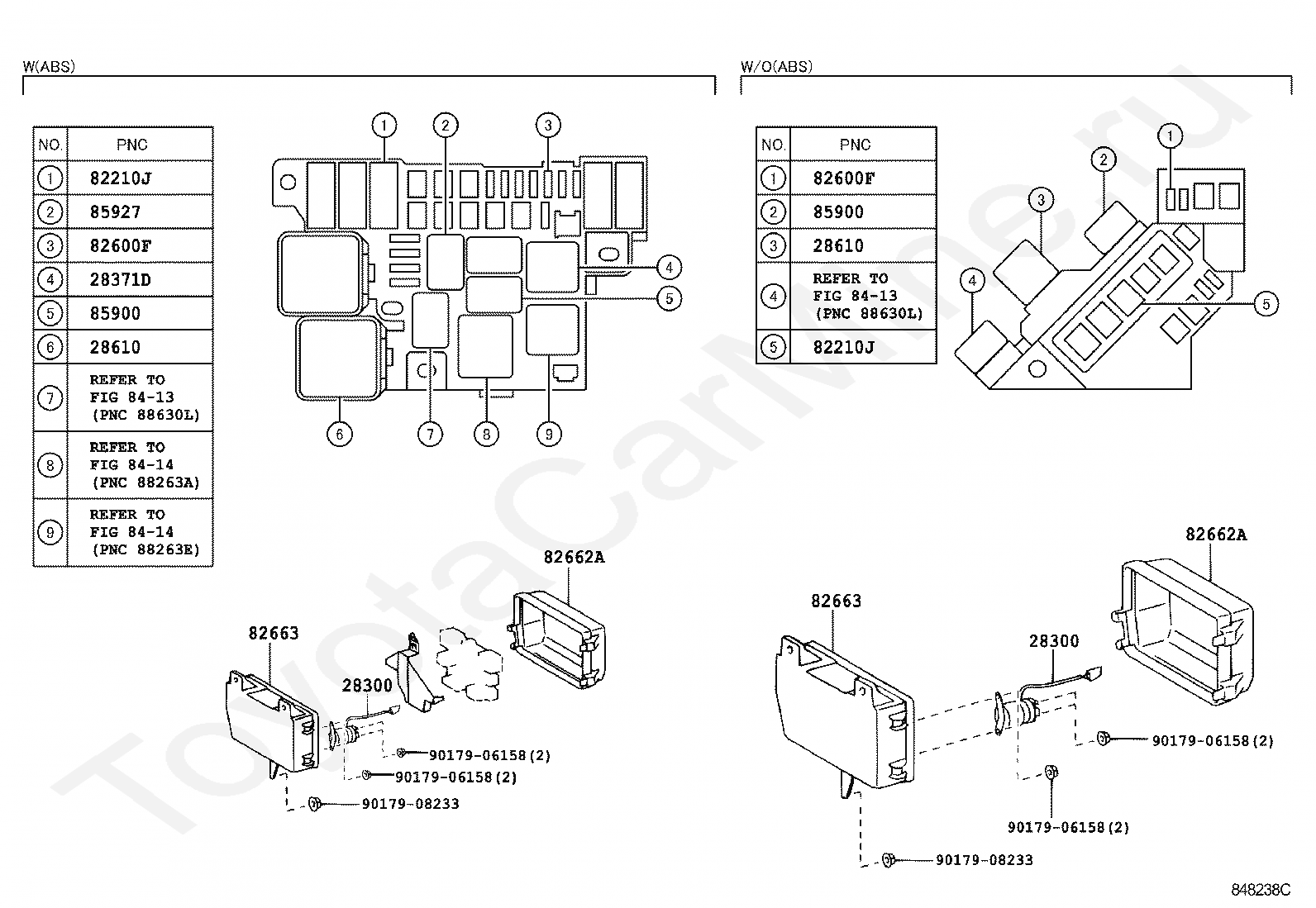

Код

Описание

28300

RELAY ASSY, STARTER

28300

RELAY ASSY, STARTER

28371D

RELAY, IGNITION, NO.3

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

82210J

FUSIBLE LINK

82210J

FUSIBLE LINK

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82663

COVER, RELAY BLOCK, LOWER

82663

COVER, RELAY BLOCK, LOWER

8413

переход к группе запчастей

8413

переход к группе запчастей

8414

переход к группе запчастей

8414

переход к группе запчастей

85900

RELAY ASSY, CONTROL UNIT

85900

RELAY ASSY, CONTROL UNIT

85927

RELAY, COOLING FAN

9017906158

Крепеж

9017906158

Крепеж

9017906158

Крепеж

9017906158

Крепеж

9017908233

Крепеж

9017908233

Крепеж

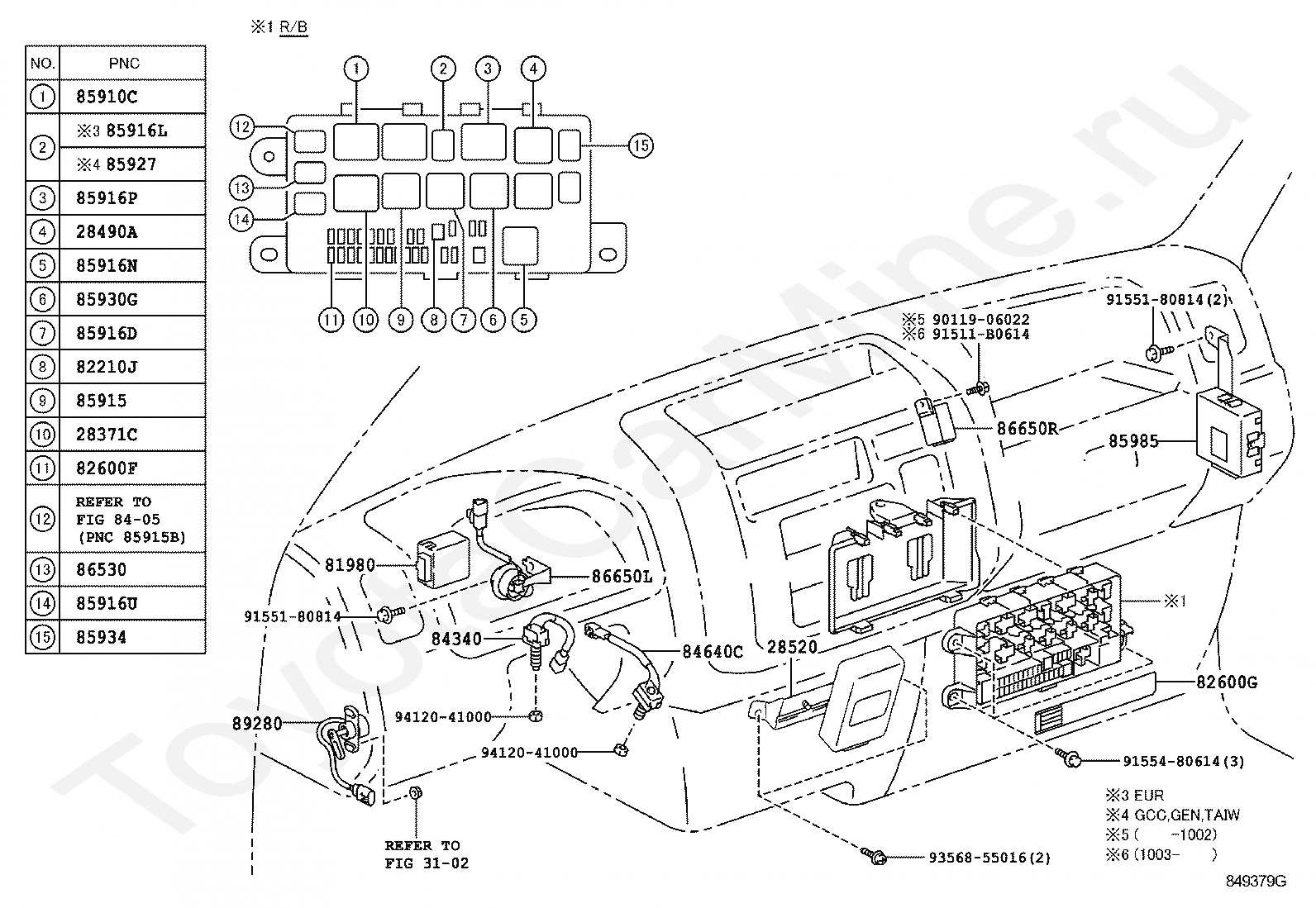

Код

Описание

28371C

RELAY, IGNITION, NO.2

28490A

RELAY ASSY, EXHAUST RETARDER

28520

TIMER ASSY, PREHEATING

3102

переход к группе запчастей

81980

FLASHER ASSY, TURN SIGNAL

82210J

FUSIBLE LINK

82600F

FUSE, FUSE BLOCK

82600G

PLATE, CAUTION(FOR FUSE)

8405

переход к группе запчастей

84340

SWITCH ASSY, STOP LAMP

84640C

SWITCH ASSY, EXHAUST RETARDER

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85915

RELAY, MAIN

85916D

RELAY, FOG LAMP

85916L

RELAY, REAR FOG LAMP

85916N

RELAY, TAIL LAMP

85916P

RELAY, HEADLAMP

85916U

RELAY, HEADLAMP, NO.2

85927

RELAY, COOLING FAN

85930G

RELAY, ACC

85934

RELAY, MAGNET-CLUTCH

85985

RELAY, KEY REMINDER

86530

RELAY ASSY, HORN

86650L

BUZZER ASSY, VACUUM WARNING

86650R

BUZZER ASSY, ES START

89280

SENSOR ASSY, CLUTCH PEDAL STROKE

9011906022

Крепеж

91511B0614

Крепеж

9155180814

Крепеж

9155180814

Крепеж

9155480614

Крепеж

9356855016

Крепеж

9412041000

Крепеж

9412041000

Крепеж

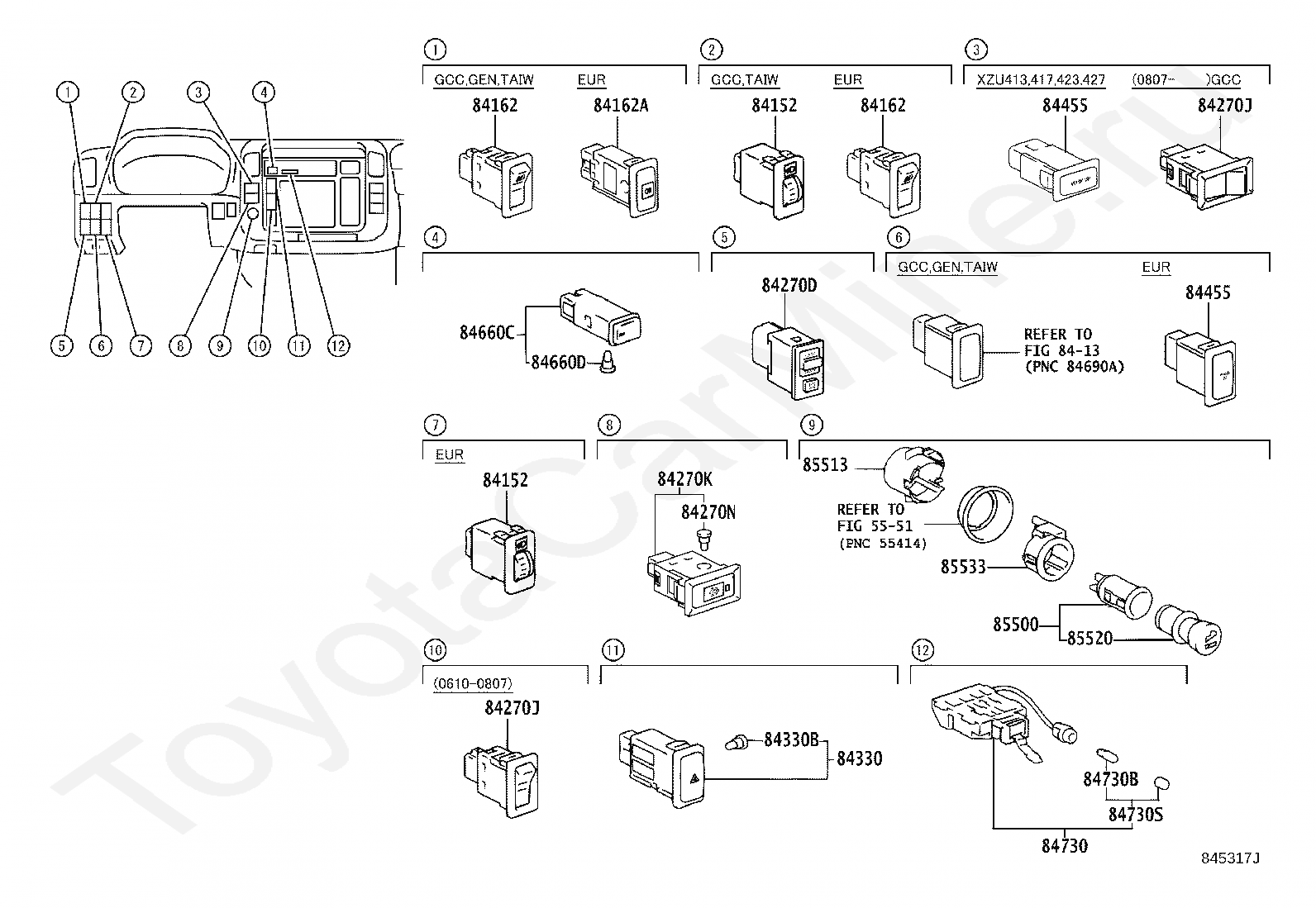

Код

Описание

5551

переход к группе запчастей

8413

переход к группе запчастей

84152

SWITCH, HEADLAMP LEVELING

84152

SWITCH, HEADLAMP LEVELING

84162

SWITCH, FRONT FOG LAMP

84162

SWITCH, FRONT FOG LAMP

84162A

SWITCH, REAR FOG LAMP

84270D

SWITCH ASSY, ES START TIMING

84270J

SWITCH ASSY, PARKING LAMP

84270J

SWITCH ASSY, PARKING LAMP

84270K

SWITCH ASSY, DPR

84270N

BULB, DPR SWICH ASSY

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330B

BULB, HAZARD WARNING SIGNAL SWITCH

84455

SWITCH, WARM UP

84455

SWITCH, WARM UP

84660C

SWITCH, COOLER

84660D

BULB(FOR COOLER SWITCH)

84730

SWITCH ASSY, HEATER BLOWER

84730B

BULB, HEATER BLOWER SWITCH

84730S

BULB, HEATER BLOWER SWITCH

85500

LIGHTER ASSY, CIGARETTE

85513

COVER, CIGARETTE LIGHTER

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

85533

LENS, CIGARETTE LIGHTER INDICATOR

Код

Описание

4501

переход к группе запчастей

8271116830

Крепеж

827111E340

Крепеж

8271637241

Крепеж

84110

SWITCH ASSY, LIGHT CONTROL, NO.1

84140

SWITCH ASSY, HEADLAMP DIMMER

84310

SWITCH ASSY, TURN SIGNAL

84312

PLATE, HORN CONTACT

84329

SWITCH, TURN SIGNAL

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

9008046104

Крепеж

9016840129

Крепеж

9046400551

Крепеж

91611G0612

Крепеж

9331915012

Крепеж

Код

Описание

8197337010

Крепеж

83390

SWITCH ASSY, VACUUM WARNING

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84550

SWITCH ASSY, PARKING BRAKE

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

86206D

CONVERTER SUB-ASSY, VOLTAGE

9010906296

Крепеж

9010906296

Крепеж

9011908827

Крепеж

9016430009

Крепеж

9090148003

Крепеж

Код

Описание

83320

GAGE ASSY, FUEL SENDER

83361

GASKET, FUEL SENDER GAGE

86650B

BUZZER ASSY, REVERSE WARNING

91611B0816

Крепеж

93319A4010

Крепеж

Реле и кнопки TOYOTA DYNA
