Каталог

Европа

Модель

DYNA

VIN

Дата

2008/02

Двигатель

4 литра, дизель

Фрейм

XZU423

КПП

механика

Опции

левый руль 7,5 тонн DOUBLE TIRE GENERAL COUNTRIES IV3 DCRTK6F

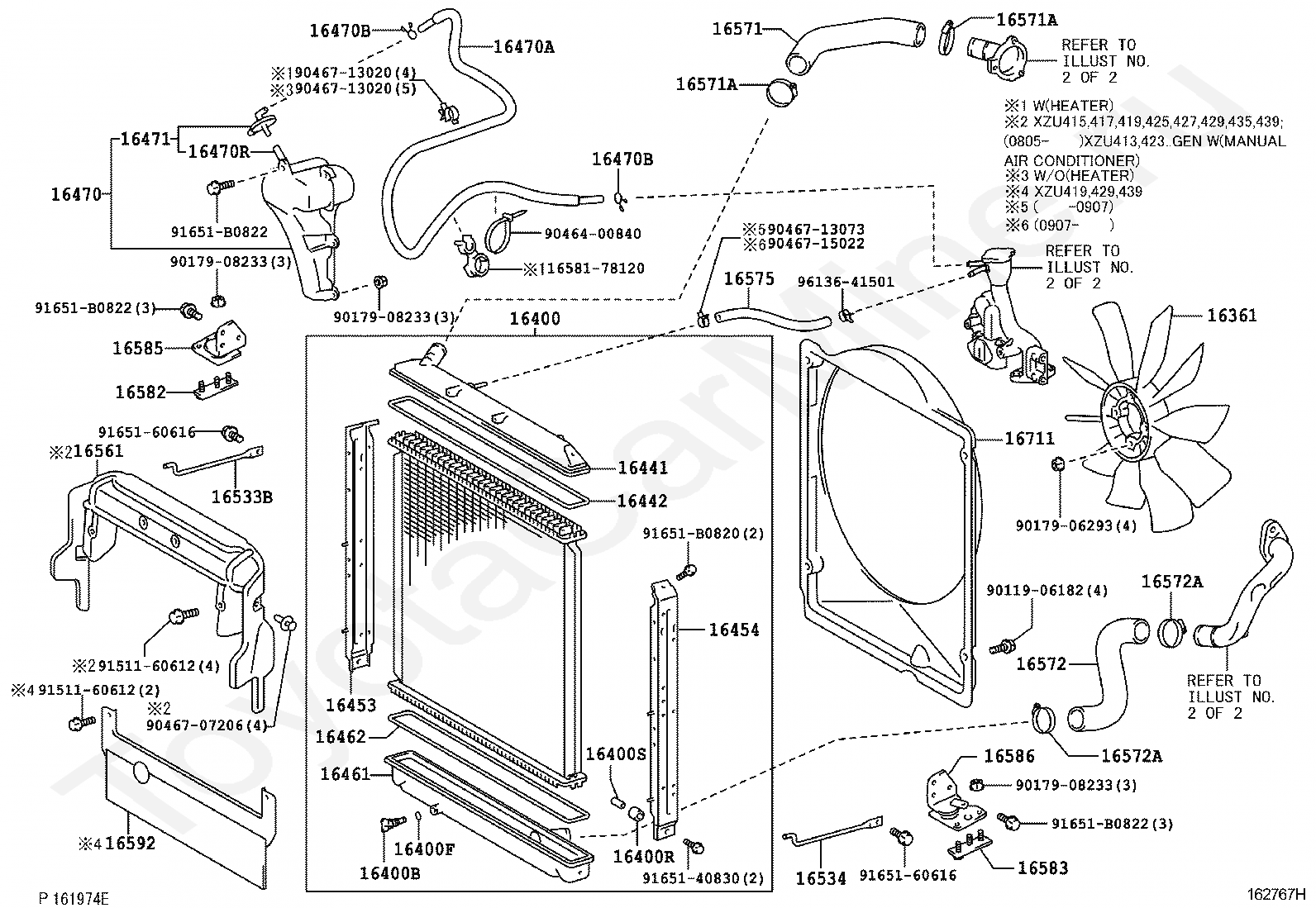

Радиатор и шланги TOYOTA DYNA

Код

Описание

16361

FAN

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16400R

BUSHING(FOR RADIATOR)

16400S

COLLAR(FOR RADIATOR)

16441

TANK, RADIATOR, UPPER

16442

RING, O(FOR RADIATOR UPPER TANK)

16453

PLATE, RADIATOR SIDE

16454

PLATE, RADIATOR SIDE

16461

TANK, RADIATOR, LOWER

16462

RING, O(FOR RADIATOR LOWER TANK)

16470

TANK ASSY, RADIATOR RESERVE

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470R

HOSE, NO.2(FOR RADIATOR RESERVE TANK)

16471

CAP SUB-ASSY, RESERVE TANK

16533B

SUPPORT, RADIATOR, NO.1

16534

SUPPORT, RADIATOR, NO.2

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16575

HOSE, RADIATOR, NO.5

1658178120

Крепеж

16582

BRACKET, RADIATOR, NO.1

16583

BRACKET, RADIATOR, NO.2

16585

BRACKET, RADIATOR, NO.3

16586

BRACKET, RADIATOR, NO.4

16592

GUIDE, RADIATOR AIR, NO.3

16711

SHROUD, FAN

9011906182

Крепеж

9017906293

Крепеж

9017908233

Крепеж

9017908233

Крепеж

9017908233

Крепеж

9046400840

Крепеж

9046707206

Крепеж

9046713020

Крепеж

9046713020

Крепеж

9046713073

Крепеж

9046715022

Крепеж

9151160612

Крепеж

9151160612

Крепеж

9165140830

Крепеж

9165160616

Крепеж

9165160616

Крепеж

91651B0820

Крепеж

91651B0822

Крепеж

91651B0822

Крепеж

91651B0822

Крепеж

9613641501

Крепеж

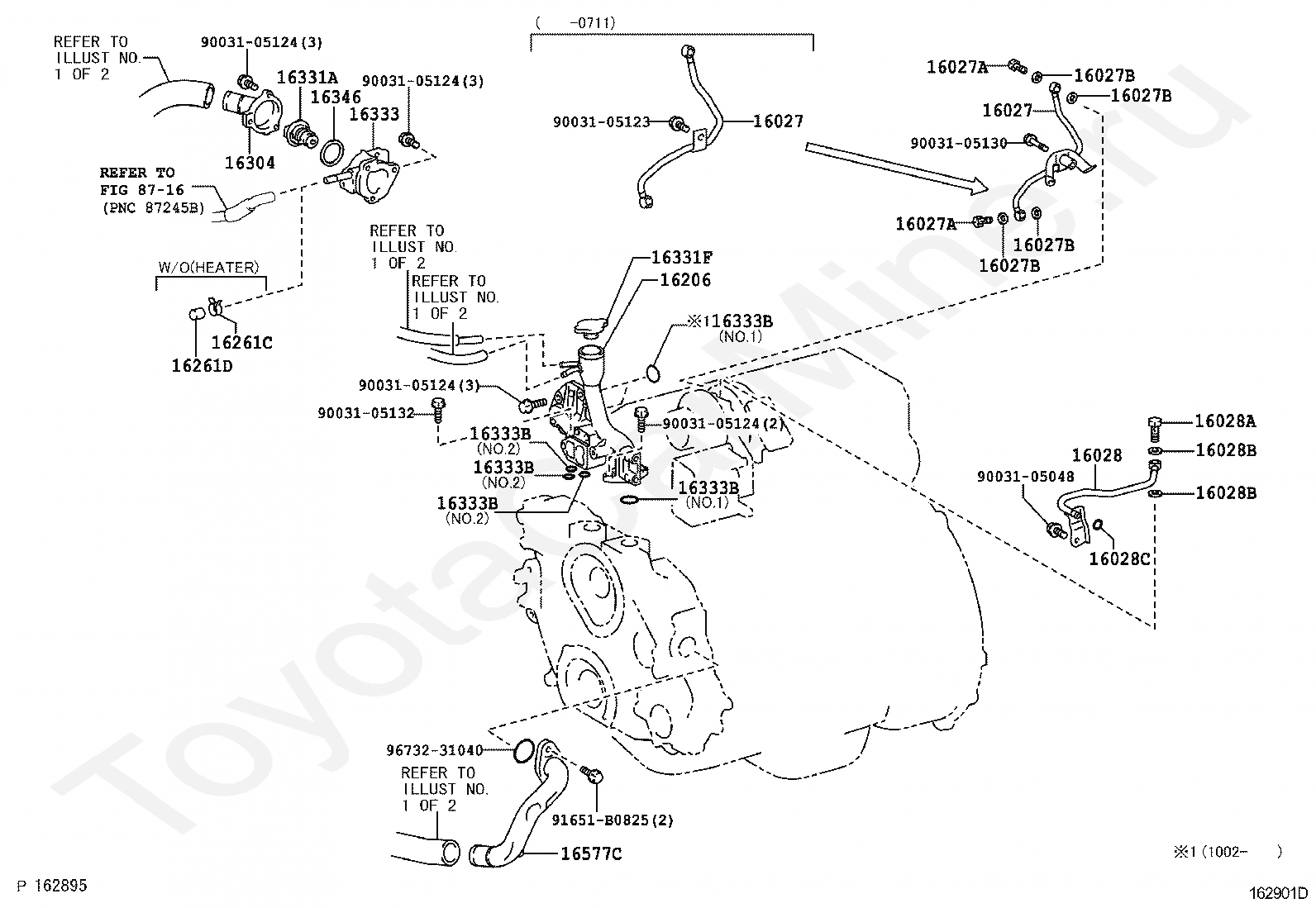

Код

Описание

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16027A

BOLT, UNION(FOR TURBO WATER PIPE)

16027A

BOLT, UNION(FOR TURBO WATER PIPE)

16027B

GASKET(FOR TURBO WATER PIPE)

16027B

GASKET(FOR TURBO WATER PIPE)

16027B

GASKET(FOR TURBO WATER PIPE)

16027B

GASKET(FOR TURBO WATER PIPE)

16028

PIPE SUB-ASSY, TURBO WATER, NO.2

16028A

BOLT, UNION(FOR TURBO WATER PIPE NO.2)

16028B

GASKET(FOR TURBO WATER PIPE NO.2)

16028B

GASKET(FOR TURBO WATER PIPE NO.2)

16028C

RING, O(FOR TURBO WATER PIPE)

16206

PIPE SUB-ASSY, WATER BY-PASS

16261C

CLAMP, W/O HEATER

16261D

PLUG, W/O HEATER

16304

OUTLET SUB-ASSY, WATER

16331A

THERMOSTAT

16331F

CAP SUB-ASSY(FOR WATER OUTLET)

16333

HOUSING, WATER OUTLET

16333B

RING, O(FOR WATER OUTLET HOUSING)

16333B

RING, O(FOR WATER OUTLET HOUSING)

16333B

RING, O(FOR WATER OUTLET HOUSING)

16333B

RING, O(FOR WATER OUTLET HOUSING)

16333B

RING, O(FOR WATER OUTLET HOUSING)

16346

GASKET, THERMOSTAT

16577C

PIPE, RADIATOR

8716

переход к группе запчастей

9003105048

Крепеж

9003105123

Крепеж

9003105124

Крепеж

9003105124

Крепеж

9003105124

Крепеж

9003105124

Крепеж

9003105130

Крепеж

9003105132

Крепеж

91651B0825

Крепеж

9673231040

Крепеж
