Каталог

Европа

Модель

DYNA

VIN

Дата

2008/02

Двигатель

4 литра, дизель

Фрейм

XZU423

КПП

механика

Опции

левый руль 7,5 тонн DOUBLE TIRE GENERAL COUNTRIES IV3 DCRTK6F

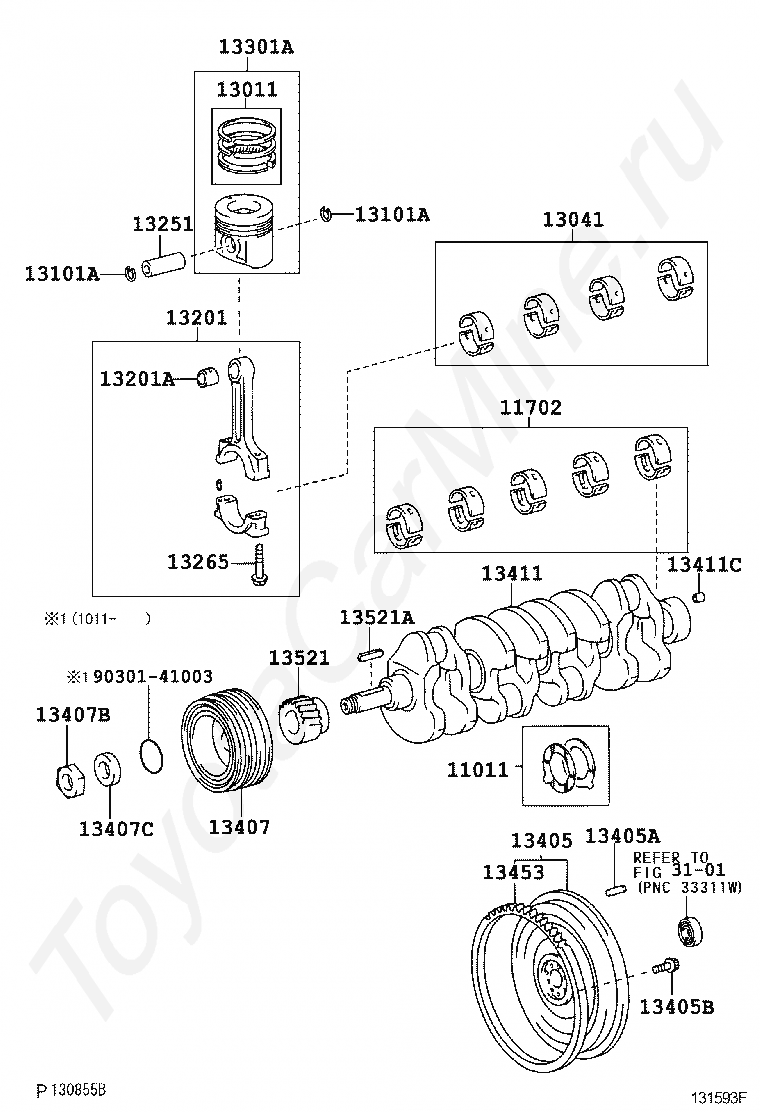

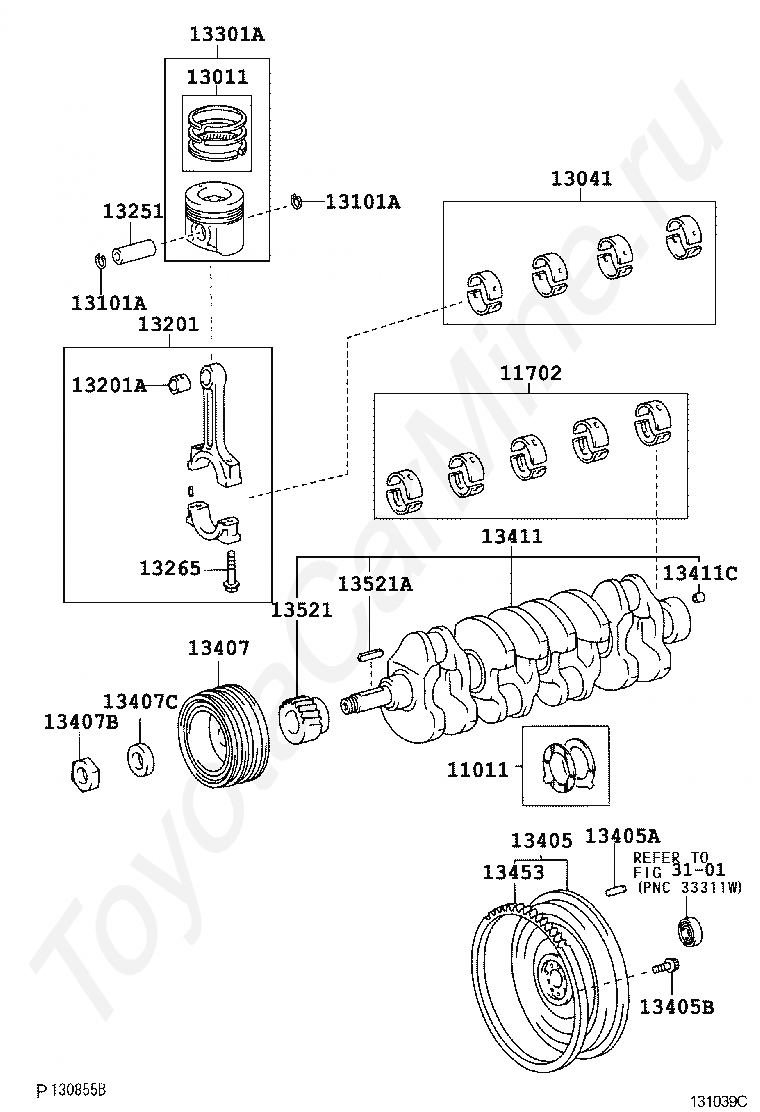

Коленвал и поршни TOYOTA DYNA

Код

Описание

11011

WASHER SET, CRANKSHAFT THRUST

11702

BEARING SET, CRANKSHAFT

13011

RING SET, PISTON

13041

BEARING, CONNECTING ROD

13101A

RING, HOLE SNAP(FOR PISTON PIN)

13101A

RING, HOLE SNAP(FOR PISTON PIN)

13201

ROD SUB-ASSY, CONNECTING

13201A

BUSH(FOR CONNECTING ROD SMALL END)

13251

PIN, PISTON

13265

BOLT, CONNECTING ROD

13301A

PISTON SET, W/PISTON RING

13405

FLYWHEEL SUB-ASSY

13405A

PIN, STRAIGHT(FOR FLYWHEEL)

13405B

BOLT, FLYWHEEL SETTING

13407

DAMPER SUB-ASSY, CRANKSHAFT

13407B

NUT, HEXAGON(FOR CRANKSHAFT DAMPER)

13407C

SPACER(FOR CRANKSHAFT DAMPER)

13411

CRANKSHAFT

13411C

PIN, STRAIGHT(FOR CRANKSHAFT)

13453

GEAR, FLYWHEEL RING

13521

GEAR OR SPROCKET, CRANKSHAFT TIMING

13521A

KEY(FOR CRANKSHAFT TIMING GEAR)

3101

переход к группе запчастей

Код

Описание

11011

WASHER SET, CRANKSHAFT THRUST

11702

BEARING SET, CRANKSHAFT

13011

RING SET, PISTON

13041

BEARING, CONNECTING ROD

13101A

RING, HOLE SNAP(FOR PISTON PIN)

13101A

RING, HOLE SNAP(FOR PISTON PIN)

13201

ROD SUB-ASSY, CONNECTING

13201A

BUSH(FOR CONNECTING ROD SMALL END)

13251

PIN, PISTON

13265

BOLT, CONNECTING ROD

13301A

PISTON SET, W/PISTON RING

13405

FLYWHEEL SUB-ASSY

13405A

PIN, STRAIGHT(FOR FLYWHEEL)

13405B

BOLT, FLYWHEEL SETTING

13407

DAMPER SUB-ASSY, CRANKSHAFT

13407B

NUT, HEXAGON(FOR CRANKSHAFT DAMPER)

13407C

SPACER(FOR CRANKSHAFT DAMPER)

13411

CRANKSHAFT

13411C

PIN, STRAIGHT(FOR CRANKSHAFT)

13453

GEAR, FLYWHEEL RING

13521

GEAR OR SPROCKET, CRANKSHAFT TIMING

13521A

KEY(FOR CRANKSHAFT TIMING GEAR)

3101

переход к группе запчастей

9030141003
