Каталог

Европа

Модель

DYNA

VIN

Дата

2002/12

Двигатель

4,6 литра, дизель

Фрейм

XZU422

КПП

механика

Опции

левый руль 8,5 тонн DOUBLE TIRE страны Персидского залива IV3 DSL 5F

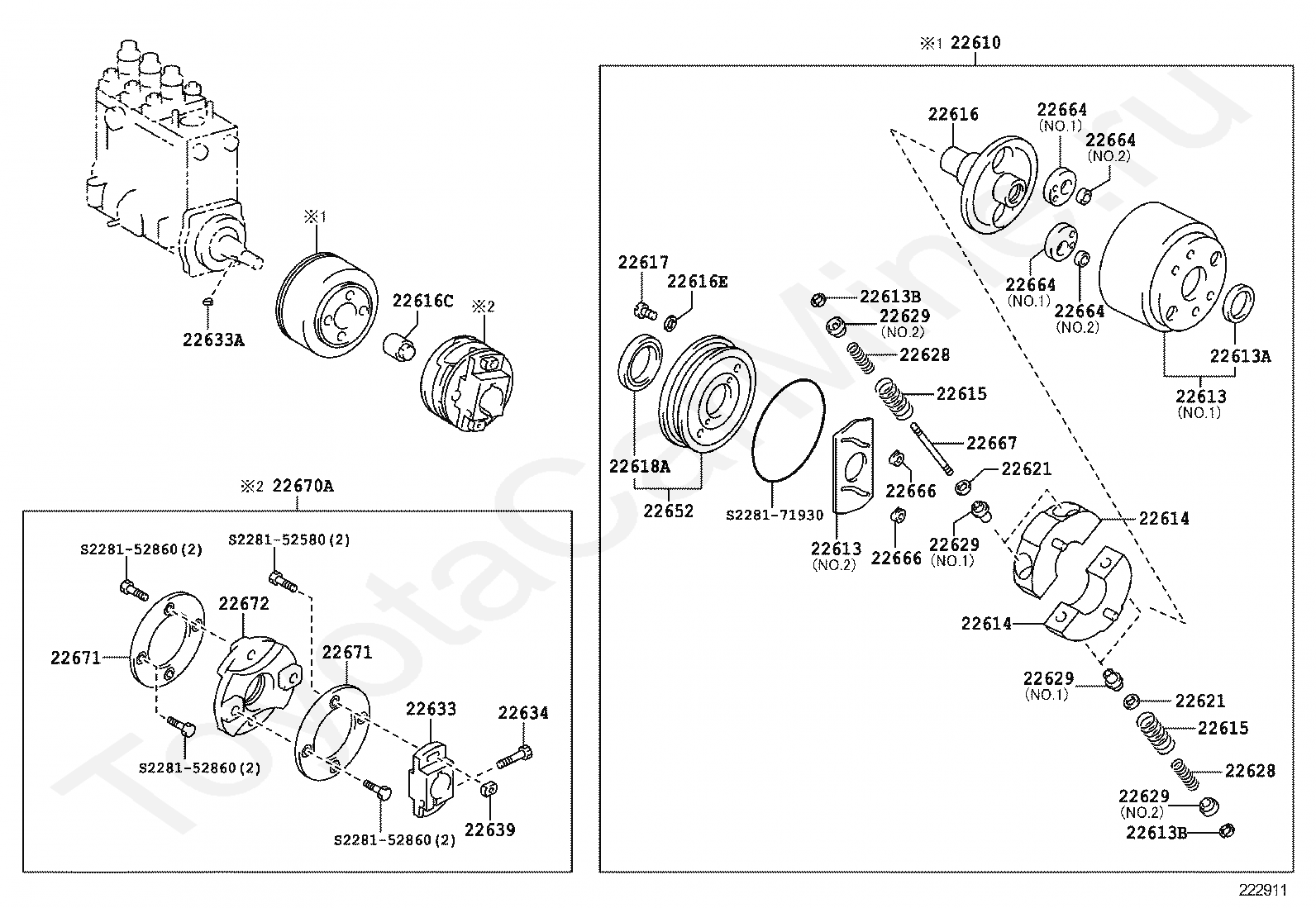

Таймер TOYOTA DYNA

Код

Описание

22610

TIMER ASSY, AUTOMATIC

22613

FLANGE, TIMER DRIVING

22613

FLANGE, TIMER DRIVING

22613A

SEAL, OIL(FOR TIMER DRIVING FLANGE)

22613B

RETAINER, TIMER SPRING SEAT

22613B

RETAINER, TIMER SPRING SEAT

22614

WEIGHT, TIMER

22614

WEIGHT, TIMER

22615

SPRING, TIMER

22615

SPRING, TIMER

22616

HUB, TIMER

22616C

NUT, TIMER COVER

22616E

WASHER, PLATE(FOR TIMER HUB)

22617

SCREW, TIMER HUB

22618A

SEAL, OIL

22621

WASHER, TIMER SPRING ADJUST

22621

WASHER, TIMER SPRING ADJUST

22628

SPRING, TIMER SUB

22628

SPRING, TIMER SUB

22629

SEAT, SPRING(FOR TIMER SPRING)

22629

SEAT, SPRING(FOR TIMER SPRING)

22629

SEAT, SPRING(FOR TIMER SPRING)

22629

SEAT, SPRING(FOR TIMER SPRING)

22633

FLANGE, COUPLING

22633A

KEY, WOODRUFF(FOR COUPLING FLANGE)

22634

BOLT, COUPLING FLANGE SET

22639

NUT, COUPLING FLANGE SET BOLT LOCK

22652

COVER SUB-ASSY, TIMER

22664

CAM, TIMER

22664

CAM, TIMER

22664

CAM, TIMER

22664

CAM, TIMER

22666

ROLLER, TIMER

22666

ROLLER, TIMER

22667

SLEEVE

22670A

COUPLING ASSY, INJECTION PUMP

22671

PLATE, COUPLING

22671

PLATE, COUPLING

22672

COUPLING, CROSS

S228152580

Крепеж

S228152860

Крепеж

S228152860

Крепеж

S228152860

Крепеж

S228171930

Крепеж
