Каталог

Европа

Модель

DYNA

VIN

Дата

1999/07

Двигатель

4,1 литра, турбо-дизель, EFI

Фрейм

XZU330

КПП

механика

Опции

3 тонны DOUBLE TIRE

Рулевая рейка и наконечники TOYOTA DYNA

Код

Описание

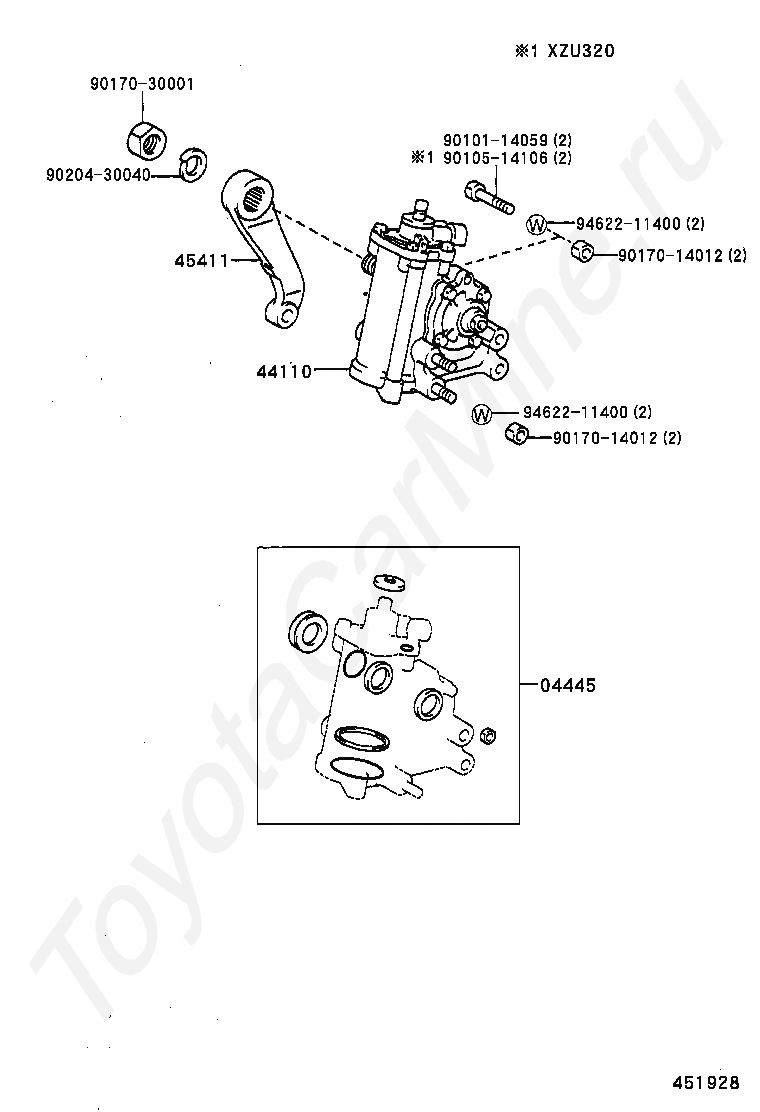

04445

GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

44110

GEAR ASSY, POWER STEERING

45411

ARM, PITMAN

9010114059

Крепеж

9010514106

Крепеж

9017014012

Крепеж

9017014012

Крепеж

9017030001

Крепеж

9020430040

Крепеж

9462211400

Крепеж

9462211400

Крепеж

Код

Описание

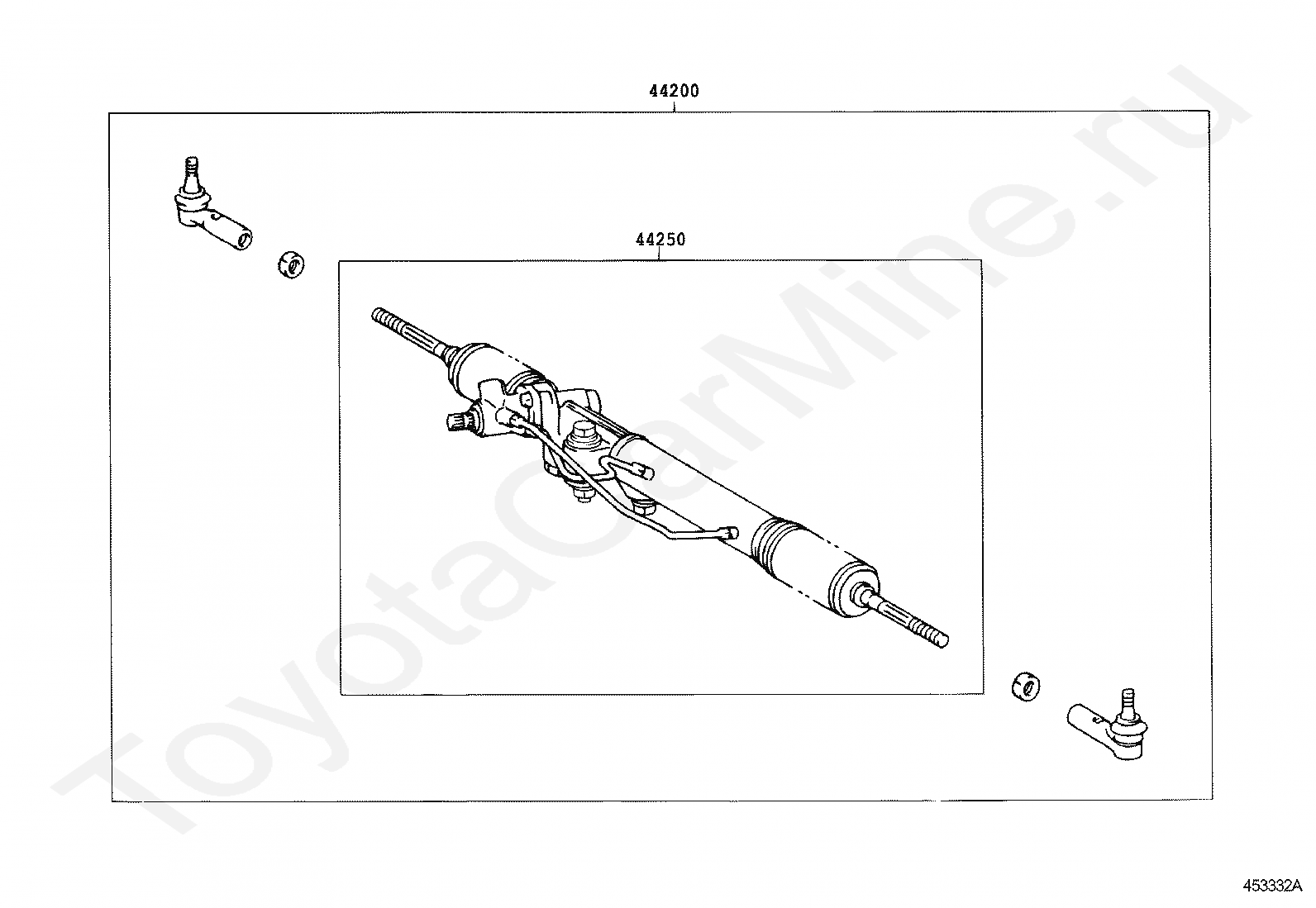

44200

LINK ASSY, POWER STEERING

44250

GEAR ASSY, POWER STEERING(FOR RACK & PINION)

Код

Описание

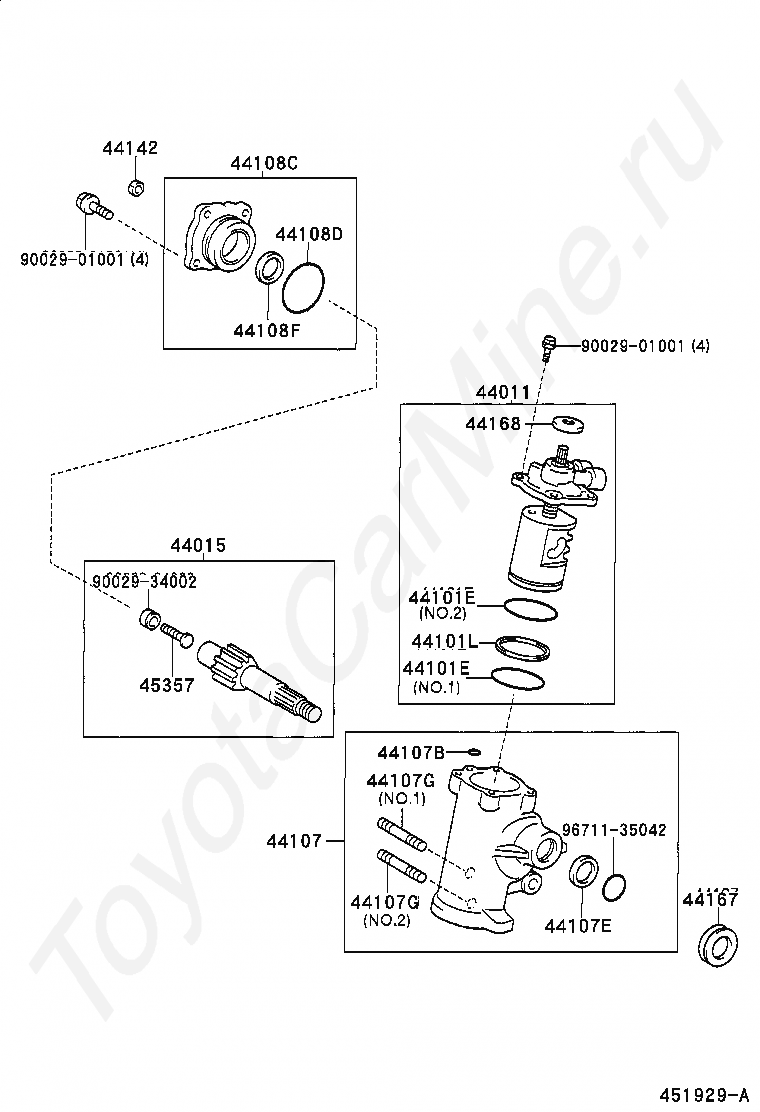

44011

PISTON SUB-ASSY, POWER

44015

SHAFT SUB-ASSY, SECTOR

44101E

RING, O(FOR STEERING WORM)

44101E

RING, O(FOR STEERING WORM)

44101L

SEAL, DUST(FOR POWER PISTON SUB-ASSY)

44107

HOUSING SUB-ASSY, POWER STEERING GEAR

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107E

SEAL, OIL(FOR POWER STEERING GEAR HOUSING)

44107G

BOLT, STUD(FOR POWER STEERING GEAR HOUSING)

44107G

BOLT, STUD(FOR POWER STEERING GEAR HOUSING)

44108C

COVER SUB-ASSY, SECTOR

44108D

RING, O(FOR SECTOR COVER)

44108F

SEAL, DUST(FOR SECTOR COVER)

44142

NUT, LOCK

44167

COVER, SECTOR SHAFT DUST

44168

COVER, WORM SHAFT DUST

45357

SCREW, SECTOR SHAFT ADJUSTING

9002901001

Крепеж

9002901001

Крепеж

9002934002

Крепеж

9671135042

Крепеж

Код

Описание

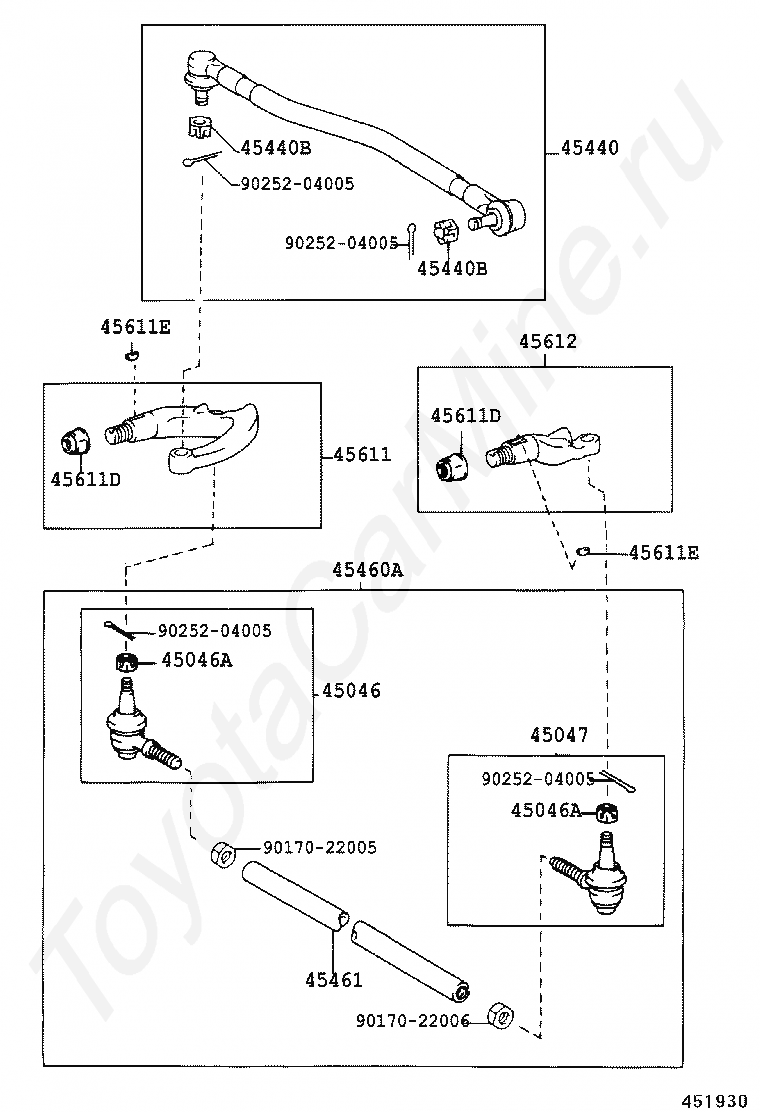

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45440

LINK ASSY, STEERING DRAG

45440B

NUT, CASTLE(FOR STEERING DRAG LINK)

45440B

NUT, CASTLE(FOR STEERING DRAG LINK)

45460A

ROD ASSY, TIE

45461

ROD, STEERING TIE

45611

ARM, STEERING KNUCKLE, RH

45611D

NUT(FOR STEERING KNUCKLE ARM)

45611D

NUT(FOR STEERING KNUCKLE ARM)

45611E

KEY, WOODRUFF(FOR STEERING IDLER ARM)

45611E

KEY, WOODRUFF(FOR STEERING IDLER ARM)

45612

ARM, STEERING KNUCKLE, LH

9017022005

Крепеж

9017022006

Крепеж

9025204005

Крепеж

9025204005

Крепеж

9025204005

Крепеж

9025204005

Крепеж
