Каталог

Европа

Модель

DYNA

VIN

Дата

2011/07

Двигатель

4000CC DIESEL

Фрейм

WU710

КПП

механика МКПП, 5 скоростей

Опции

левый руль 7,5 тонн DOUBLE TIRE GENERAL COUNTRIES COMPLETED VEHICLE 534W

Задние амортизаторы TOYOTA DYNA







Код

Описание

48042

SHACKLE SUB-ASSY, REAR SPRING, NO.2

48046

SEAT SUB-ASSY, SPRING U BOLT, RH

48046A

BOLT, U(FOR REAR SPRING)

48046A

BOLT, U(FOR REAR SPRING)

48047

SEAT SUB-ASSY, SPRING U BOLT, LH

48210Q

BUSH(FOR REAR SPRING SHACKLE)

48323D

PIN, REAR SPRING BRACKET

48323D

PIN, REAR SPRING BRACKET

48323E

NIPPLE, GREASE(FOR REAR SPRING BRACKET PIN)

48323E

NIPPLE, GREASE(FOR REAR SPRING BRACKET PIN)

48344

STOPPER, BUMPER, REAR

48435

ATTACHMENT, HELPER SPRING BRACKET, NO.1

48435

ATTACHMENT, HELPER SPRING BRACKET, NO.1

48481

SEAT, REAR SPRING, UPPER

48516

BRACKET, REAR SHOCK ABSORBER, UPPER RH

48517

BRACKET, REAR SHOCK ABSORBER, UPPER LH

48530

ABSORBER ASSY, SHOCK, REAR RH

48530B

WASHER, REAR SHOCK ABSORBER CUSHION, NO.1

48530B

WASHER, REAR SHOCK ABSORBER CUSHION, NO.1

48540

ABSORBER ASSY, SHOCK, REAR LH

48812

BAR, STABILIZER, REAR

48815R

BUSH, STABILIZER(FOR REAR)

48824R

BRACKET, STABILIZER(FOR REAR)

48830D

LINK ASSY, REAR STABILIZER, RH

48832R

BRACKET, REAR STABILIZER BAR, NO.1 RH

48833R

BRACKET, REAR STABILIZER BAR, NO.1 LH

48836B

BRACKET, REAR STABILIZER END, INNER RH

48836C

BRACKET, REAR STABILIZER END, OUTER RH

48837B

BRACKET, REAR STABILIZER END, INNER LH

48837C

BRACKET, REAR STABILIZER END, OUTER LH

48840A

LINK ASSY, REAR STABILIZER, LH

9003204031

Крепеж

9003204031

Крепеж

9003204031

Крепеж

9011912088

Крепеж

9011912088

Крепеж

9017812005

Крепеж

9017818002

Крепеж

9111281025

Крепеж

9111281070

Крепеж

9111281070

Крепеж

9155281030

Крепеж

91672L1235

Крепеж

91672L1255

Крепеж

91672L1495

Крепеж

91672L1495

Крепеж

9413001002

Крепеж

9413001002

Крепеж

9413001002

Крепеж

9415181000

Крепеж

9418401001

Крепеж

9418401001

Крепеж

9418401001

Крепеж

9418401001

Крепеж

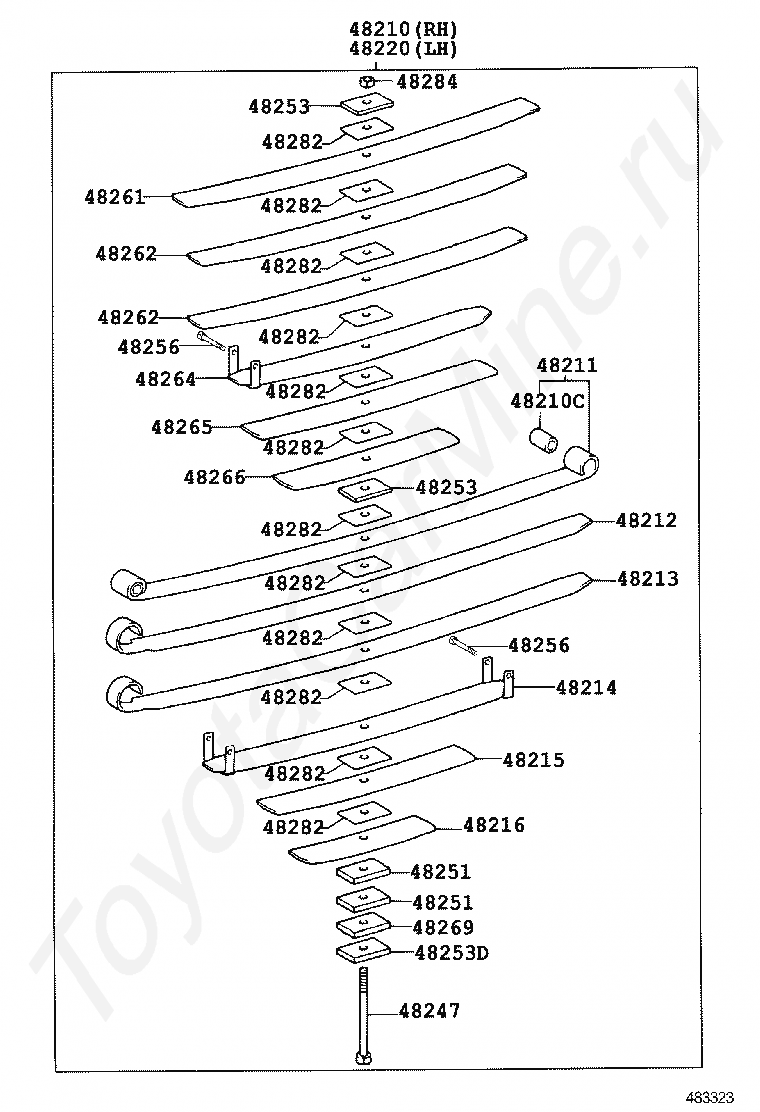

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48216

LEAF, REAR SPRING, NO.6

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48253

SPACER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48253D

SPACER, REAR SPRING, NO.3

48253D

SPACER, REAR SPRING, NO.3

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48263

LEAF, REAR HELPER SPRING, NO.3

48265

LEAF, REAR HELPER SPRING, NO.5

48266

LEAF, REAR HELPER SPRING, NO.6

48269

LEAF, REAR HELPER SPRING, NO.9

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48284

NUT, REAR SPRING CENTER BOLT

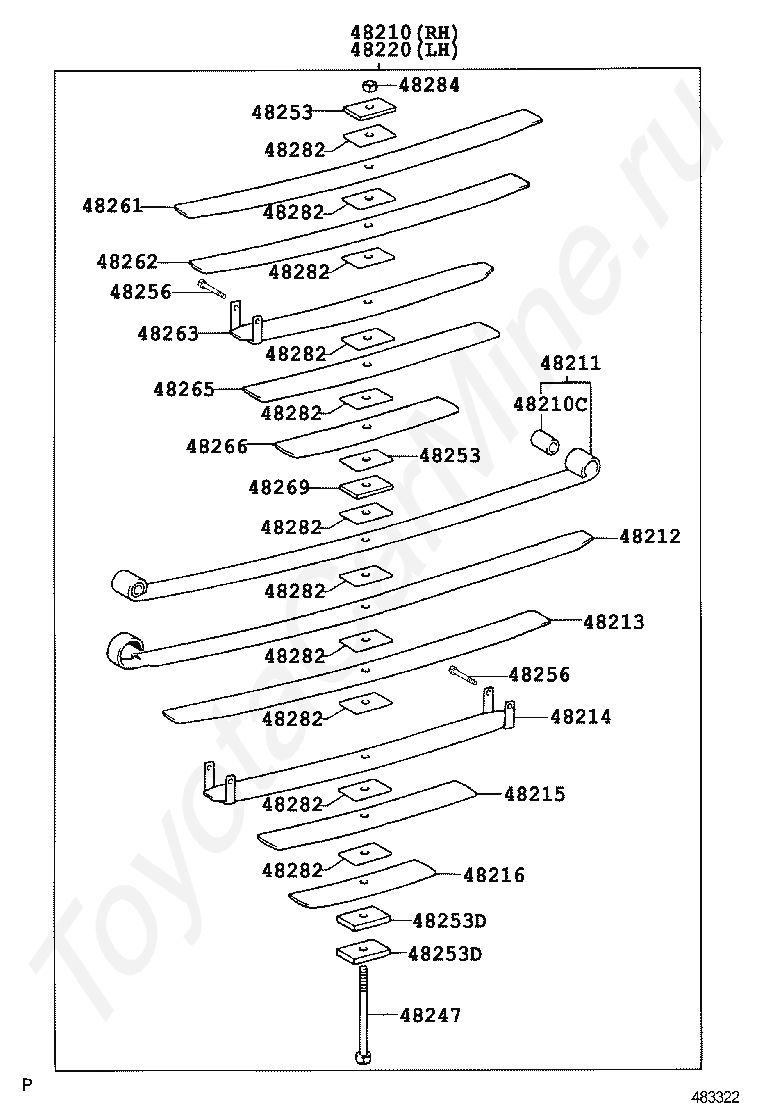

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48216

LEAF, REAR SPRING, NO.6

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48251

SPACER, REAR SPRING LEAF

48253

SPACER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48263

LEAF, REAR HELPER SPRING, NO.3

48264

LEAF, REAR HELPER SPRING, NO.4

48265

LEAF, REAR HELPER SPRING, NO.5

48266

LEAF, REAR HELPER SPRING, NO.6

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48284

NUT, REAR SPRING CENTER BOLT

48807B

BRACKET SUB-ASSY, STABILIZER, RH

48809D

BRACKET SUB-ASSY, STABILIZER, LH

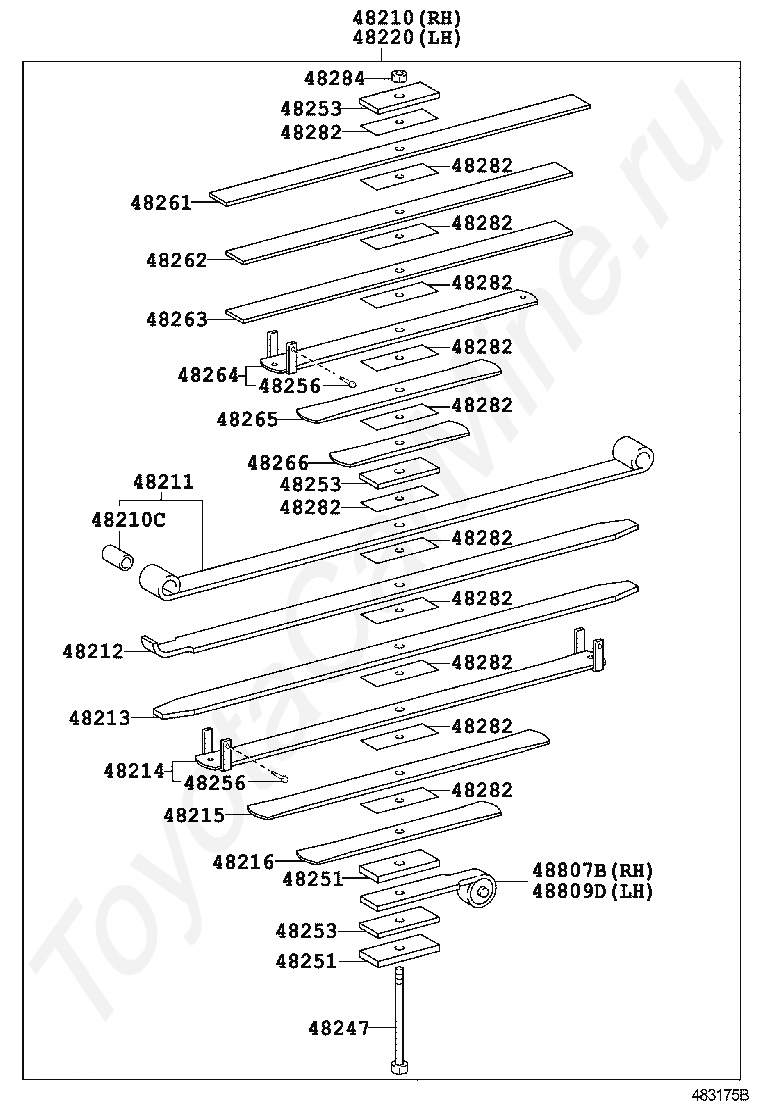

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48216

LEAF, REAR SPRING, NO.6

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48251

SPACER, REAR SPRING LEAF

48252A

SPACER, REAR SPRING, NO.2

48253

SPACER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48263

LEAF, REAR HELPER SPRING, NO.3

48264

LEAF, REAR HELPER SPRING, NO.4

48265

LEAF, REAR HELPER SPRING, NO.5

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48807B

BRACKET SUB-ASSY, STABILIZER, RH

48809D

BRACKET SUB-ASSY, STABILIZER, LH

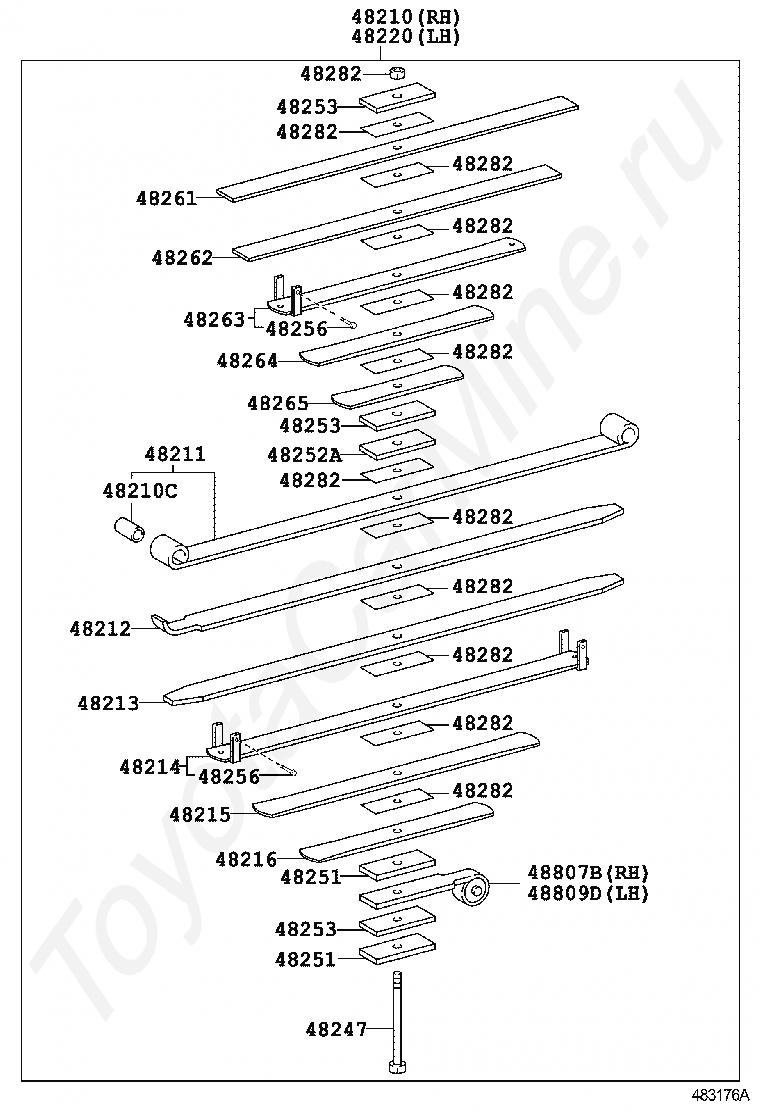

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48216

LEAF, REAR SPRING, NO.6

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48251

SPACER, REAR SPRING LEAF

48253

SPACER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48253D

SPACER, REAR SPRING, NO.3

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48262

LEAF, REAR HELPER SPRING, NO.2

48264

LEAF, REAR HELPER SPRING, NO.4

48265

LEAF, REAR HELPER SPRING, NO.5

48266

LEAF, REAR HELPER SPRING, NO.6

48269

LEAF, REAR HELPER SPRING, NO.9

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48282

SEAT, REAR HELPER SPRING

48284

NUT, REAR SPRING CENTER BOLT
