Каталог

Европа

Модель

DYNA

VIN

Дата

1977/08

Двигатель

2 литра

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

RU30

КПП

МКПП, 5 скоростей

Опции

левый руль HIGH FLAT DECK OPENING ON THREE SIDES BOARDING DECK WT GEN IV3

Рама TOYOTA DYNA

Код

Описание

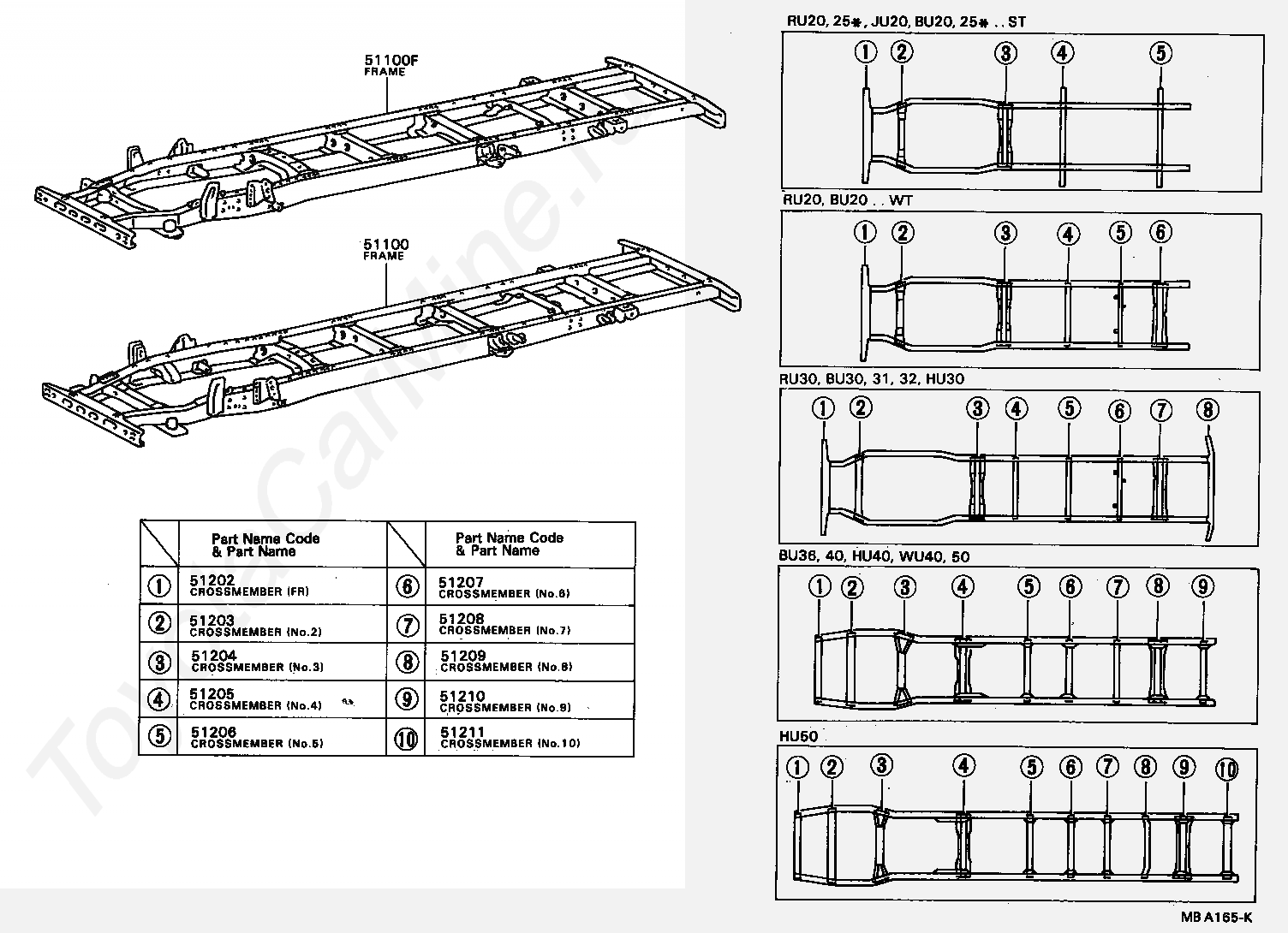

51100

FRAME ASSY

51100F

FRAME SUB-ASSY

51202

CROSSMEMBER SUB-ASSY, FRAME, NO.1

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51206

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51207

CROSSMEMBER SUB-ASSY, FRAME, NO.6

51208

CROSSMEMBER SUB-ASSY, FRAME, NO.7

51209

CROSSMEMBER SUB-ASSY, FRAME, NO.8

51210

CROSSMEMBER SUB-ASSY, FRAME, NO.9

51211

CROSSMEMBER SUB-ASSY, FRAME, NO.10

Код

Описание

1702

переход к группе запчастей

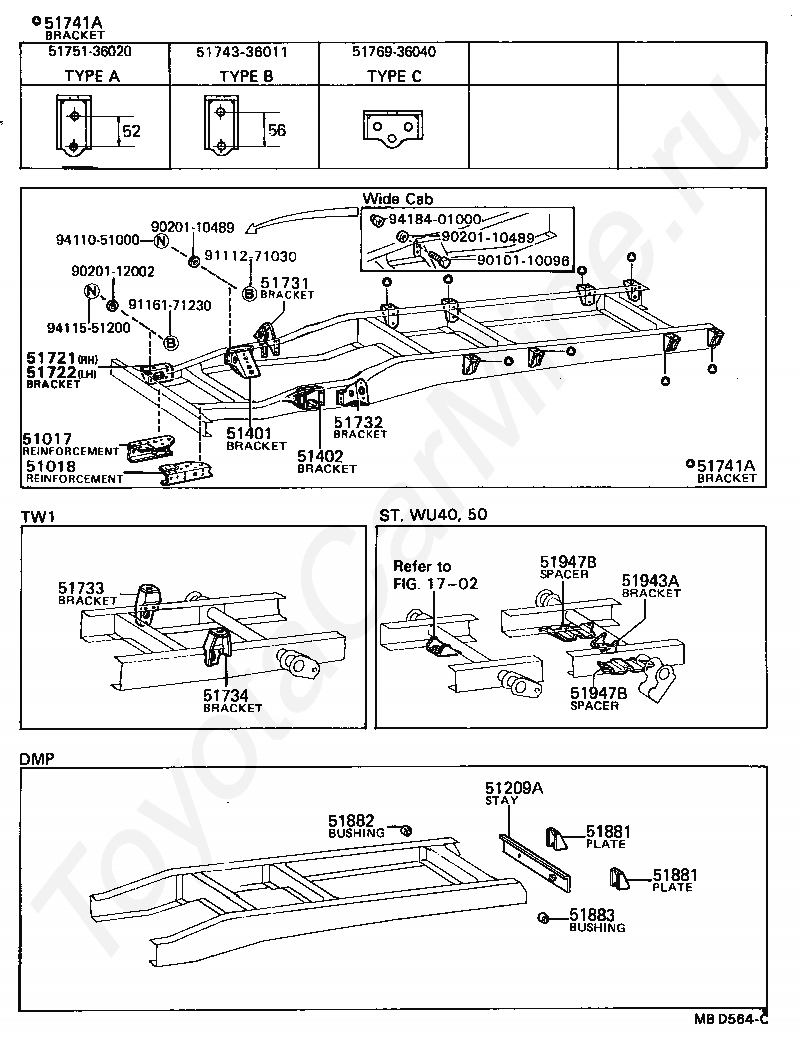

51017

REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH

51018

REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH

51209A

STAY, LICENSE PLATE BRACKET

51401

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

51402

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

51721

BRACKET, CAB FRONT MOUNTING, RH

51722

BRACKET, CAB FRONT MOUNTING, LH

51731

BRACKET, CAB REAR MOUNTING, RH

51732

BRACKET, CAB REAR MOUNTING, LH

51733

BRACKET, CAB REAR MOUNTING, NO.2 RH

51734

BRACKET, CAB REAR MOUNTING, NO.2 LH

51741A

BRACKET, BODY MOUNTING

51741A

BRACKET, BODY MOUNTING

5174336011

Крепеж

5175136020

Крепеж

5176936040

Крепеж

51881

PLATE, FRAME END

51881

PLATE, FRAME END

51882

BUSHING, VESSEL HINGE, RH

51883

BUSHING, VESSEL HINGE, LH

51943A

BRACKET, SPARE WHEEL CARRIER

51947B

SPACER, SPARE WHEEL

51947B

SPACER, SPARE WHEEL

9010110096

Крепеж

9020110489

Крепеж

9020110489

Крепеж

9020112002

Крепеж

9111271030

Крепеж

9116171230

Крепеж

9411051000

Крепеж

9411551200

Крепеж

9418401000

Крепеж
