Каталог

Европа

Модель

DYNA

VIN

Дата

1977/08

Двигатель

2 литра

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

RU30

КПП

МКПП, 5 скоростей

Опции

левый руль HIGH FLAT DECK OPENING ON THREE SIDES BOARDING DECK WT GEN IV3

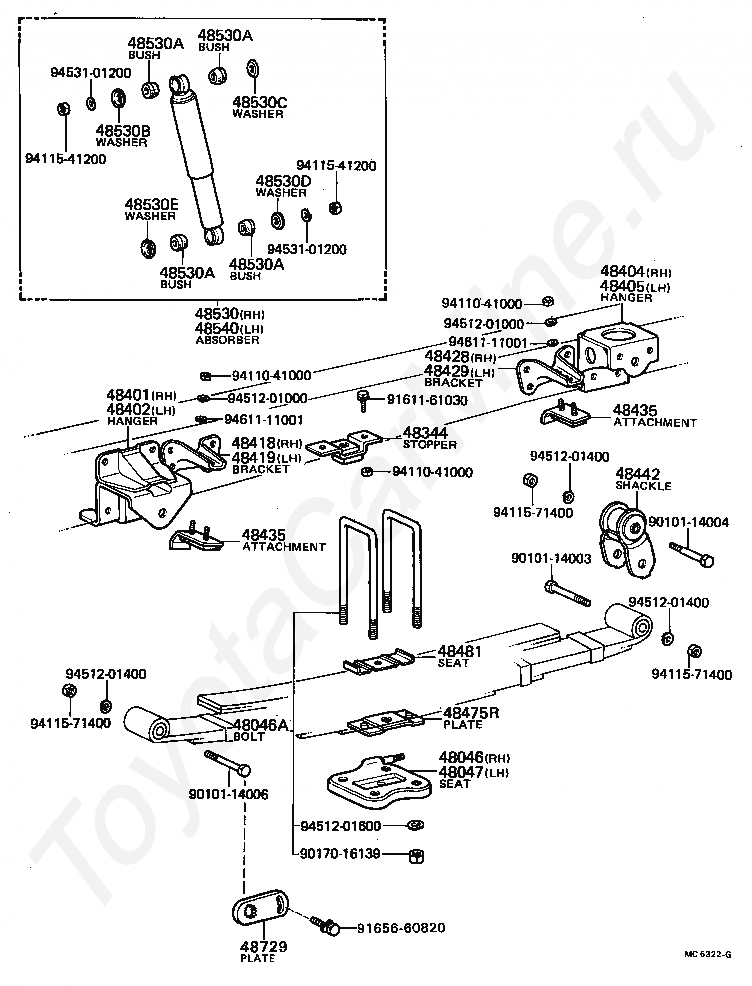

Задние амортизаторы TOYOTA DYNA

Код

Описание

48046

SEAT SUB-ASSY, SPRING U BOLT, RH

48046A

BOLT, U(FOR REAR SPRING)

48047

SEAT SUB-ASSY, SPRING U BOLT, LH

48344

STOPPER, BUMPER, REAR

48401

BRACKET SUB-ASSY, REAR SPRING, FRONT RH

48402

BRACKET SUB-ASSY, REAR SPRING, FRONT LH

48404

BRACKET SUB-ASSY, REAR SPRING, REAR RH

48405

BRACKET SUB-ASSY, REAR SPRING, REAR LH

48418

BRACKET, HELPER SPRING, FRONT RH

48419

BRACKET, HELPER SPRING, FRONT LH

48428

BRACKET, HELPER SPRING, REAR RH

48429

BRACKET, HELPER SPRING, REAR LH

48435

ATTACHMENT, HELPER SPRING BRACKET, NO.1

48435

ATTACHMENT, HELPER SPRING BRACKET, NO.1

48442

SHACKLE, SPRING, NO.2

48475R

PLATE, DISTANCE(FOR REAR)

48481

SEAT, REAR SPRING, UPPER

48530

ABSORBER ASSY, SHOCK, REAR RH

48530A

BUSH(FOR REAR SHOCK ABSORBER)

48530A

BUSH(FOR REAR SHOCK ABSORBER)

48530A

BUSH(FOR REAR SHOCK ABSORBER)

48530A

BUSH(FOR REAR SHOCK ABSORBER)

48530B

WASHER, REAR SHOCK ABSORBER CUSHION, NO.1

48530C

WASHER, REAR SHOCK ABSORBER CUSHION, NO.2

48530D

WASHER, REAR SHOCK ABSORBER CUSHION, NO.3

48530E

WASHER, REAR SHOCK ABSORBER CUSHION, NO.4

48540

ABSORBER ASSY, SHOCK, REAR LH

48729

PLATE, LOWER CONTROL ARM BOLT LOCK

9010114003

Крепеж

9010114004

Крепеж

9010114006

Крепеж

9017016139

Крепеж

9161161030

Крепеж

9165660820

Крепеж

9411041000

Крепеж

9411041000

Крепеж

9411041000

Крепеж

9411541200

Крепеж

9411541200

Крепеж

9411571400

Крепеж

9411571400

Крепеж

9411571400

Крепеж

9451201000

Крепеж

9451201000

Крепеж

9451201400

Крепеж

9451201400

Крепеж

9451201400

Крепеж

9451201600

Крепеж

9453101200

Крепеж

9453101200

Крепеж

9461111001

Крепеж

9461111001

Крепеж

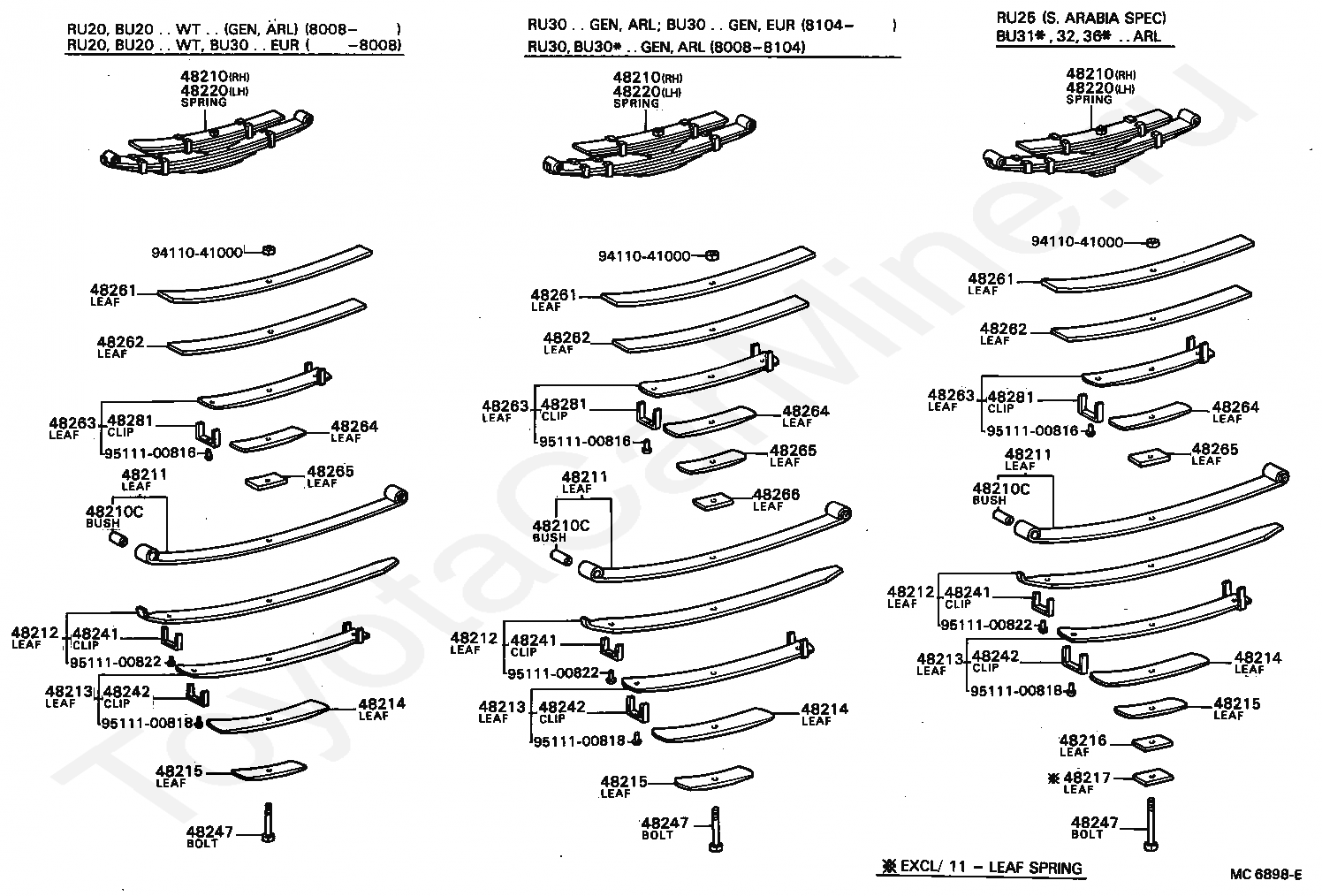

Код

Описание

48210

SPRING ASSY, REAR RH

48210

SPRING ASSY, REAR RH

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48210C

BUSH(FOR REAR SPRING LEAF)

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48211

LEAF, REAR SPRING, NO.1

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48212

LEAF, REAR SPRING, NO.2

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48213

LEAF, REAR SPRING, NO.3

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48214

LEAF, REAR SPRING, NO.4

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48215

LEAF, REAR SPRING, NO.5

48215

LEAF, REAR SPRING, NO.5

48216

LEAF, REAR SPRING, NO.6

48217

LEAF, REAR SPRING, NO.7

48220

SPRING ASSY, REAR LH

48220

SPRING ASSY, REAR LH

48220

SPRING ASSY, REAR LH

48241

CLIP, REAR SPRING, NO.1

48241

CLIP, REAR SPRING, NO.1

48241

CLIP, REAR SPRING, NO.1

48242

CLIP, REAR SPRING, NO.2

48242

CLIP, REAR SPRING, NO.2

48242

CLIP, REAR SPRING, NO.2

48247

BOLT, REAR SPRING, CENTER

48247

BOLT, REAR SPRING, CENTER

48247

BOLT, REAR SPRING, CENTER

48261

LEAF, REAR HELPER SPRING, NO.1

48261

LEAF, REAR HELPER SPRING, NO.1

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48262

LEAF, REAR HELPER SPRING, NO.2

48262

LEAF, REAR HELPER SPRING, NO.2

48263

LEAF, REAR HELPER SPRING, NO.3

48263

LEAF, REAR HELPER SPRING, NO.3

48263

LEAF, REAR HELPER SPRING, NO.3

48264

LEAF, REAR HELPER SPRING, NO.4

48264

LEAF, REAR HELPER SPRING, NO.4

48264

LEAF, REAR HELPER SPRING, NO.4

48265

LEAF, REAR HELPER SPRING, NO.5

48265

LEAF, REAR HELPER SPRING, NO.5

48265

LEAF, REAR HELPER SPRING, NO.5

48266

LEAF, REAR HELPER SPRING, NO.6

48281

CLIP, REAR HELPER SPRING, NO.1

48281

CLIP, REAR HELPER SPRING, NO.1

48281

CLIP, REAR HELPER SPRING, NO.1

9411041000

Крепеж

9411041000

Крепеж

9411041000

Крепеж

9511100816

Крепеж

9511100816

Крепеж

9511100816

Крепеж

9511100818

Крепеж

9511100818

Крепеж

9511100818

Крепеж

9511100822

Крепеж

9511100822

Крепеж

9511100822

Крепеж

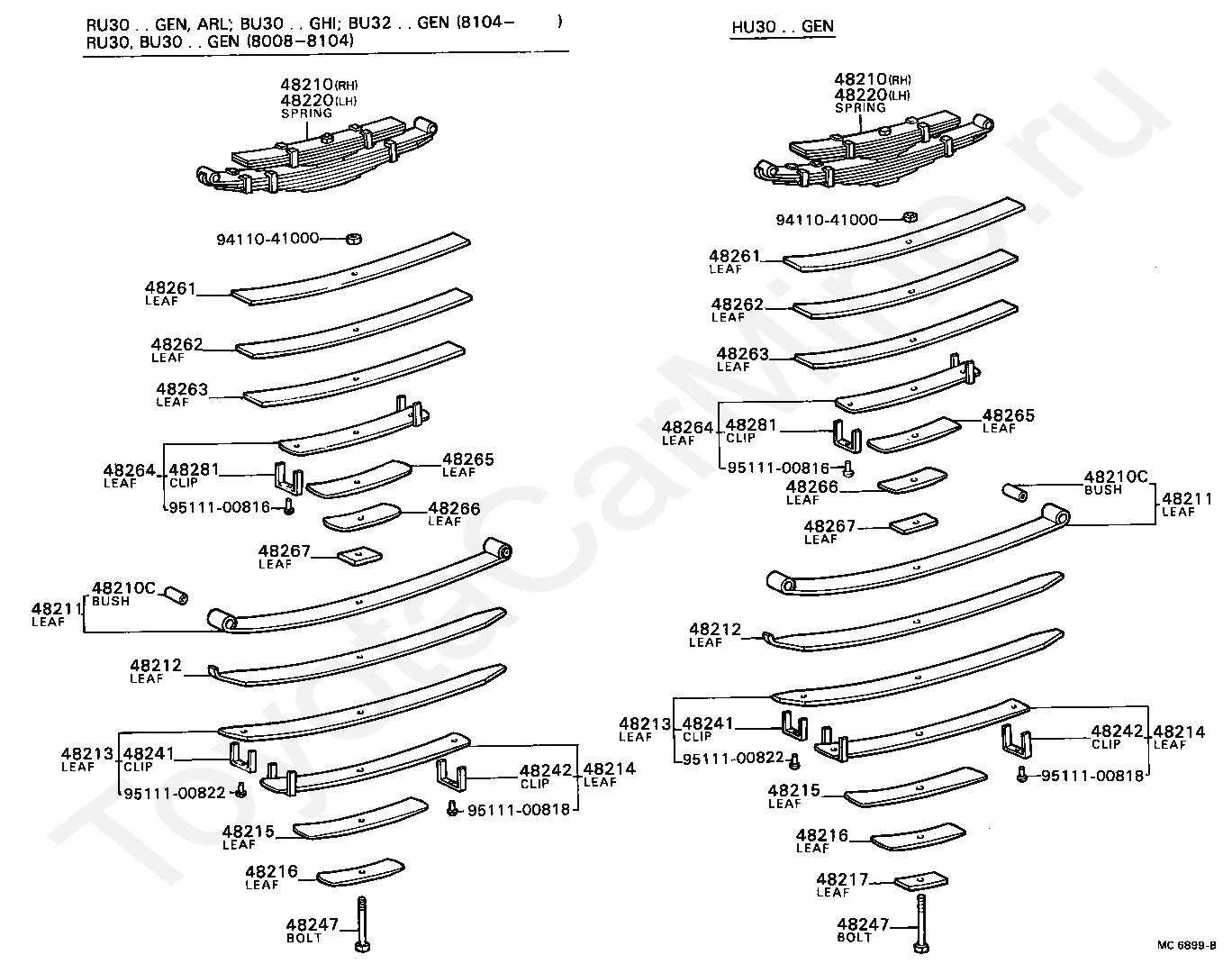

Код

Описание

48210

SPRING ASSY, REAR RH

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48215

LEAF, REAR SPRING, NO.5

48216

LEAF, REAR SPRING, NO.6

48216

LEAF, REAR SPRING, NO.6

48217

LEAF, REAR SPRING, NO.7

48220

SPRING ASSY, REAR LH

48220

SPRING ASSY, REAR LH

48241

CLIP, REAR SPRING, NO.1

48241

CLIP, REAR SPRING, NO.1

48242

CLIP, REAR SPRING, NO.2

48242

CLIP, REAR SPRING, NO.2

48247

BOLT, REAR SPRING, CENTER

48247

BOLT, REAR SPRING, CENTER

48261

LEAF, REAR HELPER SPRING, NO.1

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48262

LEAF, REAR HELPER SPRING, NO.2

48263

LEAF, REAR HELPER SPRING, NO.3

48263

LEAF, REAR HELPER SPRING, NO.3

48264

LEAF, REAR HELPER SPRING, NO.4

48264

LEAF, REAR HELPER SPRING, NO.4

48265

LEAF, REAR HELPER SPRING, NO.5

48265

LEAF, REAR HELPER SPRING, NO.5

48266

LEAF, REAR HELPER SPRING, NO.6

48266

LEAF, REAR HELPER SPRING, NO.6

48267

LEAF, REAR HELPER SPRING, NO.7

48267

LEAF, REAR HELPER SPRING, NO.7

48281

CLIP, REAR HELPER SPRING, NO.1

48281

CLIP, REAR HELPER SPRING, NO.1

9411041000

Крепеж

9411041000

Крепеж

9511100816

Крепеж

9511100816

Крепеж

9511100818

Крепеж

9511100818

Крепеж

9511100822

Крепеж

9511100822

Крепеж

Задние амортизаторы TOYOTA DYNA
