Европа

Модель

DYNA

VIN

Дата

1977/08

Двигатель

2 литра

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

RU30

КПП

МКПП, 5 скоростей

Опции

левый руль HIGH FLAT DECK OPENING ON THREE SIDES BOARDING DECK WT GEN IV3

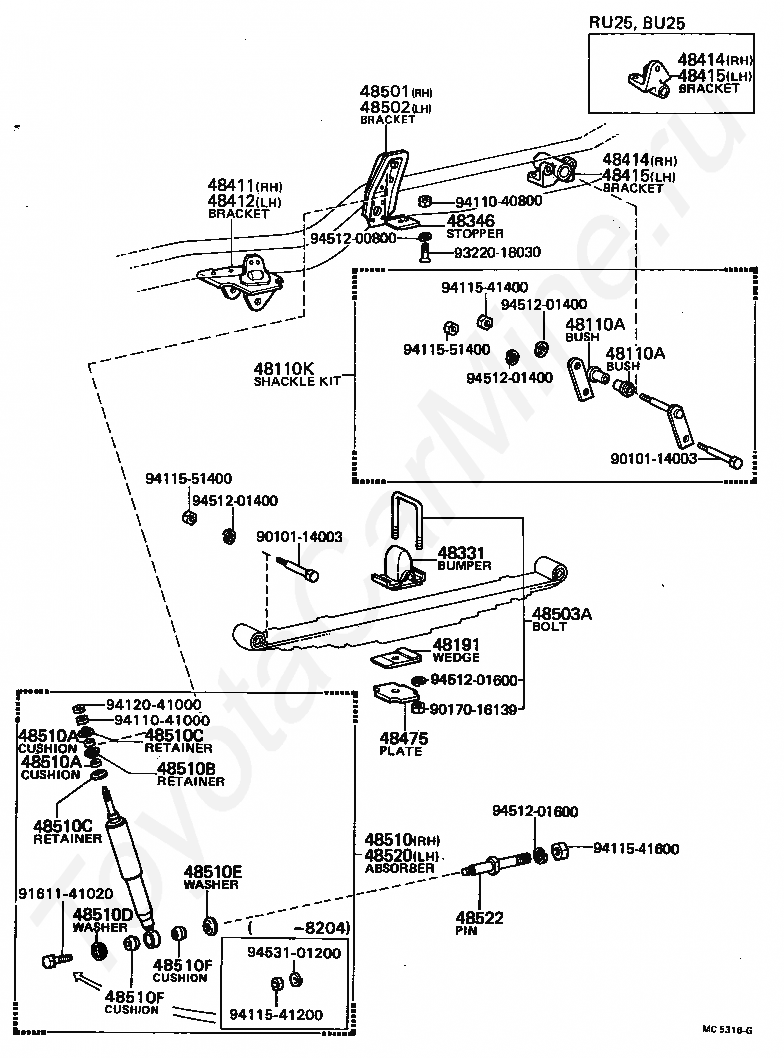

Передние амортизаторы TOYOTA DYNA







Код

Описание

48110A

BUSH(FOR FRONT SPRING SHACKLE)

48110A

BUSH(FOR FRONT SPRING SHACKLE)

48110K

SHACKLE KIT, FRONT SPRING

48191

WEDGE, CASTER(FOR FRONT LEAF SPRING)

48331

BUMPER, FRONT SPRING, NO.1

48346

STOPPER, BUMPER, FRONT

48411

BRACKET, FRONT SPRING(FOR FRONT RH)

48412

BRACKET, FRONT SPRING(FOR FRONT LH)

48414

BRACKET, FRONT SPRING(FOR REAR RH)

48414

BRACKET, FRONT SPRING(FOR REAR RH)

48415

BRACKET, FRONT SPRING(FOR REAR LH)

48415

BRACKET, FRONT SPRING(FOR REAR LH)

48475

PLATE, DISTANCE(FOR FRONT)

48501

BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH

48502

BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH

48503A

BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)

48510

ABSORBER ASSY, SHOCK, FRONT RH

48510A

CUSHION, FRONT SHOCK ABSORBER

48510A

CUSHION, FRONT SHOCK ABSORBER

48510B

RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

48510C

RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

48510C

RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

48510D

WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

48510E

WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

48510F

CUSHION, SHOCK ABSORBER

48510F

CUSHION, SHOCK ABSORBER

48520

ABSORBER ASSY, SHOCK, FRONT LH

48522

PIN, FRONT SHOCK ABSORBER LOWER PIVOT

9010114003

Крепеж

9010114003

Крепеж

9017016139

Крепеж

9161141020

Крепеж

9322018030

Крепеж

9411040800

Крепеж

9411041000

Крепеж

9411541200

Крепеж

9411541400

Крепеж

9411541600

Крепеж

9411551400

Крепеж

9411551400

Крепеж

9412041000

Крепеж

9451200800

Крепеж

9451201400

Крепеж

9451201400

Крепеж

9451201400

Крепеж

9451201600

Крепеж

9451201600

Крепеж

9453101200

Крепеж

Код

Описание

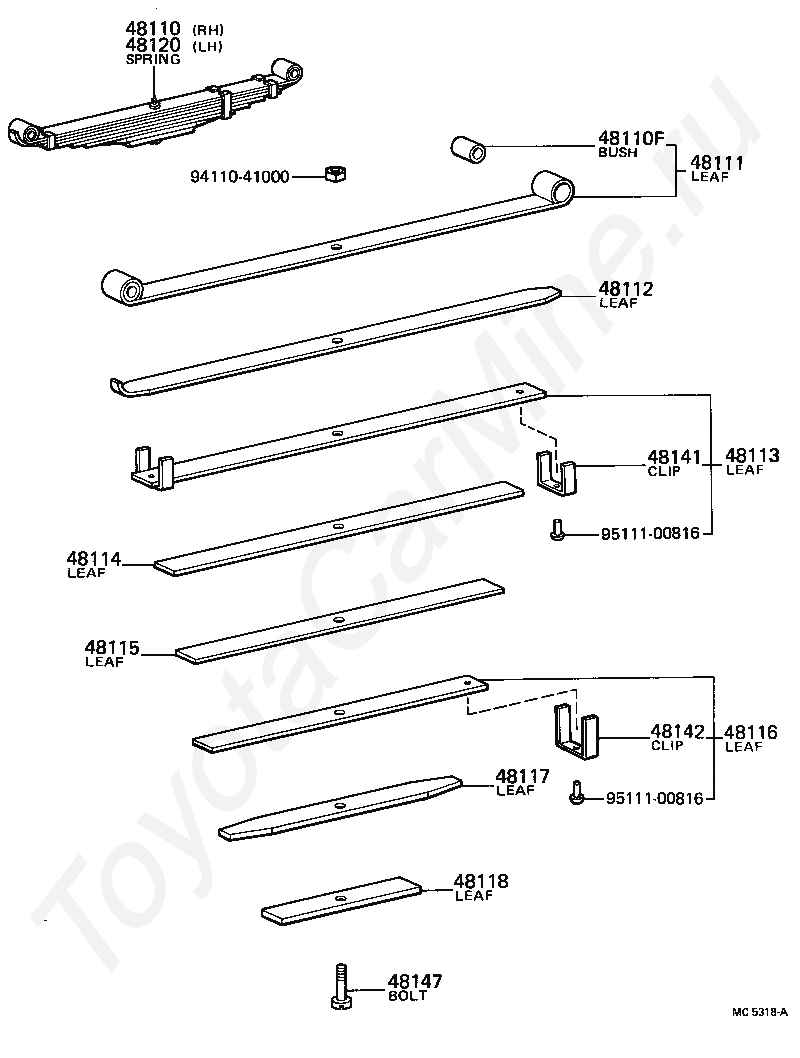

48110

SPRING ASSY, FRONT, RH

48110

SPRING ASSY, FRONT, RH

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48111

LEAF, FRONT SPRING, NO.1

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48112

LEAF, FRONT SPRING, NO.2

48113

LEAF, FRONT SPRING, NO.3

48113

LEAF, FRONT SPRING, NO.3

48114

LEAF, FRONT SPRING, NO.4

48114

LEAF, FRONT SPRING, NO.4

48115

LEAF, FRONT SPRING, NO.5

48115

LEAF, FRONT SPRING, NO.5

48116

LEAF, FRONT SPRING, NO.6

48116

LEAF, FRONT SPRING, NO.6

48117

LEAF, FRONT SPRING, NO.7

48117

LEAF, FRONT SPRING, NO.7

48120

SPRING ASSY, FRONT, LH

48120

SPRING ASSY, FRONT, LH

48141

CLIP, FRONT SPRING, NO.1

48141

CLIP, FRONT SPRING, NO.1

48142

CLIP, FRONT SPRING, NO.2

48142

CLIP, FRONT SPRING, NO.2

48147

BOLT, FRONT SPRING, CENTER

48147

BOLT, FRONT SPRING, CENTER

9411041000

Крепеж

9411041000

Крепеж

9511100816

Крепеж

9511100816

Крепеж

9511100816

Крепеж

9511100816

Крепеж

Код

Описание

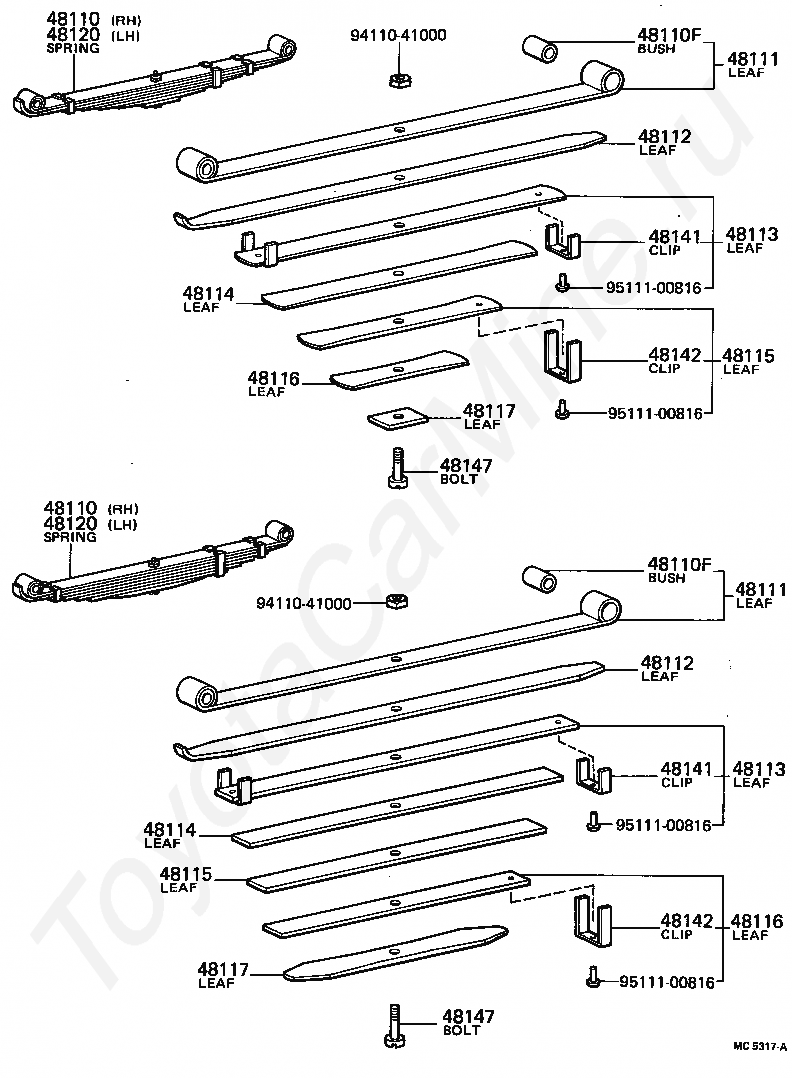

48110

SPRING ASSY, FRONT, RH

48110

SPRING ASSY, FRONT, RH

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48111

LEAF, FRONT SPRING, NO.1

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48112

LEAF, FRONT SPRING, NO.2

48113

LEAF, FRONT SPRING, NO.3

48113

LEAF, FRONT SPRING, NO.3

48114

LEAF, FRONT SPRING, NO.4

48114

LEAF, FRONT SPRING, NO.4

48115

LEAF, FRONT SPRING, NO.5

48115

LEAF, FRONT SPRING, NO.5

48116

LEAF, FRONT SPRING, NO.6

48116

LEAF, FRONT SPRING, NO.6

48117

LEAF, FRONT SPRING, NO.7

48117

LEAF, FRONT SPRING, NO.7

48120

SPRING ASSY, FRONT, LH

48120

SPRING ASSY, FRONT, LH

48141

CLIP, FRONT SPRING, NO.1

48141

CLIP, FRONT SPRING, NO.1

48142

CLIP, FRONT SPRING, NO.2

48142

CLIP, FRONT SPRING, NO.2

48147

BOLT, FRONT SPRING, CENTER

48147

BOLT, FRONT SPRING, CENTER

9411041000

Крепеж

9411041000

Крепеж

9511100816

Крепеж

9511100816

Крепеж

9511100816

Крепеж

9511100816

Крепеж

Код

Описание

48110

SPRING ASSY, FRONT, RH

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48113

LEAF, FRONT SPRING, NO.3

48114

LEAF, FRONT SPRING, NO.4

48115

LEAF, FRONT SPRING, NO.5

48116

LEAF, FRONT SPRING, NO.6

48117

LEAF, FRONT SPRING, NO.7

48118

LEAF, FRONT SPRING, NO.8

48120

SPRING ASSY, FRONT, LH

48141

CLIP, FRONT SPRING, NO.1

48142

CLIP, FRONT SPRING, NO.2

48147

BOLT, FRONT SPRING, CENTER

9411041000

Крепеж

9511100816

Крепеж

9511100816

Крепеж

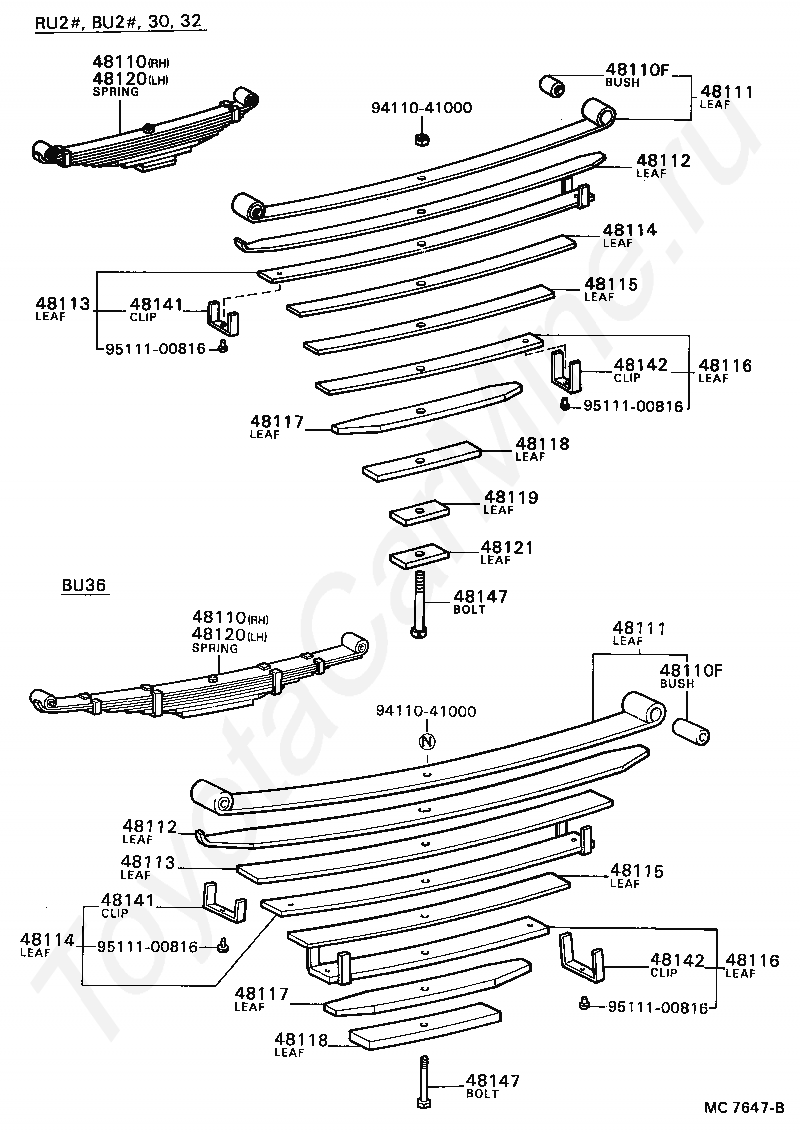

Код

Описание

48110

SPRING ASSY, FRONT, RH

48110

SPRING ASSY, FRONT, RH

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48111

LEAF, FRONT SPRING, NO.1

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48112

LEAF, FRONT SPRING, NO.2

48113

LEAF, FRONT SPRING, NO.3

48113

LEAF, FRONT SPRING, NO.3

48114

LEAF, FRONT SPRING, NO.4

48114

LEAF, FRONT SPRING, NO.4

48115

LEAF, FRONT SPRING, NO.5

48115

LEAF, FRONT SPRING, NO.5

48116

LEAF, FRONT SPRING, NO.6

48116

LEAF, FRONT SPRING, NO.6

48117

LEAF, FRONT SPRING, NO.7

48117

LEAF, FRONT SPRING, NO.7

48118

LEAF, FRONT SPRING, NO.8

48118

LEAF, FRONT SPRING, NO.8

48119

LEAF, FRONT SPRING, NO.9

48120

SPRING ASSY, FRONT, LH

48120

SPRING ASSY, FRONT, LH

48121

LEAF, FRONT SPRING, NO.10

48141

CLIP, FRONT SPRING, NO.1

48141

CLIP, FRONT SPRING, NO.1

48142

CLIP, FRONT SPRING, NO.2

48142

CLIP, FRONT SPRING, NO.2

48147

BOLT, FRONT SPRING, CENTER

48147

BOLT, FRONT SPRING, CENTER

9411041000

Крепеж

9411041000

Крепеж

9511100816

Крепеж

9511100816

Крепеж

9511100816

Крепеж

9511100816

Крепеж
