Каталог

Европа

Модель

DYNA

VIN

Дата

1977/08

Двигатель

2 литра

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

RU30

КПП

МКПП, 5 скоростей

Опции

левый руль HIGH FLAT DECK OPENING ON THREE SIDES BOARDING DECK WT GEN IV3

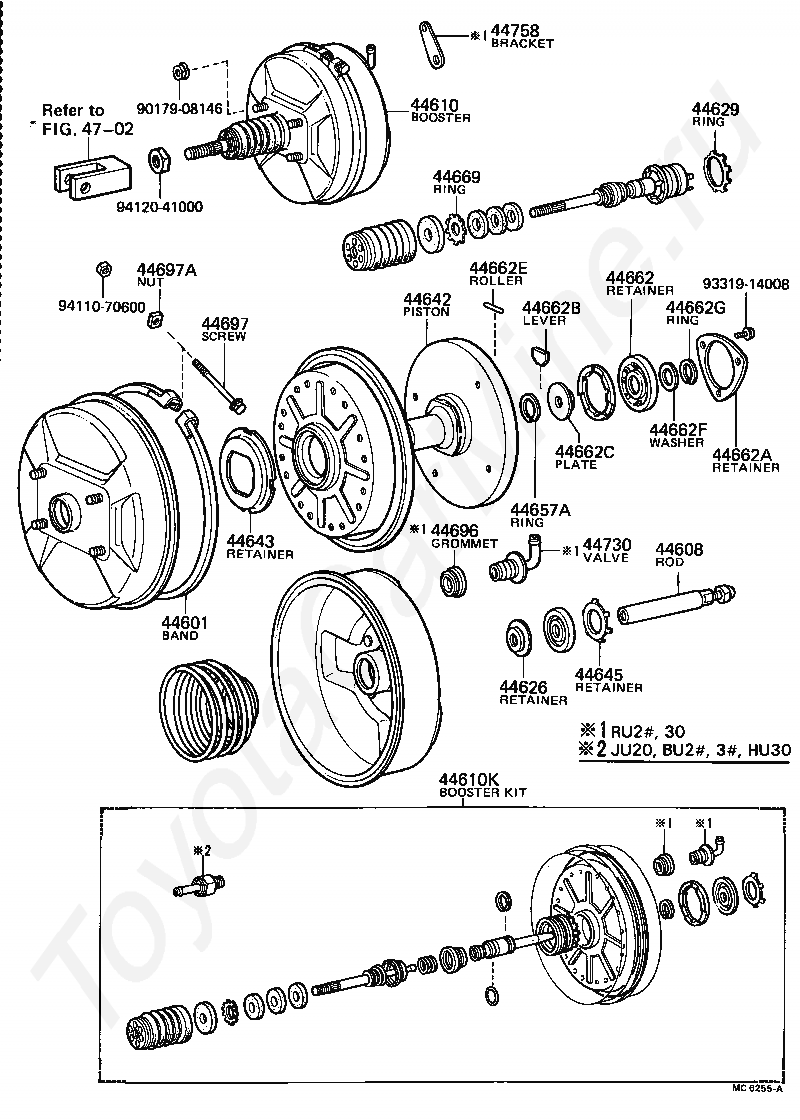

Вакуумный тормозной цилиндр TOYOTA DYNA

Код

Описание

44601

BAND SUB-ASSY, BOOSTER BODY

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610K

BOOSTER KIT, BRAKE

44626

RETAINER, BOOSTER ROD CUP

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44645

RETAINER, BOOSTER PUSH ROD SEAL

44657A

RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

44662

RETAINER, REACTION, NO.1

44662A

RETAINER, REACTION, NO.2

44662B

LEVER, REACTION

44662C

PLATE, REACTION, NO.1

44662E

ROLLER(FOR REACTION LEVER)

44662F

WASHER(FOR REACTION LEVER)

44662G

RING, SNAP(FOR REACTION RETAINER)

44669

RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

44696

GROMMET, CHECK VALVE

44697

SCREW, BOOSTER BAND SET

44697A

NUT(FOR BOOSTER BAND SET)

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44758

BRACKET, VACUUM CHECK VALVE

4702

переход к группе запчастей

9017908146

Крепеж

9331914008

Крепеж

9411070600

Крепеж

9412041000

Крепеж

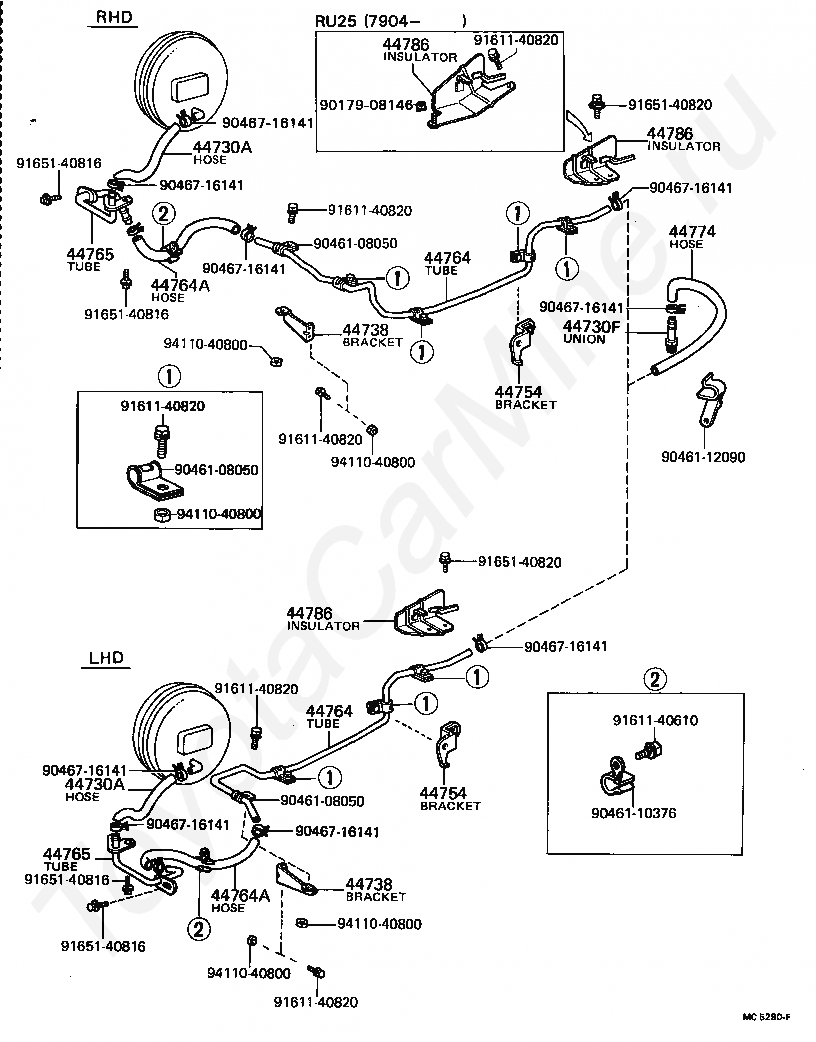

Код

Описание

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44738

BRACKET, HOSE CLAMP BRAKCET

44738

BRACKET, HOSE CLAMP BRAKCET

44754

BRACKET, AIR TUBE

44754

BRACKET, AIR TUBE

44764

TUBE, BOOSTER VACUUM

44764

TUBE, BOOSTER VACUUM

44764A

HOSE, BOOSTER VACUUM

44764A

HOSE, BOOSTER VACUUM

44765

TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2

44765

TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2

44774

HOSE, UNION TO CONNECTOR TUBE

44786

INSULATOR, HOSE HEAT

44786

INSULATOR, HOSE HEAT

44786

INSULATOR, HOSE HEAT

9017908146

Крепеж

9046108050

Крепеж

9046108050

Крепеж

9046108050

Крепеж

9046110376

Крепеж

9046112090

Крепеж

9046716141

Крепеж

9046716141

Крепеж

9046716141

Крепеж

9046716141

Крепеж

9046716141

Крепеж

9046716141

Крепеж

9046716141

Крепеж

9046716141

Крепеж

9046716141

Крепеж

9161140610

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140820

Крепеж

9165140820

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

Вакуумный тормозной цилиндр TOYOTA DYNA
