Каталог

Европа

Модель

DYNA

VIN

Дата

1977/08

Двигатель

2 литра

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

RU30

КПП

МКПП, 5 скоростей

Опции

левый руль HIGH FLAT DECK OPENING ON THREE SIDES BOARDING DECK WT GEN IV3

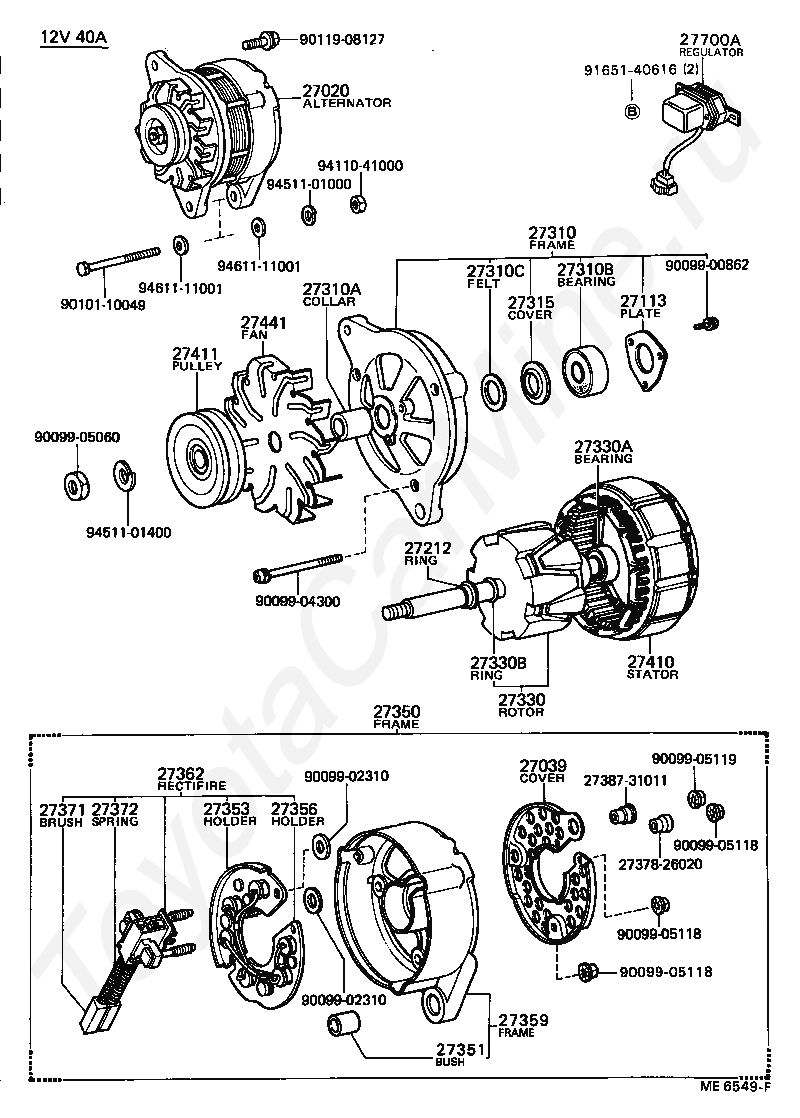

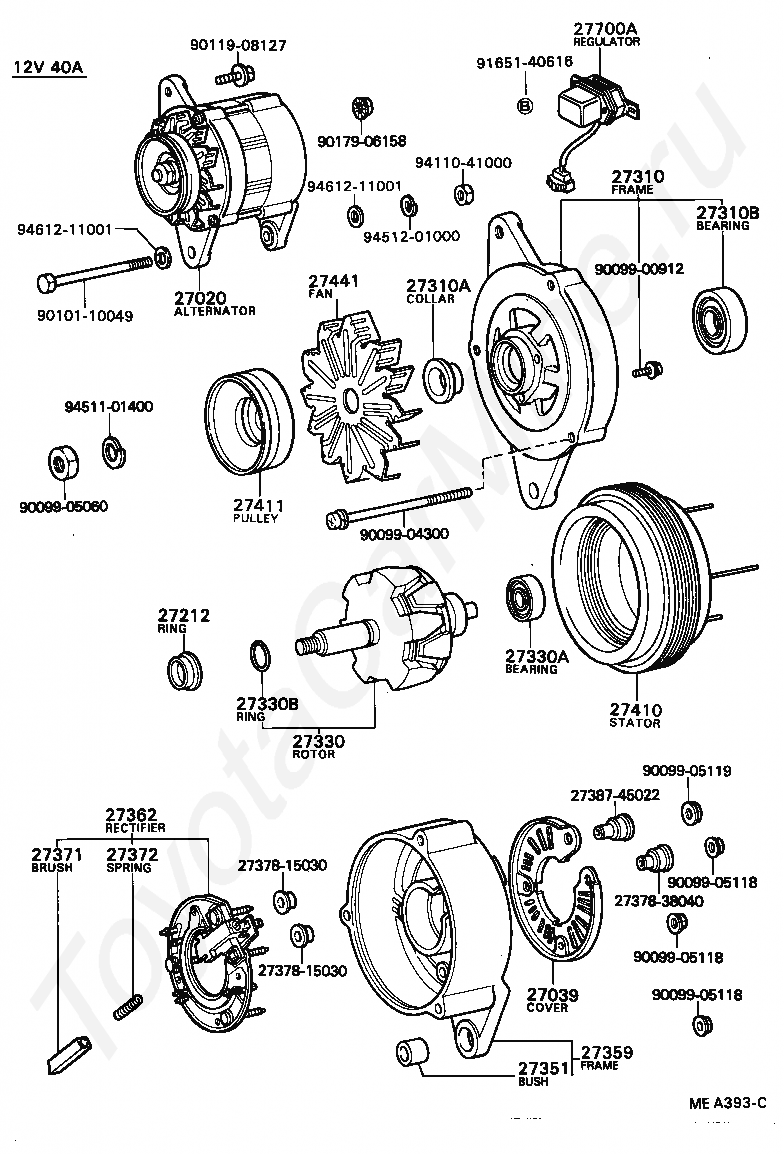

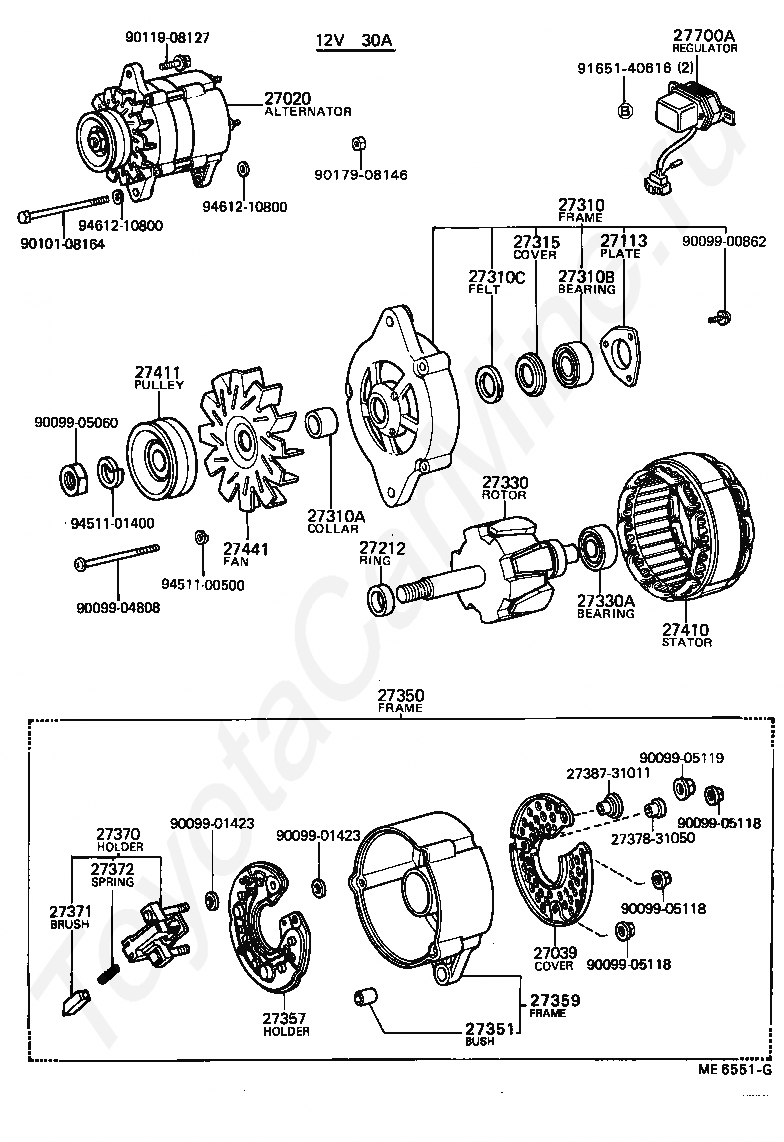

Генератор TOYOTA DYNA

Код

Описание

27020

ALTERNATOR ASSY

27039

COVER, ALTERNATOR REAR END

27113

PLATE, BEARING RETAINER, ALTERNATOR

27212

RING, SPACE(FOR ALTERNATOR ROTOR)

27310

FRAME ASSY, DRIVE END, ALTERNATOR

27310A

COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

27310B

BEARING(FOR ALTERNATOR DRIVE END FRAME)

27310C

FELT(FOR ALTERNATOR DRIVE END FRAME)

27315

COVER, ALTERNATOR FELT, INNER NO.1

27330

ROTOR ASSY, ALTERNATOR

27330A

BEARING(FOR ALTERNATOR ROTOR)

27350

FRAME ASSY, RECTIFIER END

27351

BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

27357

HOLDER, ALTERNATOR, W/RECTIFIER

27359

FRAME, ALTERNATOR RECTIFIER END

27370

HOLDER ASSY, ALTERNATOR BRUSH

27371

BRUSH, ALTERNATOR

27372

SPRING, ALTERNATOR BRUSH

2737831050

Крепеж

2738731011

Крепеж

27410

STATOR ASSY, ALTERNATOR

27411

PULLEY, ALTERNATOR

27441

FAN, ALTERNATOR

27700A

REGULATOR ASSY, GENERATOR

9009900862

Крепеж

9009901423

Крепеж

9009901423

Крепеж

9009904808

Крепеж

9009905060

Крепеж

9009905118

Крепеж

9009905118

Крепеж

9009905118

Крепеж

9009905119

Крепеж

9010108164

Крепеж

9011908127

Крепеж

9017908146

Крепеж

9165140616

Крепеж

9451100500

Крепеж

9451101400

Крепеж

9461210800

Крепеж

9461210800

Крепеж

Код

Описание

27020

ALTERNATOR ASSY

27039

COVER, ALTERNATOR REAR END

27113

PLATE, BEARING RETAINER, ALTERNATOR

27212

RING, SPACE(FOR ALTERNATOR ROTOR)

27310

FRAME ASSY, DRIVE END, ALTERNATOR

27310A

COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

27310B

BEARING(FOR ALTERNATOR DRIVE END FRAME)

27310C

FELT(FOR ALTERNATOR DRIVE END FRAME)

27315

COVER, ALTERNATOR FELT, INNER NO.1

27330

ROTOR ASSY, ALTERNATOR

27330A

BEARING(FOR ALTERNATOR ROTOR)

27330B

RING, SNAP(FOR ALTERNATOR ROTOR)

27350

FRAME ASSY, RECTIFIER END

27351

BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

27353

HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

27356

HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

27359

FRAME, ALTERNATOR RECTIFIER END

27362

RECTIFIER ASSY, W/BRUSH

27371

BRUSH, ALTERNATOR

27372

SPRING, ALTERNATOR BRUSH

2737826020

Крепеж

2738731011

Крепеж

27410

STATOR ASSY, ALTERNATOR

27411

PULLEY, ALTERNATOR

27441

FAN, ALTERNATOR

27700A

REGULATOR ASSY, GENERATOR

9009900862

Крепеж

9009902310

Крепеж

9009902310

Крепеж

9009904300

Крепеж

9009905060

Крепеж

9009905118

Крепеж

9009905118

Крепеж

9009905118

Крепеж

9009905119

Крепеж

9010110049

Крепеж

9011908127

Крепеж

9165140616

Крепеж

9411041000

Крепеж

9451101000

Крепеж

9451101400

Крепеж

9461111001

Крепеж

9461111001

Крепеж

Код

Описание

27020

ALTERNATOR ASSY

27039

COVER, ALTERNATOR REAR END

27212

RING, SPACE(FOR ALTERNATOR ROTOR)

27310

FRAME ASSY, DRIVE END, ALTERNATOR

27310A

COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

27310B

BEARING(FOR ALTERNATOR DRIVE END FRAME)

27330

ROTOR ASSY, ALTERNATOR

27330A

BEARING(FOR ALTERNATOR ROTOR)

27330B

RING, SNAP(FOR ALTERNATOR ROTOR)

27351

BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

27359

FRAME, ALTERNATOR RECTIFIER END

27362

RECTIFIER ASSY, W/BRUSH

27371

BRUSH, ALTERNATOR

27372

SPRING, ALTERNATOR BRUSH

2737815030

Крепеж

2737815030

Крепеж

2737838040

Крепеж

2738745022

Крепеж

27410

STATOR ASSY, ALTERNATOR

27411

PULLEY, ALTERNATOR

27441

FAN, ALTERNATOR

27700A

REGULATOR ASSY, GENERATOR

9009900912

Крепеж

9009904300

Крепеж

9009905060

Крепеж

9009905118

Крепеж

9009905118

Крепеж

9009905118

Крепеж

9009905119

Крепеж

9010110049

Крепеж

9011908127

Крепеж

9017906158

Крепеж

9165140616

Крепеж

9411041000

Крепеж

9451101400

Крепеж

9451201000

Крепеж

9461211001

Крепеж

9461211001

Крепеж

Генератор TOYOTA DYNA
