Каталог

Европа

Модель

DYNA

VIN

Дата

1977/08

Двигатель

2 литра

Кузов

V(MODEL MARK)

Фрейм

RU20

КПП

МКПП, 5 скоростей

Опции

левый руль SIDE GLASS VAN SRF ST GEN CBU

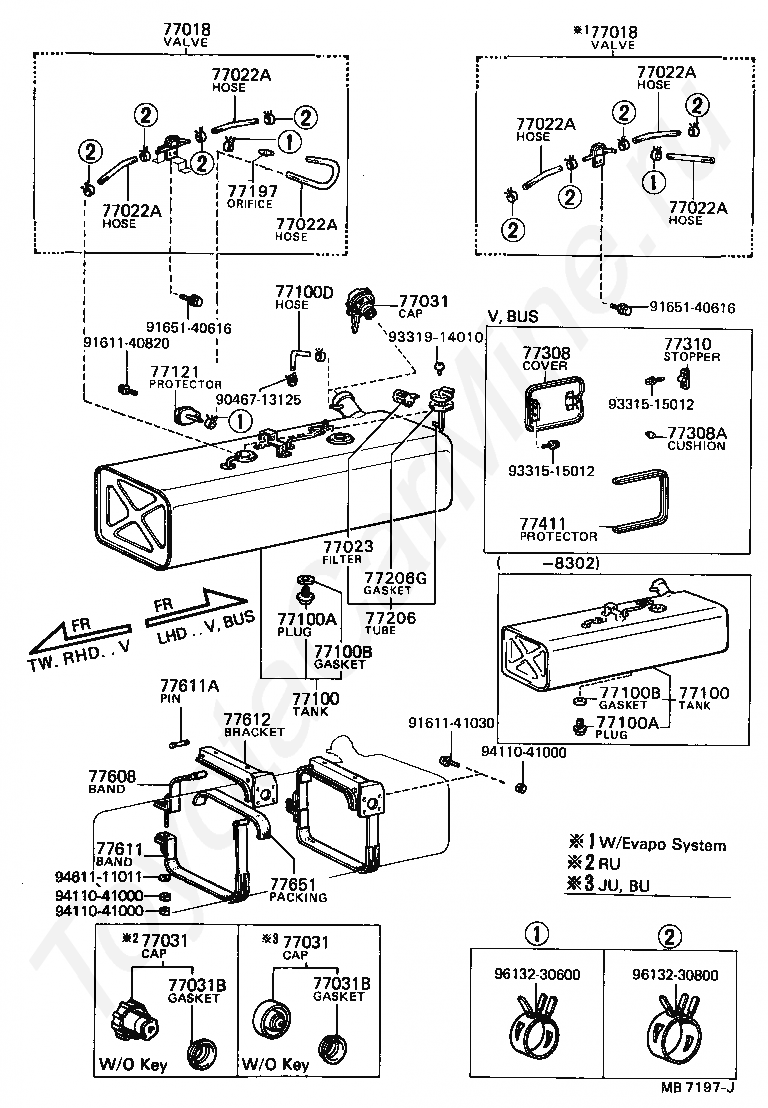

Топливный бак и горловина TOYOTA DYNA

Код

Описание

77018

VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

77018

VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77023

FILTER SUB-ASSY, FUEL SUCTION TUBE

77031

CAP ASSY, FUEL TANK

77031

CAP ASSY, FUEL TANK

77031

CAP ASSY, FUEL TANK

77031B

GASKET (FOR FUEL TANK CAP)

77031B

GASKET (FOR FUEL TANK CAP)

77100

TANK ASSY, FUEL

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77100D

HOSE, FUEL, NO.1(FOR FUEL TANK)

77121

PROTECTOR, FUEL TUBE

77197

ORIFICE, FUEL VAPOR

77206

TUBE SUB-ASSY, FUEL TANK SUCTION

77206G

GASKET (FOR FUEL TANK SUCTION TUBE)

77308

COVER SUB-ASSY, FUEL INLET BOX

77308A

CUSHION(FOR FUEL INLET BOX COVER)

77310

STOPPER, FUEL INLET BOX

77411

PROTECTOR, FUEL INLET BOX

77608

BAND SUB-ASSY, FUEL TANK, NO.2

77611

BAND, FUEL TANK

77611A

PIN (FOR FUEL TANK BAND)

77612

BRACKET SUB-ASSY, FUEL TANK

77651

PACKING, FUEL TANK BRACKET

9046713125

Крепеж

9161140820

Крепеж

9161141030

Крепеж

9165140616

Крепеж

9165140616

Крепеж

9331515012

Крепеж

9331515012

Крепеж

9331914010

Крепеж

9411041000

Крепеж

9411041000

Крепеж

9411041000

Крепеж

9461111011

Крепеж

9613230600

Крепеж

9613230800

Крепеж

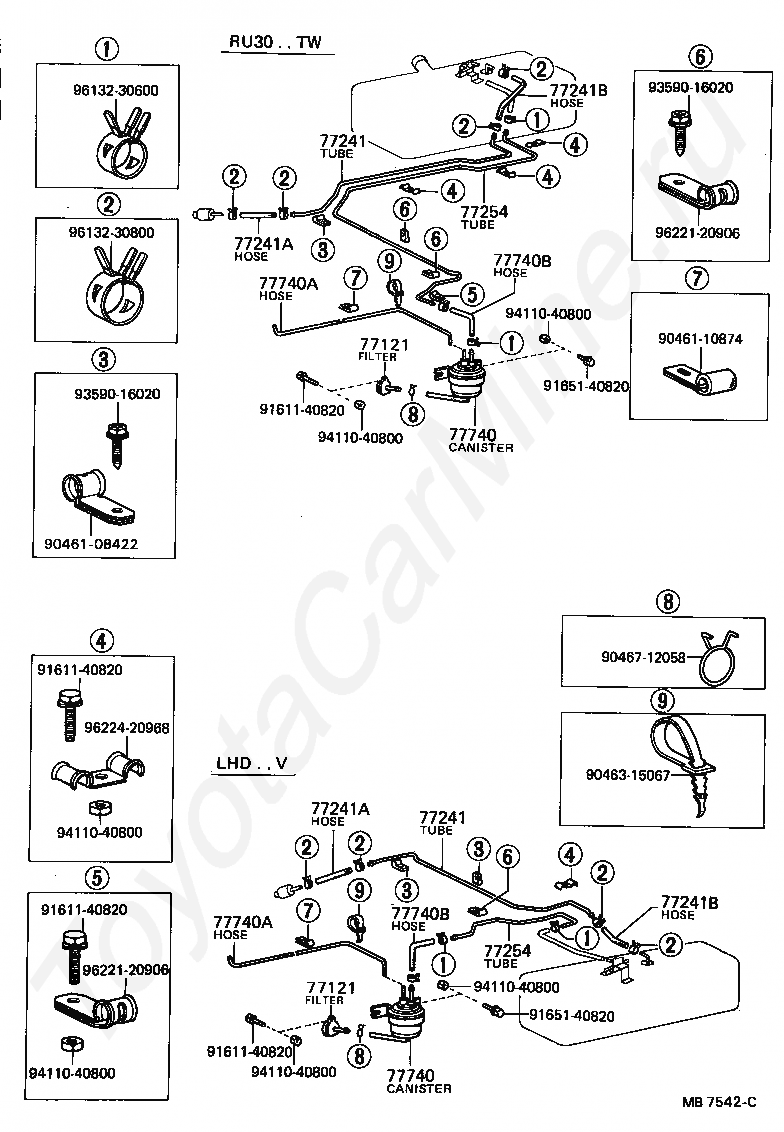

Код

Описание

77121

PROTECTOR, FUEL TUBE

77121

PROTECTOR, FUEL TUBE

77241

TUBE, FUEL MAIN, NO.1

77241

TUBE, FUEL MAIN, NO.1

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77254

TUBE, FUEL EMISSION, NO.1

77254

TUBE, FUEL EMISSION, NO.1

77740

CANISTER ASSY, CHARCOAL

77740

CANISTER ASSY, CHARCOAL

77740A

HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

77740A

HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

77740B

HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)

77740B

HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)

9046108422

Крепеж

9046110874

Крепеж

9046315067

Крепеж

9046712058

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9165140820

Крепеж

9165140820

Крепеж

9359016020

Крепеж

9359016020

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9613230600

Крепеж

9613230800

Крепеж

9622120906

Крепеж

9622120906

Крепеж

9622420968

Крепеж
