Каталог

Япония

Модель

DYNA

VIN

Дата

1983/02

Двигатель

3 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU22

КПП

МКПП, 5 скоростей, на руле

Опции

DOUBLE CAB TRUCK (JUST LOW) BOARDING DECK M50 TYPE TRANSMISSION 06S WT IV3 ATP

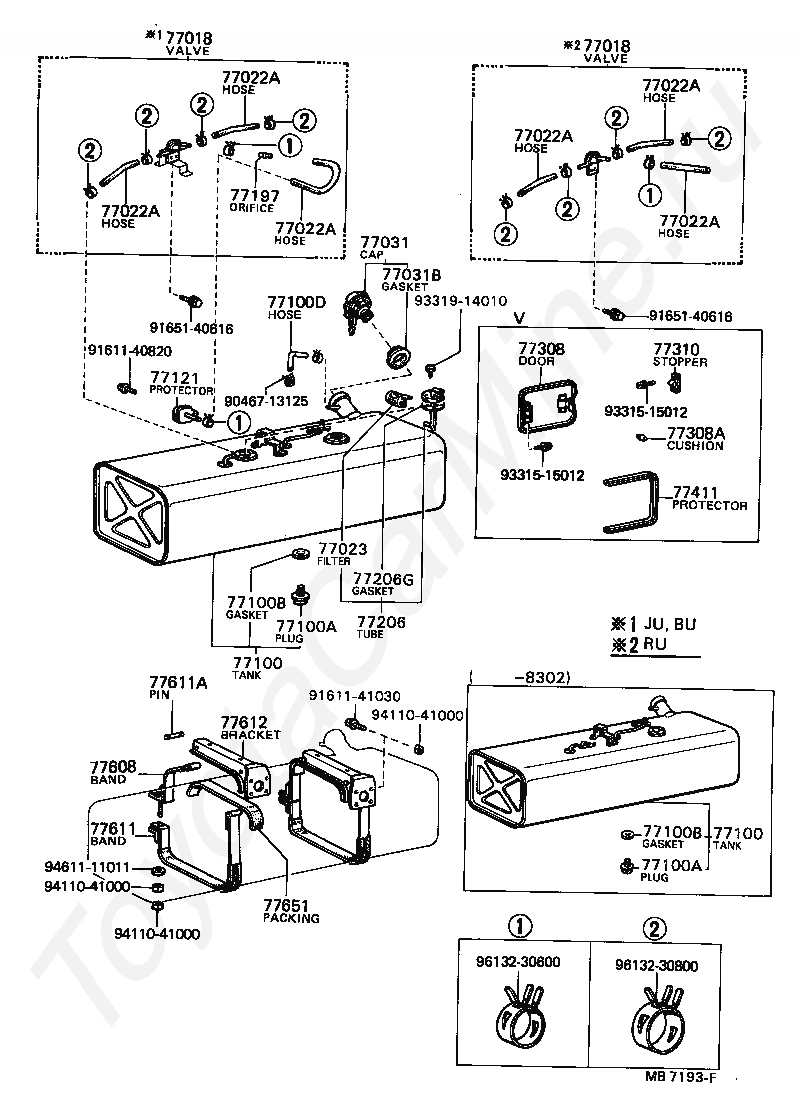

Топливный бак и горловина TOYOTA DYNA

Код

Описание

77018

VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

77018

VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77023

FILTER SUB-ASSY, FUEL SUCTION TUBE

77031

CAP ASSY, FUEL TANK

77031B

GASKET (FOR FUEL TANK CAP)

77100

TANK ASSY, FUEL

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77100D

HOSE, FUEL, NO.1(FOR FUEL TANK)

77121

PROTECTOR, FUEL TUBE

77197

ORIFICE, FUEL VAPOR

77206

TUBE SUB-ASSY, FUEL TANK SUCTION

77206G

GASKET (FOR FUEL TANK SUCTION TUBE)

77308

COVER SUB-ASSY, FUEL INLET BOX

77308A

CUSHION(FOR FUEL INLET BOX COVER)

77310

STOPPER, FUEL INLET BOX

77411

PROTECTOR, FUEL INLET BOX

77608

BAND SUB-ASSY, FUEL TANK, NO.2

77611

BAND, FUEL TANK

77611A

PIN (FOR FUEL TANK BAND)

77612

BRACKET SUB-ASSY, FUEL TANK

77651

PACKING, FUEL TANK BRACKET

9046713125

Крепеж

9161140820

Крепеж

9161141030

Крепеж

9165140616

Крепеж

9165140616

Крепеж

9331515012

Крепеж

9331515012

Крепеж

9331914010

Крепеж

9411041000

Крепеж

9411041000

Крепеж

9411041000

Крепеж

9461111011

Крепеж

9613230600

Крепеж

9613230800

Крепеж

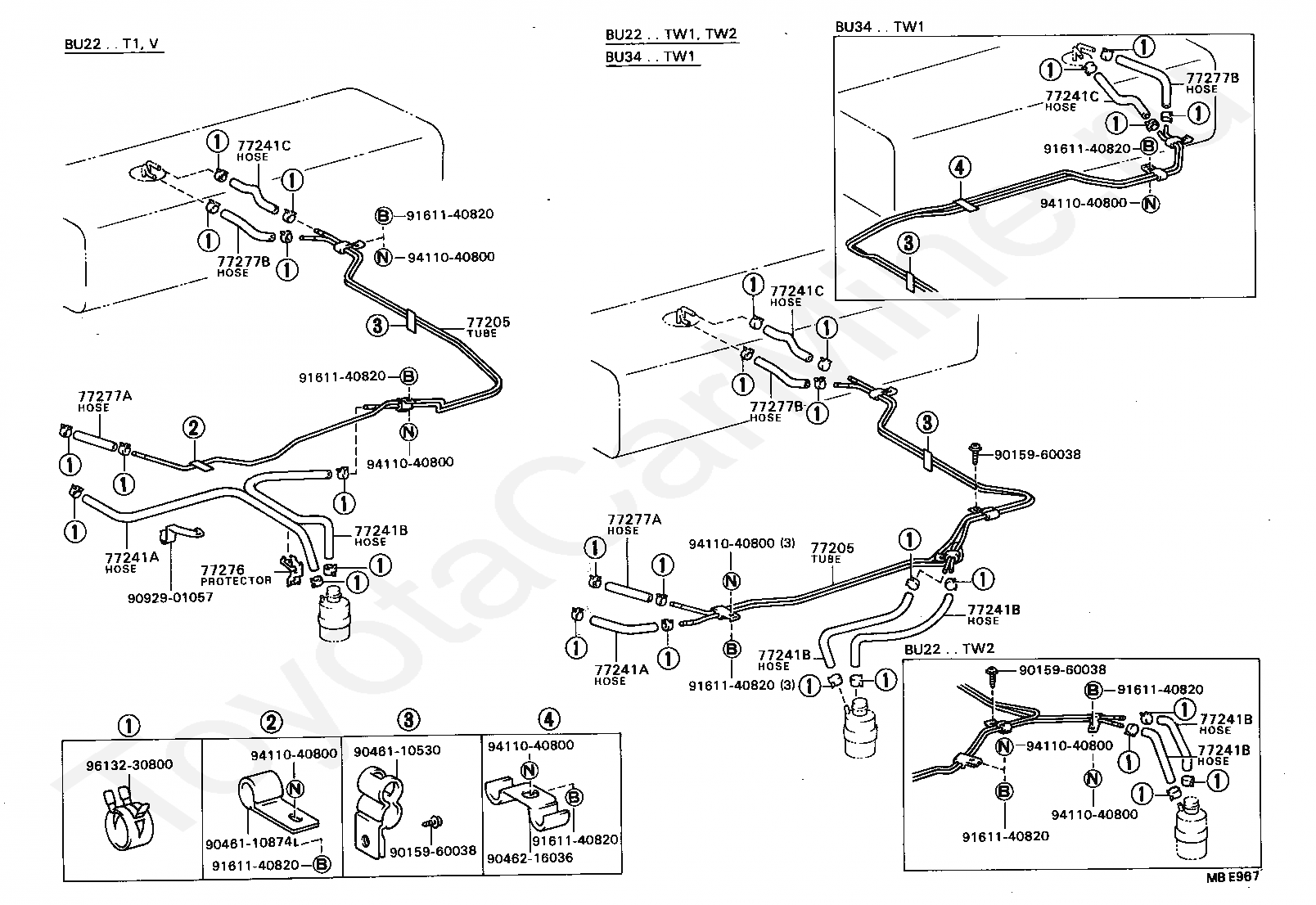

Код

Описание

77205

TUBE SUB-ASSY, FUEL MAIN

77205

TUBE SUB-ASSY, FUEL MAIN

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77241C

HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)

77241C

HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)

77241C

HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)

77276

PROTECTOR, FUEL HOSE

77277A

HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

77277A

HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

77277B

HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

77277B

HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

77277B

HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

9015960038

Крепеж

9015960038

Крепеж

9015960038

Крепеж

9046110530

Крепеж

9046110874

Крепеж

9046216036

Крепеж

9092901057

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9613230800

Крепеж
