Каталог

Япония

Модель

DYNA

VIN

Дата

1983/02

Двигатель

3 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU22

КПП

МКПП, 5 скоростей, на руле

Опции

DOUBLE CAB TRUCK (JUST LOW) BOARDING DECK M50 TYPE TRANSMISSION 06S WT IV3 ATP

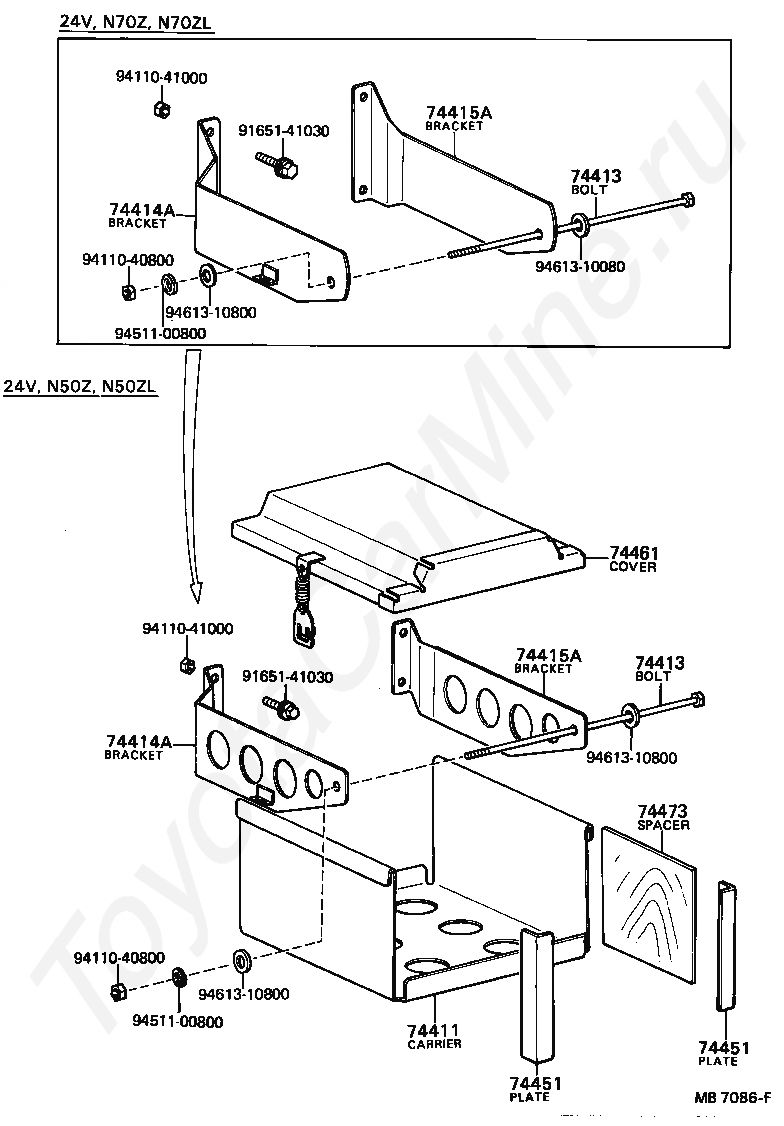

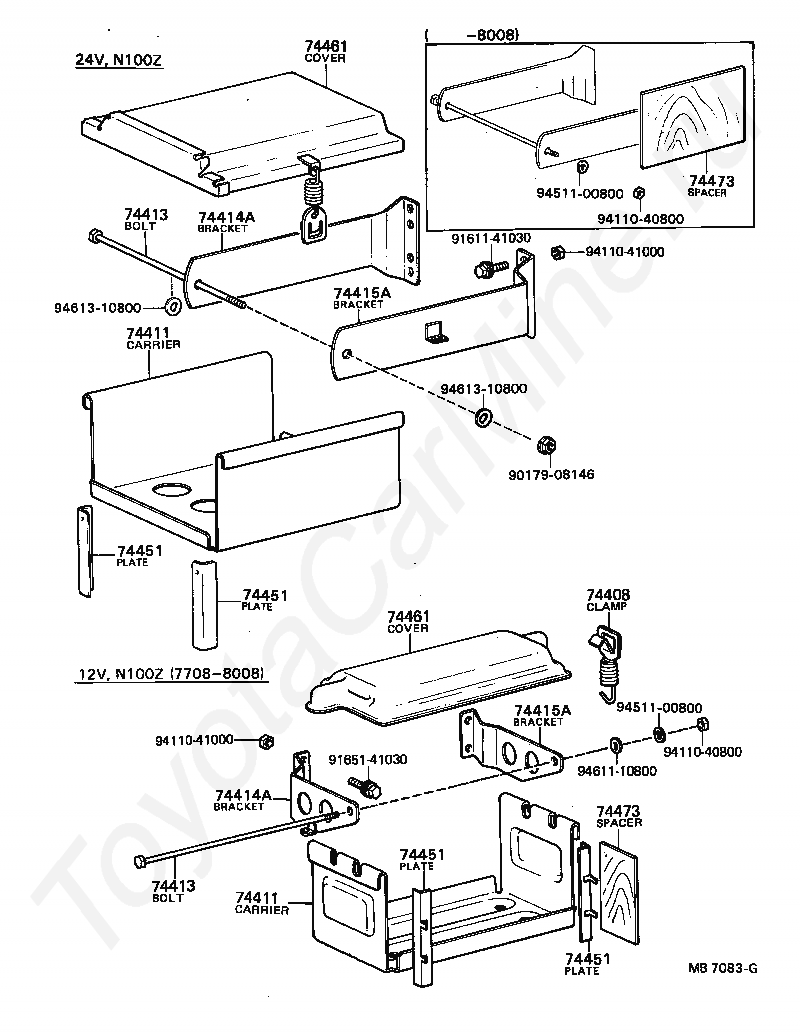

Крепеж аккумулятора TOYOTA DYNA

Код

Описание

74408

CLAMP SUB-ASSY, BATTERY COVER

74411

CARRIER, BATTERY

74411

CARRIER, BATTERY

74413

BOLT, BATTERY CLAMP

74413

BOLT, BATTERY CLAMP

74414A

BRACKET, BATTERY, NO.1

74414A

BRACKET, BATTERY, NO.1

74415A

BRACKET, BATTERY, NO.2

74415A

BRACKET, BATTERY, NO.2

74451

PLATE, BATTERY CARRIER SUPPORT

74451

PLATE, BATTERY CARRIER SUPPORT

74451

PLATE, BATTERY CARRIER SUPPORT

74451

PLATE, BATTERY CARRIER SUPPORT

74461

COVER, BATTERY

74461

COVER, BATTERY

74473

SPACER, BATTERY

74473

SPACER, BATTERY

9017908146

Крепеж

9161141030

Крепеж

9165141030

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411041000

Крепеж

9411041000

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9461110800

Крепеж

9461310800

Крепеж

9461310800

Крепеж

Код

Описание

74408

CLAMP SUB-ASSY, BATTERY COVER

74408

CLAMP SUB-ASSY, BATTERY COVER

74411

CARRIER, BATTERY

74411

CARRIER, BATTERY

74411

CARRIER, BATTERY

74413

BOLT, BATTERY CLAMP

74413

BOLT, BATTERY CLAMP

74413

BOLT, BATTERY CLAMP

74414A

BRACKET, BATTERY, NO.1

74414A

BRACKET, BATTERY, NO.1

74414A

BRACKET, BATTERY, NO.1

74415A

BRACKET, BATTERY, NO.2

74415A

BRACKET, BATTERY, NO.2

74415A

BRACKET, BATTERY, NO.2

74451

PLATE, BATTERY CARRIER SUPPORT

74451

PLATE, BATTERY CARRIER SUPPORT

74451

PLATE, BATTERY CARRIER SUPPORT

74451

PLATE, BATTERY CARRIER SUPPORT

74461

COVER, BATTERY

74461

COVER, BATTERY

74461

COVER, BATTERY

74473

SPACER, BATTERY

74473

SPACER, BATTERY

74481

CLAMP, BATTERY HOLD DOWN

9017908146

Крепеж

9165141030

Крепеж

9165141030

Крепеж

9165141030

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411041000

Крепеж

9411041000

Крепеж

9411041000

Крепеж

9451100800

Крепеж

9451200800

Крепеж

9461110800

Крепеж

9461110800

Крепеж

9461310800

Крепеж

9461310800

Крепеж

Код

Описание

74411

CARRIER, BATTERY

74413

BOLT, BATTERY CLAMP

74413

BOLT, BATTERY CLAMP

74414A

BRACKET, BATTERY, NO.1

74414A

BRACKET, BATTERY, NO.1

74415A

BRACKET, BATTERY, NO.2

74415A

BRACKET, BATTERY, NO.2

74451

PLATE, BATTERY CARRIER SUPPORT

74451

PLATE, BATTERY CARRIER SUPPORT

74461

COVER, BATTERY

74473

SPACER, BATTERY

9165141030

Крепеж

9165141030

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411041000

Крепеж

9411041000

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9461310080

Крепеж

9461310800

Крепеж

9461310800

Крепеж

9461310800

Крепеж
