Каталог

Япония

Модель

DYNA

VIN

Дата

1983/02

Двигатель

3 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU22

КПП

МКПП, 5 скоростей, на руле

Опции

DOUBLE CAB TRUCK (JUST LOW) BOARDING DECK M50 TYPE TRANSMISSION 06S WT IV3 ATP

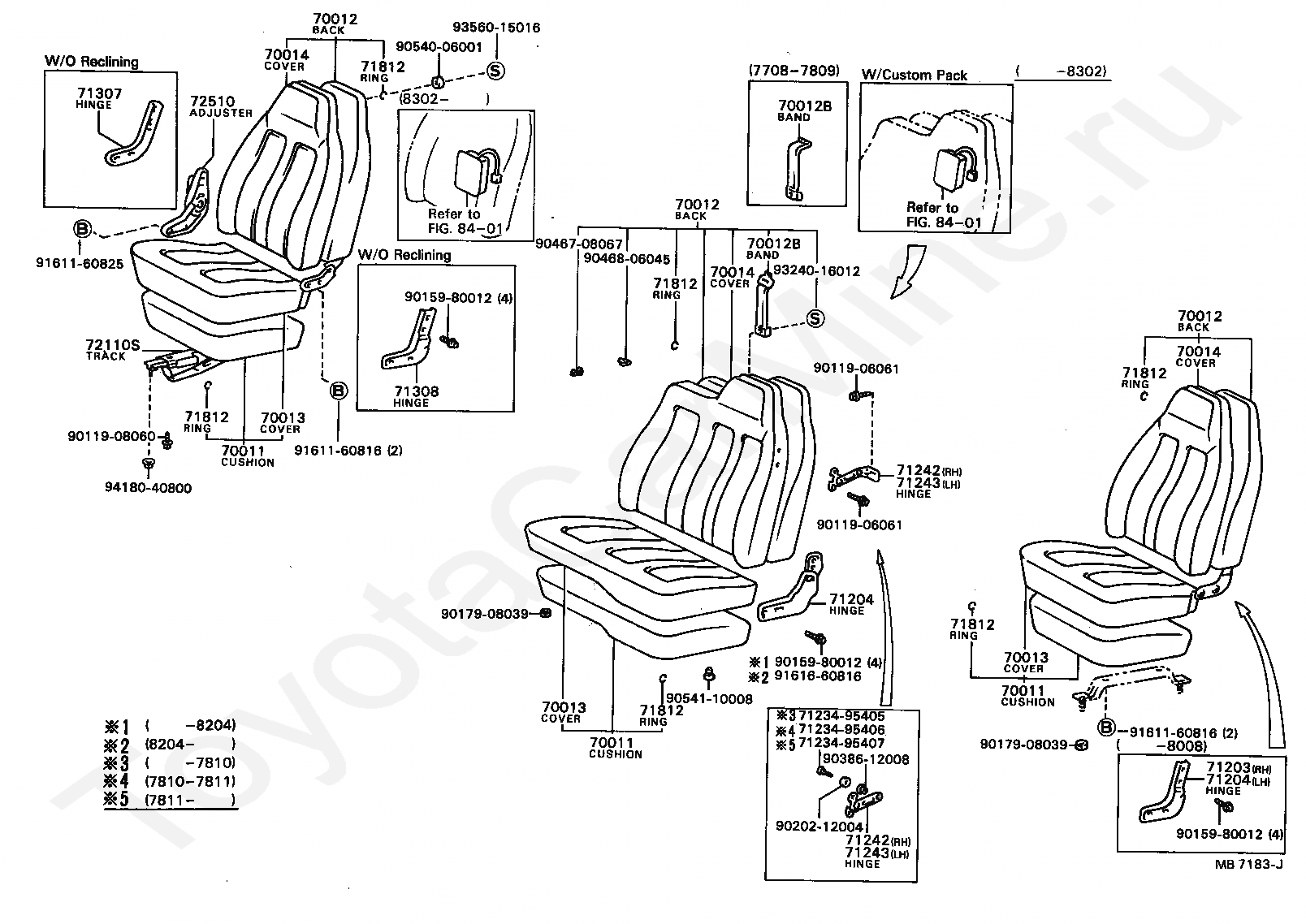

Кресла TOYOTA DYNA

Код

Описание

70011

CUSHION ASSY, NO.1 SEAT

70011

CUSHION ASSY, NO.1 SEAT

70011

CUSHION ASSY, NO.1 SEAT

70012

BACK ASSY, NO.1 SEAT

70012

BACK ASSY, NO.1 SEAT

70012

BACK ASSY, NO.1 SEAT

70012B

BAND, ENGINE SERVICE HOLE COVER SUPPORT

70012B

BAND, ENGINE SERVICE HOLE COVER SUPPORT

70013

COVER ASSY, NO.1 SEAT CUSHION

70013

COVER ASSY, NO.1 SEAT CUSHION

70013

COVER ASSY, NO.1 SEAT CUSHION

70014

COVER ASSY, NO.1 SEAT BACK

70014

COVER ASSY, NO.1 SEAT BACK

70014

COVER ASSY, NO.1 SEAT BACK

71203

HINGE SUB-ASSY, PASSENGER SEAT, RH

71204

HINGE SUB-ASSY, PASSENGER SEAT, LH

71204

HINGE SUB-ASSY, PASSENGER SEAT, LH

7123495405

Крепеж

7123495406

Крепеж

7123495407

Крепеж

71242

HINGE, PASSENGER SEAT BACK, RH

71242

HINGE, PASSENGER SEAT BACK, RH

71243

HINGE, PASSENGER SEAT BACK, LH

71243

HINGE, PASSENGER SEAT BACK, LH

71307

HINGE SUB-ASSY, DRIVER SEAT, RH

71308

HINGE SUB-ASSY, DRIVER SEAT, LH

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

8401

переход к группе запчастей

8401

переход к группе запчастей

9011906061

Крепеж

9011906061

Крепеж

9011908060

Крепеж

9015980012

Крепеж

9015980012

Крепеж

9015980012

Крепеж

9017908039

Крепеж

9017908039

Крепеж

9020212004

Крепеж

9038612008

Крепеж

9046708067

Крепеж

9046806045

Крепеж

9054006001

Крепеж

9054110008

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160825

Крепеж

9161660816

Крепеж

9324016012

Крепеж

9356015016

Крепеж

9418040800

Крепеж

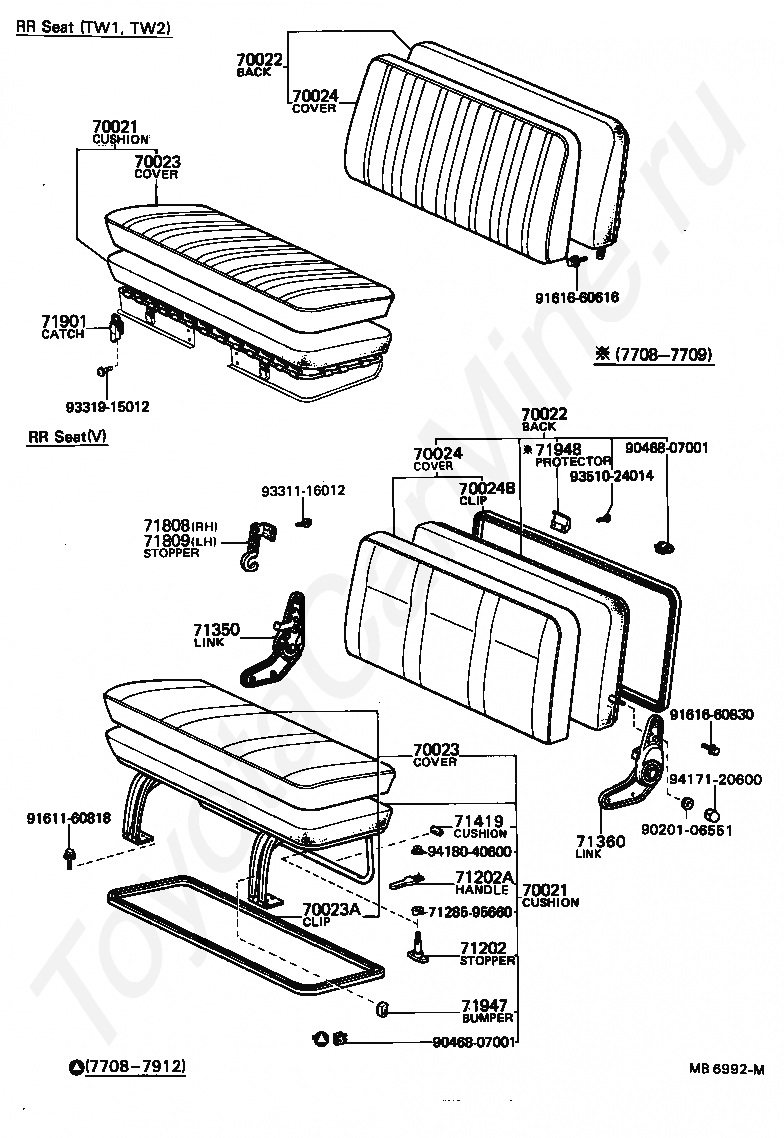

Код

Описание

70021

CUSHION ASSY, NO.2 SEAT

70021

CUSHION ASSY, NO.2 SEAT

70022

BACK ASSY, NO.2 SEAT

70022

BACK ASSY, NO.2 SEAT

70023

COVER ASSY, NO.2 SEAT CUSHION

70023

COVER ASSY, NO.2 SEAT CUSHION

70023A

CLIP, LEATHER (FOR SEAT CUSHION COVER)

70024

COVER ASSY, NO.2 SEAT BACK

70024

COVER ASSY, NO.2 SEAT BACK

70024B

CLIP, LEATHER(FOR SEAT BACK COVER)

71202

STOPPER SUB-ASSY, REAR SEAT LEG

71202A

HANDLE, REAR SEAT LEG STOPPER

7128595660

Крепеж

71350

LINK ASSY, REAR SEAT BACK CUSHION, RH

71360

LINK ASSY, REAR SEAT BACK CUSHION, LH

71419

CUSHION (FOR REAR SEAT LEG)

71808

STOPPER SUB-ASSY, REAR SEAT BACK, RH

71809

STOPPER SUB-ASSY, REAR SEAT BACK, LH

71901

CATCH SUB-ASSY, SEAT CUSHION, REAR

71947

BUMPER, PASSENGER SEAT CUSHION

71948

PROTECTOR, PASSENGER SEAT BACK

9020106551

Крепеж

9046807001

Крепеж

9046807001

Крепеж

9161160818

Крепеж

9161660616

Крепеж

9161660830

Крепеж

9331116012

Крепеж

9331915012

Крепеж

9351024014

Крепеж

9417120600

Крепеж

9418040600

Крепеж
