Каталог

Япония

Модель

DYNA

VIN

Дата

1983/02

Двигатель

3 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU22

КПП

МКПП, 5 скоростей, на руле

Опции

DOUBLE CAB TRUCK (JUST LOW) BOARDING DECK M50 TYPE TRANSMISSION 06S WT IV3 ATP

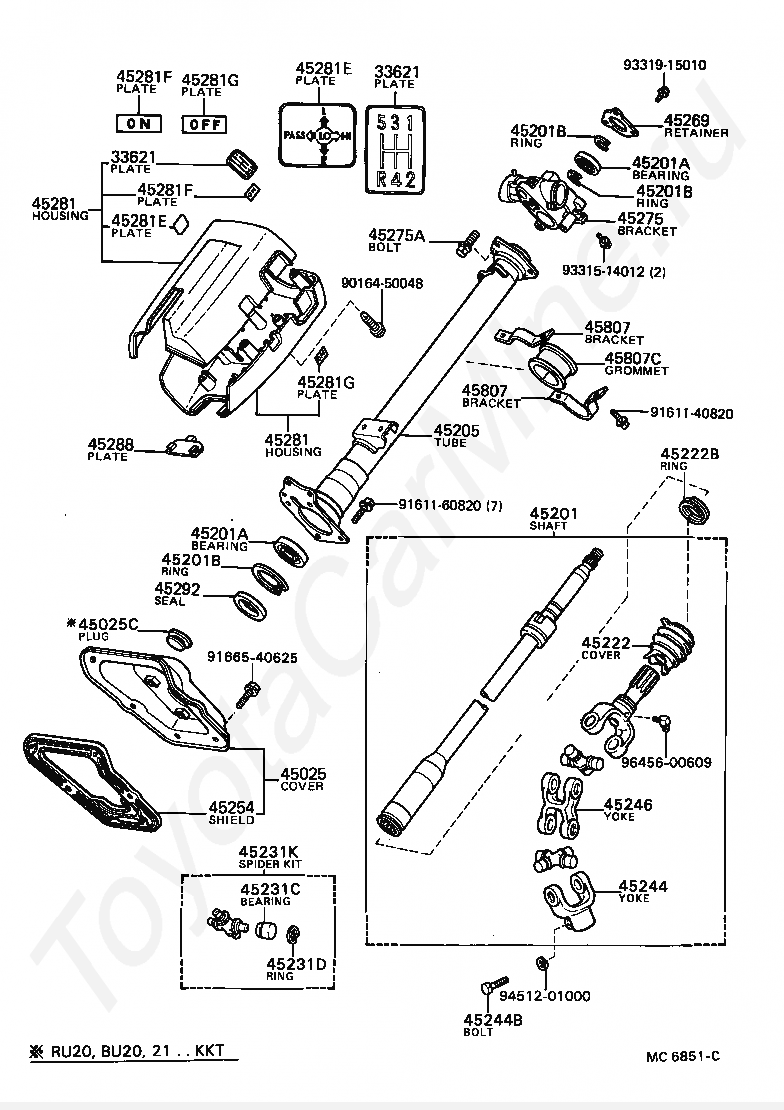

Рулевая колонка TOYOTA DYNA

Код

Описание

33621

PLATE, CONTROL LEVER CAUTION

33621

PLATE, CONTROL LEVER CAUTION

45025

COVER, STEERING INTERMEDIATE SHAFT

45025C

PLUG, HOLE(FOR STEERING COLUMN HOLE COVER)

45201

SHAFT SUB-ASSY, STEERING MAIN

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45205

TUBE SUB-ASSY, STEERING COLUMN

45222

COVER, STEERING GEAR DUST

45222B

RING, DUST COVER SET

45231C

BEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT)

45231D

RING, HOLE SNAP(FOR STEERING MAIN SHAFT)

45231K

SPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT)

45244

YOKE, STEERING WORM

45244B

PIN OR BOLT(FOR STEERING WORM YOKE)

45246

YOKE, STEERING INTERMEDIATE

45254

SHIELD, STEERING COLUMN HOLE

45269

RETAINER, MAIN SHAFT BEARING

45275

BRACKET, STEERING COLUMN, UPPER

45275A

BOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

45281

HOUSING, STEERING COLUMN

45281

HOUSING, STEERING COLUMN

45281E

PLATE, SAFETY CAUTION

45281E

PLATE, SAFETY CAUTION

45281F

PLATE, EXHAUST BRAKE CAUTION, NO.1

45281F

PLATE, EXHAUST BRAKE CAUTION, NO.1

45281G

PLATE, EXHAUST BRAKE CAUTION, NO.2

45281G

PLATE, EXHAUST BRAKE CAUTION, NO.2

45288

PLATE, STEERING COLUMN COVER

45292

SEAL, MAIN SHAFT LOWER DUST

45807

BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

45807

BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

45807C

GROMMET(FOR STEERING COLUMN CLAMP)

9016450048

Крепеж

9161140820

Крепеж

9161160820

Крепеж

9166540625

Крепеж

9331514012

Крепеж

9331915010

Крепеж

9451201000

Крепеж

9645600609

Крепеж

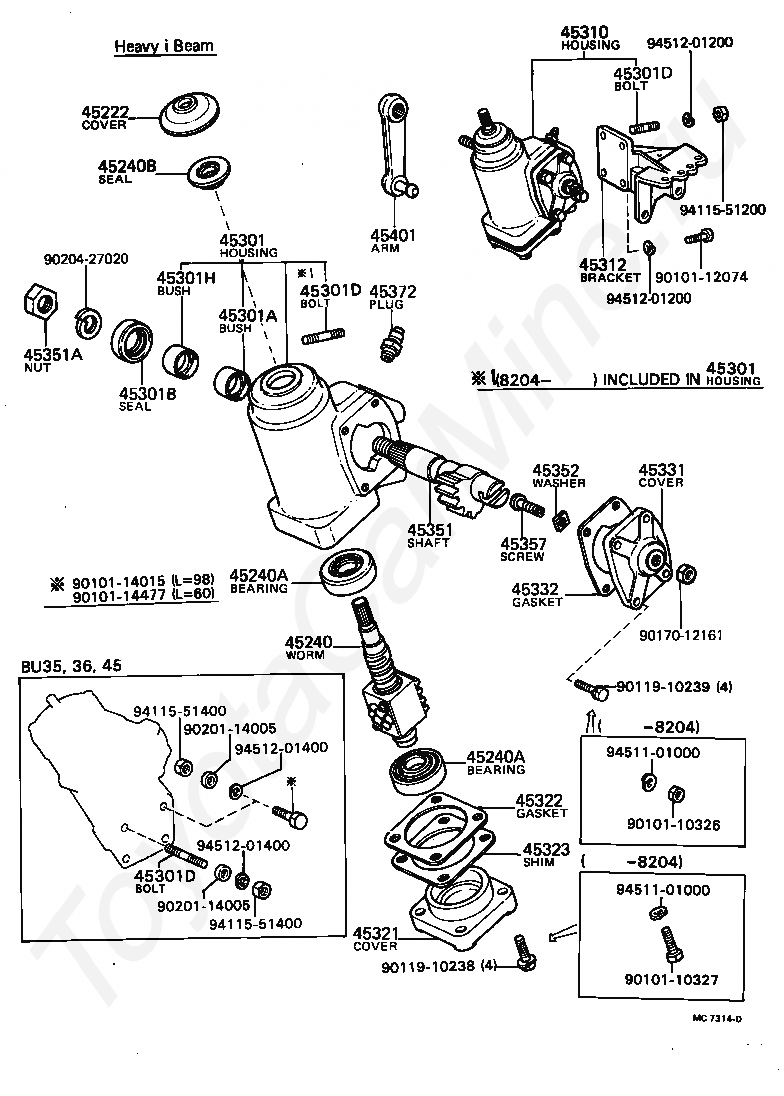

Код

Описание

45222

COVER, STEERING GEAR DUST

45240

WORM ASSY, STEERING

45240A

BEARING(FOR STEERING WORM)

45240A

BEARING(FOR STEERING WORM)

45240B

SEAL, OIL(FOR STEERING WORM)

45301

HOUSING SUB-ASSY, STEERING GEAR

45301

HOUSING SUB-ASSY, STEERING GEAR

45301A

BUSH OR BEARING, SECTOR SHAFT, NO.1

45301B

SEAL, OIL(FOR SECTOR SHAFT)

45301D

BOLT, STUD(FOR STEERING GEAR HOUSING)

45301D

BOLT, STUD(FOR STEERING GEAR HOUSING)

45301D

BOLT, STUD(FOR STEERING GEAR HOUSING)

45301H

BUSH OR BEARING, SECTOR SHAFT, NO.2

45310

HOUSING ASSY, STEERING GEAR

45312

BRACKET, STEERING GEAR HOUSING

45321

COVER, GEAR HOUSING END

45322

GASKET, GEAR HOUSING END COVER

45323

SHIM, GEAR HOUSING END COVER

45331

COVER, SECTOR SHAFT END

45332

GASKET, SECTOR SHAFT END COVER

45351

SHAFT, STEERING SECTOR

45351A

NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

45352

WASHER, SECTOR SHAFT THRUST

45357

SCREW, SECTOR SHAFT ADJUSTING

45372

PLUG, STEERING GEAR HOUSING OIL

45401

ARM SUB-ASSY, PITMAN

9010110326

Крепеж

9010110327

Крепеж

9010112074

Крепеж

9010114015

Крепеж

9010114477

Крепеж

9011910238

Крепеж

9011910239

Крепеж

9017012161

Крепеж

9020114005

Крепеж

9020114005

Крепеж

9020427020

Крепеж

9411551200

Крепеж

9411551400

Крепеж

9411551400

Крепеж

9451101000

Крепеж

9451101000

Крепеж

9451201200

Крепеж

9451201200

Крепеж

9451201400

Крепеж

9451201400

Крепеж

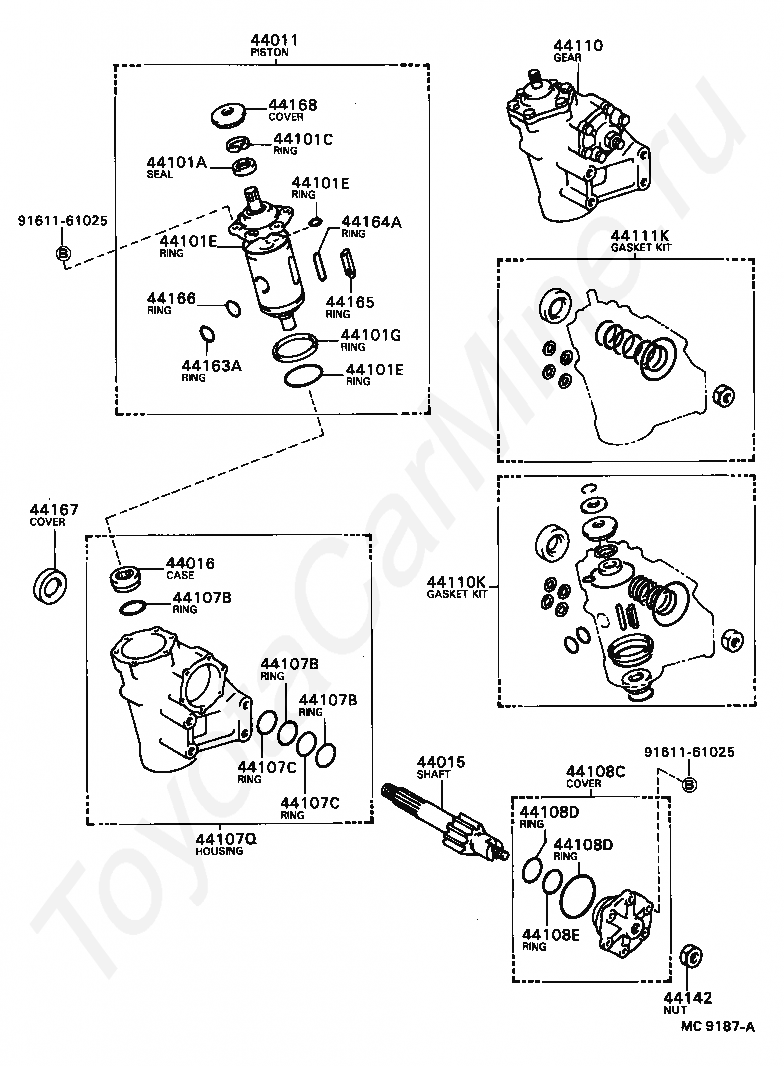

Код

Описание

44011

PISTON SUB-ASSY, POWER

44015

SHAFT SUB-ASSY, SECTOR

44016

CASE SUB-ASSY, WORM BEARING

44101A

SEAL, TYPE T OIL(FOR STEERING WORM)

44101C

RING, HOLE SNAP(FOR STEERING WORM OIL SEAL)

44101E

RING, O(FOR STEERING WORM)

44101E

RING, O(FOR STEERING WORM)

44101E

RING, O(FOR STEERING WORM)

44101G

SEAL, DUST(FOR STEERING WORM)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107Q

HOUSING SUB-ASSY, STEERING W/NAME PLATE

44108C

COVER SUB-ASSY, SECTOR

44108D

RING, O(FOR SECTOR COVER)

44108D

RING, O(FOR SECTOR COVER)

44108E

RING(FOR SECTOR COVER)

44110

GEAR ASSY, POWER STEERING

44110K

GASKET KIT, POWER STEERING GEAR

44111K

GASKET KIT, POWER STEERING CROSS SHAFT OVERHAUL

44142

NUT, LOCK

44163A

RING, POWER PISTON BACK UP

44164A

RING, POWER PISTON

44165

RING, SEAL, NO.1

44166

RING, SEAL, NO.2

44167

COVER, SECTOR SHAFT DUST

44168

COVER, WORM SHAFT DUST

9161161025

Крепеж

9161161025

Крепеж
