Каталог

Европа

Модель

DYNA

VIN

Дата

1982/04

Двигатель

4 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

HU50

КПП

МКПП, 5 скоростей

Опции

правый руль HIGH FLAT DECK OPENING ON THREE SIDES BOARDING DECK WT ARL IV3

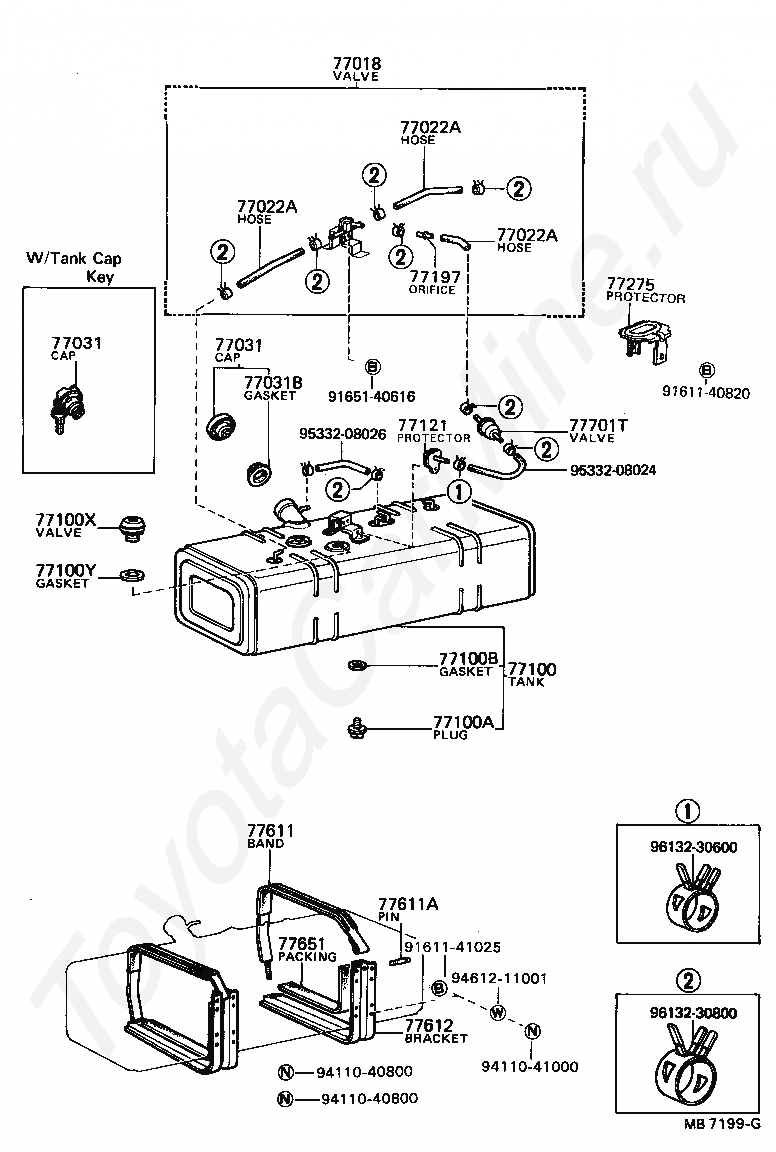

Топливный бак и горловина TOYOTA DYNA

Код

Описание

77018

VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77031

CAP ASSY, FUEL TANK

77031

CAP ASSY, FUEL TANK

77031B

GASKET (FOR FUEL TANK CAP)

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77100X

VALVE, CHECK

77100Y

GASKET(FOR CHECK VALVE)

77121

PROTECTOR, FUEL TUBE

77197

ORIFICE, FUEL VAPOR

77275

PROTECTOR, FUEL EVAPORATIVE SEPARATOR

77611

BAND, FUEL TANK

77611A

PIN (FOR FUEL TANK BAND)

77612

BRACKET SUB-ASSY, FUEL TANK

77651

PACKING, FUEL TANK BRACKET

77701T

VALVE, CHECK (FOR MAIN FUEL TANK)

9161140820

Крепеж

9161141025

Крепеж

9165140616

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411041000

Крепеж

9461211001

Крепеж

9533208024

Крепеж

9533208026

Крепеж

9613230600

Крепеж

9613230800

Крепеж

Код

Описание

2302

переход к группе запчастей

2302

переход к группе запчастей

2302

переход к группе запчастей

2302

переход к группе запчастей

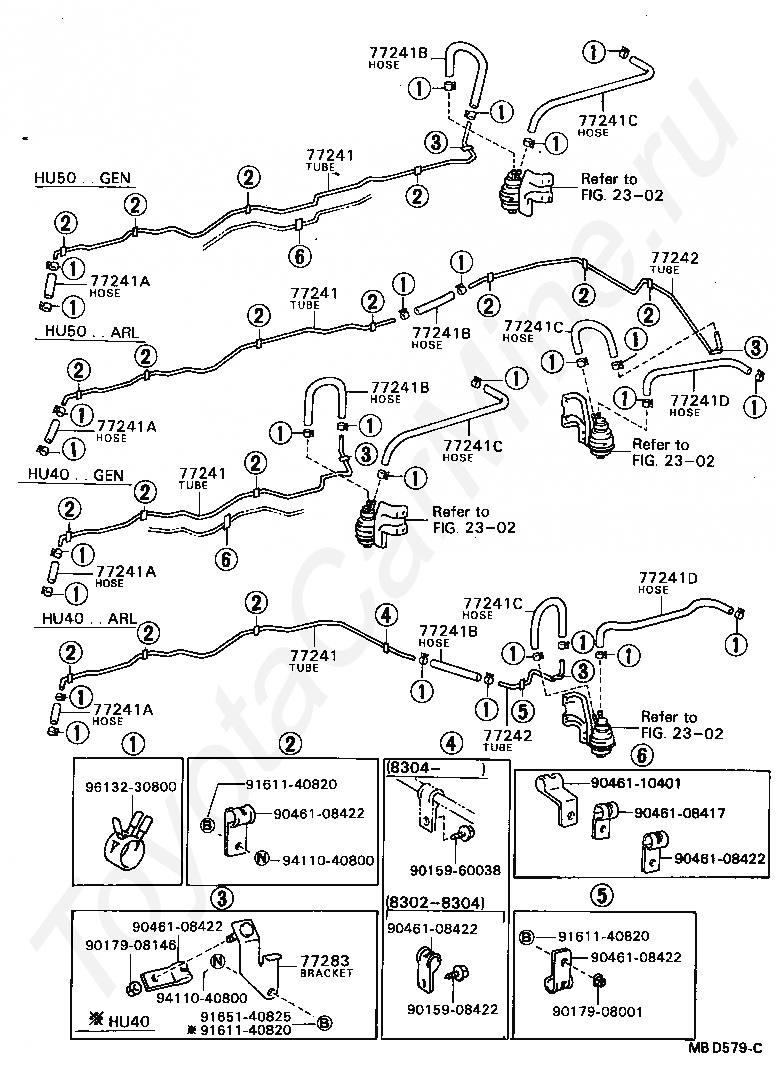

77241

TUBE, FUEL MAIN, NO.1

77241

TUBE, FUEL MAIN, NO.1

77241

TUBE, FUEL MAIN, NO.1

77241

TUBE, FUEL MAIN, NO.1

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77241C

HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)

77241C

HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)

77241C

HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)

77241C

HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)

77241D

HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)

77241D

HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)

77242

TUBE, FUEL MAIN, NO.2

77242

TUBE, FUEL MAIN, NO.2

77283

BRACKET, FUEL TUBE

9015908422

Крепеж

9015960038

Крепеж

9017908001

Крепеж

9017908146

Крепеж

9046108417

Крепеж

9046108422

Крепеж

9046108422

Крепеж

9046108422

Крепеж

9046108422

Крепеж

9046108422

Крепеж

9046110401

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9165140825

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9613230800

Крепеж
