Каталог

Европа

Модель

DYNA

VIN

Дата

1982/04

Двигатель

4 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

HU50

КПП

МКПП, 5 скоростей

Опции

правый руль HIGH FLAT DECK OPENING ON THREE SIDES BOARDING DECK WT ARL IV3

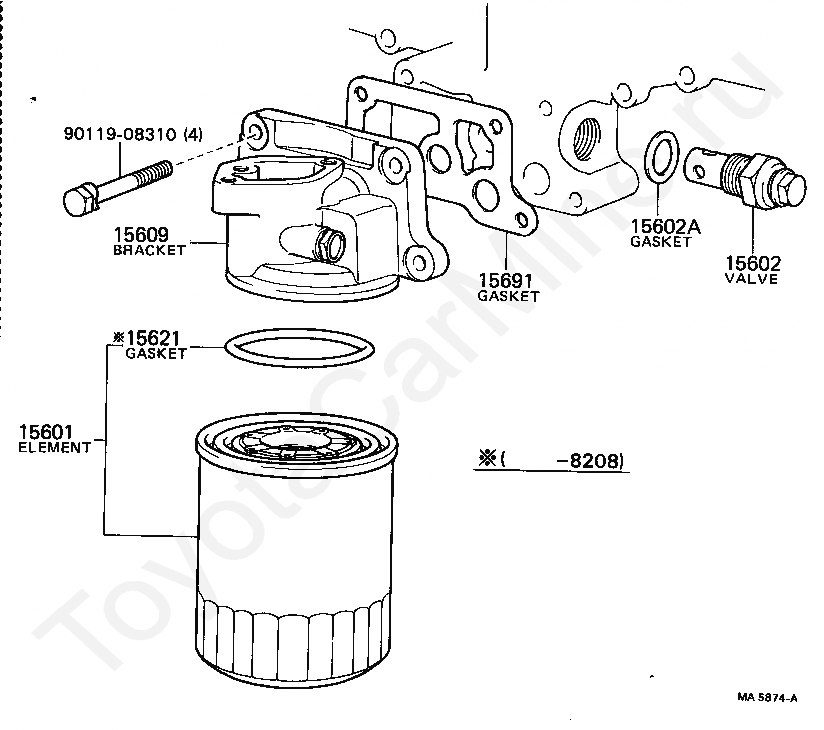

Масляный фильтр TOYOTA DYNA

Код

Описание

15601

FILTER SUB-ASSY, OIL

15602

VALVE SUB-ASSY, OIL PRESSURE

15602A

GASKET, OIL PRESSURE VALVE

15609

BRACKET SUB-ASSY, OIL FILTER

15621

GASKET, OIL FILTER BODY

15691

GASKET, OIL FILTER

9011908310

Крепеж

Код

Описание

15500

FILTER ASSY, OIL, CENTRIFUGAL

15500D

BOLT, STUD(FOR CENTRIFUGAL OIL FILTER SETTING)

15504

ROTOR SUB-ASSY, CENTRIFUGAL OIL FILTER

15505

BODY SUB-ASSY, CENTRIFUGAL OIL FILTER

15511

COVER, CENTRIFUGAL OIL FILTER

15521

SPINDLE, CENTRIFUGAL OIL FILTER

15528

GASKET, VALVE(FOR CENTRIFUGAL OIL FILTER)

15529

PLUG(FOR CENTRIFUGAL OIL FILTER)

15531

VALVE(FOR CENTRIFUGAL OIL FILTER)

15532

SPRING, VALVE(FOR CENTRIFUGAL OIL FILTER)

15535

RING, NO.5 (FOR CENTRIFUGAL OIL FILTER)

15536

SPRING(FOR CENTRIFUGAL OIL FILTER)

15541

LOCK NUT(FOR CENTRIFUGAL OIL FILTER)

15545

PACKING, BODY(FOR CENTRIFUGAL OIL FILTER)

15548

NUT, THRUST(FOR CENTRIFUGAL OIL FILTER)

15551

GASKET, CENTRIFUGAL OIL FILTER

15673

BAND, OIL FILTER CLAMP

9017908146

Крепеж

9671001006

Крепеж

Масляный фильтр TOYOTA DYNA
