Каталог

Европа

Модель

DYNA

VIN

Дата

1984/09

Двигатель

3,4 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU85

КПП

МКПП, 5 скоростей

Опции

правый руль HIGH FLAT DECK OPENING ON THREE SIDES BOARDING DECK DOUBLE TIRE GEN IV1

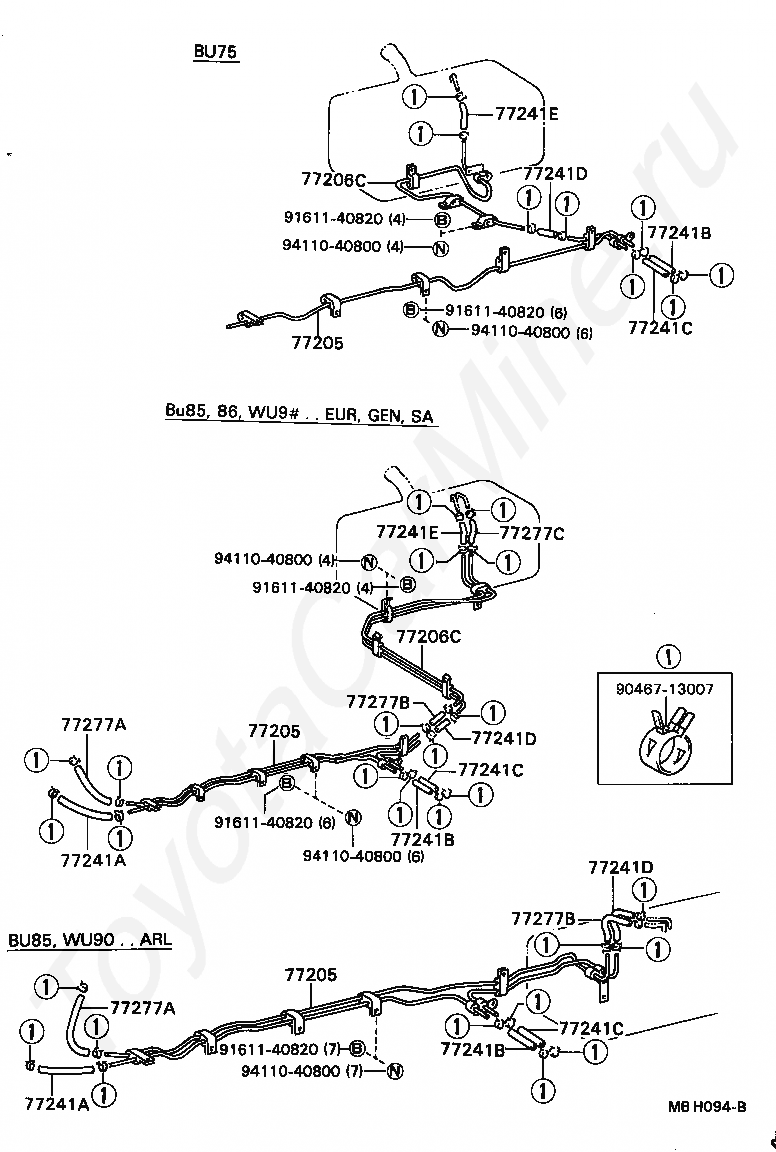

Топливный бак и горловина TOYOTA DYNA

Код

Описание

77018

VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

77018

VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77031

CAP ASSY, FUEL TANK

77031B

GASKET (FOR FUEL TANK CAP)

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77121

PROTECTOR, FUEL TUBE

77121

PROTECTOR, FUEL TUBE

77135

BRACKET, CHECK VALVE

77197

ORIFICE, FUEL VAPOR

77206

TUBE SUB-ASSY, FUEL TANK SUCTION

77275

PROTECTOR, FUEL EVAPORATIVE SEPARATOR

77611

BAND, FUEL TANK

77611A

PIN (FOR FUEL TANK BAND)

77612

BRACKET SUB-ASSY, FUEL TANK

77651

PACKING, FUEL TANK BRACKET

77701T

VALVE, CHECK (FOR MAIN FUEL TANK)

8271189104

Крепеж

9017908104

Крепеж

9017908146

Крепеж

9046110592

Крепеж

9046713007

Крепеж

9161141025

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9165140616

Крепеж

9165140616

Крепеж

9331914010

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411041000

Крепеж

9613230600

Крепеж

Код

Описание

77018

VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77031

CAP ASSY, FUEL TANK

77031B

GASKET (FOR FUEL TANK CAP)

77100

TANK ASSY, FUEL

77100T

UNION(FOR FUEL SUB-TANK)

77100T

UNION(FOR FUEL SUB-TANK)

77121

PROTECTOR, FUEL TUBE

77197

ORIFICE, FUEL VAPOR

77242B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)

77242B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)

77611

BAND, FUEL TANK

77611A

PIN (FOR FUEL TANK BAND)

77612

BRACKET SUB-ASSY, FUEL TANK

77651

PACKING, FUEL TANK BRACKET

77710

COCK ASSY, FUEL CHANGE

77712

VALVE, FUEL CHANGE COCK

77713

LEVER, FUEL CHANGE COCK

77714

CAP, FUEL CHANGE COCK

9020209047

Крепеж

9025003031

Крепеж

9038608164

Крепеж

9040112007

Крепеж

9040112007

Крепеж

9046107033

Крепеж

9046713007

Крепеж

9048014006

Крепеж

9071319019

Крепеж

9161140820

Крепеж

9161141025

Крепеж

9165140616

Крепеж

9331915010

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411041000

Крепеж

9613230600

Крепеж

9613231000

Крепеж

9671319019

Крепеж

9671319019

Крепеж

9671319019

Крепеж

9671324011

Крепеж

Код

Описание

77205

TUBE SUB-ASSY, FUEL MAIN

77205

TUBE SUB-ASSY, FUEL MAIN

77205

TUBE SUB-ASSY, FUEL MAIN

77206C

TUBE SUB-ASSY, FUEL MAIN, NO.2

77206C

TUBE SUB-ASSY, FUEL MAIN, NO.2

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77241C

HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)

77241C

HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)

77241C

HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)

77241D

HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)

77241D

HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)

77241D

HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)

77241E

HOSE, FUEL, NO.5 (FOR MAIN TUBE, NO.1)

77241E

HOSE, FUEL, NO.5 (FOR MAIN TUBE, NO.1)

77277A

HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

77277A

HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

77277B

HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

77277B

HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

77277C

HOSE, FUEL, NO.3(FOR RETURN TUBE, NO.1)

9046713007

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

Код

Описание

77205

TUBE SUB-ASSY, FUEL MAIN

77205

TUBE SUB-ASSY, FUEL MAIN

77205

TUBE SUB-ASSY, FUEL MAIN

77206C

TUBE SUB-ASSY, FUEL MAIN, NO.2

77206C

TUBE SUB-ASSY, FUEL MAIN, NO.2

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77241C

HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)

77241C

HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)

77241C

HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)

77241D

HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)

77241D

HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)

77241D

HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)

77241E

HOSE, FUEL, NO.5 (FOR MAIN TUBE, NO.1)

77241E

HOSE, FUEL, NO.5 (FOR MAIN TUBE, NO.1)

77277A

HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

77277A

HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

77277B

HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

77277B

HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

77277C

HOSE, FUEL, NO.3(FOR RETURN TUBE, NO.1)

9046713007

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

Топливный бак и горловина TOYOTA DYNA
