Каталог

Европа

Модель

DYNA

VIN

Дата

1986/04

Двигатель

3 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU81

КПП

МКПП, 5 скоростей

Опции

правый руль HIGH FLAT DECK OPENING ON THREE SIDES BOARDING DECK DOUBLE TIRE SA IV3

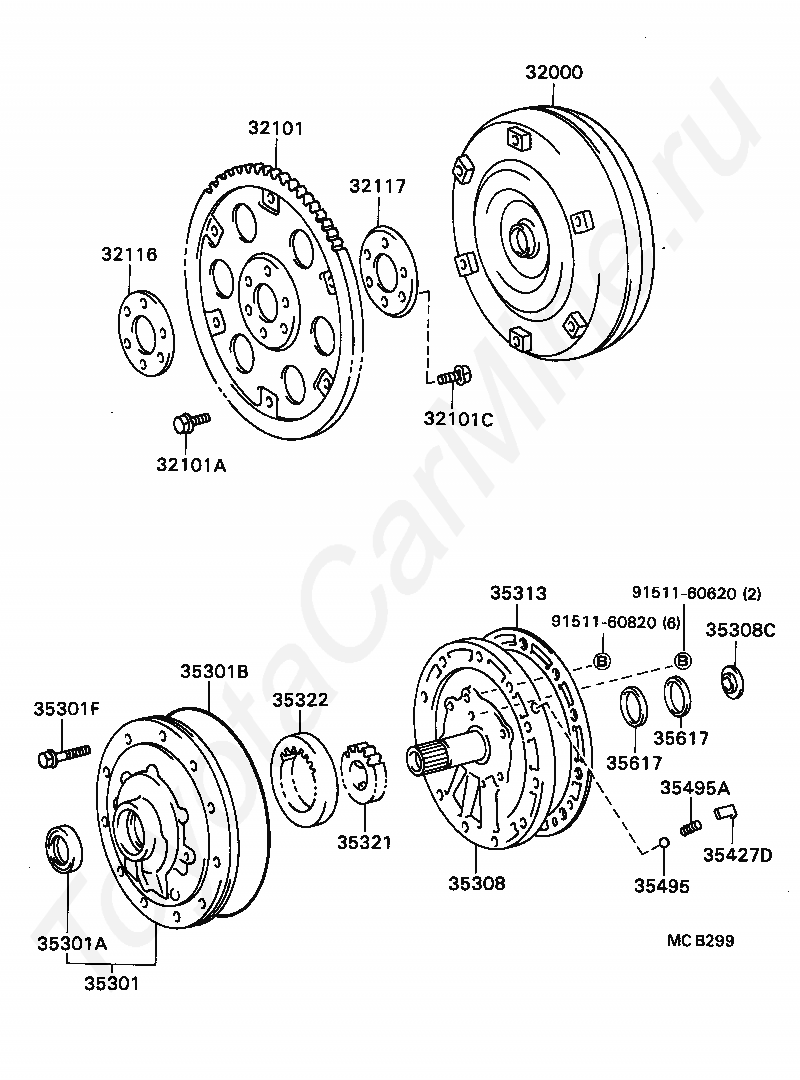

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM) TOYOTA DYNA

Код

Описание

32000

CONVERTER ASSY, TORQUE

32101

GEAR SUB-ASSY, DRIVE PLATE & RING

32101A

BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

32101C

BOLT, HEXAGON(FOR DRIVE PLATE SETTING)

32116

SPACER, DRIVE PLATE, FRONT

32117

SPACER, DRIVE PLATE, REAR

35301

BODY SUB-ASSY, FRONT OIL PUMP

35301A

SEAL, OIL (FOR FRONT OIL PUMP)

35301B

RING, O (FOR FRONT OIL PUMP BODY)

35301F

BOLT (FOR FRONT OIL PUMP SETTING)

35308

COVER SUB-ASSY, FRONT OIL PUMP

35308C

RACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)

35313

GASKET, FRONT OIL PUMP COVER

35321

GEAR, FRONT OIL PUMP DRIVE

35322

GEAR, FRONT OIL PUMP DRIVEN

35427D

SEAT, CHECK VALVE SPRING

35495

BALL, CHECK

35495A

SPRING, COMPRESSION (FOR CHECK BALL)

35617

RING, CLUTCH DRUM OIL SEAL

35617

RING, CLUTCH DRUM OIL SEAL

9151160620

Крепеж

9151160820

Крепеж

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM) TOYOTA DYNA
