Каталог

Европа

Модель

DYNA

VIN

Дата

1986/04

Двигатель

3 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU81

КПП

МКПП, 5 скоростей

Опции

правый руль HIGH FLAT DECK OPENING ON THREE SIDES BOARDING DECK DOUBLE TIRE SA IV3

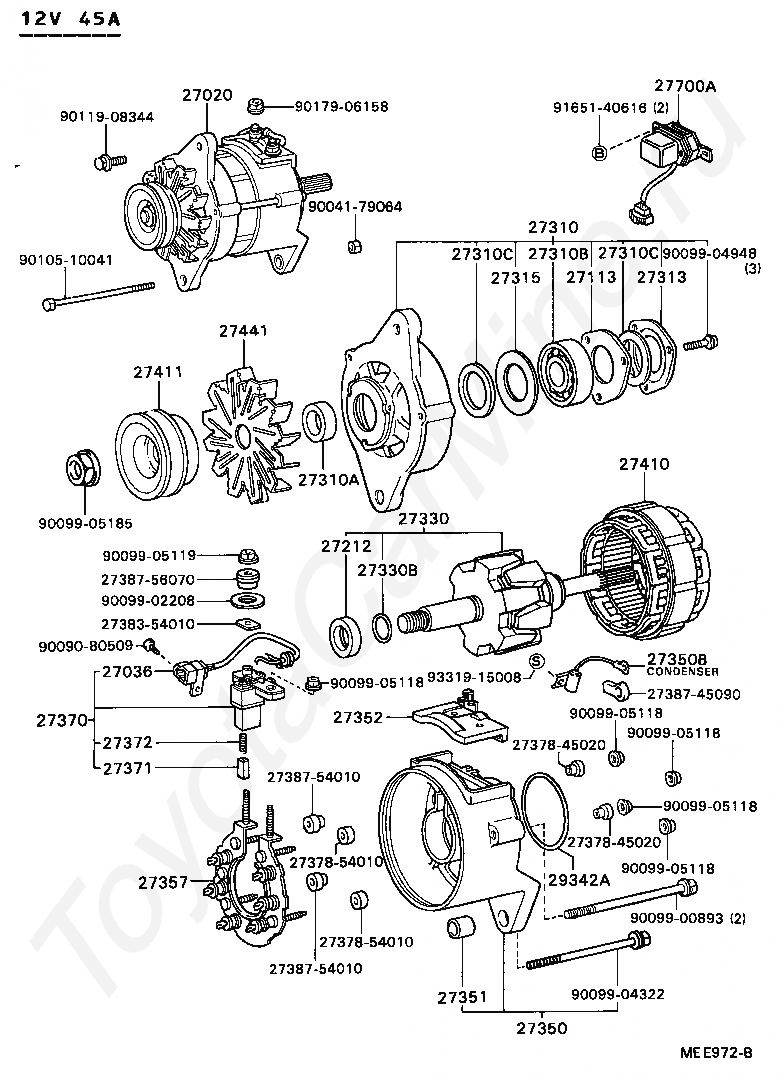

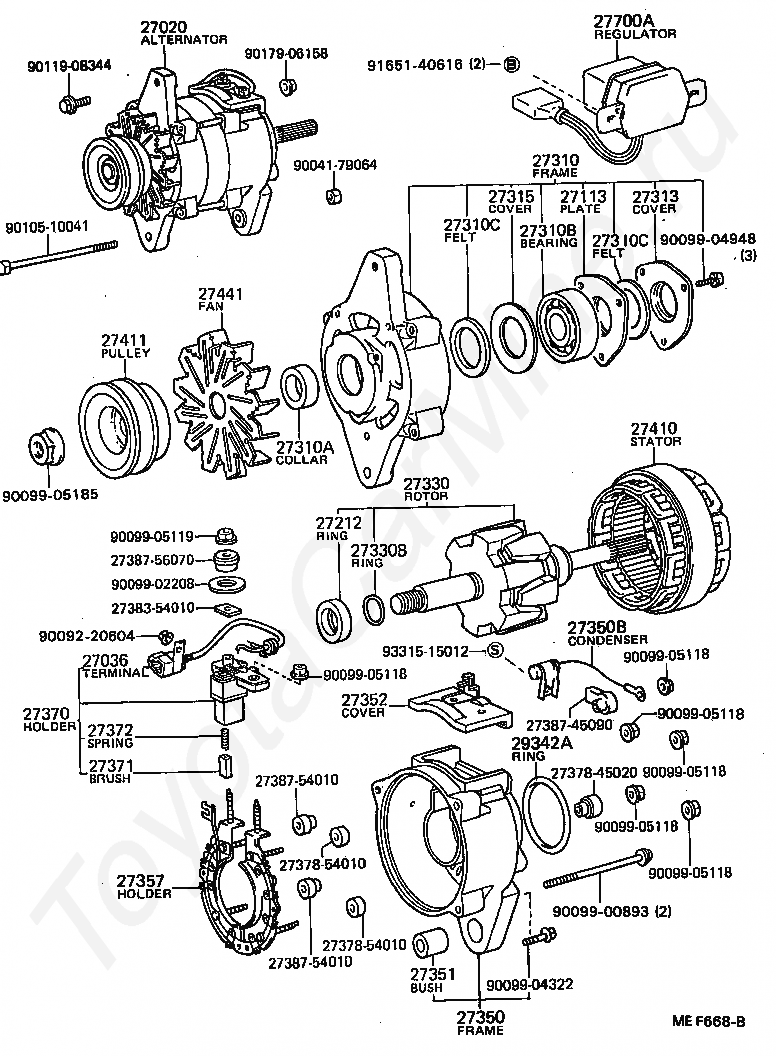

Генератор TOYOTA DYNA

Код

Описание

27020

ALTERNATOR ASSY

27036

TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR

27113

PLATE, BEARING RETAINER, ALTERNATOR

27212

RING, SPACE(FOR ALTERNATOR ROTOR)

27310

FRAME ASSY, DRIVE END, ALTERNATOR

27310A

COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

27310B

BEARING(FOR ALTERNATOR DRIVE END FRAME)

27310C

FELT(FOR ALTERNATOR DRIVE END FRAME)

27310C

FELT(FOR ALTERNATOR DRIVE END FRAME)

27313

COVER, ALTERNATOR FELT, INNER NO.2

27315

COVER, ALTERNATOR FELT, INNER NO.1

27330

ROTOR ASSY, ALTERNATOR

27330B

RING, SNAP(FOR ALTERNATOR ROTOR)

27350

FRAME ASSY, RECTIFIER END

27350B

CONDENSER, ALTERNATOR

27351

BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

27352

COVER, FRAME BRUSH

27357

HOLDER, ALTERNATOR, W/RECTIFIER

27370

HOLDER ASSY, ALTERNATOR BRUSH

27371

BRUSH, ALTERNATOR

27372

SPRING, ALTERNATOR BRUSH

2737845020

Крепеж

2737845020

Крепеж

2737854010

Крепеж

2737854010

Крепеж

2738354010

Крепеж

2738745090

Крепеж

2738754010

Крепеж

2738754010

Крепеж

2738756070

Крепеж

27410

STATOR ASSY, ALTERNATOR

27411

PULLEY, ALTERNATOR

27441

FAN, ALTERNATOR

27700A

REGULATOR ASSY, GENERATOR

29342A

PACKING, VACUUM PUMP

9004179064

Крепеж

9009080509

Крепеж

9009900893

Крепеж

9009902208

Крепеж

9009904322

Крепеж

9009904948

Крепеж

9009905118

Крепеж

9009905118

Крепеж

9009905118

Крепеж

9009905118

Крепеж

9009905118

Крепеж

9009905119

Крепеж

9009905185

Крепеж

9010510041

Крепеж

9011908344

Крепеж

9017906158

Крепеж

9165140616

Крепеж

9331915008

Крепеж

Код

Описание

27020

ALTERNATOR ASSY

27036

TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR

27113

PLATE, BEARING RETAINER, ALTERNATOR

27212

RING, SPACE(FOR ALTERNATOR ROTOR)

27310

FRAME ASSY, DRIVE END, ALTERNATOR

27310A

COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

27310B

BEARING(FOR ALTERNATOR DRIVE END FRAME)

27310C

FELT(FOR ALTERNATOR DRIVE END FRAME)

27310C

FELT(FOR ALTERNATOR DRIVE END FRAME)

27313

COVER, ALTERNATOR FELT, INNER NO.2

27315

COVER, ALTERNATOR FELT, INNER NO.1

27330

ROTOR ASSY, ALTERNATOR

27330B

RING, SNAP(FOR ALTERNATOR ROTOR)

27350

FRAME ASSY, RECTIFIER END

27350B

CONDENSER, ALTERNATOR

27351

BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

27352

COVER, FRAME BRUSH

27357

HOLDER, ALTERNATOR, W/RECTIFIER

27370

HOLDER ASSY, ALTERNATOR BRUSH

27371

BRUSH, ALTERNATOR

27372

SPRING, ALTERNATOR BRUSH

2737845020

Крепеж

2737854010

Крепеж

2737854010

Крепеж

2738354010

Крепеж

2738745090

Крепеж

2738754010

Крепеж

2738754010

Крепеж

2738756070

Крепеж

27410

STATOR ASSY, ALTERNATOR

27411

PULLEY, ALTERNATOR

27441

FAN, ALTERNATOR

27700A

REGULATOR ASSY, GENERATOR

29342A

PACKING, VACUUM PUMP

9004179064

Крепеж

9009220604

Крепеж

9009900893

Крепеж

9009902208

Крепеж

9009904322

Крепеж

9009904948

Крепеж

9009905118

Крепеж

9009905118

Крепеж

9009905118

Крепеж

9009905118

Крепеж

9009905118

Крепеж

9009905118

Крепеж

9009905119

Крепеж

9009905185

Крепеж

9010510041

Крепеж

9011908344

Крепеж

9017906158

Крепеж

9165140616

Крепеж

9331515012

Крепеж
