Каталог

Европа

Модель

DYNA

VIN

Дата

1986/04

Двигатель

3 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU81

КПП

МКПП, 5 скоростей

Опции

правый руль HIGH FLAT DECK OPENING ON THREE SIDES BOARDING DECK DOUBLE TIRE SA IV3

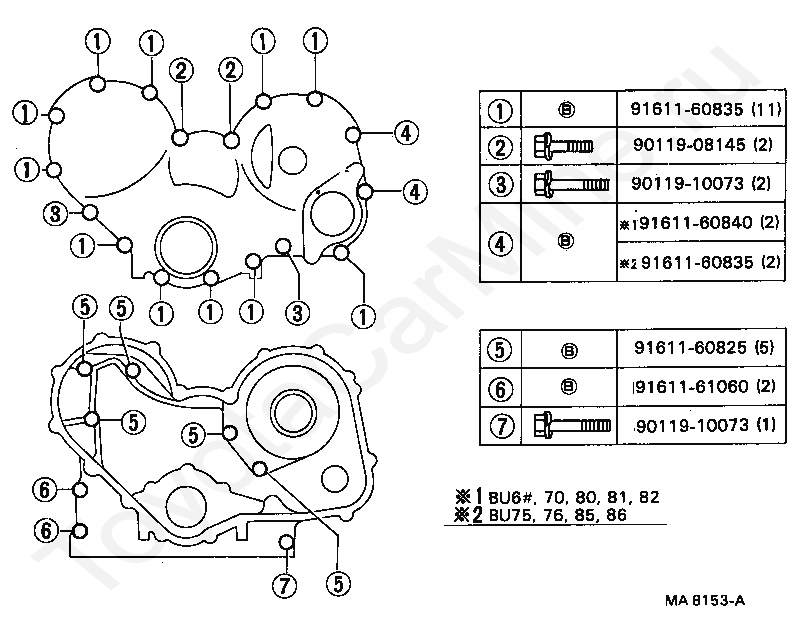

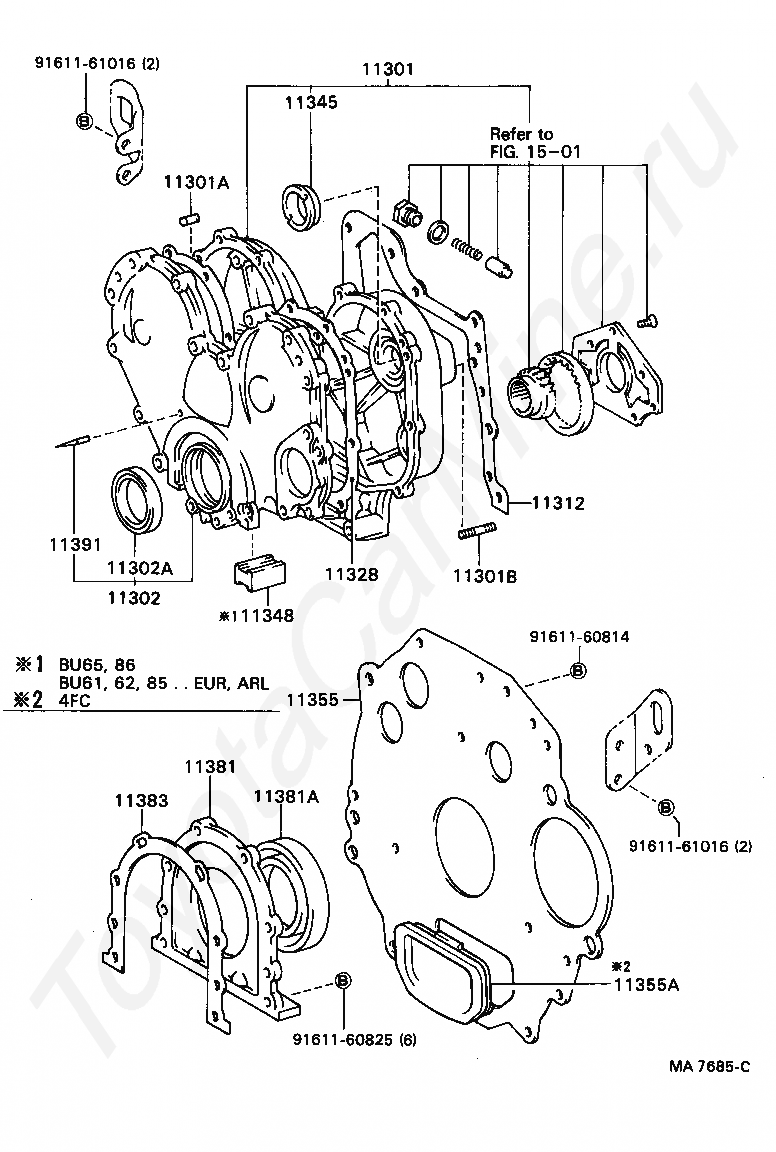

TIMING GEAR COVER & REAR END PLATE TOYOTA DYNA

Код

Описание

11301

CASE SUB-ASSY, TIMING GEAR

11301A

PIN, STRAIGHT(FOR TIMING GEAR CASE)

11301B

BOLT,STUD(FOR TIMING GEAR CASE)

11302

COVER SUB-ASSY, TIMING CHAIN OR BELT

11302A

SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

11312

GASKET, FRONT END PLATE

11328

GASKET, TIMING GEAR OR CHAIN COVER

11345

BEARING, INJECTION PUMP GEAR THRUST

11348

SPACER, TIMING GEAR COVER

11355

PLATE, REAR END

11355A

PLUG, HOLE(FOR REAR END PLATE)

11381

RETAINER, ENGINE REAR OIL SEAL

11381A

SEAL, ENGINE REAR OIL

11383

GASKET, ENGINE REAR OIL SEAL RETAINER

11391

POINTER, TIMING

1501

переход к группе запчастей

9161160814

Крепеж

9161160825

Крепеж

9161161016

Крепеж

9161161016

Крепеж

Код

Описание

9011908145

Крепеж

9011910073

Крепеж

9011910073

Крепеж

9161160825

Крепеж

9161160835

Крепеж

9161160835

Крепеж

9161160840

Крепеж

9161161060

Крепеж

TIMING GEAR COVER & REAR END PLATE TOYOTA DYNA
