Япония

Модель

DYNA

VIN

Дата

2021/03

Двигатель

4 литра, дизель

Фрейм

XZU695

КПП

механика МКПП, 5 скоростей

Опции

DOOR CONTROL BATTERY HIGH FLAT DECK OPENING ON THREE SIDES 2 тонны DOUBLE TIRE DCRWECBU 877W

Реле и кнопки TOYOTA DYNA







Код

Описание

55173A

BRACKET

8271148060

Крепеж

827153VM50

Крепеж

82715Z

BRACKET, WIRING HARNESS CLAMP

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83420A

GAGE ASSY, OIL TEMPERATURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

87190F

SWITCH ASSY, TEMPERATURE CONTROL

8918837010

Крепеж

89420M

SENSOR ASSY, AIR PRESSURE

89424B

SWITCH, INLET AIR TEMPERATURE

89425

SENSOR, EXHAUST GAS TEMPERATURE

89425

SENSOR, EXHAUST GAS TEMPERATURE

89425A

SENSOR, EXHAUST GAS TEMPERATURE, NO.2

89425A

SENSOR, EXHAUST GAS TEMPERATURE, NO.2

89425A

SENSOR, EXHAUST GAS TEMPERATURE, NO.2

89425A

SENSOR, EXHAUST GAS TEMPERATURE, NO.2

89425A

SENSOR, EXHAUST GAS TEMPERATURE, NO.2

89425C

SENSOR, EXHAUST GAS TEMPERATURE, NO.4

89439

BRACKET, SENSOR

89439D

BRACKET, SENSOR, NO.1

89458D

SENSOR, FUEL PRESSURE

89458G

SENSOR, FUEL PRESSURE, NO.2

89463A

SENSOR, NITROGEN OXIDES

89463A

SENSOR, NITROGEN OXIDES

89481B

SENSOR, DIFFERENTIAL PRESSURE

9011910883

Крепеж

9155180825

Крепеж

9155180825

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180800

Крепеж

9415180800

Крепеж

SH51110614

Крепеж

SL72201010

Крепеж

SZ43010004

Крепеж

SZ43010004

Крепеж

SZ43010005

Крепеж

SZ43010005

Крепеж

SZ43010005

Крепеж

SZ43014002

Крепеж

Код

Описание

55173A

BRACKET

55173F

BRACKET, ELECTRICAL PART

55173G

BRACKET, ELECTRICAL PART, NO.2

8271148060

Крепеж

827153VM50

Крепеж

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

8918837010

Крепеж

89420M

SENSOR ASSY, AIR PRESSURE

89424B

SWITCH, INLET AIR TEMPERATURE

89425

SENSOR, EXHAUST GAS TEMPERATURE

89425

SENSOR, EXHAUST GAS TEMPERATURE

89425A

SENSOR, EXHAUST GAS TEMPERATURE, NO.2

89425A

SENSOR, EXHAUST GAS TEMPERATURE, NO.2

89425A

SENSOR, EXHAUST GAS TEMPERATURE, NO.2

89425A

SENSOR, EXHAUST GAS TEMPERATURE, NO.2

89425A

SENSOR, EXHAUST GAS TEMPERATURE, NO.2

89425C

SENSOR, EXHAUST GAS TEMPERATURE, NO.4

89437

COVER, SENSOR

89437B

COVER, SENSOR

89439

BRACKET, SENSOR

89439D

BRACKET, SENSOR, NO.1

89458D

SENSOR, FUEL PRESSURE

89458G

SENSOR, FUEL PRESSURE, NO.2

89463A

SENSOR, NITROGEN OXIDES

89463A

SENSOR, NITROGEN OXIDES

89481B

SENSOR, DIFFERENTIAL PRESSURE

9011910883

Крепеж

9155180825

Крепеж

9155180825

Крепеж

9155180825

Крепеж

9167180825

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180800

Крепеж

9415180800

Крепеж

9415180800

Крепеж

SH51110614

Крепеж

SL72201010

Крепеж

SZ43010004

Крепеж

SZ43010004

Крепеж

SZ43010005

Крепеж

SZ43014002

Крепеж

Код

Описание

55173A

BRACKET

8271148060

Крепеж

827153VM31

Крепеж

82715Z

BRACKET, WIRING HARNESS CLAMP

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83420A

GAGE ASSY, OIL TEMPERATURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

87190F

SWITCH ASSY, TEMPERATURE CONTROL

8918837010

Крепеж

89420M

SENSOR ASSY, AIR PRESSURE

89424B

SWITCH, INLET AIR TEMPERATURE

89425

SENSOR, EXHAUST GAS TEMPERATURE

89425

SENSOR, EXHAUST GAS TEMPERATURE

89425A

SENSOR, EXHAUST GAS TEMPERATURE, NO.2

89425A

SENSOR, EXHAUST GAS TEMPERATURE, NO.2

89425A

SENSOR, EXHAUST GAS TEMPERATURE, NO.2

89425A

SENSOR, EXHAUST GAS TEMPERATURE, NO.2

89425B

SENSOR, EXHAUST GAS TEMPERATURE, NO.3

89439

BRACKET, SENSOR

89439D

BRACKET, SENSOR, NO.1

89458D

SENSOR, FUEL PRESSURE

89458G

SENSOR, FUEL PRESSURE, NO.2

89463A

SENSOR, NITROGEN OXIDES

89463A

SENSOR, NITROGEN OXIDES

89481B

SENSOR, DIFFERENTIAL PRESSURE

9155180825

Крепеж

9155180825

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180800

Крепеж

9415180800

Крепеж

SH51110614

Крепеж

SH55210816

Крепеж

SL72201010

Крепеж

SZ43010004

Крепеж

SZ43010004

Крепеж

SZ43010005

Крепеж

SZ43010005

Крепеж

SZ43010005

Крепеж

SZ43014002

Крепеж

Код

Описание

827111E340

Крепеж

84113A

BRACKET, SWITCH, NO.1

84210

SWITCH ASSY, BACK-UP LAMP

84220C

SWITCH ASSY, TRANSMISSION POSITION INDICATOR

84220C

SWITCH ASSY, TRANSMISSION POSITION INDICATOR

84540

SWITCH ASSY, NEUTRAL START

84540

SWITCH ASSY, NEUTRAL START

9155180816

Крепеж

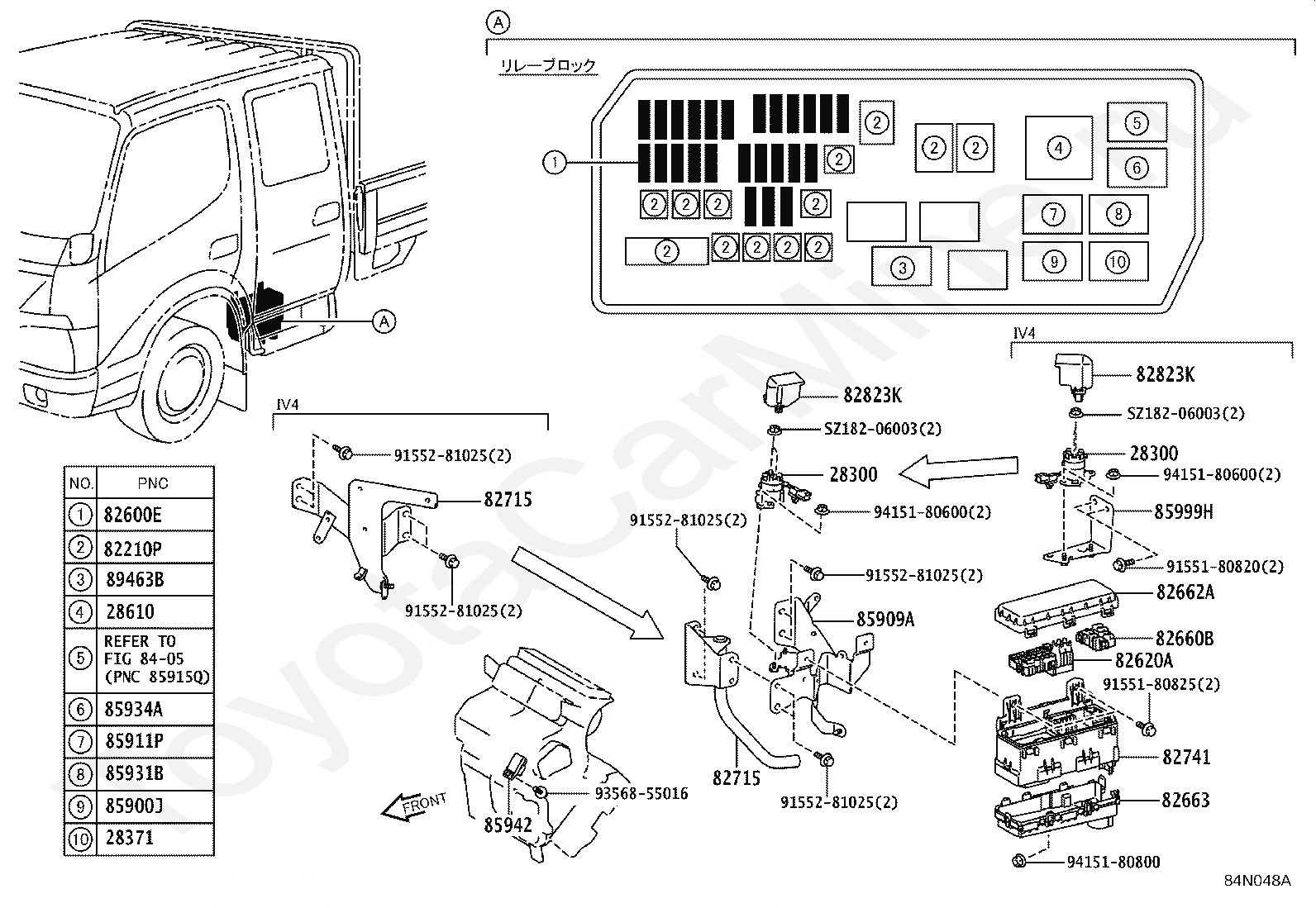

Код

Описание

28300

RELAY ASSY, STARTER

28300

RELAY ASSY, STARTER

28371

RELAY, IGNITION, NO.1

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

82210P

ENGINE ROOM FUSIBLE LINK

82600E

ENGINE ROOM FUSE

82620A

BLOCK ASSY, FUSIBLE LINK

82660B

BLOCK ASSY, RELAY

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82663

COVER, RELAY BLOCK, LOWER

82715

BRACKET,WIRING HARNESS CLAMP

82715

BRACKET,WIRING HARNESS CLAMP

82741

BLOCK, ENGINE ROOM RELAY

82823K

CAP, TERMINAL

82823K

CAP, TERMINAL

8405

переход к группе запчастей

85900J

RELAY, BRAKE LOCK

85909A

BRACKET SUB-ASSY, RELAY BLOCK

85911P

RELAY, ACTUATOR POWER

85931B

RELAY, FUEL HEATER

85934A

RELAY CONDENSER FAN

85942

RELAY, HEADLAMP CLEANER CONTROL

85999H

BRACKET, RELAY

89463B

RELAY, NITROGEN OXIDES

9155180820

Крепеж

9155180825

Крепеж

9155281025

Крепеж

9155281025

Крепеж

9155281025

Крепеж

9155281025

Крепеж

9155281025

Крепеж

9356855016

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180800

Крепеж

SZ18206003

Крепеж

SZ18206003

Крепеж

Код

Описание

81713

HOLDER, FUSEE

82600D

INSTRUMENT PANEL FUSE

82600G

PLATE, CAUTION(FOR FUSE)

82616

PULLER, FUSE

82641

RELAY, INTEGRATION NO.1

82730A

BLOCK ASSY, DRIVER SIDE JUNCTION

83650

FUSEE

8413

переход к группе запчастей

8413

переход к группе запчастей

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

84640C

SWITCH ASSY, EXHAUST RETARDER

85900C

RELAY ASSY, CONTROL UNIT (FOR BRAKE LOCK)

85933

COMPUTER, SHIFT LOCK CONTROL

86210E

CONVERTER ASSY, VOLTAGE

88150A

COMPUTER ASSY, DRIVING SUPPORT

89050

COMPUTER ASSY, PARKING BRAKE

89279A

COVER, COMPUTER

89280

SENSOR ASSY, CLUTCH PEDAL STROKE

89530C

COMPUTER ASSY, TRANSMISSION CONTROL

89539E

BRACKET, COMPUTER

89539Q

BRACKET, COMPUTER

89539Q

BRACKET, COMPUTER

89880

COMPUTER ASSY, ELECTRIC VEHICLE CONTROL

9011906536

Крепеж

9014860013

Крепеж

9015950322

Крепеж

9046707211

Крепеж

9155180610

Крепеж

9155180610

Крепеж

9155180610

Крепеж

9155180610

Крепеж

9155180612

Крепеж

9155180612

Крепеж

9155180612

Крепеж

9155180612

Крепеж

9155180814

Крепеж

9155180816

Крепеж

9412041000

Крепеж

9415180600

Крепеж

Код

Описание

28300D

RELAY, STARTER CUT

84512B

RELAY, TILT CAB CONTROL

84520B

RELAY, CLUTCH START

85440B

RELAY(FOR FOUR WHEEL DRIVE CONTROL)

85900E

RELAY, IDLE STOP

85900E

RELAY, IDLE STOP

85900F

RELAY, BATTERY SWITCH

85900Q

RELAY, TAIL

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85912D

RELAY

85916C

RELAY, BACK UP LAMP

85916P

RELAY, HEADLAMP

85916U

RELAY, HEADLAMP, NO.2

85919E

RELAY, STOP LAMP

85930G

RELAY, ACC

85934

RELAY, MAGNET-CLUTCH

85934B

RELAY, IDLE STOP

Код

Описание

83950M

LAMP ASSY, TELLTALE

8413

переход к группе запчастей

8413

переход к группе запчастей

8413

переход к группе запчастей

84150D

SWITCH ASSY, HEADLAMP CLEANER

84152

SWITCH, HEADLAMP LEVELING

84160

SWITCH ASSY, ROOM LAMP

8420

переход к группе запчастей

84270A

SWITCH ASSY, MIRROR HEATER

84270B

SWITCH ASSY, BRAKE LOCK

84270D

SWITCH ASSY, ES START TIMING

84270K

SWITCH ASSY, DPR

84270L

SWITCH ASSY, IDLE STOP

84270L

SWITCH ASSY, IDLE STOP

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84480

SWITCH ASSY, MAIN

84490J

SWITCH ASSY, CLEARANCE SONAR

84724

SWITCH, 4 WHEEL DRIVE CONTROL

84770A

SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL

84810G

SWITCH ASSY, POWER WINDOW REGULATOR, REAR NO.2

84810G

SWITCH ASSY, POWER WINDOW REGULATOR, REAR NO.2

84873A

SWITCH, RETRACTABLE OUTER MIRROR

84986C

SWITCH, VSC OFF

87290F

SWITCH ASSY, ECO

87290F

SWITCH ASSY, ECO

Код

Описание

7851

переход к группе запчастей

7851

переход к группе запчастей

84580E

SWITCH ASSY, THROTTLE POSITION

85500

LIGHTER ASSY, CIGARETTE

85513

COVER, CIGARETTE LIGHTER

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

85530D

SOCKET ASSY, POWER OUTLET, NO.2

85533

LENS, CIGARETTE LIGHTER INDICATOR

85533

LENS, CIGARETTE LIGHTER INDICATOR

85535E

COVER, POWER OUTLET SOCKET, NO.2

Код

Описание

4501

переход к группе запчастей

4504

переход к группе запчастей

84052

SWITCH ASSY, UN-LOCK WARNING

84140

SWITCH ASSY, HEADLAMP DIMMER

84247A

SWITCH, STEERING PAD, LH

84306

CABLE SUB-ASSY, SPIRAL

84307

CABLE SUB-ASSY, SPIRAL W/SENSOR

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

85432

SOLENOID, KEY INTER LOCK

89245B

SENSOR, STEERING

9015950199

Крепеж

9016840129

Крепеж

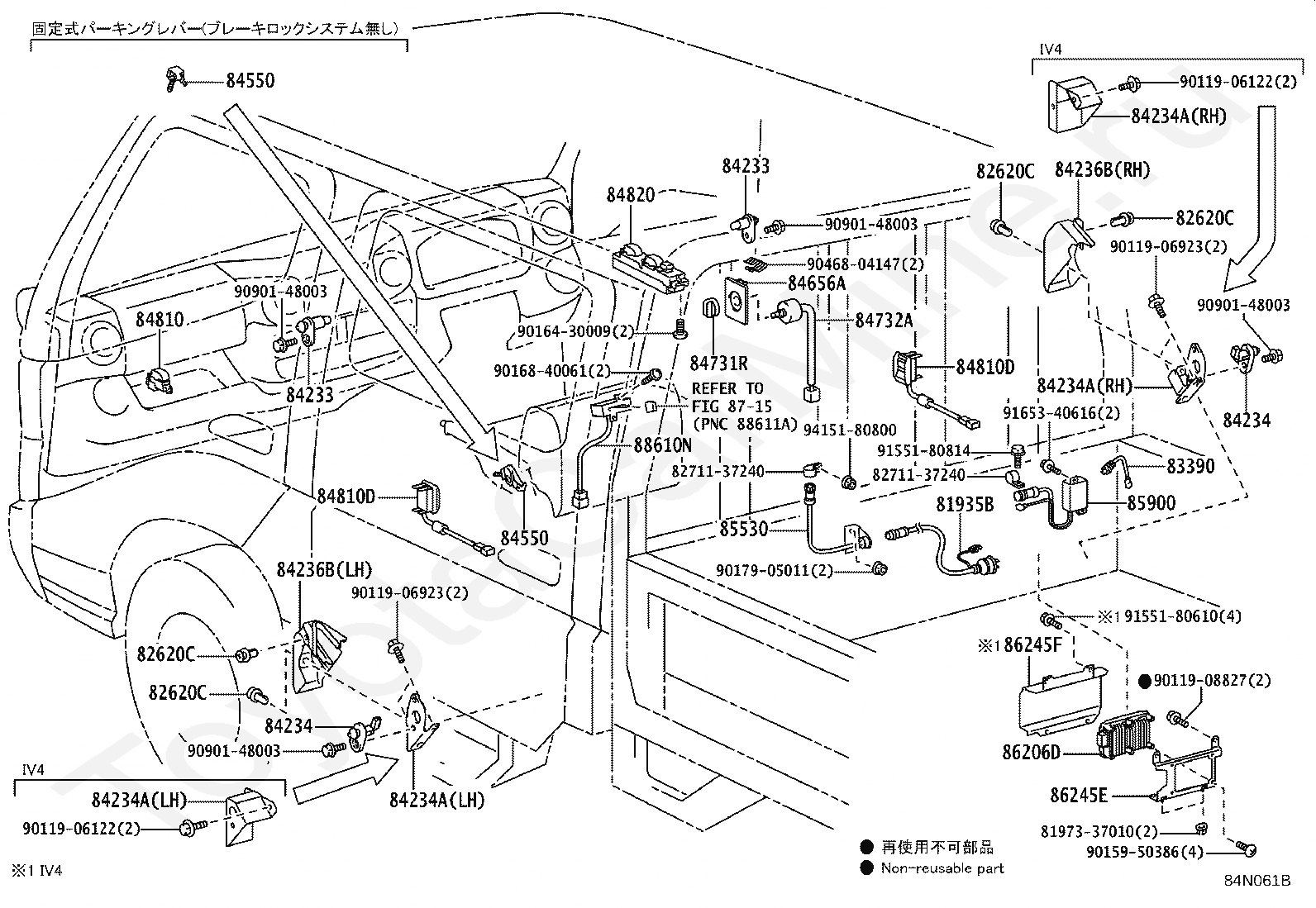

Код

Описание

81935B

CORD ASSY, OIL PAN HEATER

8197337010

Крепеж

82620C

CLIP

82620C

CLIP

82620C

CLIP

82620C

CLIP

8271137240

Крепеж

8271137240

Крепеж

83390

SWITCH ASSY, VACUUM WARNING

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234A

BRACKET, COURTESY LAMP SWITCH (FOR REAR DOOR)

84234A

BRACKET, COURTESY LAMP SWITCH (FOR REAR DOOR)

84234A

BRACKET, COURTESY LAMP SWITCH (FOR REAR DOOR)

84234A

BRACKET, COURTESY LAMP SWITCH (FOR REAR DOOR)

84236B

COVER, COURTESY LAMP SWITCH

84236B

COVER, COURTESY LAMP SWITCH

84550

SWITCH ASSY, PARKING BRAKE

84550

SWITCH ASSY, PARKING BRAKE

84656A

BEZEL, SWITCH

84731R

KNOB, REAR HEATER BLOWER SWITCH

84732A

SWITCH, REAR HEATER BLOWER

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

85530

SOCKET ASSY, POWER OUTLET, NO.1

85900

RELAY ASSY, CONTROL UNIT

86206D

CONVERTER SUB-ASSY, VOLTAGE

86245E

BRACKET, VOLTAGE CONVERTER, NO.3

86245F

BRACKET, VOLTAGE CONVERTER, NO.4

8715

переход к группе запчастей

88610N

SWITCH ASSY, COOLER CONTROL

9011906122

Крепеж

9011906122

Крепеж

9011906923

Крепеж

9011906923

Крепеж

9011908827

Крепеж

9015950386

Крепеж

9016430009

Крепеж

9016840061

Крепеж

9017905011

Крепеж

9046804147

Крепеж

9090148003

Крепеж

9090148003

Крепеж

9090148003

Крепеж

9090148003

Крепеж

9155180610

Крепеж

9155180814

Крепеж

9165340616

Крепеж

9415180800

Крепеж

Код

Описание

5251

переход к группе запчастей

84290

SWITCH ASSY, LIMIT

84290

SWITCH ASSY, LIMIT

84290E

SWITCH ASSY, LIMIT

84512

SWITCH, TILT CAB CONTROL

84512

SWITCH, TILT CAB CONTROL

84513A

BRACKET, TILT CAB STARTER SWITCH

84513B

BRACKET, TILT CAB STARTER SWITCH

85900H

RELAY ASSY, CONTROL UNIT(FOR TILT CAB)

86650P

BUZZER ASSY, TILT WARNING

9015940215

Крепеж

9015940215

Крепеж

9015940215

Крепеж

9155180616

Крепеж

9155180616

Крепеж

9155180820

Крепеж

9165160616

Крепеж

9165160616

Крепеж

9415180600

Крепеж

Код

Описание

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

83361

GASKET, FUEL SENDER GAGE

83361

GASKET, FUEL SENDER GAGE

86650E

BUZZER ASSY

86650H

BUZZER ASSY, BACK

91611B0816

Крепеж

91611B0816

Крепеж

93319A4010

Крепеж

93319A4010

Крепеж

9413000802

Крепеж

SZ11905003

Крепеж

SZ11905003

Крепеж

> Запчасти DYNA > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
