Каталог

Япония

Модель

DYNA

VIN

Дата

2021/08

Двигатель

2,8 литра, турбо-дизель

Фрейм

GDY231

КПП

механика МКПП, 5 скоростей

Опции

SINGLE CARBURETOR:SINGLE CAB (FULL JUST LOW) 1,75 тонн DOUBLE TIRE DCRL CBU 873W

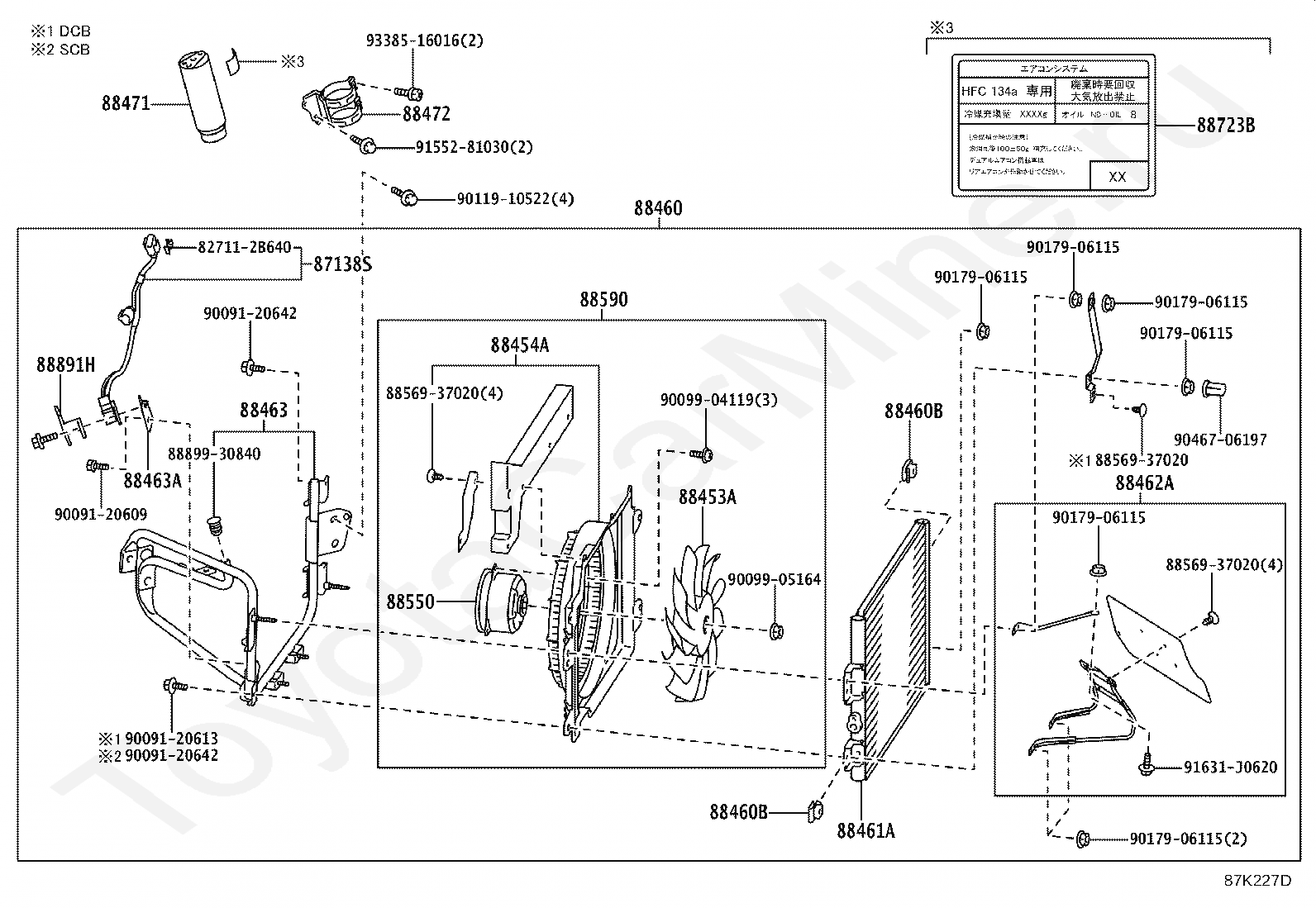

Кондиционер: охлаждающие трубки TOYOTA DYNA

Код

Описание

827112B640

Крепеж

87138S

RESISTOR, BLOWER

88453A

FAN, COOLING

88454A

SHROUD, FAN

88460

CONDENSER ASSY, COOLER

88460B

BRACKET, COOLER CONDENSER, NO.1

88460B

BRACKET, COOLER CONDENSER, NO.1

88461A

CORE, COOLER CONDENSER

88462A

HOLDER, CONDENSER

88463

BRACKET, COOLER CONDENSER, NO.1

88463A

BRACKET, COOLER CONDENSER, NO.2

88471

TANK, RECEIVER AIR CONDITIONER

88472

BRACKET, RECEIVER TANK, NO.1

88550

MOTOR ASSY, BLOWER (FOR CONDENSER)

8856937020

Крепеж

8856937020

Крепеж

8856937020

Крепеж

88590

BLOWER ASSY, W/SHROUD

88723B

LABEL, COOLER SERVICE CAUTION

88891H

COVER, COOLER, NO.1

8889930840

Крепеж

9009120609

Крепеж

9009120613

Крепеж

9009120642

Крепеж

9009120642

Крепеж

9009904119

Крепеж

9009905164

Крепеж

9011910522

Крепеж

9017906115

Крепеж

9017906115

Крепеж

9017906115

Крепеж

9017906115

Крепеж

9017906115

Крепеж

9017906115

Крепеж

9046706197

Крепеж

9155281030

Крепеж

91631J0620

Крепеж

9338516016

Крепеж

Код

Описание

8714

переход к группе запчастей

8719

переход к группе запчастей

88374B

VALVE, SERVICE, NO.1

88374C

VALVE, SERVICE, NO.2

88374F

RING, O, NO.1 (FOR SERCIVE VALVE)

88375B

CAP, SERVICE VALVE, NO.1

88375D

CAP, SERVICE VALVE, NO.2

88689E

BRACKET, COOLER, NO.1

88689F

BRACKET, COOLER, NO.2

88689G

BRACKET, COOLER, NO.3

88689J

BRACKET, COOLER, NO.5

88689K

BRACKET, COOLER, NO.6

88689U

BRACKET, COOLER, NO.15

88704

HOSE SUB-ASSY, SUCTION

88704B

RING, O(FOR SUCTION HOSE)

88711

HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

88711B

RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)

88712

HOSE, COOLER REFRIGERANT SUCTION, NO.1

88712A

RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

88712A

RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

88715R

RING, O(FOR DISCHARGE TUBE)

88715R

RING, O(FOR DISCHARGE TUBE)

88715U

TUBE, DISCHARGE, NO.1

88716A

PIPE, COOLER REFRIGERANT LIQUID, A

88716B

PIPE, COOLER REFRIGERANT LIQUID, B

88718A

CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

88718B

CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

88718C

CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)

88718C

CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)

88718C

CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)

88719A

SENSOR, AIR CONDITIONER PRESSURE

88721A

HOSE, LIQUID, A

88721F

RING, O, NO.1 (FOR LIQUID HOSE)

88721F

RING, O, NO.1 (FOR LIQUID HOSE)

88G15L

INSULATOR, DISCHARGE TUBE, NO.1

88G15L

INSULATOR, DISCHARGE TUBE, NO.1

88G16A

RING, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)

88G16B

RING, O, NO.2(FOR COOLER REFRIGERANT LIQUID PIPE)

88G16B

RING, O, NO.2(FOR COOLER REFRIGERANT LIQUID PIPE)

9004464009

Крепеж

9004464009

Крепеж

9009900275

Крепеж

9009900275

Крепеж

91511B0630

Крепеж

91511B0630

Крепеж

9155180625

Крепеж

9155180625

Крепеж

9155180625

Крепеж

9155180625

Крепеж

9155180814

Крепеж

9155180814

Крепеж

9155180816

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9165160645

Крепеж

9338515010

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

Код

Описание

8714

переход к группе запчастей

8719

переход к группе запчастей

88374B

VALVE, SERVICE, NO.1

88374C

VALVE, SERVICE, NO.2

88374F

RING, O, NO.1 (FOR SERCIVE VALVE)

88375B

CAP, SERVICE VALVE, NO.1

88375D

CAP, SERVICE VALVE, NO.2

88689E

BRACKET, COOLER, NO.1

88689F

BRACKET, COOLER, NO.2

88689G

BRACKET, COOLER, NO.3

88689J

BRACKET, COOLER, NO.5

88689K

BRACKET, COOLER, NO.6

88689U

BRACKET, COOLER, NO.15

88704

HOSE SUB-ASSY, SUCTION

88704B

RING, O(FOR SUCTION HOSE)

88711

HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

88711B

RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)

88712

HOSE, COOLER REFRIGERANT SUCTION, NO.1

88712A

RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

88712A

RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

88715R

RING, O(FOR DISCHARGE TUBE)

88715R

RING, O(FOR DISCHARGE TUBE)

88715U

TUBE, DISCHARGE, NO.1

88716A

PIPE, COOLER REFRIGERANT LIQUID, A

88716B

PIPE, COOLER REFRIGERANT LIQUID, B

88718A

CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

88718B

CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

88718C

CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)

88718C

CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)

88718C

CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)

88719A

SENSOR, AIR CONDITIONER PRESSURE

88721A

HOSE, LIQUID, A

88721F

RING, O, NO.1 (FOR LIQUID HOSE)

88721F

RING, O, NO.1 (FOR LIQUID HOSE)

88721F

RING, O, NO.1 (FOR LIQUID HOSE)

88G15L

INSULATOR, DISCHARGE TUBE, NO.1

88G15L

INSULATOR, DISCHARGE TUBE, NO.1

88G16A

RING, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)

88G16B

RING, O, NO.2(FOR COOLER REFRIGERANT LIQUID PIPE)

88G16B

RING, O, NO.2(FOR COOLER REFRIGERANT LIQUID PIPE)

9004464009

Крепеж

9004464009

Крепеж

9009900275

Крепеж

9009900275

Крепеж

91511B0630

Крепеж

91511B0630

Крепеж

9155180625

Крепеж

9155180625

Крепеж

9155180625

Крепеж

9155180625

Крепеж

9155180814

Крепеж

9155180814

Крепеж

9155180816

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9165160645

Крепеж

9338515010

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

Код

Описание

8714

переход к группе запчастей

88689K

BRACKET, COOLER, NO.6

88689L

BRACKET, COOLER, NO.7

88689M

BRACKET, COOLER, NO.8

88689N

BRACKET, COOLER, NO.9

88689R

BRACKET, COOLER, NO.12

88689S

BRACKET, COOLER, NO.13

88689T

BRACKET, COOLER, NO.14

88712B

HOSE, COOLER REFRIGERANT SUCTION

88712C

HOSE, SUCTION

88712D

HOSE, SUCTION

88712E

RING, O, NO.2 (FOR COOLER REFRIGERANT SUCTION HOSE)

88712F

INSULATOR, SUCTION HOSE, NO.1

88712G

RING, O, NO.3 (FOR COOLER REFRIGERANT SUCTION HOSE)

88712H

RING, O, NO.4 (FOR COOLER REFRIGERANT SUCTION HOSE)

88712H

RING, O, NO.4 (FOR COOLER REFRIGERANT SUCTION HOSE)

88716C

PIPE, COOLER REFRIGERANT LIQUID, C

88717U

TUBE, SUCTION, NO.1

88717Y

RING, O, NO.1(FOR SUCTION TUBE)

88718D

CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)

88718E

CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)

88718E

CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)

88718N

CLAMP, PIPING

88718U

CLAMP, NO.6(FOR COOLER REFRIGERANT PIPE)

88718V

CLAMP, NO.7(FOR COOLER REFRIGERANT PIPE)

88718V

CLAMP, NO.7(FOR COOLER REFRIGERANT PIPE)

88718W

CLAMP, NO.8 (FOR COOLER REFRIGERANT PIPE)

88721B

HOSE, LIQUID, B

88721D

HOSE, LIQUID, C

88721E

HOSE, LIQUID, D

88721G

RING, O, NO.2 (FOR LIQUID HOSE)

88721H

RING, O, NO.3 (FOR LIQUID HOSE)

88721J

RING, O, NO.4 (FOR LIQUID HOSE)

88721J

RING, O, NO.4 (FOR LIQUID HOSE)

9004464009

Крепеж

9009120609

Крепеж

9009120609

Крепеж

9009120609

Крепеж

9009120609

Крепеж

9009900275

Крепеж

9155180814

Крепеж

9155180814

Крепеж

9155180814

Крепеж

9155180814

Крепеж

9155180814

Крепеж

9155180814

Крепеж

9165160616

Крепеж

9415180600

Крепеж

9415180600

Крепеж

Кондиционер: охлаждающие трубки TOYOTA DYNA
